Will this work with a mini Mac?

You Will Need an adapter, This Monitor only has a VGA port, Depending on what Mac Mini Version you have, You either have an HDMI port or a DVI Port. So you need a VGA TO DVI Or A VGA TO HDMI Adapter.

Is this compatble with Windows 10?

We are using it on Windows 10. Works great.

Is there mounting holes on the bottom?

The mounting holes are how the stand is attached. In our usage, we remove the stand, and the 4 holes line up perfectly for our VESA Mounts, and we end up using the screws already on the stand, to secure the VESA Mount.

compatible with windows 8?

Sorry I haven't tested it with Windows 8, only with Win 7 but it works great only had to install a driver. I would think there shouldn't be a problem with Win 8 which was built for touch screens such as this.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

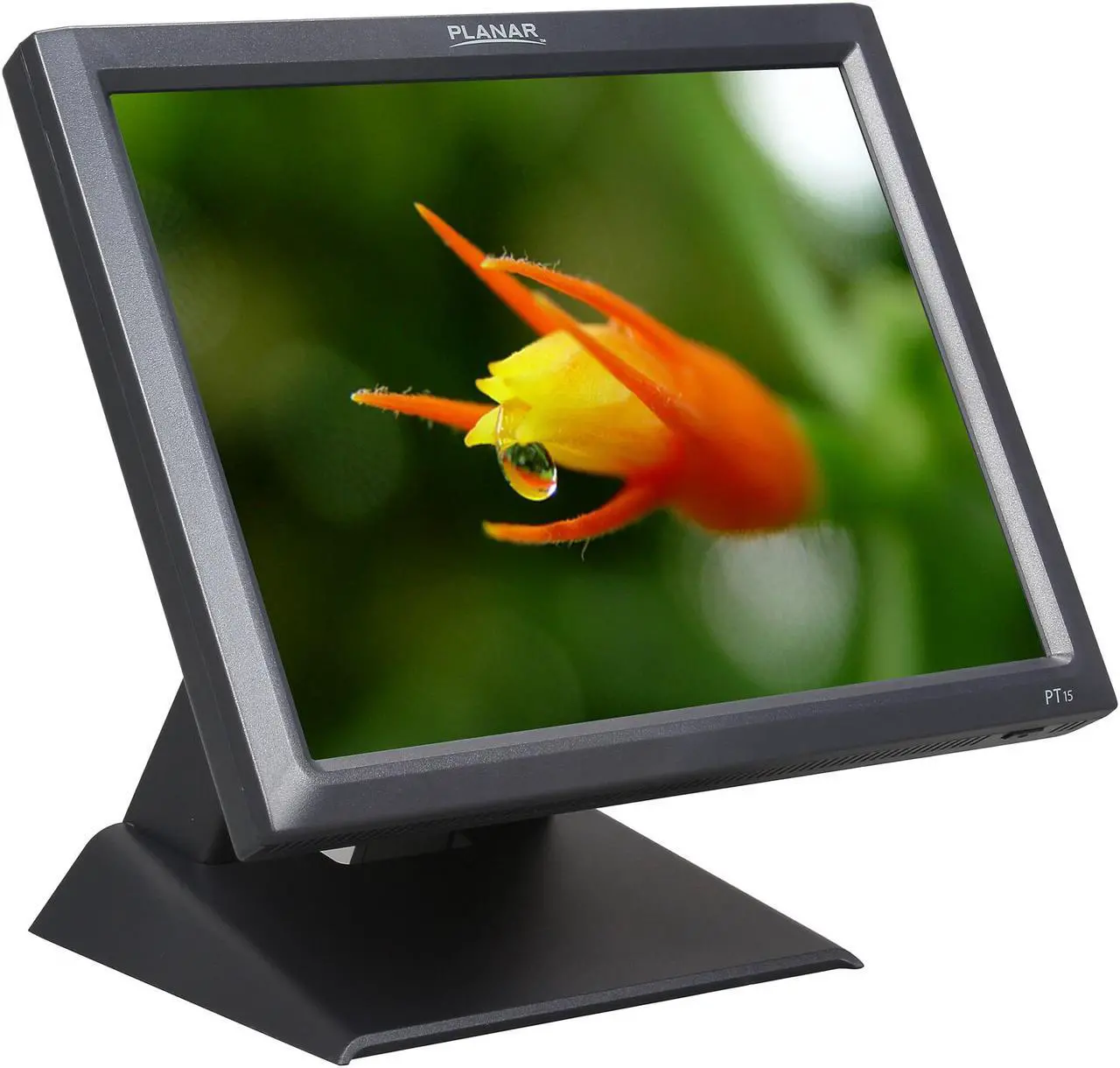

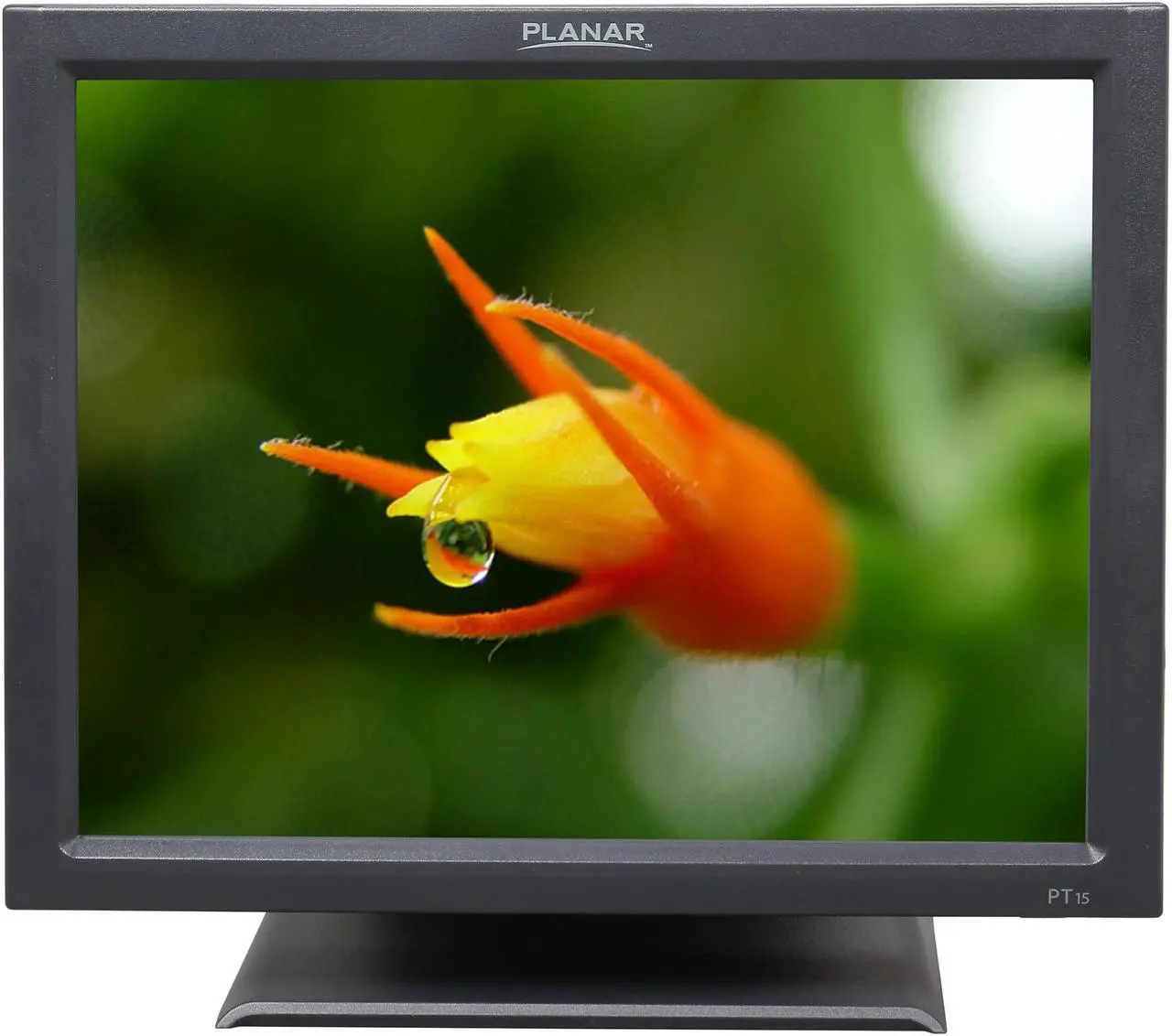

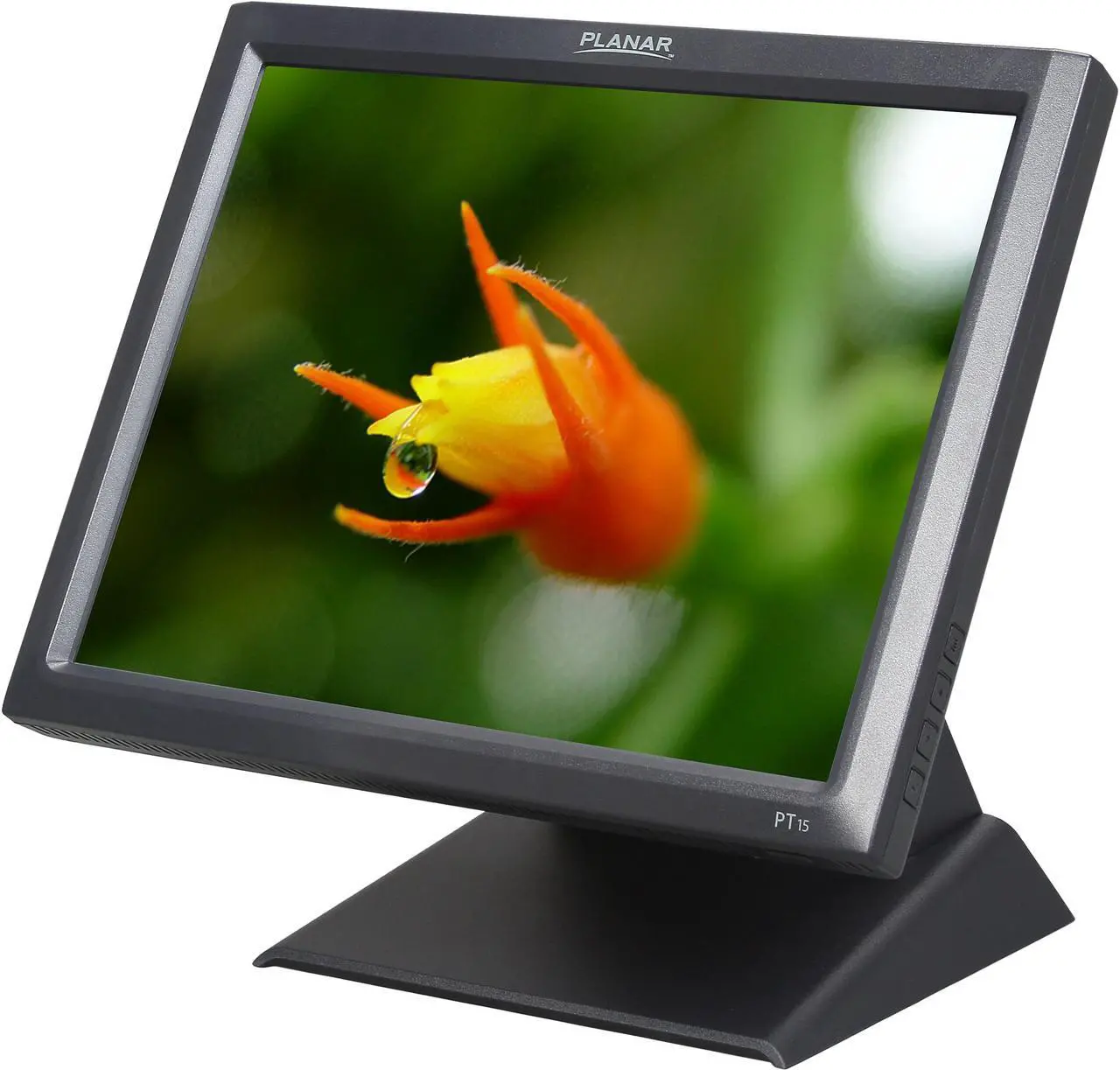

Main image of Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

Alt view image 2 of 8 - Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

Alt view image 3 of 8 - Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

Alt view image 4 of 8 - Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

Alt view image 5 of 8 - Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

Alt view image 6 of 8 - Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

Alt view image 7 of 8 - Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

Alt view image 8 of 8 - Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

Shop All Planar Products

Planar 997-5967-00 PT1545R 15-inch 5-Wire Resistive POS Touch Screen Monitor

(1) Write a Review

1024 x 768 Native Resolution
5-Wire Resistive Touch Technology
Dual Serial/USB Touch Interface
200 nits (Typical) Brightness
140 degrees (H) / 125 degrees (V) View Angle

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

PT1545R Touch Monitors
15" Touch Screen LCD Monitor

The cost-effective Planar® PT1545R 15" touch screen monitor is perfect for use in retail, point-of-sale, government, education, health care, and kiosk applications.

The Planar® PT1545RPF features resistive touch screen technology with a built-in privacy filter that makes it an excellent choice for open, high traffic environments where on-screen data needs to be kept private.

The cost-effective PT1545R 15" touch screen monitor is perfect for use in retail, point-of-sale, government, education, health care and kiosk applications. Easily integrated with a variety of Point Of Sale (POS), thin client or PC systems, the monitor features 5-wire resistive touch screen with dual RS-232/USB touch screen interface, an internal power supply, speakers and a designed for touch enclosure. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions.

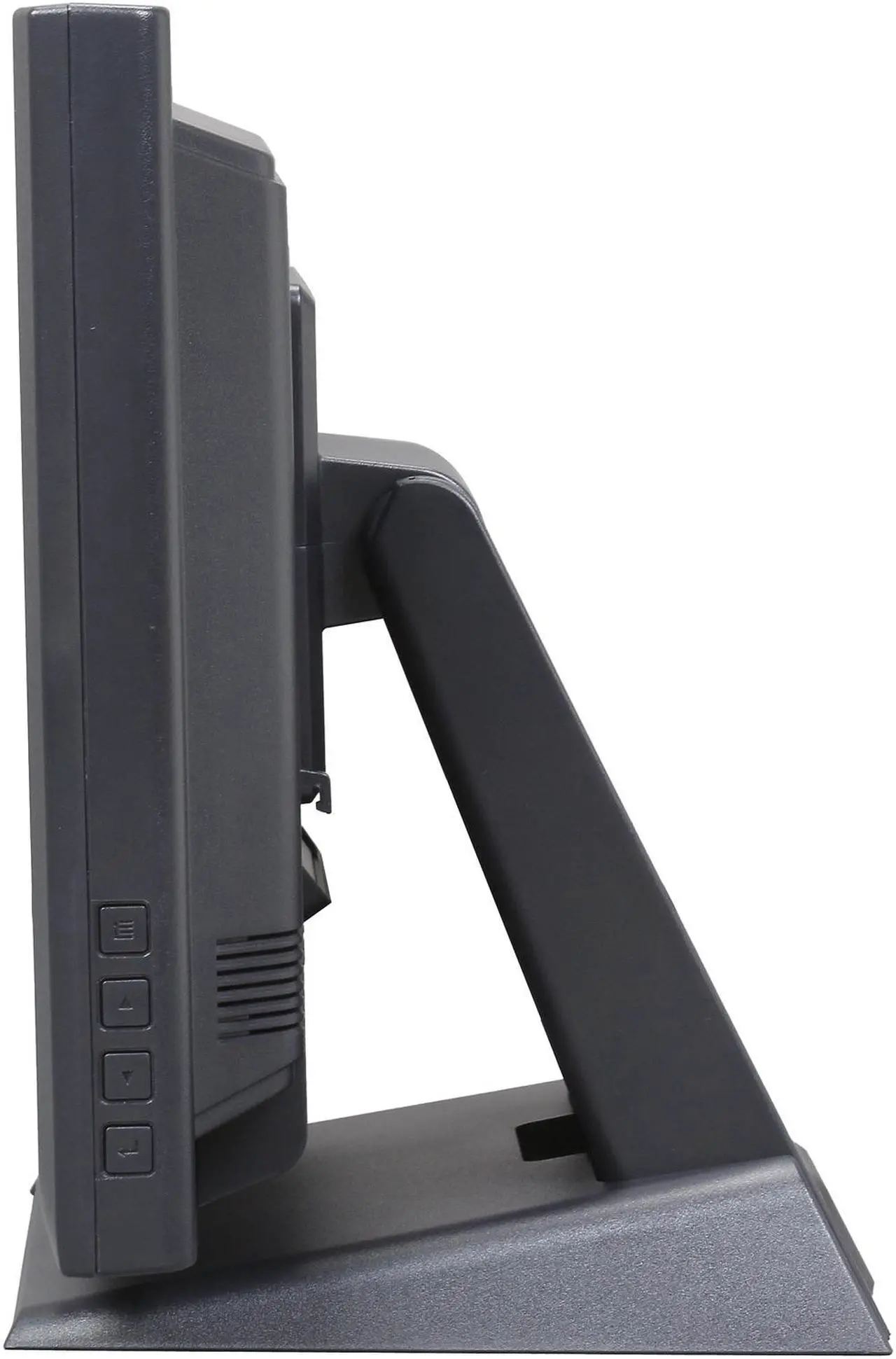

The Planar PT1545R monitor comes standard with a deskstand capable of -5 to 90-degree tilt range and is compatible with other mounting options using the 100mm VESA standard hole pattern on the back of the monitor.

Features and Benefits

15" touch screen monitor
5-wire resistive touch screens
No drivers needed for basic touchscreen operation
Internal power supply

SPECIFICATIONS	DETAILS
Product Name	PT1545R
Viewable Size	15" diagonal (11.97" horizontal x 8.98" vertical)
Touchscreen Type	5-wire Resistive
Number of Touch Points	1
Touchscreen Interface	Dual Serial/USB
Transmissivity	N/A
Contrast Ratio (typ.)	500:1
Viewing Angle (typ.)	140 degrees horizontal and 125 degrees vertical
Response Time (typ.)	8ms
Brightness (with touchscreen)	200cd/m²
Brightness (w/o touchscreen)	250cd/m²
Brightness (typ.)	N/A
Display Type	LCD Active Matrix Flat Panel Display (TFT)
Display Resolution	1024 x 768
Aspect Ratio	N/A

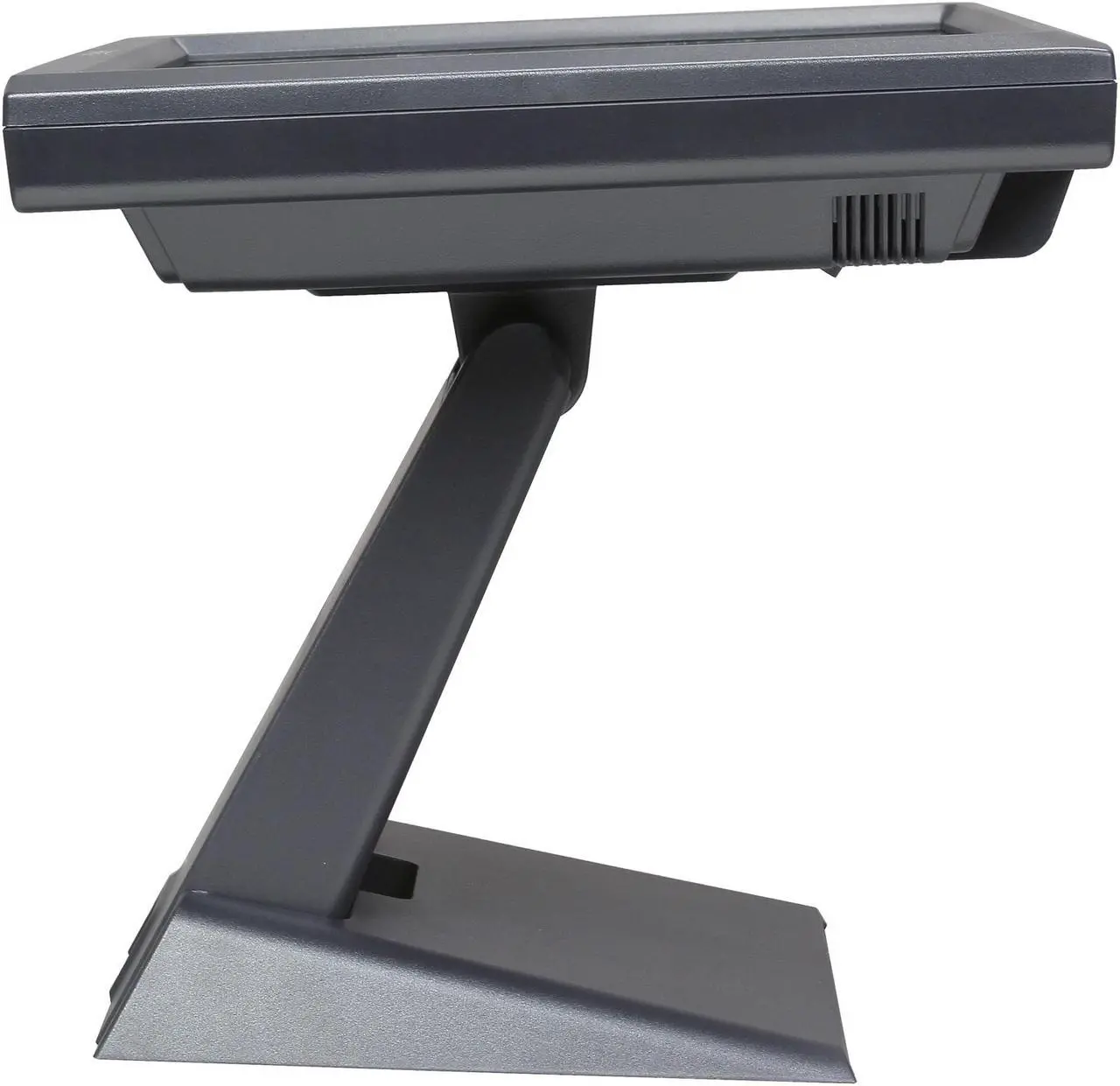

Tilt Range	-5 degrees to 90 degrees
Palette	16.7 million colors
Pixel Pitch	0.297mm
Refresh Rate	56~75Hz
Panel Depth	N/A
Dimensions (W x H x D)	13.8 x 12.1 x 8.0" (350.8 x 306.5 x 202.0mm)
Dimensions without Stand	13.8 x 10.8 x 2.3" (350.8 x 274.8 x 59.0mm)
Display Weight	10.6lbs (4.8kg)
Display Weight (w/o stand)	7.3lbs (3.2kg)
Shipping weight	16lbs (7.3kg)
Video Inputs	Analog
Audio Output	Integrated stereo speakers with 1W per channel
Compatibility	Windows® 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple® Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation

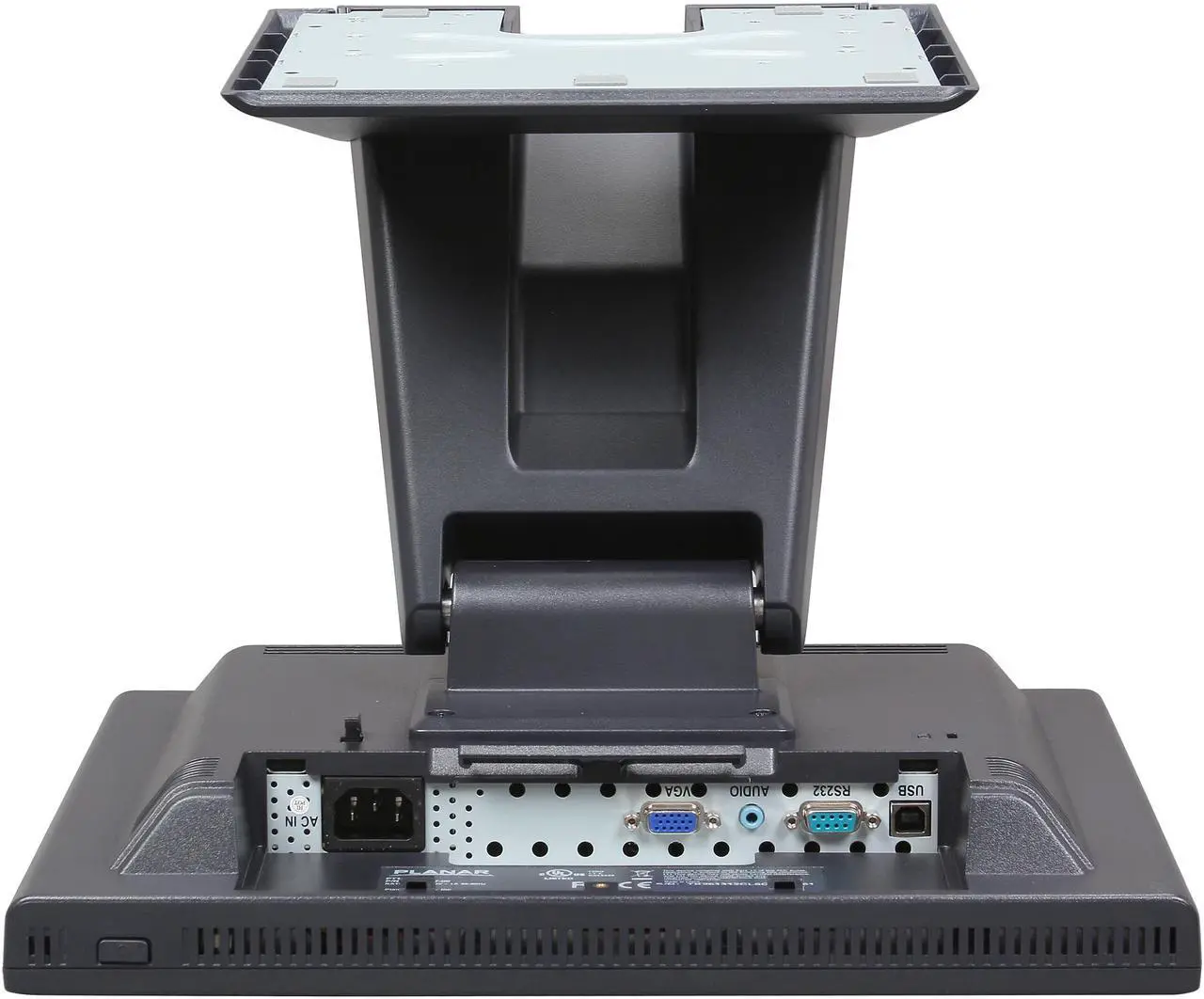

External Connections	D-sub 15-pin, D-sub 9-pin, Type B socket USB, Stereo Jack - 3mm, AC Power-in
Power Supply	Internal
Power Requirements	100 ~ 240VAC, 50/60Hz
Power Consumption (max.)	18.5W (1.5W standby, 0.9W off)
Operating Temperature	32 - 112°F (0 - 40°C)

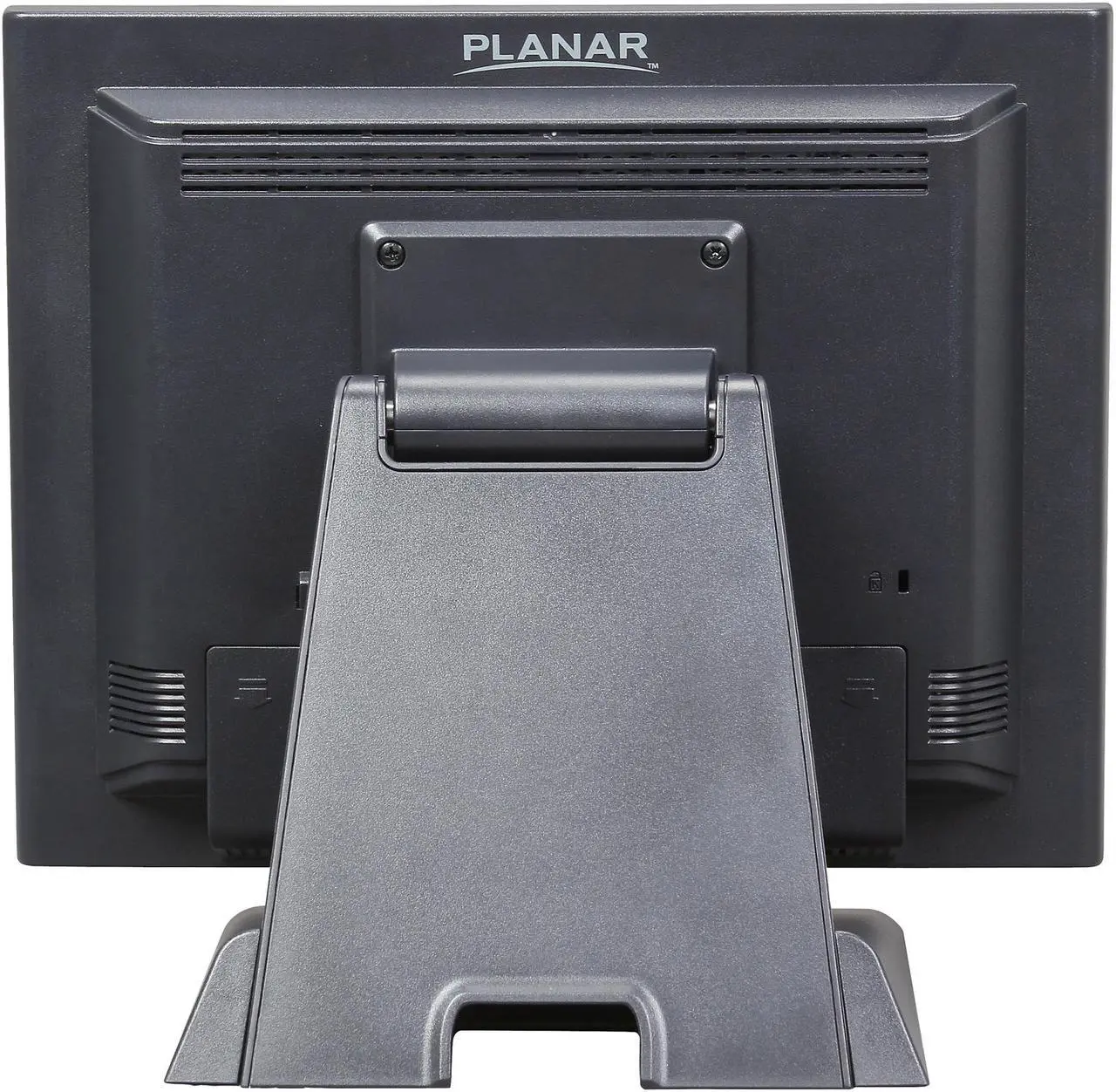

VESA Compatible/Location	Built-in 100mm VESA, back
Service and Support	3-Year Customer First™ Warranty featuring free 2-Day Advance Replacement (US only)
Options / Features	Anti-glare coating, Multi-language display, On screen display (OSD), Kensington® Security Slot
Product Approvals	UL/c-UL, FCC-Class B, CE, RoHS

What's in the Box

PT1545R 15in Black Economical 5-Wire Resistive Touch Screen LCD with Dual Serial

Model
Brand	PLANAR
Model	PT1545R (997-5967-00)
Cabinet Color	Black

Display
Touchscreen Type	5-wire Resistive
Panel	Active Matrix, TFT LCD
Screen Size	15.00" diagonal (11.97" horizontal x 8.98" vertical)
Display Type	SXGA
Resolution	1024 x 768
Viewing Angle	140° (H) / 125° (V)
Pixel Pitch	0.297mm
Display Colors	16.7 Million
Brightness	200 cd/m2
Contrast Ratio	500:1
Response Time	8ms

Connectivity
Touchscreen Interface	Dual serial/USB
Input Video Compatibility	Analog RGB
Connectors	D-sub 15-pin, D-sub 9-pin, Type B socket USB, Stereo Jack - 3mm, AC Power-in
DVI	No

Power
Power Supply	100 - 240 VAC, 50/60Hz
Power Consumption	18.5 Watts (1.5 Watts standby, 0.9 Watt off)

Convenience
User Controls	On screen display (OSD)
Regulatory Approvals	UL/c-UL, FCC-Class B, TUV-T mark, CE, RoHS
Built-in Speakers	Yes
Features	Anti-glare coating, Multi-language display, Kensington Security Slot Built-in 100 mm VESA, back

Dimensions
Dimensions (H x W x D)	12.10" x 13.80" x 8.00"
Weight	10.60 lbs. 7.30 lbs. (without stand)

Packaging

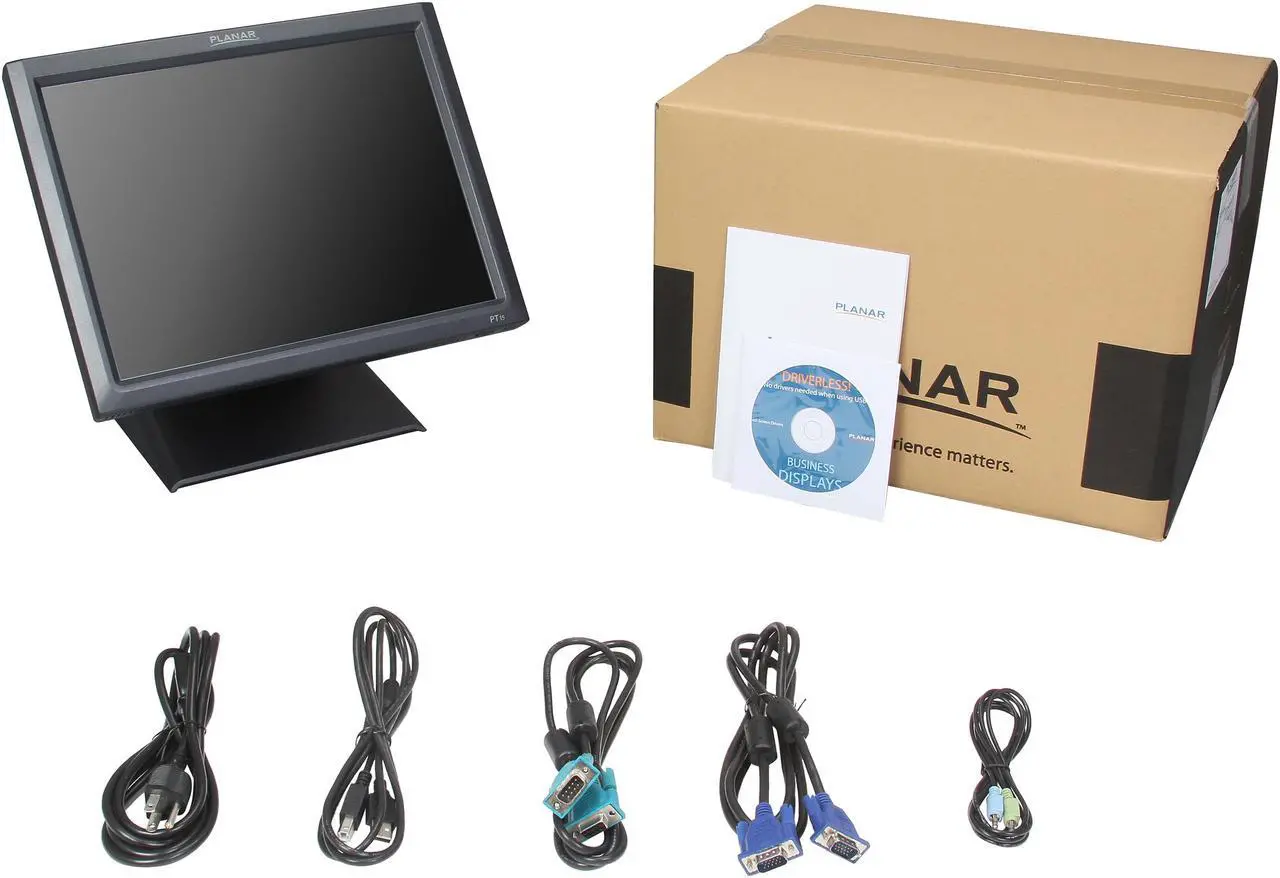

Package Contents	PT1545R 15.00" Touchscreen LCD Monitor, Power Cord, VGA Cable, RS-232 Cable, USB Cable (A to B), Audio-in Cable, User's Guide, Quick Start Guide

Additional Information
First Listed on Newegg	August 11, 2010
