Question 1

How well does this touchscreen monitor work with Raspberry Pi 3 and Raspbian when doing multi-touch actions such as pinch to zoom, two finger rotate to rotate image, swipes left and right as well as up and down?

Accepted Answer

I don't know what those things are. This monitor works well for my application because I was looking for something small and sharp. I only use simple commands (single touch).

Question 2

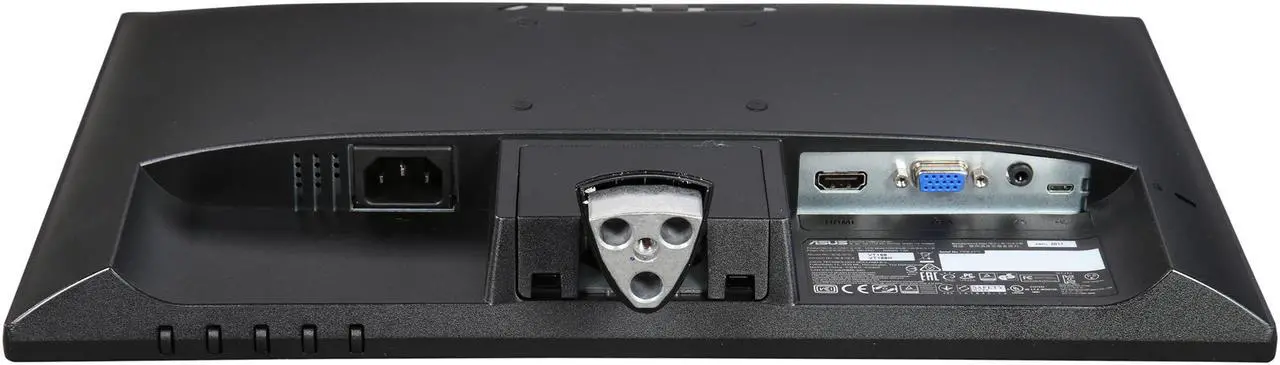

Where are the USB port and the HDMI port?

Accepted Answer

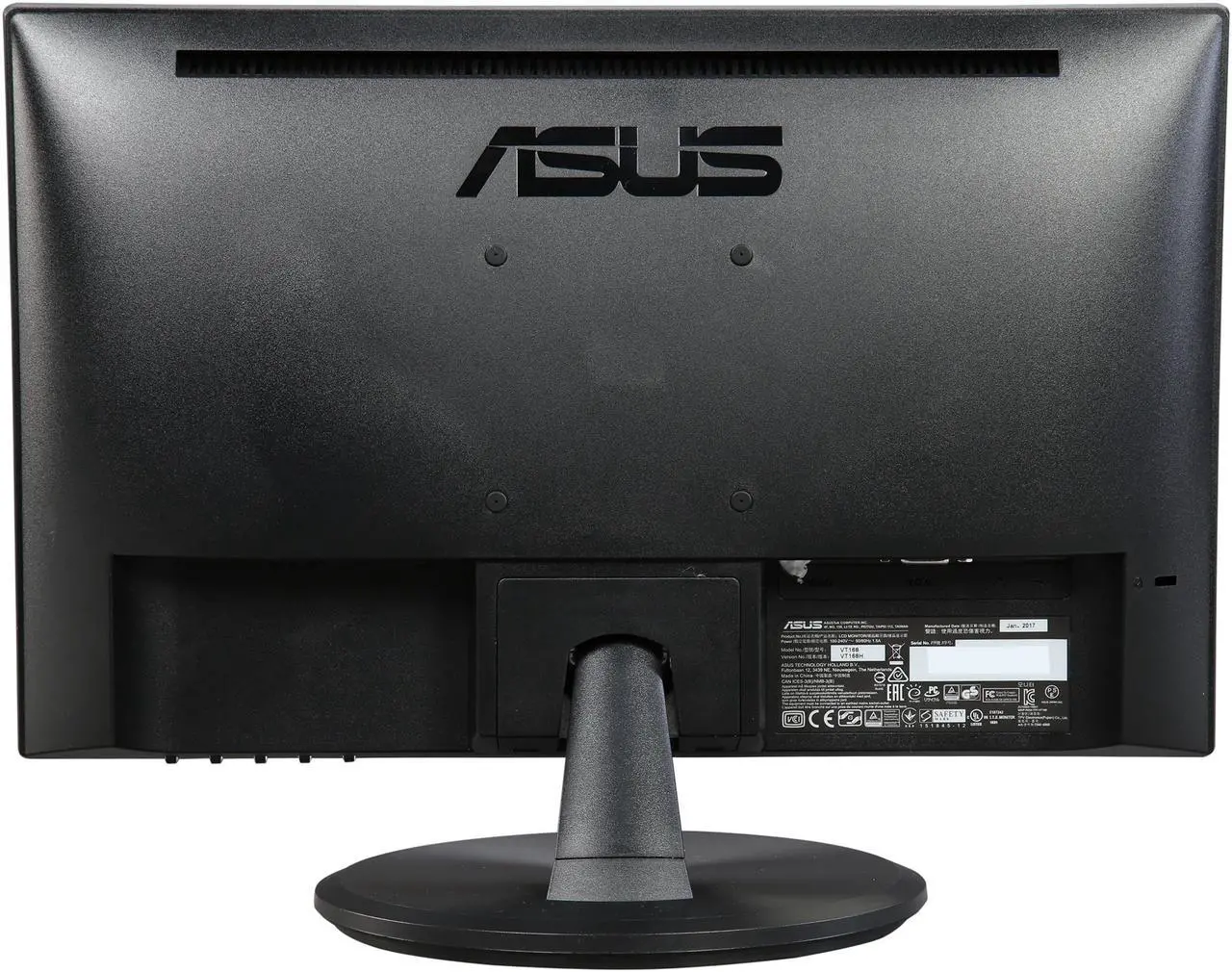

in the back on the bottom, where most monitor cables plug in. The usb is to give you the touch/mouse function, not to plug a usb key into the monitor. Also, the screen isn't the most stable. It wobbles a little when you touch it.

Question 3

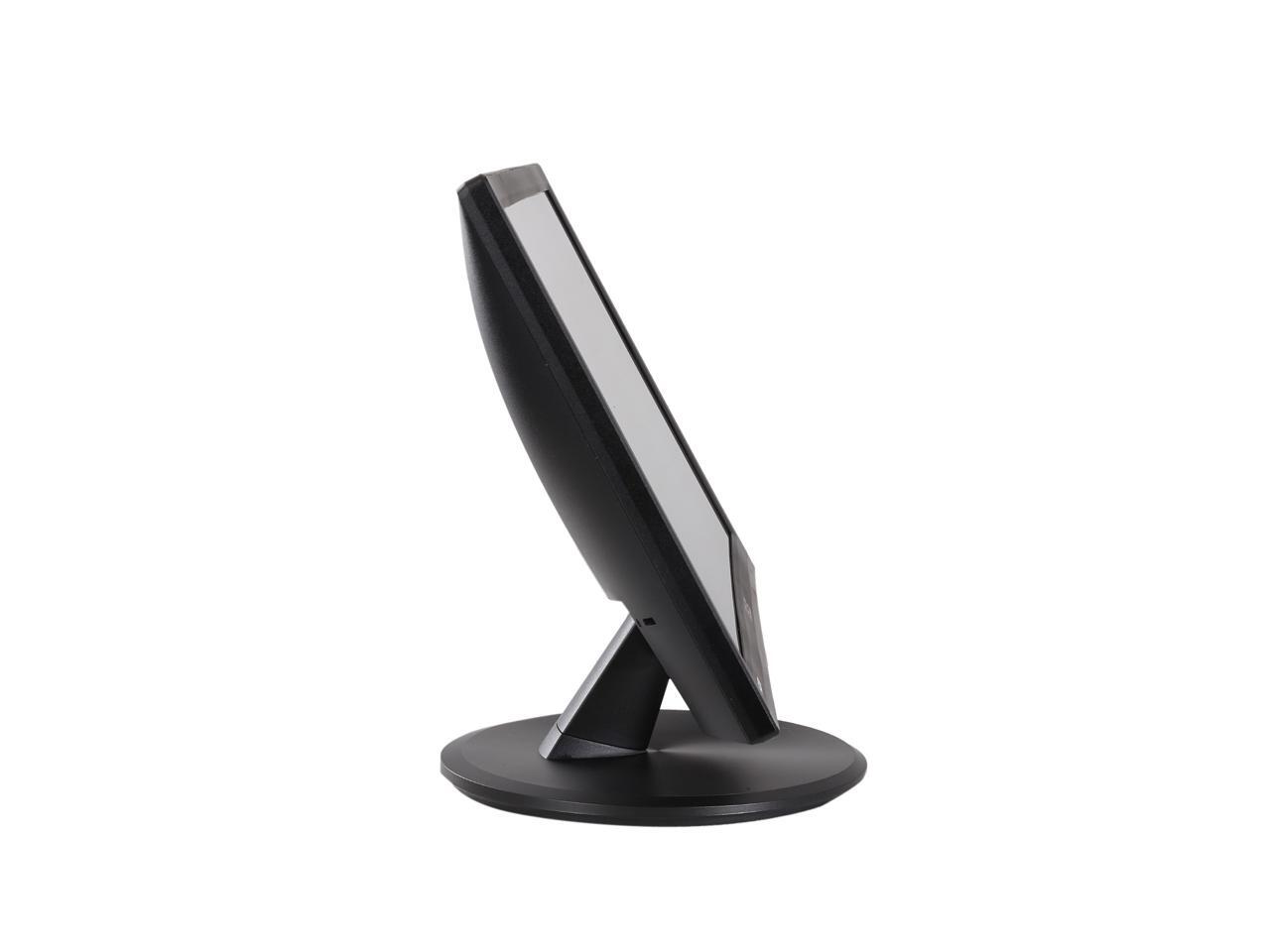

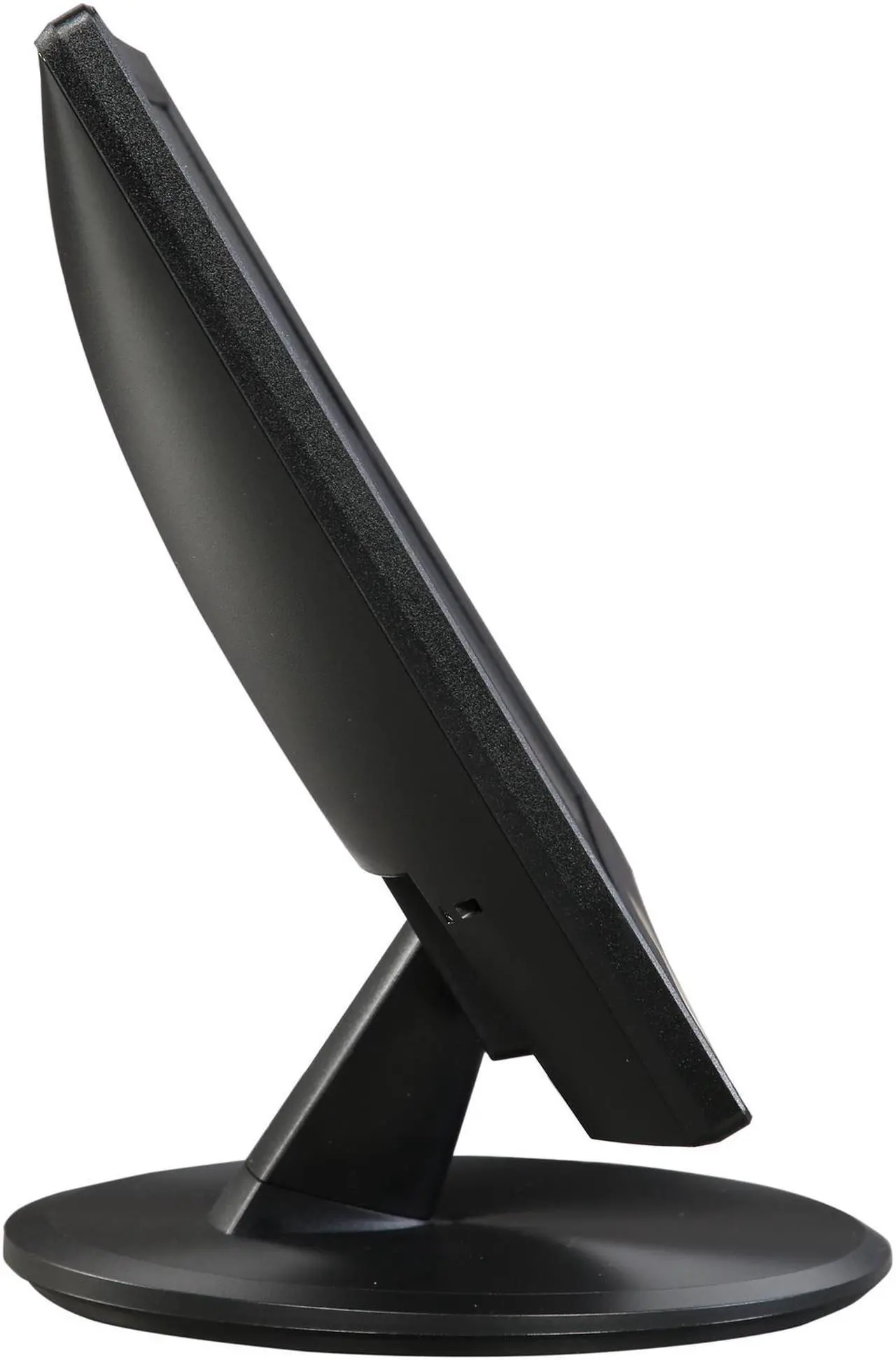

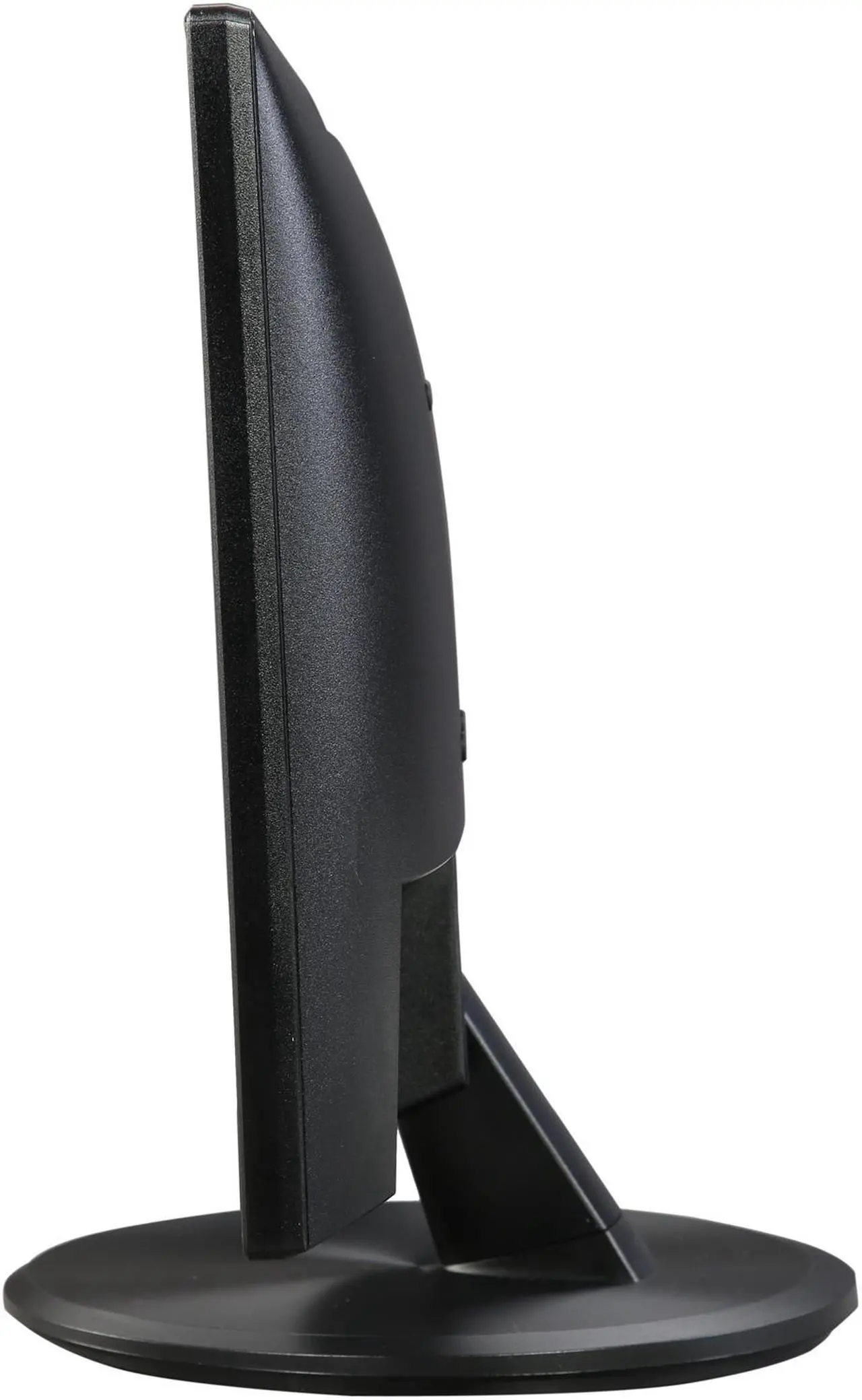

Will this monitors viewing angle adjust to 90 degrees (flat for viewing from directly in front of the monitor ie monitor at eye level) ?

Accepted Answer

If you mean so that you are looking straight at it at head/eye level (standing, sitting, etc.) then definitely. If you mean flat as in flat on the table top and then sitting or standing and looking down, I believe so.

If you are talking about the PHYSICAL stand/hinge itself, as in not at an angle upwards, then also yes - the one I bought is for a client in a restaurant and they have it high enough that they are looking straight at it.

Hope that helps?

Brand	ASUS
Model	VT168H
Monitor Type	Touchscreen Monitor
Touchscreen Type	Capacitive
Cabinet Color	Black
Usage	Consumer

Screen Size	16" (Actual size 15.6")
Display Type	HD
Maximum Resolution	1366 x 768
Resolution	1366 x 768
Viewing Angle	90° (H) / 65° (V)
Pixel Pitch	0.252mm
Brightness	200 cd/m2
Contrast Ratio	ASCR 50,000,000:1
Response Time	10ms
Horizontal Refresh Rate	30 - 80 KHz
Vertical Refresh Rate	50 - 76 Hz

Input Video Compatibility	Analog RGB, Digital
Connectors	D-Sub, HDMI
D-Sub	1

Complies with	Energy Star, BSMI, CB, CE, C-Tick, EPEAT (Silver) by region , ErP, J-MOSS, KCC, PSB, RoHS, TCO6.0, TUV-Ergo, TUV-GS, UkrSEPRO, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), MEPS, RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, CU(EAC)
Power Supply	100 - 240 VAC, 50/60Hz
Power Consumption	Power On Mode < 5.78W Power Saving Mode < 0.5W Power Off Mode < 0.5W

VESA Compatibility - Mountable	75 x 75mm
Features	15.6" 1366x768 16:9 touch monitor with 75x75mm VESA mounting Flexible connectivity with HDMI and VGA 10-point touch capacity for virtual keyboards and multi-touch applications ASUS Eye Care technology with flicker-free backlighting and blue light filter to minimize eye fatigue Vivid color performance with Splendid Video Intelligence Technology's six preset modes

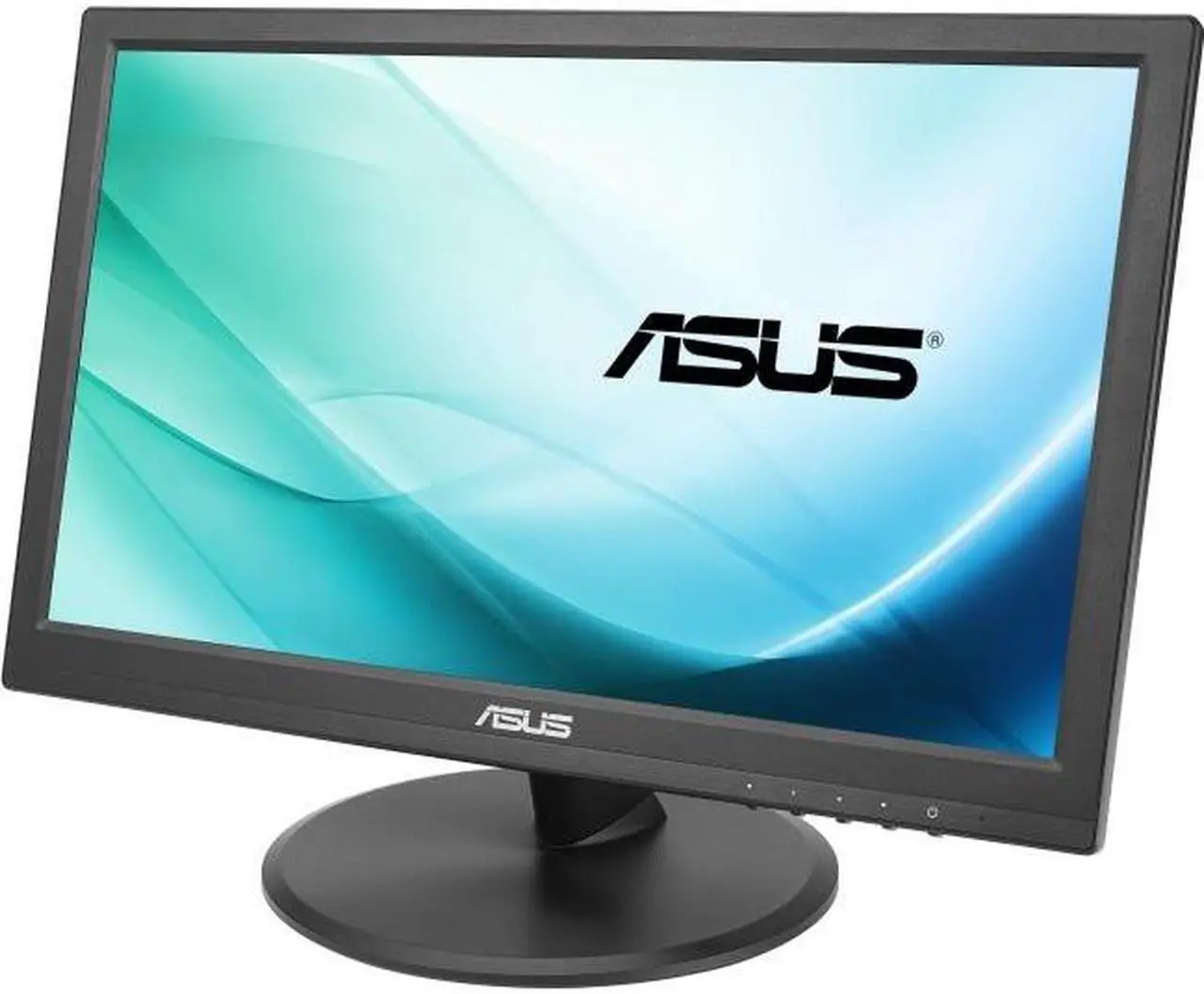

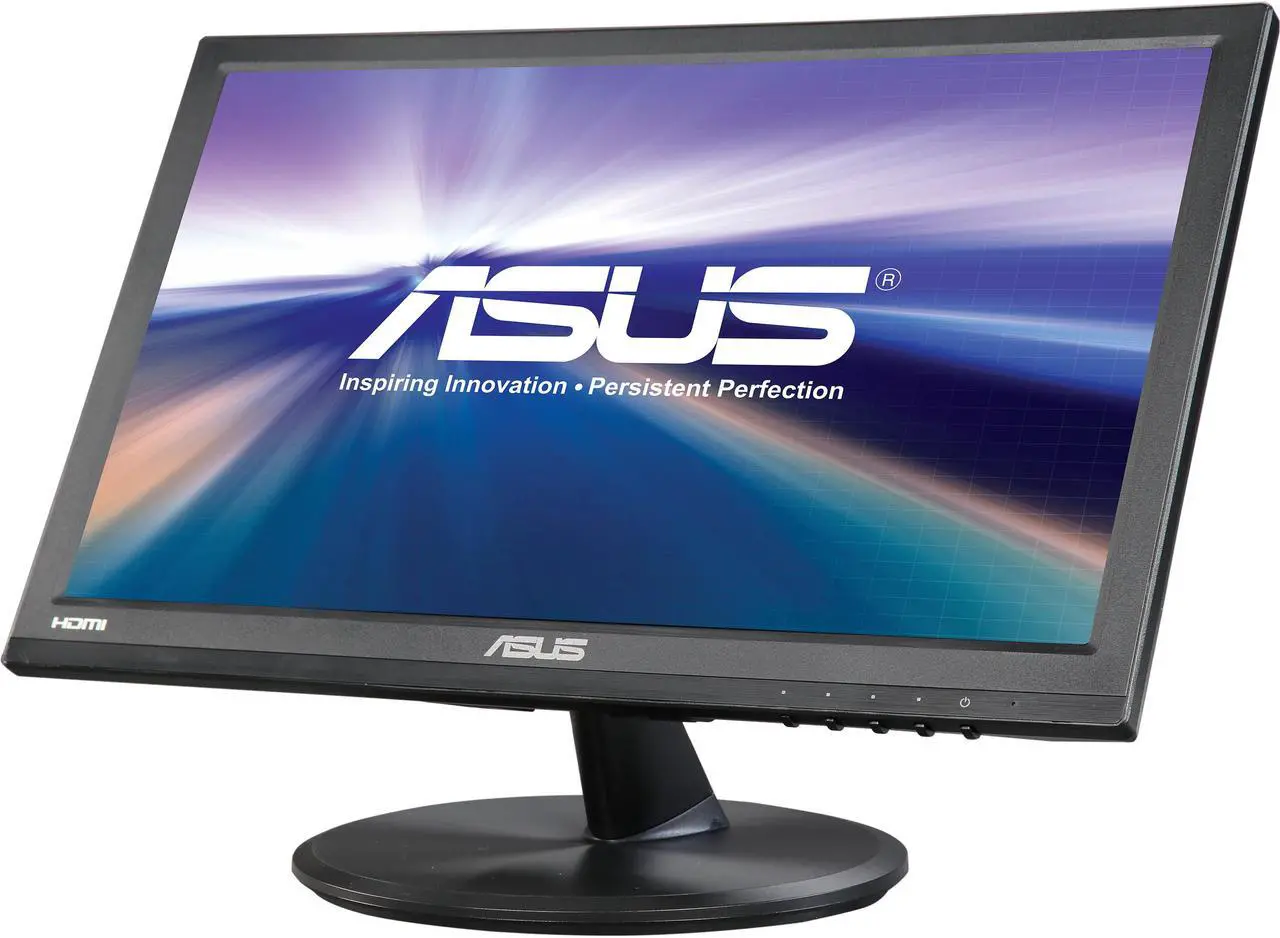

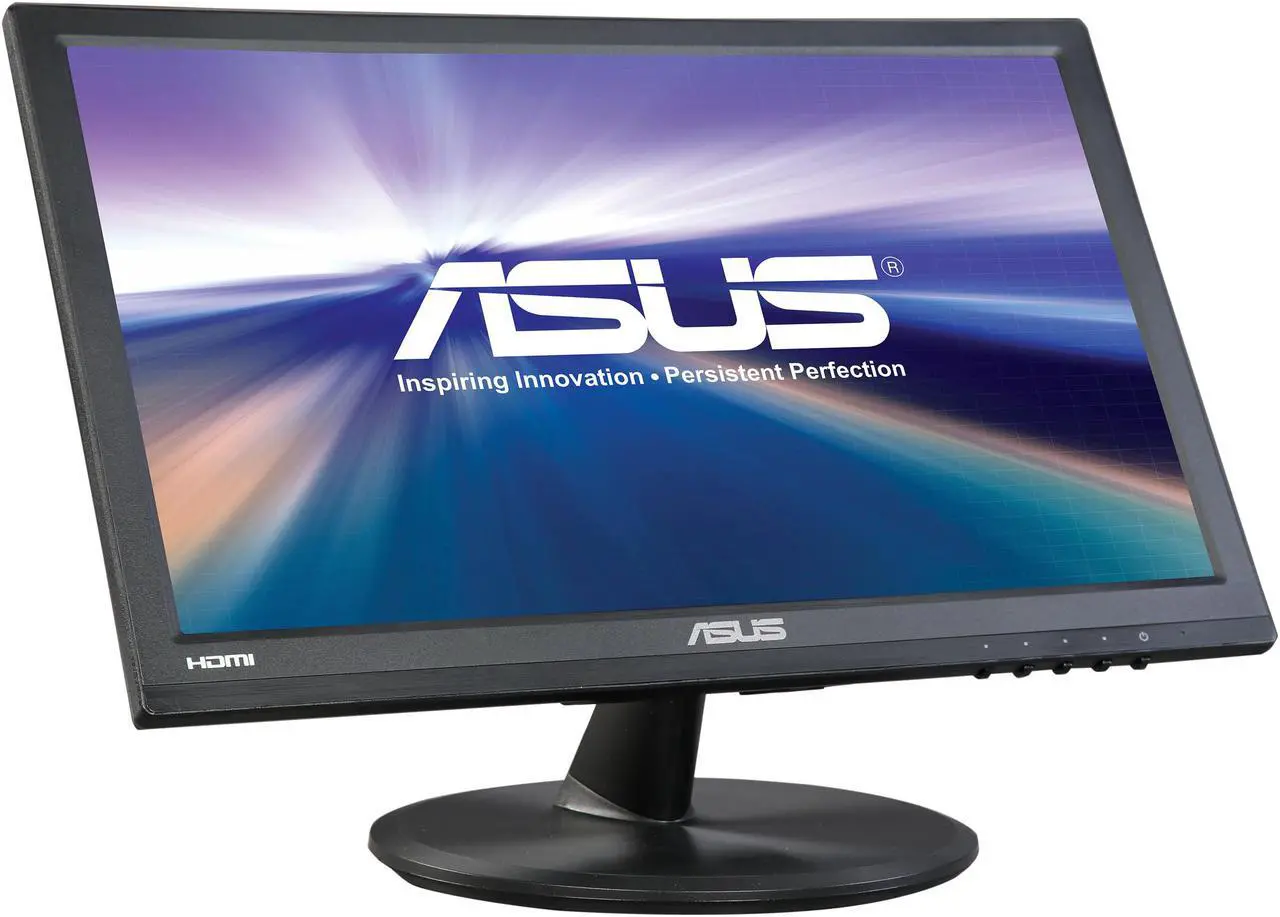

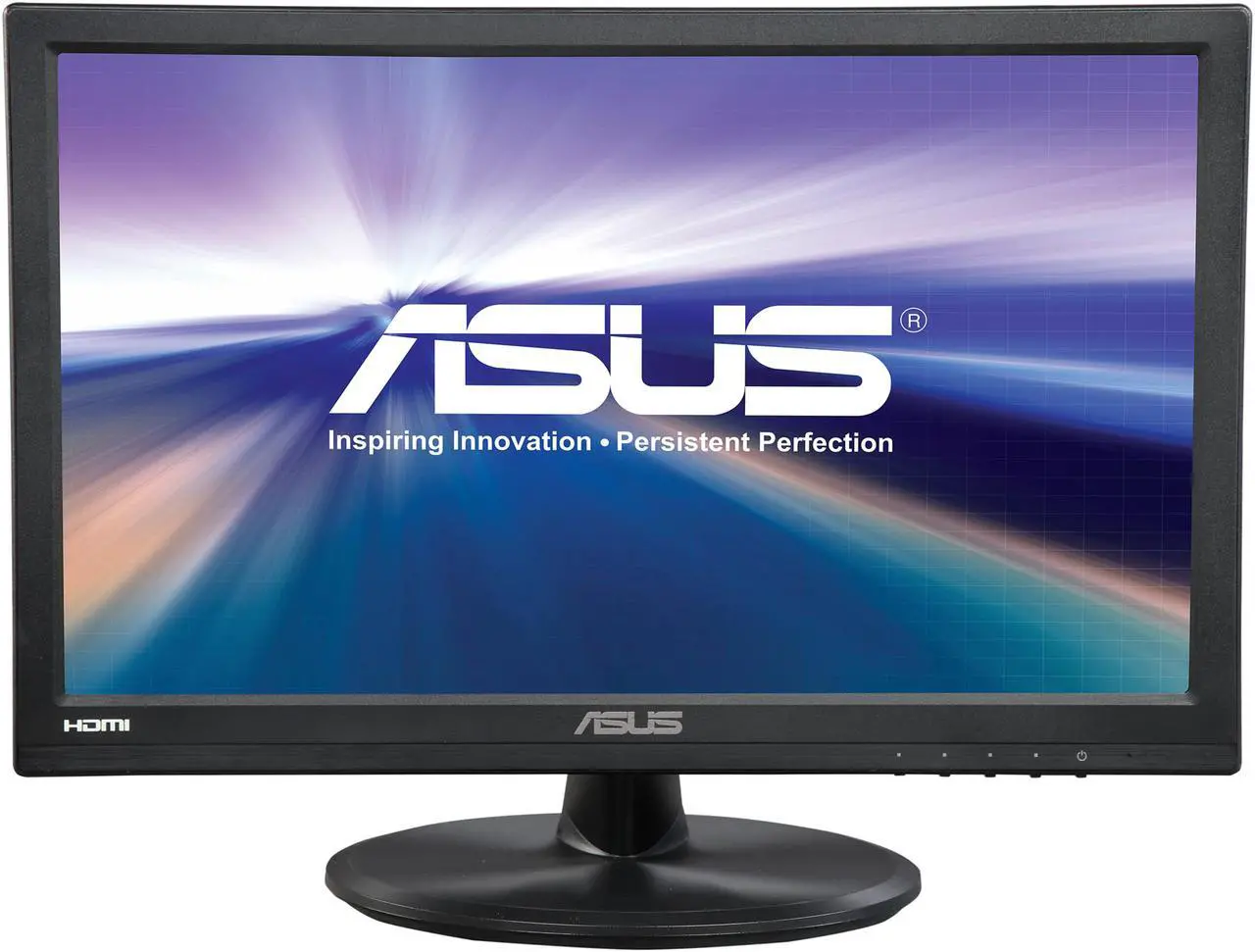

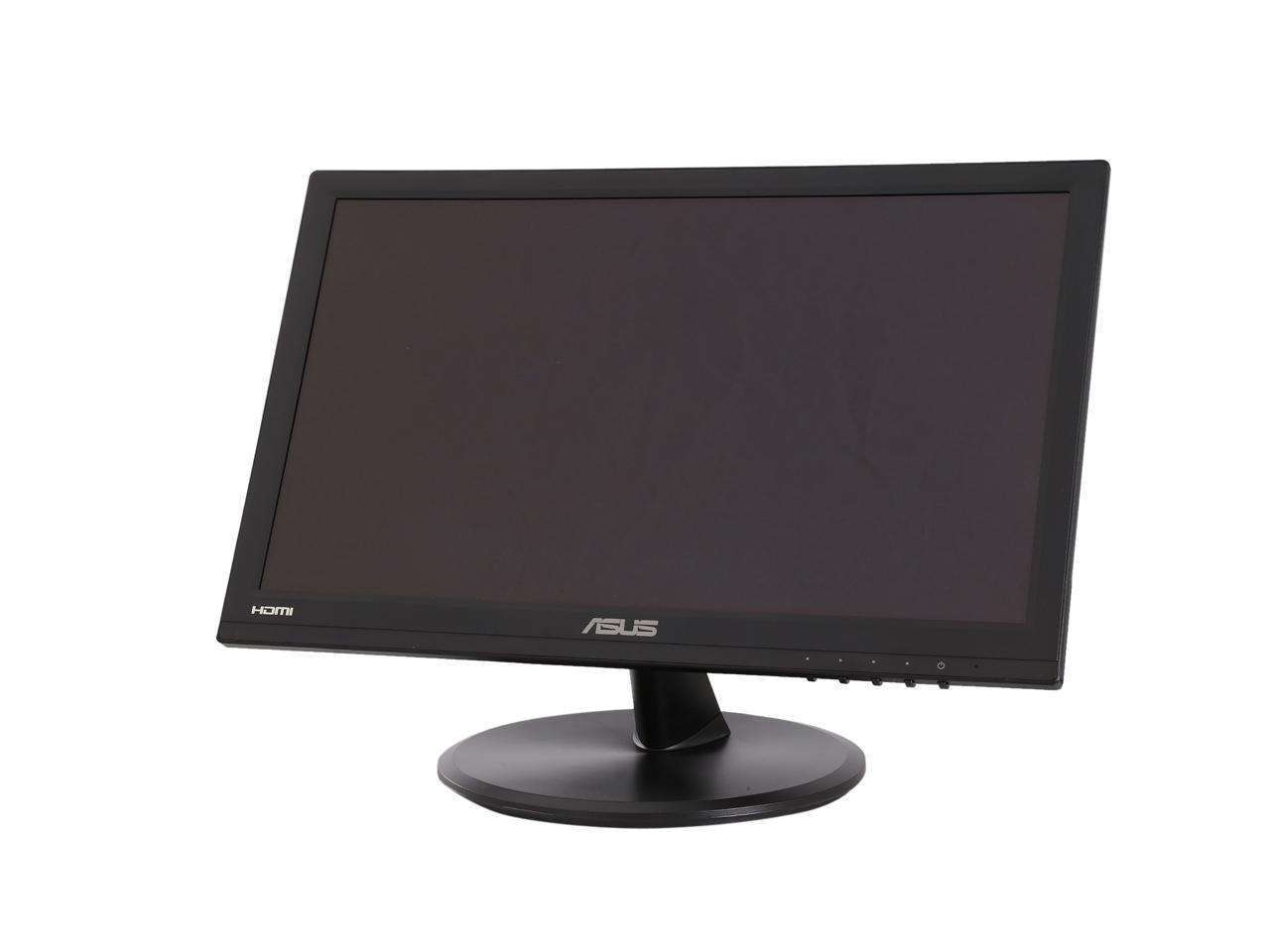

ASUS VT168H Black 15.6" Widescreen Touch Monitor, 10-Point Touch Capacity, VESA Mountable, HDMI, VGA

Learn more about the ASUS VT168H

Customer Reviews of the ASUS VT168H

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Dimensions (H x W x D)	11.05" x 14.87" x 7.46" w/ stand 9.29" x 14.87" x 1.73" w/o stand
Weight	3.09 lbs.
