Elo Touch Solutions E606625 1541L 15-Inch IntelliTouch Plus Open-Frame Touch Monitor
- 1366 x 768 Native Resolution
- D-Sub DVI USB
- IntelliTouch Plus Technology
- Power Supply Sold Separately
- Power Supply Not Included
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES:
- Screen Size: 15"
- Screen Mode: WXGA
- Response Time: 16 ms
- Aspect Ratio: 16:9
- Backlight Technology: LED
- Maximum Resolution: 1366 x 768
- Color Supported: 16.7 Million Colors
- Contrast Ratio: 500:1
- Brightness: 250 Nit
- Touchscreen Type: Surface Acoustic Wave
- DVI: Yes
- USB: Yes
- VGA: Yes
- Operating Power Consumption: 15 W
- VESA Mount Compatible: Yes
- Height: 8.7"
- Width: 14.8"
- Depth: 1.8"
- Weight (Approximate): 6.48 lb
- Environmentally Friendly: Yes
- Environmental Certification: RoHS,China RoHS,WEEE
- Limited Warranty: 3 Year

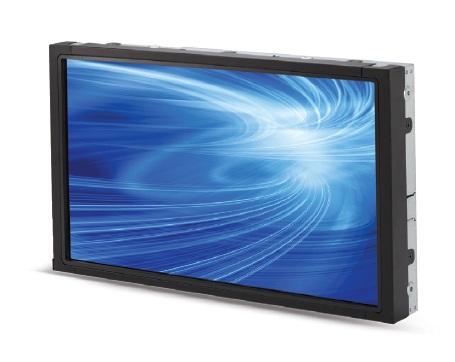

1541L 15-Inch LCD Open-Frame Touchmonitor
Elo Touch Solutions 1541L, one of the industry's first 15-inch Open-Frame LCD Touchmonitors with an LED backlight, features a 16:9 aspect ratio, suitable for commercial, industrial, gaming and retail applications. The 1541L expands the Elo family of touch solutions for gaming and amusement, information kiosks and self-service with flexible, energy-saving features. The 1541L also has a convenient, space-saving design that makes building touch solutions easier and more flexible for OEMs and system integrators.
Like all Elo open-frame touchmonitors, the specifications and tooling are controlled to ensure a long product life, which is important in maintaining continuity for all phases of project rollouts and servicing. The 1541L features an injection-molded bezel with a virtually invisible water-resistant seal, thus making it a good choice to withstand the rigors of public use. The 1541L has a compact form factor and multiple mounting options for easy integration. It features a high quality LCD panel and worldwide agency approvals.
The 1541L is available with a choice of AccuTouch five-wire Resistive and IntelliTouch Plus surface acoustic wave touchscreen technologies.
Features:
- The High Definition LCD display offers ultimate HD interactivity, clarity and resolution
- Compact size enables slimmer designs for narrower kiosks, with a portrait mode configuration for a larger display space in a smaller footprint
- Viewing angle of 170 x 130 degrees, wider than most 15-inch open-frame touchmonitors, allows colors to remain sharp and graphics to retain their integrity in both portrait and landscape modes
- State-of-the-art LED backlight replacing bulky, glass CCFL (cold cathode fluorescent lamps), for slim design, reduced power consumption and lower heat generation
- 500:1 Contrast Ratio
- Integrated precision mini-bezel with water-resistant 0.5mm seal
- Mounting options including rear-mount (with two included mounting brackets) and VESA mount
- Choice of two industry-leading touchscreen technologies: AccuTouch 5-wire Resistive, IntelliTouch Plus multi-touch surface acoustic wave
- Worldwide agency approvals
- Three-year warranty
Applications
- Gaming machines
- Kiosks
- Point-of-Information
- Self-service
IntelliTouch Plus Surface Acoustic Wave Multi-Touch Touch Technology
The Elo Touch Solutions IntelliTouch Plus touch technology meets all the Additional Qualification (AQ) testing requirements established by Microsoft Corp. for Windows 7 multi-touch interactivity. The IntelliTouch Plus touch technology is based upon proven surface acoustic wave technology with over 20 years of reliable performance and millions of installations around the world. It accurately records two simultaneous touch locations anywhere on the screen with three axes of touch information.Elo customers can trust they have the same reliable performance for their touchmonitors that they have come to expect with the standard IntelliTouch touch technology. IntelliTouch Plus multi-touch technology is currently available for consumer touch monitors and all-in-one touch computers as screen components in sizes ranging from 17-inch through 32-inch and will be commercially available as a 22-inch open-frame touchmonitor in late 2010. This will enable OEMs and design engineers the ability to incorporate a multi-touch technology that is both reliable and compatible with Windows 7 to heighten the user experience.
Benefits
- Reliable surface acoustic wave (SAW) touch technology with millions of installations worldwide
- Fast, accurate dual-touch response recording two simultaneous touch locations anywhere on the screen
- Sensitive touch response - recognizes location and amount of pressure applied
- Overcomes drawbacks of other multi-touch technologies such as ambient light variances (such as camera-based optical)
- Pure-glass touchscreens for excellent image clarity, resolution, and light transmission
- Durable, scratch-resistant glass surface - continues to work if scratched
- Stable "drift-free" operation - for touch response that's always accurate
- Finger, gloved hand, and soft stylus activation
AccuTouch® Five Wire Resistive Touch Solutions
The Elo Touch Solutions AccuTouch touchscreens are based on proven five-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. AccuTouch touchscreens are available in bezel and zero-bezel designs, with proprietary Elo technology to deliver a touch response that is drift-free and accurate in high-use applications.Elo AccuTouch delivers both X and Y measurements made on a stable rear glass layer where many other resistive touchscreen designs use a flexing plastic coversheet to measure only one axis. As a result, AccuTouch resistive touchscreens provide a longer product life, designed to withstand more than 35 million touches.
AccuTouch touchscreens can be sealed against contamination to support NEMA 4/4x/12 and IP65 standards. The zero-bezel design eliminates the need for a traditional front-bezel, achieving a smooth, seamless flat surface for a clean, modern look.
AccuTouch zero-bezel touchscreens use a flexible printed circuit cable that virtually eliminates the cable attachment bump that is typical on most resistive touchscreens and enables a smooth, flat integration. The screens work with standard Elo controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs.
Benefits
- Zero-bezel configuration for seamless design to eliminate the traditional bezel that can collect dust and dirt.
- 4H pencil hardness resists scratching.
- Flat cable attachments for seamless integration and customization capabilities.
- No lamination of additional décor foil is required which helps to reduce costs and supply chain complexity.
- Stable, drift-free operation.
- Broad input flexibility.
- Contamination resistance.
- Accuracy in high-use applications.
- Can be sealed to support NEMA 4/4x/12 and IP65 standards upon integration.
Applications
- Point-of-Sale (POS) Terminals
- Voting Machines
- Industrial Automation
- Medical Equipment
- Office Automation
- Retail Automation
- Pharmacy Automation
