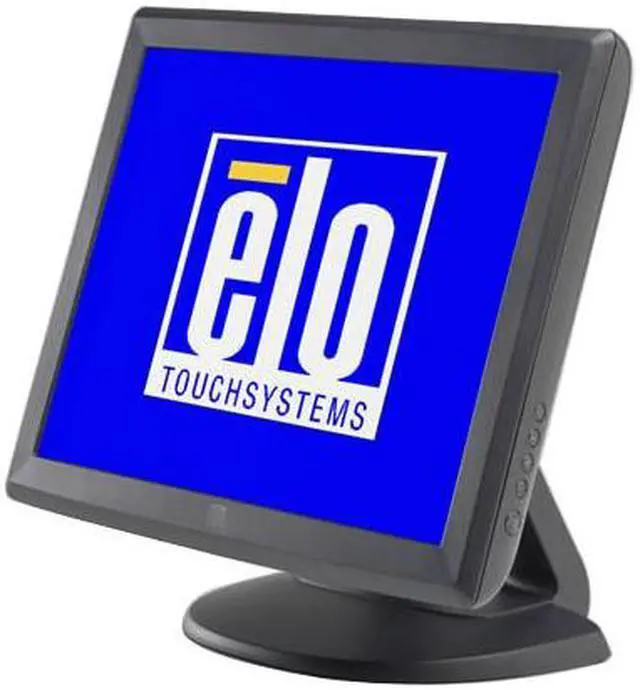

ELO TOUCHSYSTEMS 1515L (E849124) Dark Gray 15" Serial/USB 5-wire Resistive Touchscreen LCD Monitor Brightness LCD panel: 250 cd/m2 (typical) Brightness LCD panel with touchscreen: 205 cd/m2 (typical) 400:1
An Alternative Item Is Available:
- 400:1
- D-Sub Serial/USB
- 120° (H) / 100° (V)
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Elo Touch Solutions 1515L (E849124)
| Brand | ELO TOUCHSYSTEMS |
|---|---|
| Model | 1515L (E849124) |
| Cabinet Color | Dark Gray |
| Touchscreen Type | 5-wire Resistive |
|---|---|
| Panel | Active Matrix, TFT LCD |
| Screen Size | 15" |
| Display Type | XGA |
| Maximum Resolution | 1024 x 768 |
| Resolution | 1024 x 768 |
| Viewing Angle | 120° (H) / 100° (V) |
| Display Colors | 16.2 Million |
| Brightness | Brightness LCD panel: 250 cd/m2 (typical) Brightness LCD panel with touchscreen: 205 cd/m2 (typical) |
| Contrast Ratio | 400:1 |
| Response Time | 17ms |
| Horizontal Refresh Rate | 31.5 - 60.2 kHz |
| Vertical Refresh Rate | 56.3 - 75 Hz |
| Touchscreen Interface | Serial/USB |
|---|---|
| Input Video Compatibility | Analog RGB |

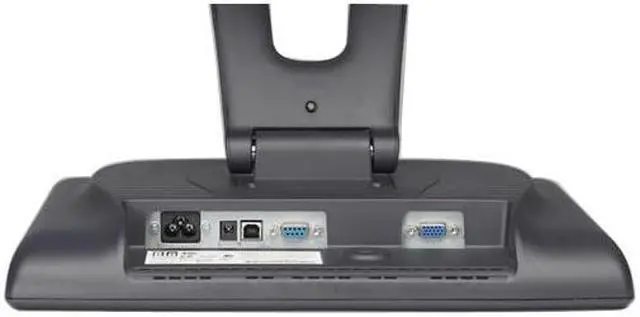

| Connectors | D-Sub |
| D-Sub | 1 |
| DVI | No |
| Power Supply | 100-240 VAC, 50/60 Hz |
|---|---|
| Power Consumption | 30 W max. |

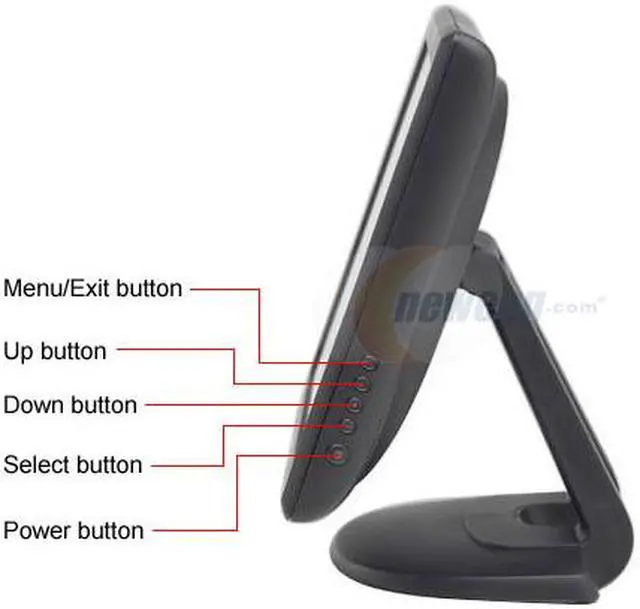

| User Controls | OSD buttons: menu, up, down, select, power OSD: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall, language (English, German, Spanish, Japanese, French) OSD disable/enable: power, OSD menu |
|---|---|
| Regulatory Approvals | UL/cUL, FCC, CE, TÜV-GS, VCCI, IC, C-Tick |
| Built-in Speakers | No |
| Features | Security lock receptacle |
| Dimensions | 13.8" x 12.2" x 6.9" |
|---|---|
| Weight | 10.6 lbs. |
| Humidity Range | 20% - 80% |
| Temperature Range | 0°C - 40°C |
| First Listed on Newegg | August 18, 2006 |
|---|
