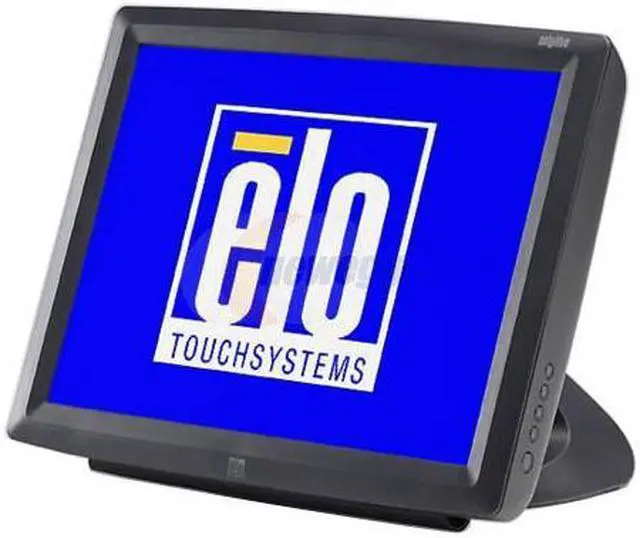

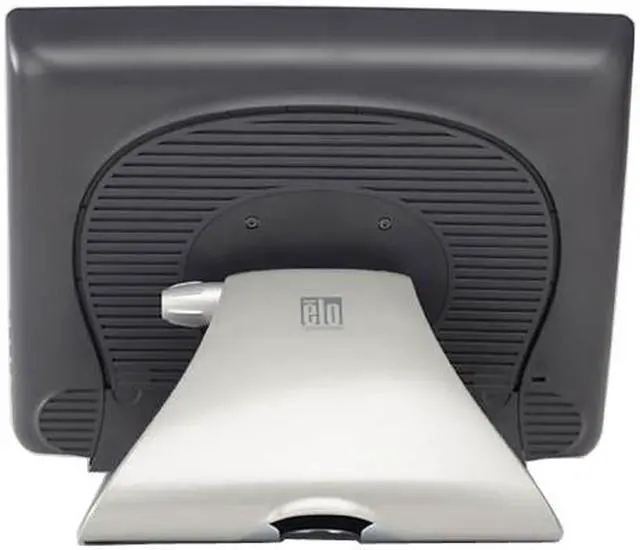

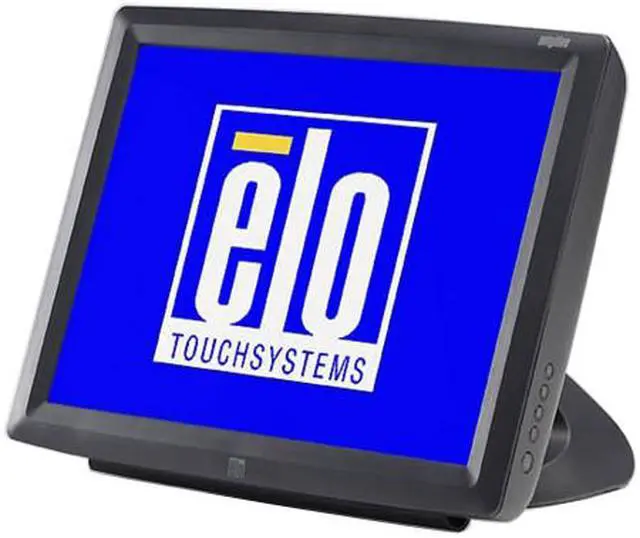

ELO TOUCHSYSTEMS 1529L(E392726) Dark Gray 15" Serial/USB (no hub) CarrollTouch Touchscreen Monitor 322 cd/m2 400:1 Built-in Speakers
- 400:1
- D-Sub DVI Serial/USB (no hub)
- 120° (H) / 100° (V)
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Elo Touch Solutions 1529L(E392726)
| Brand | ELO TOUCHSYSTEMS |
|---|---|
| Model | 1529L(E392726) |
| Cabinet Color | Dark Gray |
| Touchscreen Type | CarrollTouch |
|---|---|
| Panel | Active Matrix, TFT LCD |
| Screen Size | 15" |
| Display Type | XGA |
| Resolution | 1024 x 768 |
| Viewing Angle | 120° (H) / 100° (V) |
| Display Colors | 16.2 Million |
| Brightness | 322 cd/m2 |
| Contrast Ratio | 400:1 |
| Response Time | 12ms |
| Horizontal Refresh Rate | 31 kHz - 60 kHz |
| Vertical Refresh Rate | 56 Hz - 75 Hz |
| Touchscreen Interface | Serial/USB (no hub) |
|---|---|
| Input Video Compatibility | Analog RGB, Digital |
| Connectors | D-Sub, DVI-D |
| D-Sub | 1 |
| DVI | 1 |
| Power Supply | 90-265 VAC, 50/60 Hz. |
|---|---|
| Power Consumption | 50 W max |
| User Controls | OSD control menu: menu, up, down, select, power OSD controls: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, OSD language (English, French, German, Spanish, Japanese), input select OSD disable/enable: power, OSD menu |
|---|---|
| Regulatory Approvals | UL/cUL (recognized component), FCC-A, TÜV-GS, CE, VCCI, C-Tick |
| Built-in Speakers | Two watt/channel |
| Features | VESA Wall Mounting:75mm Touchscreen sealed to bezel Touchscreen sealed to LCD Energy save mode (less than 2 watts) 2 stage DPMS VESA DDC Plug and Play Security lock receptacle |
| Dimensions | 14" x 11.3" x 10.5" |
|---|---|
| Weight | 14.44 lbs. |
| Humidity Range | 20 - 80% |
| Temperature Range | 0°C - 40°C |
| First Listed on Newegg | March 15, 2007 |
|---|
