Elo Touch Solutions E512043 1537L 15-Inch IntelliTouch Open-Frame Touch Monitor
- 1024 x 768 Native Resolution
- D-Sub Dual serial/USB
- IntelliTouch Technology
- Power Supply Sold Separately
- Power Supply Not Included
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now

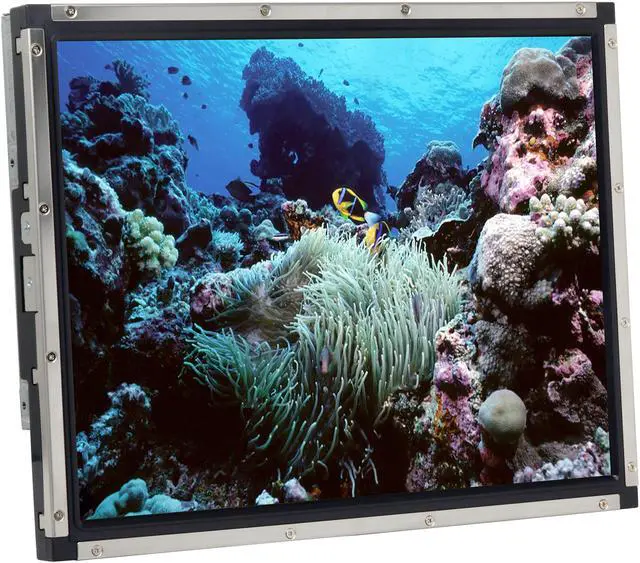

ELO TOUCHSYSTEMS 1537L 15" LCD Open-Frame Touchmonitor
Space-Saving Design - Ideal for Kiosk, Gaming, and Light
Industrial Applications
The Elo 1537L open-frame LCD touchmonitor complements the Elo TouchSystems expanding family of touch solutions for kiosk information systems, gaming and amusement, and light industrial shop-floor automation. This compact touchmonitor is "designed for touch," with proven Elo expertise and reliability built in. An integrated precision mini-bezel seals the touchscreen against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by Elo specifications, allowing future-generation panels to be phased in without external changes.
The 1537L is available with a choice of industry-leading Elo touch technologies: AccuTouch five-wire resistive, APR (acoustic pulse recognition), CarrollTouch infrared, IntelliTouch surface acoustic wave, SecureTouch vandalresistant surface wave and surface capacitive. A dual serial/USB touch interface is available on most models, with only a USB interface on the APR monitor. Worldwide agency approvals cover the whole monitor, which is developed, built, serviced and supported by a true singlesource supplier. The 1537L open-frame LCD touchmonitor provides an economical solution for system integrators and VARs.
Features:
- Elo reliability and quality at an economical price point
- "Designed for touch" from the ground up
- Choice of Elo touch technologies: AccuTouch, APR, CarrollTouch, IntelliTouch, SecureTouch and surface capacitive
- Touchscreen sealed against dirt, dust and liquids
- Compact and easy to integrate with mounting from sides or top and bottom; also a VESA mount option
- Dual serial/USB touch interface on most models; APR is USB only
- Worldwide agency approvals
- Three year standard warranty
- Kiosk information systems
- Gaming and amusement
- Light industrial shop-floor automation
Applications:
| Model | 1537L |
|---|---|
| Display | 15.0" diagonal |
| Aspect Ratio | 4:3 |
| Useful Screen Area | Horizontal: 12.0" (304mm) Vertical: 9.0" (228mm) |
| Native (optimal) resolution | 1024 x 768 at 60Hz |
| Other supported resolutions | 1024 x 768 at 60, 65 (Sun), 70 or 75Hz 832 x 624 at 75Hz (Mac) 800 x 600 at 56, 60, 72 or 75Hz 720 x 400 at 70Hz 720 x 350 at 70Hz 640 x 480 at 60, 66 (Mac), 72 or 75Hz 512 x 256 at 60Hz 512 x 247 at 60Hz |
| Colors | 16.2 million |
| Brightness (typical) |
LCD panel: 250 nits AccuTouch: 200 nits Acoustic Pulse Recognition: 230 nits CarrollTouch: 230 nits IntelliTouch: 230 nits SecureTouch: 230 nits |
| Response time - total (typical) | 14.5 ms |
| Viewing angle (typical) |
Horizontal: ±70° or 140° total Vertical: 60/55° or 115° total |
| Contrast ratio (typical) | 500:1 |
| On-screen display (OSD) | Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu Controls (back): menu, up, down, select, power Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall Languages: English, German, Spanish, Japanese, French Lockouts: power, user controls |
| Input Video Format | Analog VGA |
| Input Video Signal Connector | Mini D-Sub 15-Pin VGA type |
| Input Frequency | Horizontal: 31.5-60.2kHz Vertical: 56.3-75Hz |
| Monitor Dimensions | 13.2" x 1.6" x 10.4" (336 x 41 x 264mm) |
| Shipping Box Dimensions | 16.14" x 6.50" x 14.17" (410 x 165 x 360mm) |
| Weight | Actual: 6.6lbs (3.0kg) Shipping: 9.7lbs (4.4kg) |
