GVision P15BX-AB459G 15-inch 5-Wire Resistive POS Touch Screen Monitor
- 1024 x 768 Native Resolution
- 5-Wire Resistive Touch Technology
- Dual Serial/USB Touch Interface
- 250 nits (Typical) Brightness
- 140° (H) / 130° (V) View Angle
Overview
Specs
Reviews (14)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

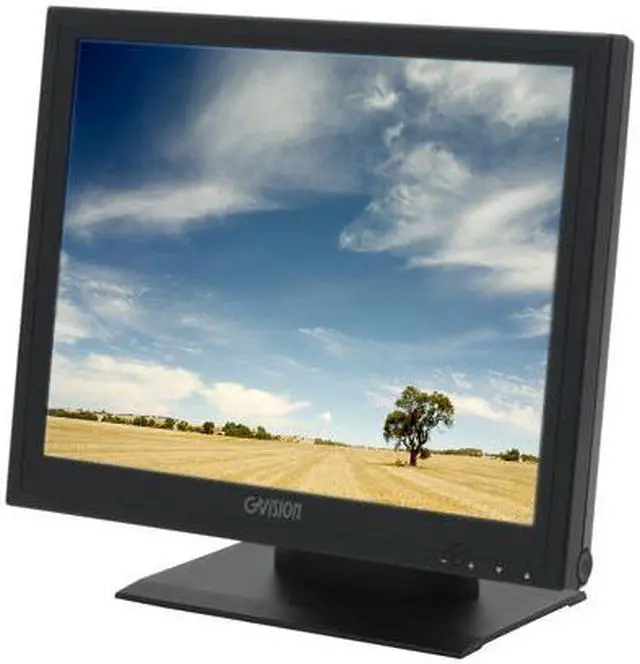

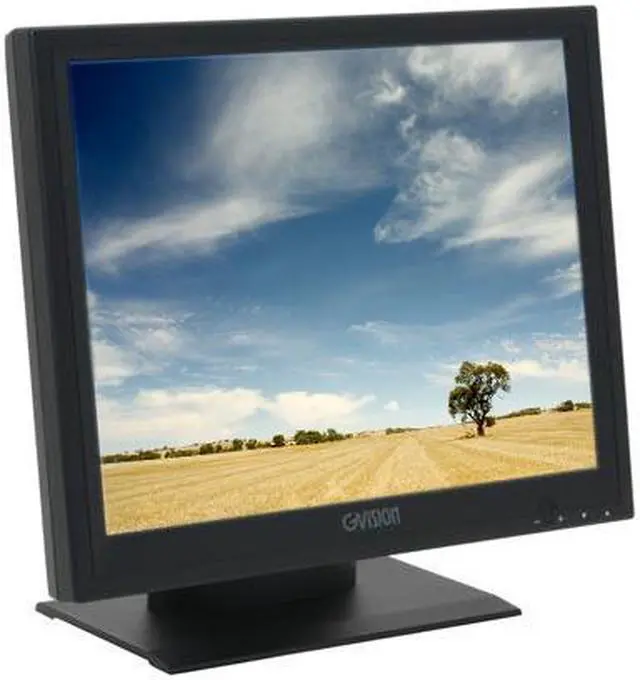

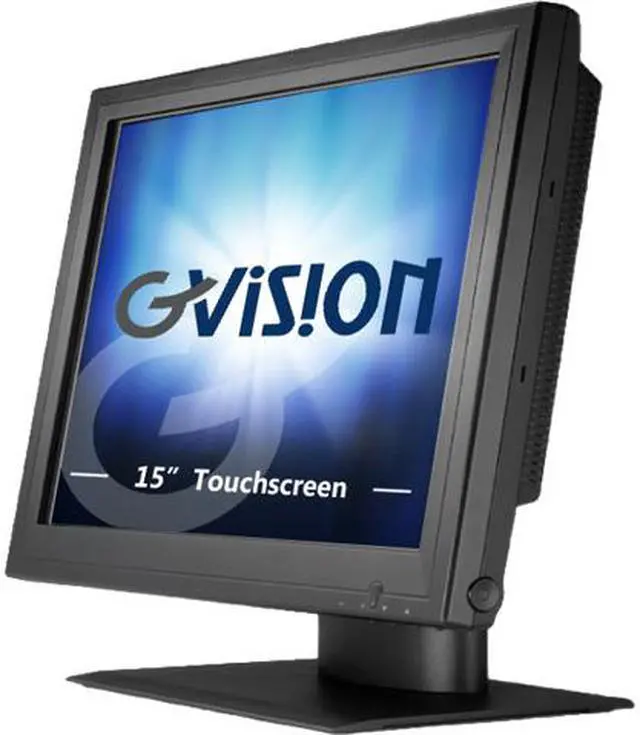

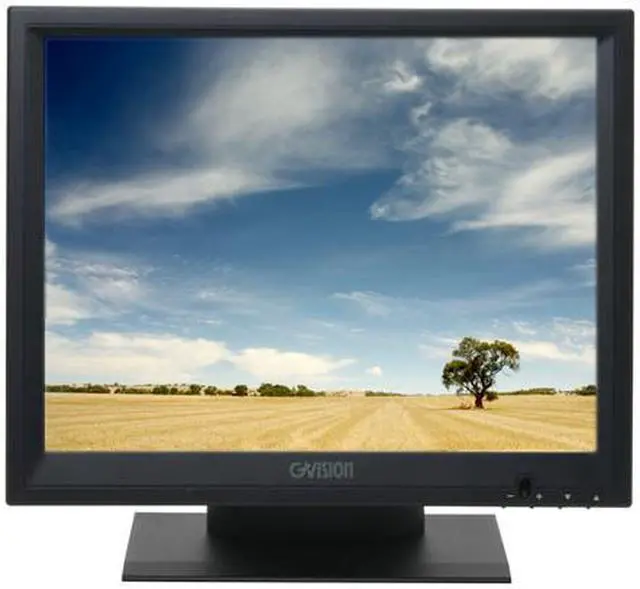

GVISION P15BX-AB-459G Black 15" Serial/USB 5-wire resistive LCD Touchscreen Monitor with Tilt Adjustments
GVISION’s P15BX is a 15” Point-of-Sale solution with a slim bezel design to maximize screen space—yet does not take up additional room. The P15BX provides reliable and durable operation for retail POS and hospitality markets. The P15BX can be easily integrated with a variety of POS or PC systems. It's ideal for demanding usage requiring a highly stable monitor and resilient touchscreen. Touch technology can be customized for your projects.
- Slim bezel
- Durable design
- Customizable touch technology
Features
- High contrast color TFT LCD display supports resolution up to 1024 x 768
- Compatible with VGA, IBM and VESA signal standards (resolution/timing auto-detected)
- Compatible with non-standard signals (on request)
- Supports DDC 1/2B for Plug & Play compatibility

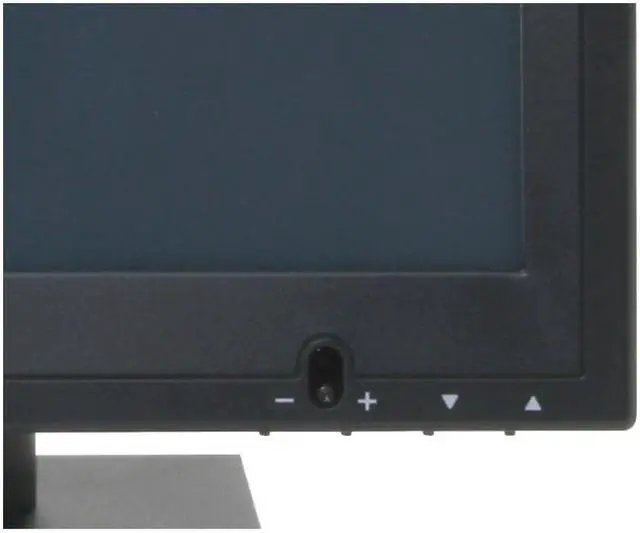

- Advanced OSD control for picture quality adjustment
- VESA standard mounting
- RoHS Compliance
Optional Accessories
- Choice of Black or White Color
- Anti-Glare / Anti-Reflective Tempered Glass
- Sunlight-Readable
- IP54 Waterproof & Dustproof Sealed Front Bezel
- Touch Sensor Technologies: Resistive, Surface Capacitive
-
Video Signal Input
Signal Connector: RCA / S-Video
NTSC / PAL / SECAM video
Specifications
| Bezel Color: | Black or White |
|---|---|
| LCD Display: | 15" TFT active matrix panel |
| Max. Resolution: | XGA 1024 x 768 |
| Contrast Ratio: | 700:1 (Typ.) w/o sensor or glass |
| Brightness: | 250 CD/m2 (nits) |
| Touch Screen: | RS-232 or USB A-type |
| Touch Panel: | 5-wire Resistive |
| Aspect Ratio: | 4:3 |
| Response Time: | 8ms (typical) |
| Viewing Angle: | 140°(H) x 130°(V) (Typ.) |
| Base: | Tilt down: -5° , Tilt up: +90° |
| Input Signals: | VGA + DVI |
| Audio System: | 1W / per channel driver |
| Power Adapter: | Universal power adaptor input AC 100~240V, 50~60Hz; Output: DC12V /4A |
| Dimensions (HxWxD): | 314.5 x 351 x 140mm |
| Certifications: | CE / FCC UL / c-UL / TUV / CB CCC (optional) / RoHS / WEEE |

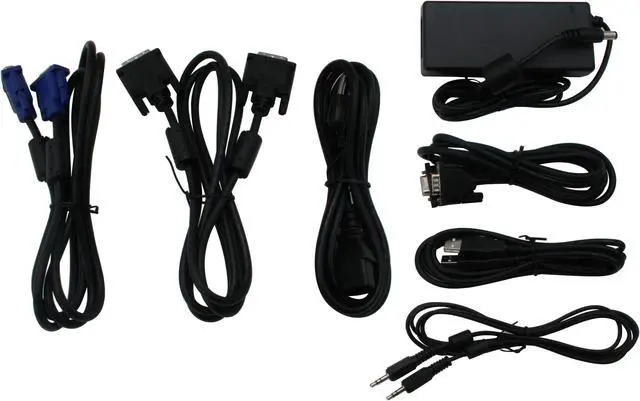

What's in the Box
- P15BX-AB-459G LCD Touchscreen Monitor

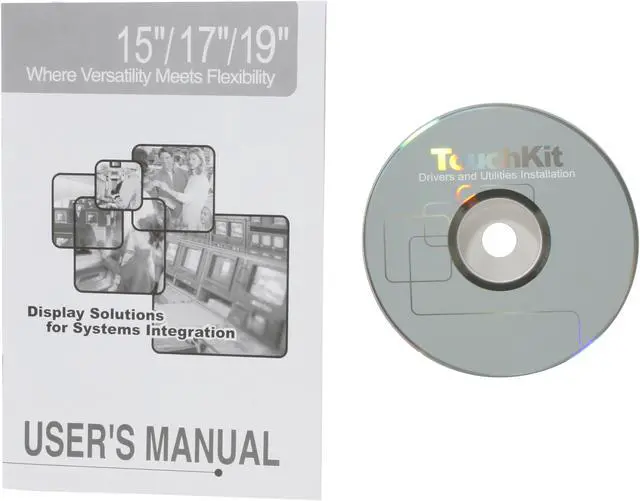

- User Manual
- Power Adapter
- VGA Cable
- Power Cable
- Audio Cable
- USB Cable
- Other Cables
-
Support Disk

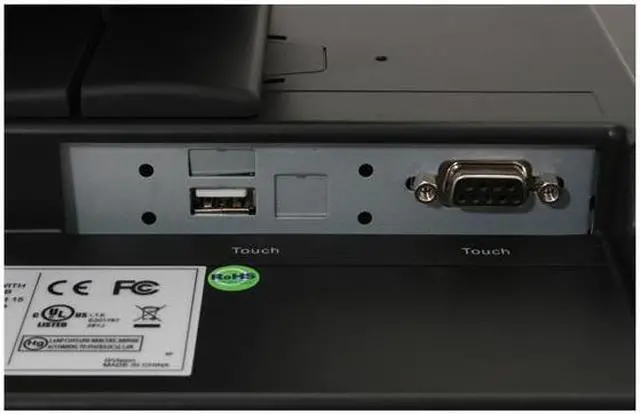

Get in touch with your computer like never before. GVision's 15" touch panel makes controlling your computer an intuitive experience, just touch what you want. Dual USB and RS-232 interfaces let you use the touch screen with most computers and POS systems. You get a choice of VGA or DVI ports to connect to a computer.

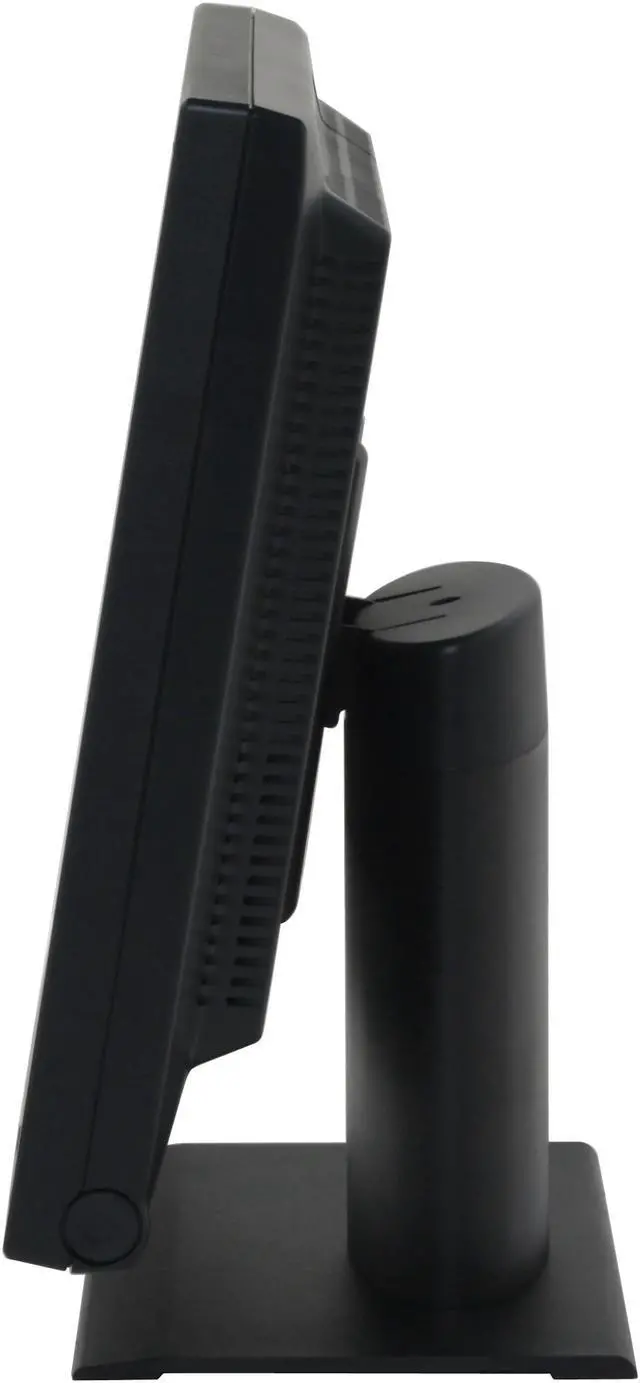

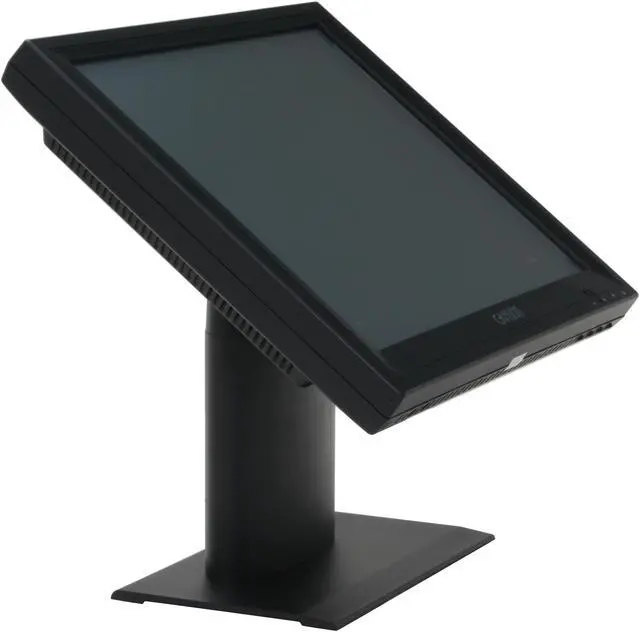

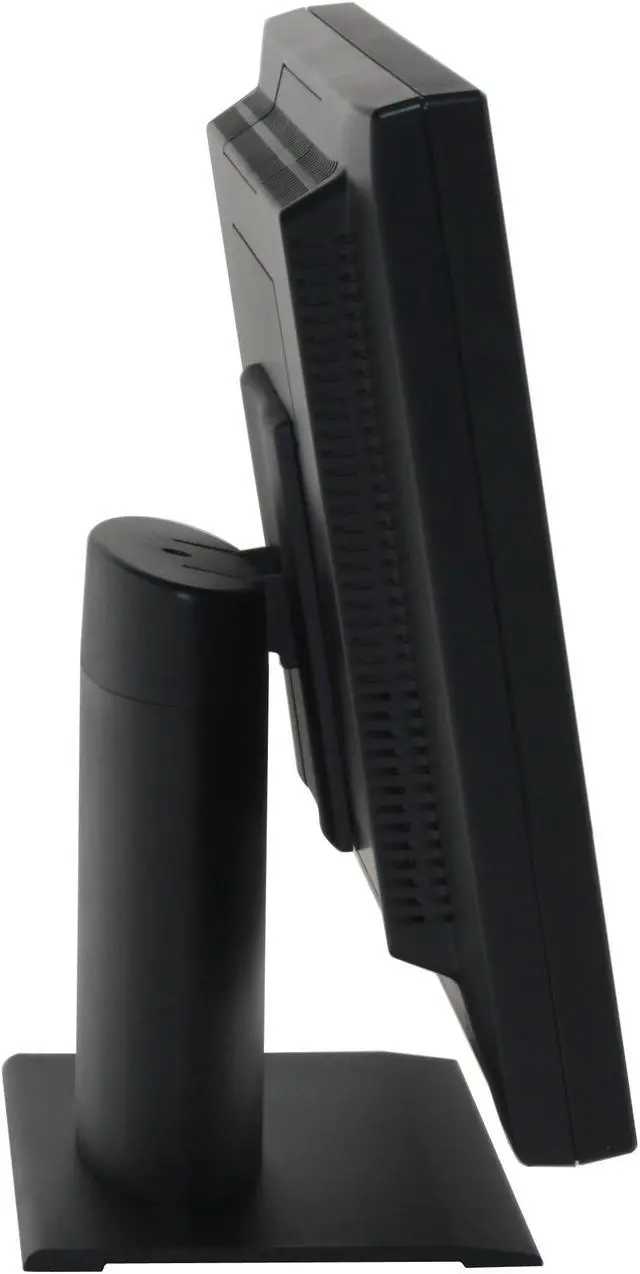

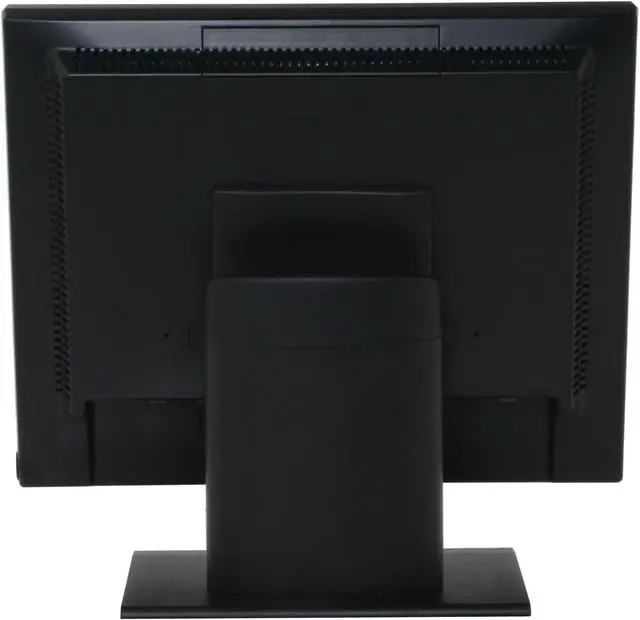

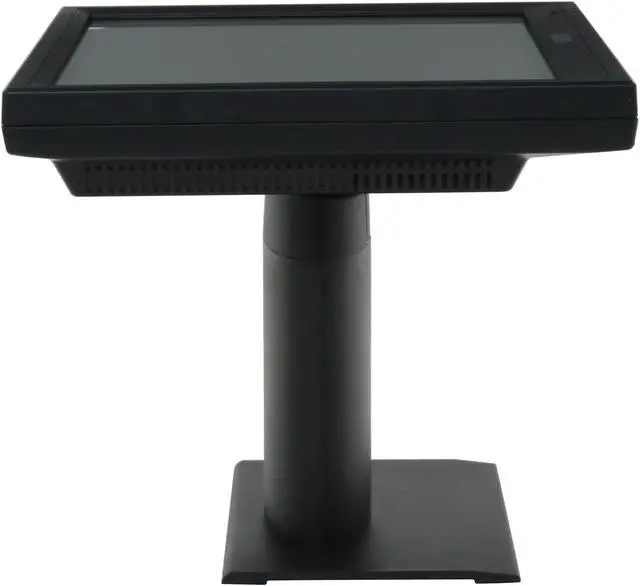

The base has a -5 to +90 tilt adjustment so you can easily set up the monitor on a low retail counter without blocking anybody's view. A sturdy aluminum base gives the monitor a stable platform, no matter what angle you have it set to.
The base has a -5 to +90 tilt adjustment so you can easily set up the monitor on a low retail counter without blocking anybody's view. A sturdy aluminum base gives the monitor a stable platform, no matter what angle you have it set to.
