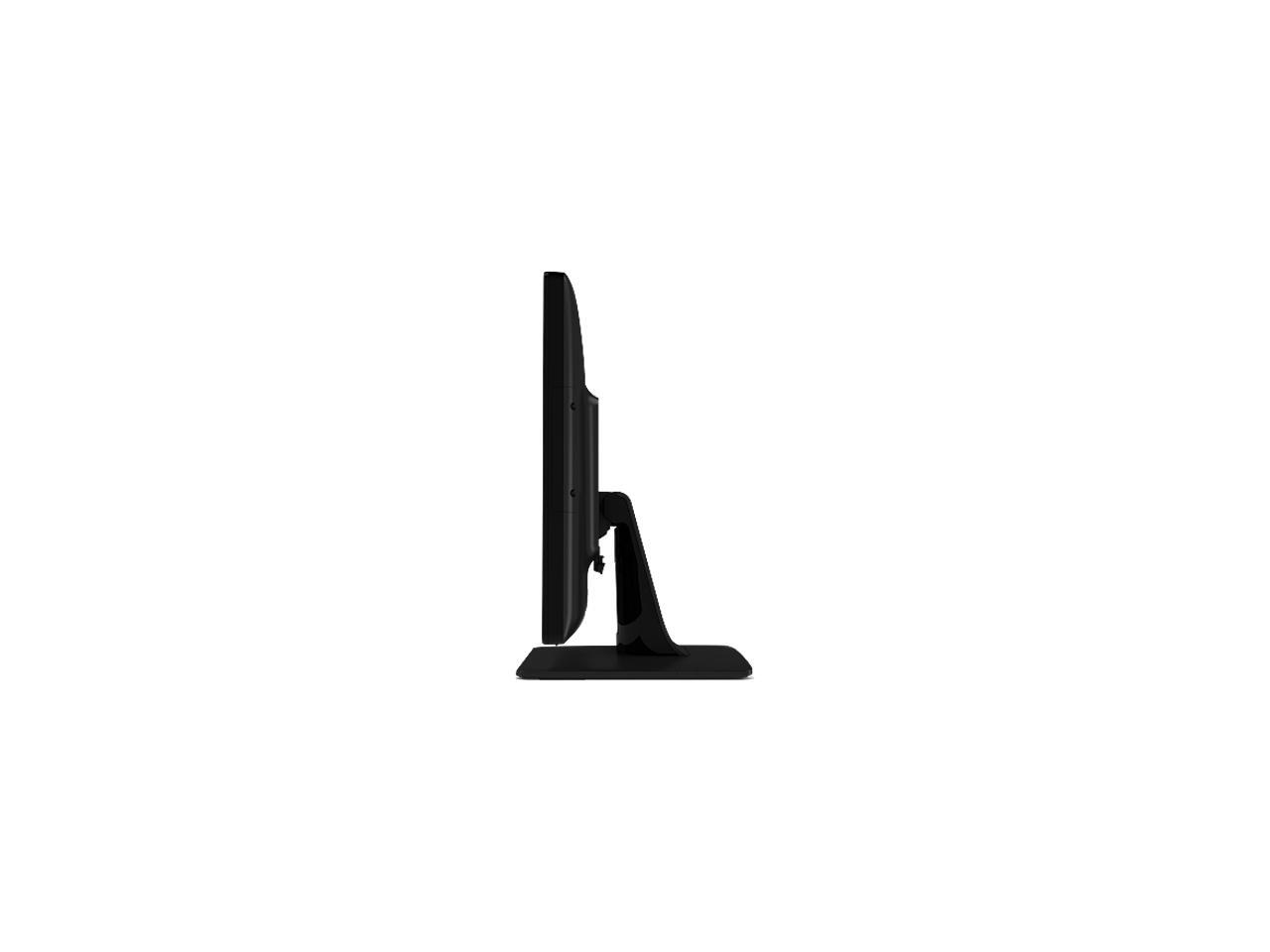

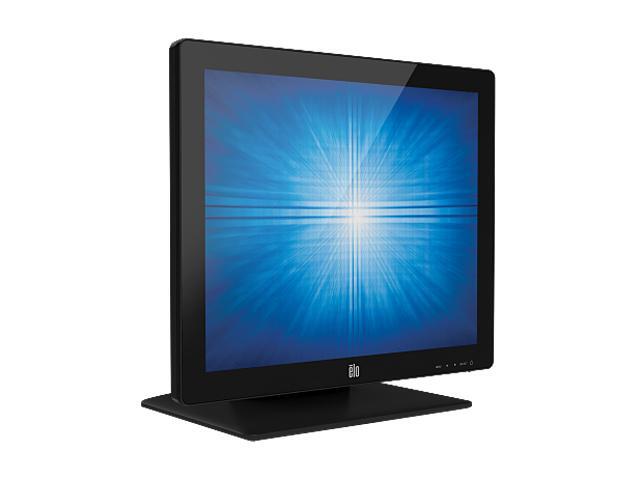

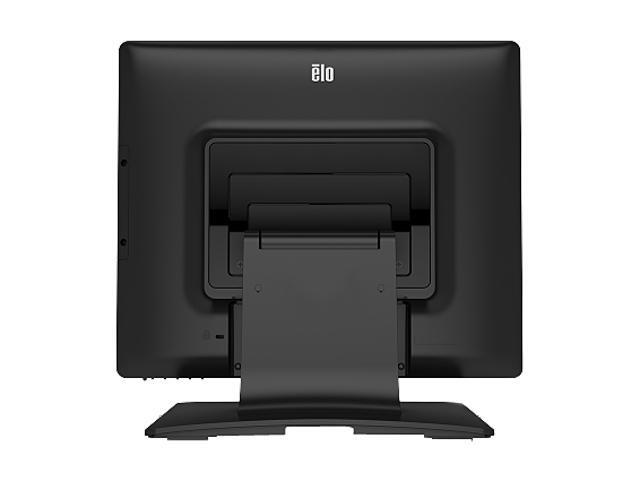

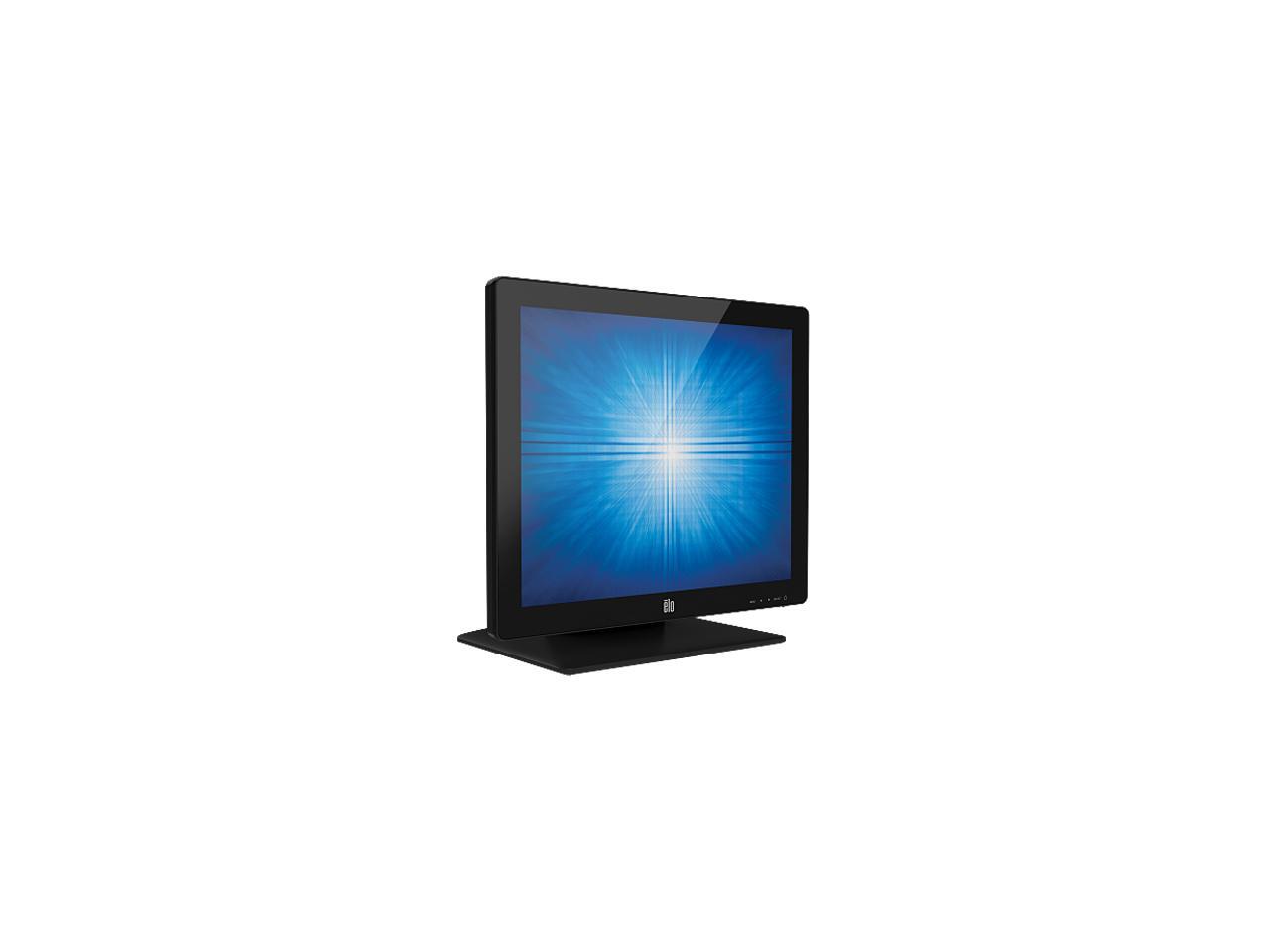

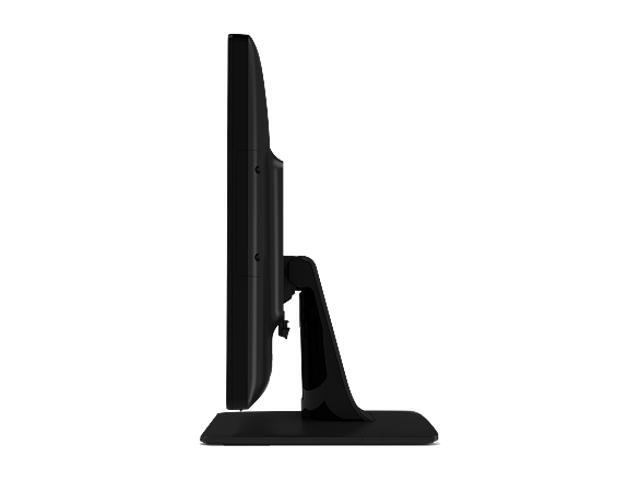

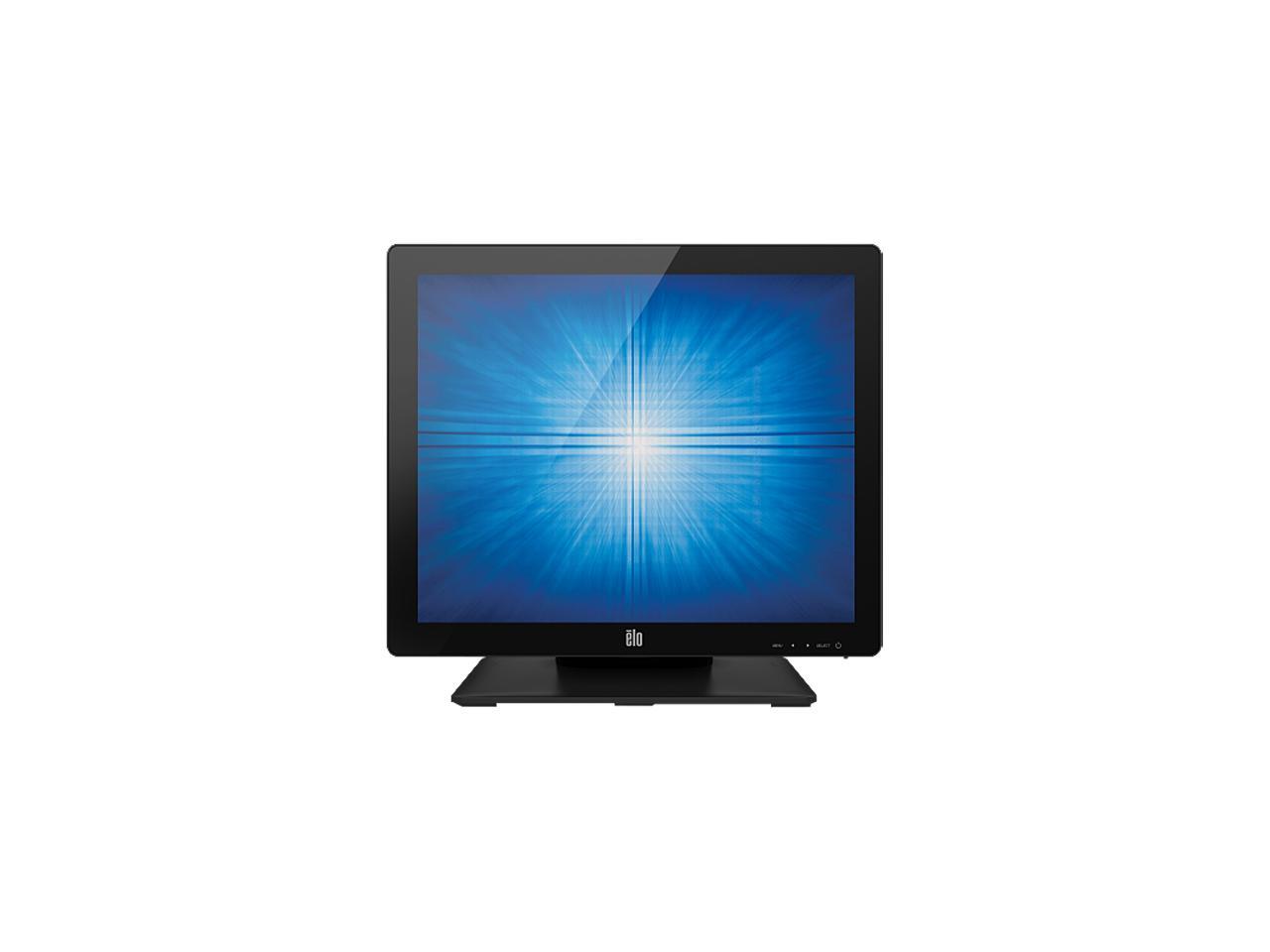

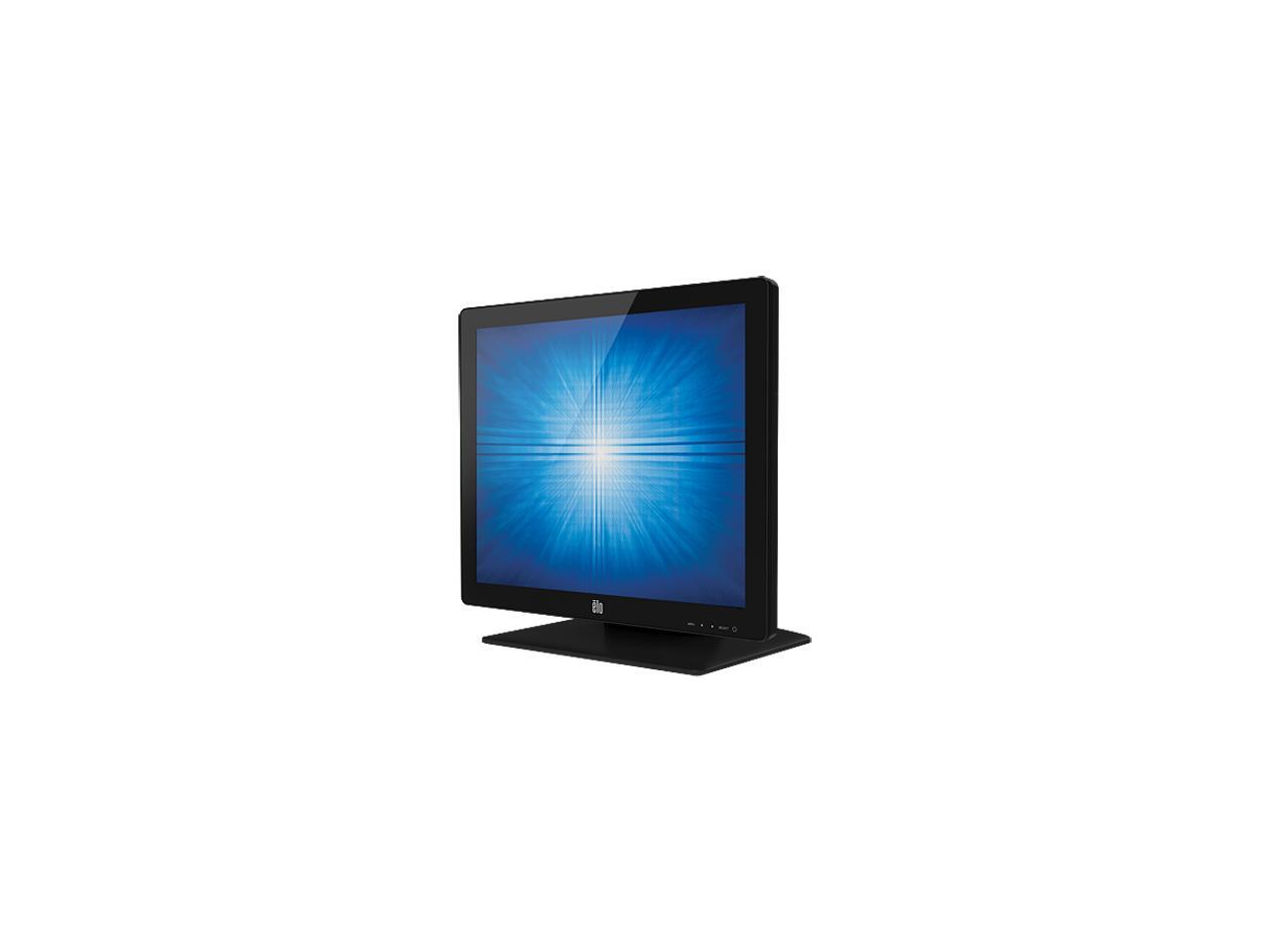

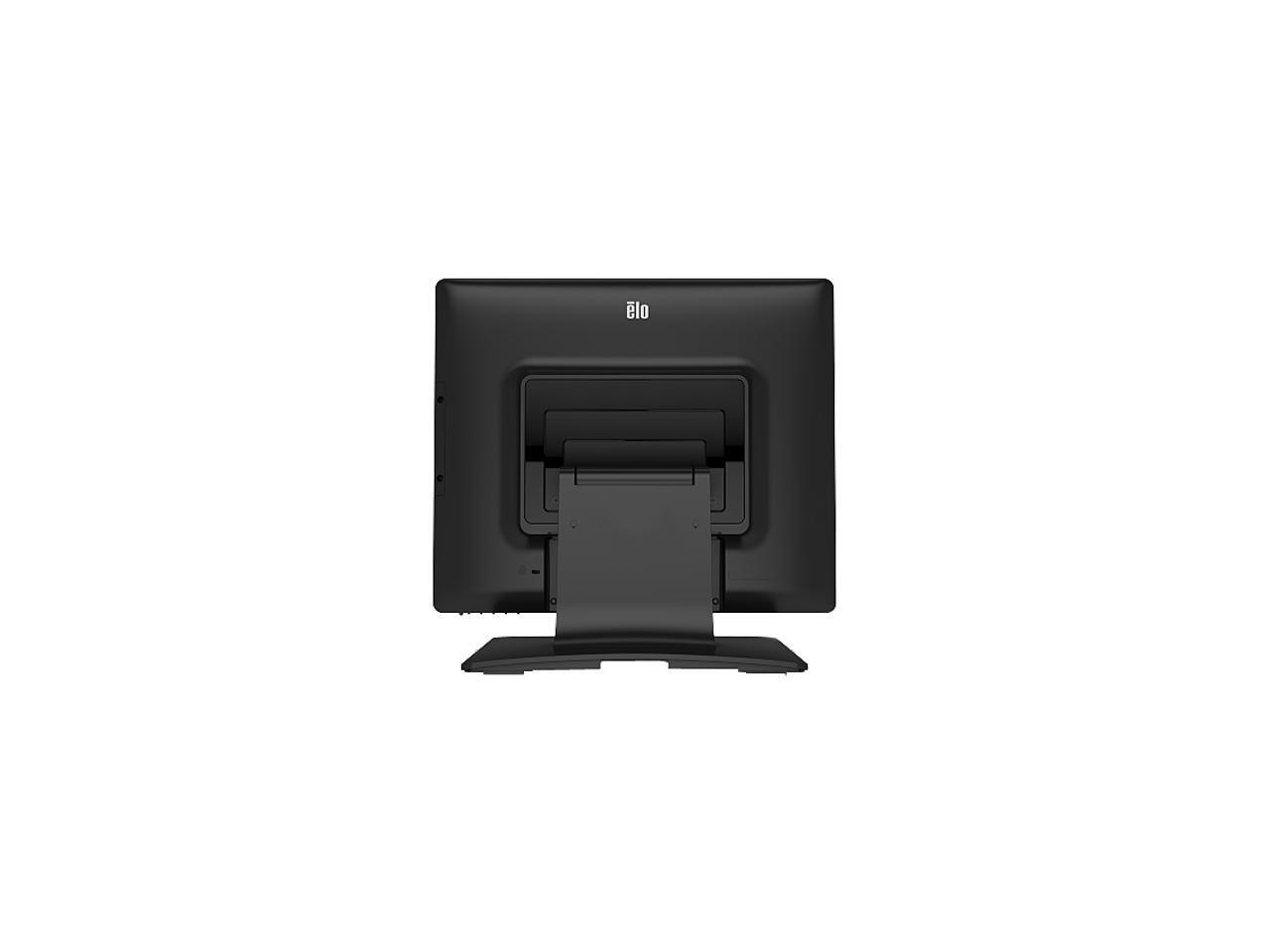

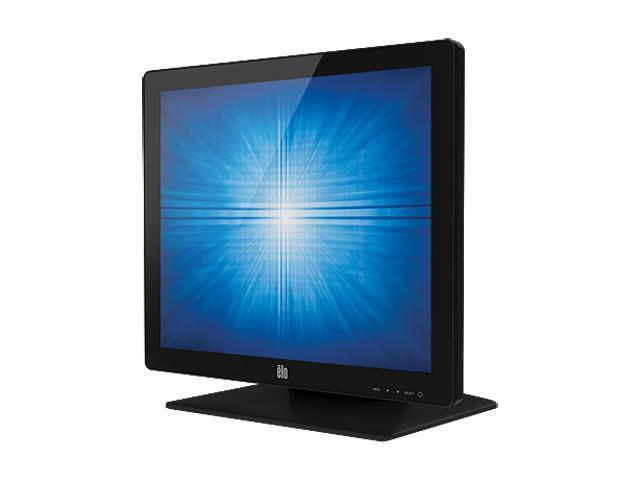

Elo 1717L 17-inch Multifunction Desktop Touchmonitor

Sleek and thin design with "Built for Touch" Reliability
40% Energy Savings using LED Technology
3 Year Standard Warranty
Integrated cable management
Space-saving design

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.

The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Features:

Sleek and thin design with “Built for Touch” Reliability.
Flexible and space-saving.
40% Energy savings using LED technology.
Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
Antiglare or Clear glass.
Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
17” diagonal active matrix TFT LED-backlit LCD.
Active Display Area: 13.3 x 10.6 inches/338 x 270 mm.
5:4 aspect ratio.
1280 x 1024 native resolution. Other resolutions supported.
USB and RS232 serial connections.
Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
Typical power consumption: 20W, internal and external power options.
Warranty: 3 years standard.

Key Applications

Point-of-Sale
Point-of-Information

Part Numbers

Part Number	Technology	Interface	Bezel	Surface Treatment	Color	Availability
E877820	AccuTouch	Serial/USB	Yes	Antiglare	Black	Worldwide
E371267	AccuTouch	Serial/USB	Yes	Antiglare	White	Worldwide
E649473	AccuTouch	Serial/USB	No	Antiglare	Black	Worldwide
E679434	AccuTouch	Serial/USB	No	Antiglare	White	Worldwide
E077464	IntelliTouch	Serial/USB	Yes	Antiglare	Black	Worldwide
E214112	IntelliTouch	Serial/USB	Yes	Antiglare	White	Worldwide
E179069	iTouch	Serial/USB	No	Clear	Black	Worldwide
E227652	iTouch	Serial/USB	No	Clear	White	Worldwide
E017030	iTouch	Serial/USB	No	Antiglare	Black	Worldwide
E415033	iTouch	Serial/USB	No	Antiglare	White	Worldwide

External Elo Peripherals

Peripheral	Interface	Color	Part #(RoHS Compliant)
Magnetic Stripe Reader	USB	Black	E500356
Magnetic Stripe Reader	USB	White	E233227
