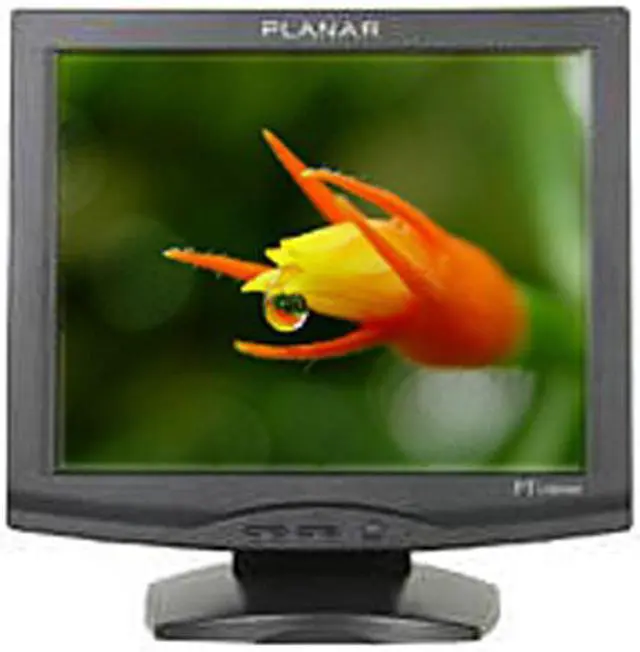

Main image of PLANAR PT1701MU Black 17" USB Capacitive LCD Touchscreen 300 cd/m2 500:1 Built-in Speakers

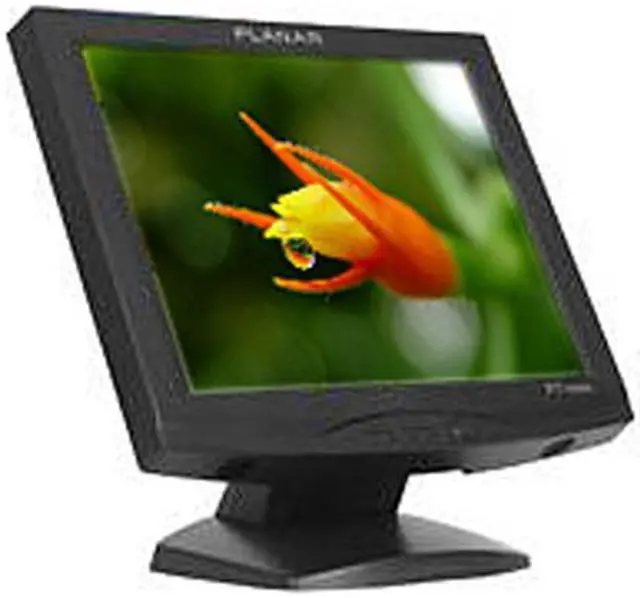

Alt view image 2 of 3 - PLANAR PT1701MU Black 17" USB Capacitive LCD Touchscreen 300 cd/m2 500:1 Built-in Speakers

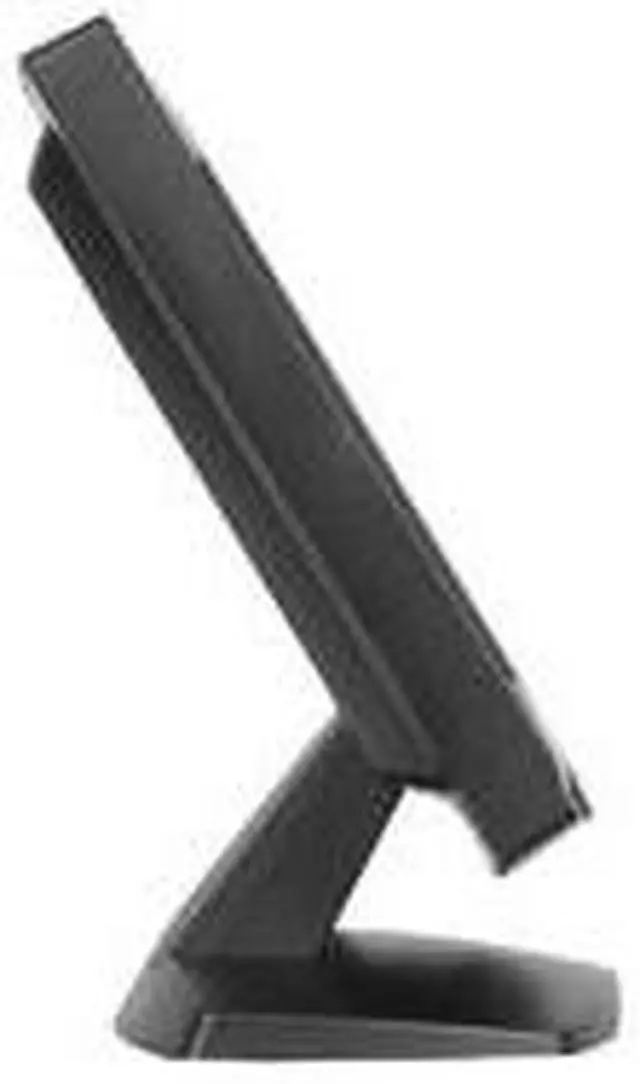

Alt view image 3 of 3 - PLANAR PT1701MU Black 17" USB Capacitive LCD Touchscreen 300 cd/m2 500:1 Built-in Speakers

Shop All Planar Products

PLANAR PT1701MU Black 17" USB Capacitive LCD Touchscreen 300 cd/m2 500:1 Built-in Speakers

Be the first to review this product...

500:1
D-Sub USB
160° (H) / 160° (V)

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

3M Clear Tek Capacitive. Rugged. Fast

The PT1701MU is ideal for today’s retail, POS, or kiosk applications, featuring 3M’s ClearTek Capacitive touch screen and USB touch screen driver for use in harsh environments which require a more rugged touch screen interface. It boasts a bright and fast panel combined with a durable deskstand, and is compatible with mounting options using the 100 mm VESA standard.

3M ClearTek Capacitive touch screen3M ClearTek Capacitive touch screen is tested to withstand over 225 million mechanical touches without noticable degradation to the surface.
USB Touchscreen InterfaceThe PLANAR PT1701MU features a USB touchscreen interface for quick and easy setup.
Built-in Stereo SpeakersWith built-in stereo speakers, the PLANAR PT1701MU provides rich stereo sound while saving precious desktop space.
High durabilityTransparent coating significantly increases durability by resisting scratches and abrasions.

Model
Brand	PLANAR
Model	PT1701MU
Cabinet Color	Black

Display
Touchscreen Type	Capacitive
Panel	Active Matrix, TFT LCD
Screen Size	17"
Display Type	SXGA
Maximum Resolution	1280 x 1024
Resolution	1280 x 1024
Viewing Angle	160° (H) / 160° (V)
Pixel Pitch	0.264mm
Display Colors	16.7 Million
Brightness	300 cd/m2
Contrast Ratio	500:1
Response Time	8 ms (6 ms rise, 2 ms fall)
Vertical Refresh Rate	56-75 Hz

Connectivity
Touchscreen Interface	USB
Input Video Compatibility	Analog RGB Connectors:D-Sub
D-Sub	1
DVI	No

Power
Power Supply	AC 110/220 V ± 10%
Power Consumption	40W (3W standby)

Convenience
Regulatory Approvals	UL/cUL, FCC-B, CE-B, TUV
Built-in Speakers	Integrated stereo speakers, 1W/channel
Features	•Anti-glare coating •Multi-language support •On Screen Display (OSD) •Kensington Security slot •VESA Compatible/Location: Built-in 100mm VESA, monitor back

Dimensions
Dimensions	16.3" x 16.2" x 8.3"
Weight	14.7 lbs.

Additional Information
First Listed on Newegg	February 03, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
