    19 Inch 10 Points Industrial P-Cap Open Frame Touch Screen LCD Monitor Display

    • INDUSTRIAL DESIGN: Deyowo GT190-L04M-P is industrial P-cap open frame Touch Screen Monitor with metal enclosure.
    • FLAT AND ULTRATHIN: Flat and ultrathin design with 10 points Pcap touch screen will let this model can be used in more location.
    • STANDARD VESA: Frame back be with 100*100 mm standard VESA mounting hole.

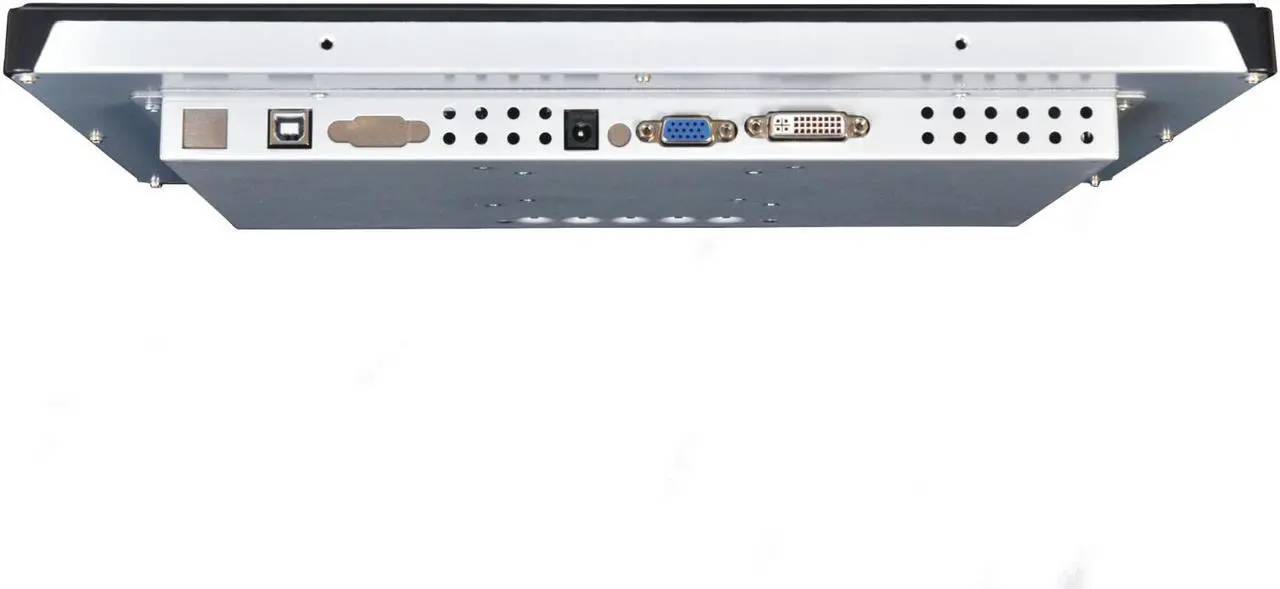

    • MULTI PORT: This model be with USB, HDMI, VGA and DVI.
    • LONG CYCLE LIFE: Good material and high quality parts, keep this model is long cycle of life
    +
    +
    Overview
    Specs
    Reviews

    BUSINESS FOCUS

    Goodtouch Electronics (Guangzhou) Co., LTD is the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor, touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.

    DETAIL SPEC

    Deyowo GT190-L04M-P is 19 inch industrial P-cap open frame touch screen TFT LCD Monitor Display


    Touch points: 10 points

    Resolution: 1280*1024 resolution


    Pixel Pitch: 0.297 * 0.297 mm


    LCD color: 16.7 million (6bit)


    Brightness: 300cd/m²


    Horizontal Viewing Angle: 160º (80º/80º)


    Vertical Viewing Angle: 160º (80º/80º)


    Pixel Response Time: 8ms


    Backing Lamp Life: 50000 hours


    Contrast ratio: 800:1


    Interface port: 1-USB\1-VGA\1-12V DC


    Touch response time: 10.4 ms


    Power input: 12V DC


    Operation circumstance:
    Temperature: 0~+50; humidity: 10%-90%, no condensation


    Agency approvals: FCC, CE, RoHS


    Quality warranty: 1 year

    Deyowo logo
    19 inch Open frame P-cap Touch Monitor
    Product description

    1- This item is 21.5 inches Open Frame P-cap Touch Screen Monitor (Model is GT215-L04M-P), which design for interactive application;

    2- 10 ponits touch with 3mm thickness tempered glass;

    3- Flat and ultrathin design will let this model can be used in more location;

    4- Frame back be with 100*100 mm standard VESA mounting hole;

    5- Be with USB, HDMI and VGA ;

    6- Free driver on Windows OS, Anfroid OS (don't suppot Android TV box)

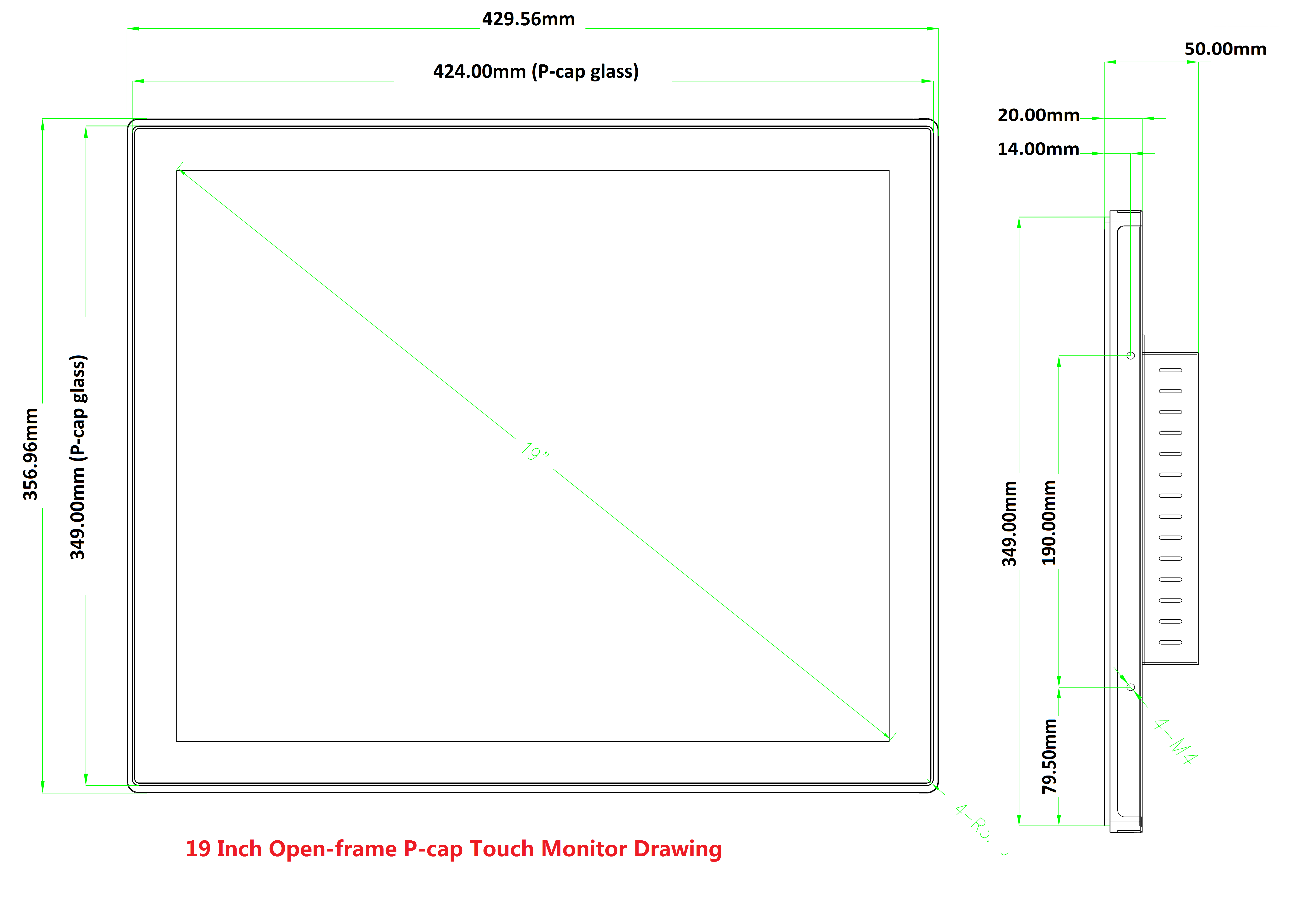

    drawing for 19 inch touch monitor
    Product front drawing

    1- This is 19 inch P-cap touch monitor, 5:4 ratio, the highest resolution is 1280*1024;

    2- The biggest outside size is 429.56mm*356.96mm, the touch galss size is 524*349mm;

    3- Reserved screw holes on left and right sides, you can select embedded installation.

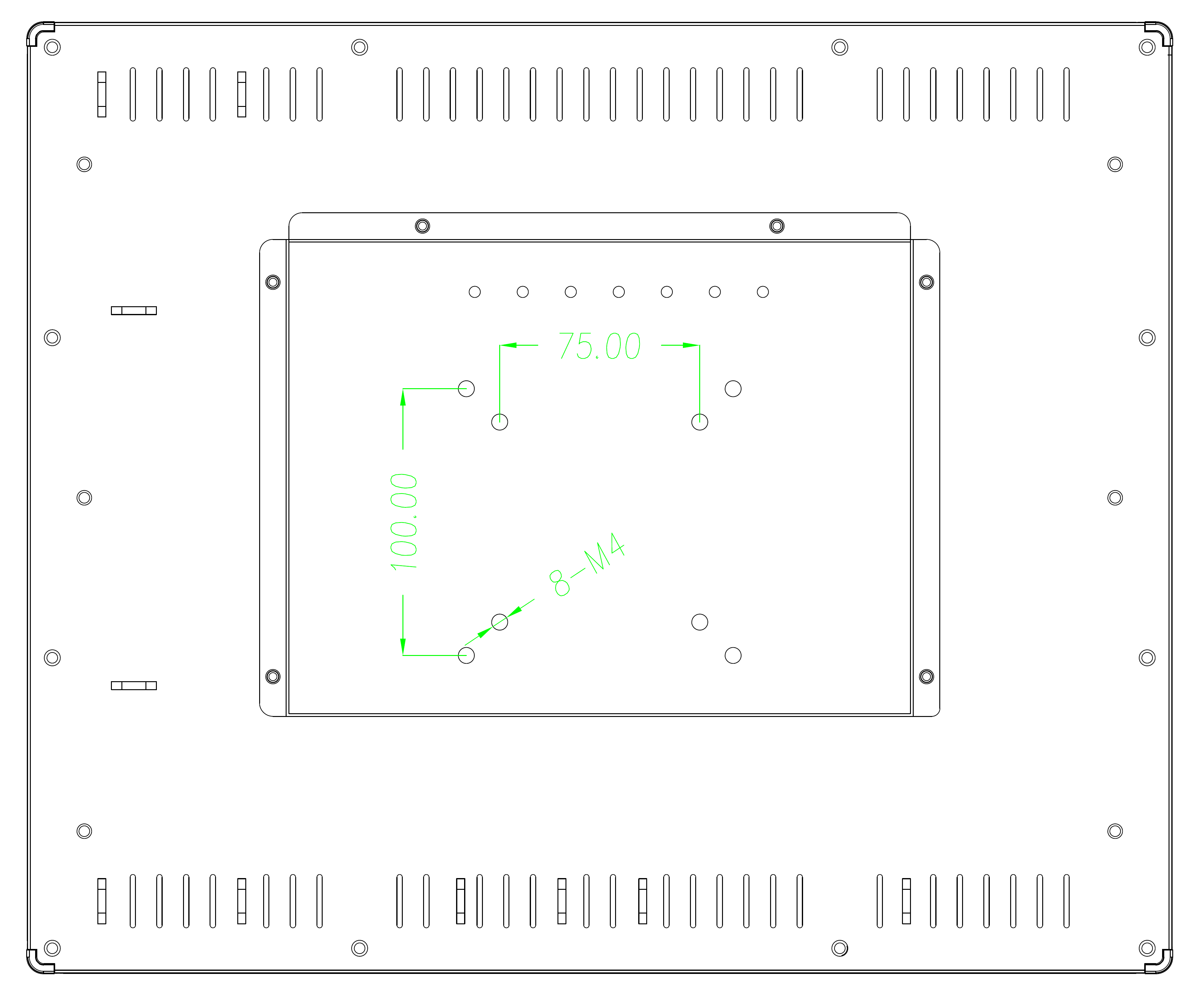

    drawing for 19 inch open frame touch monitor
    Product back drawing

    1- be with 100*100mm and 75*75mm VESA hole;

    2- you can mount it or select desktop.

    PRODUCT ADVANTAGE

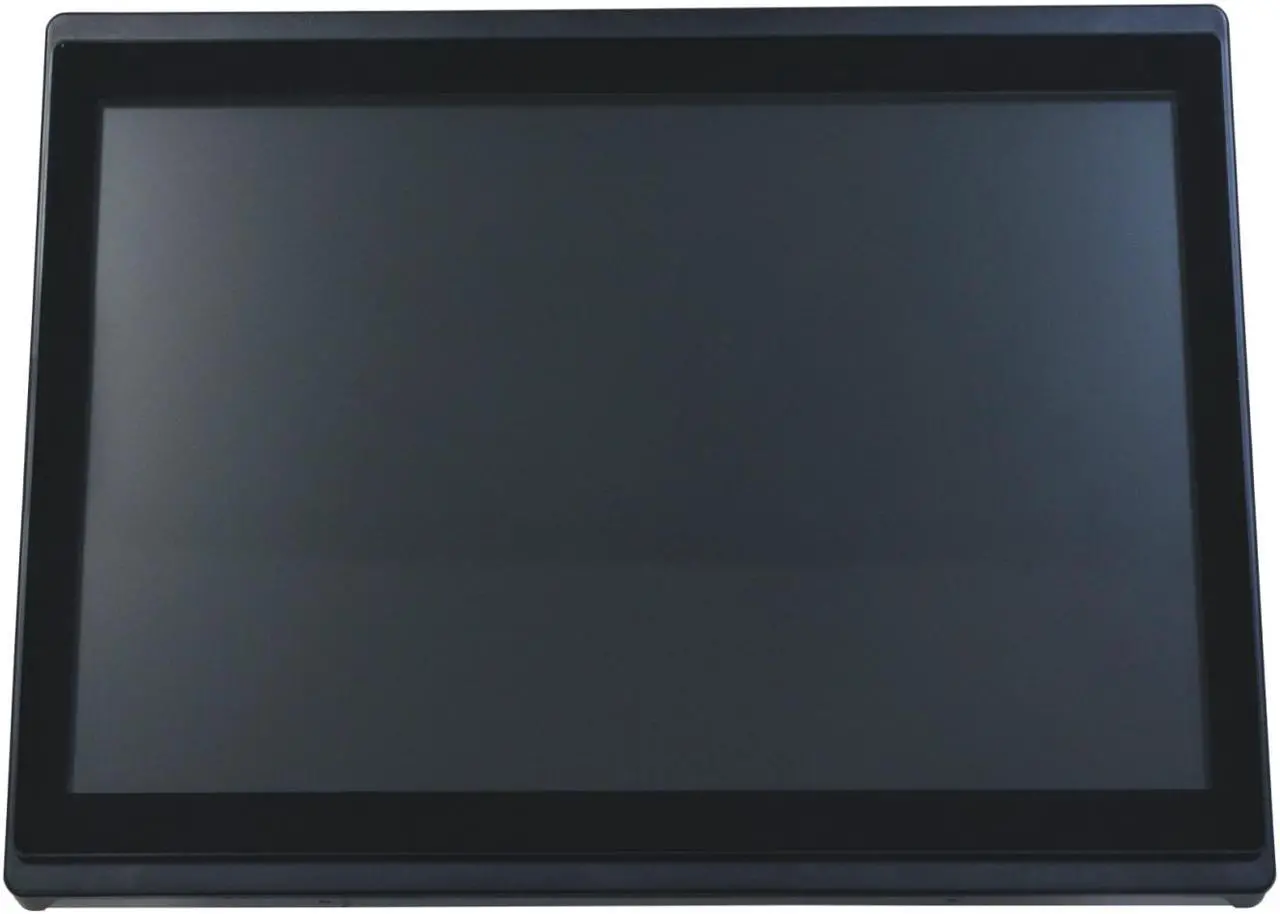

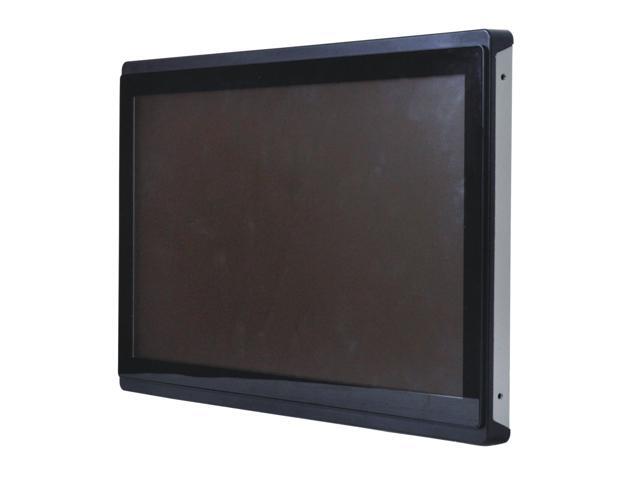

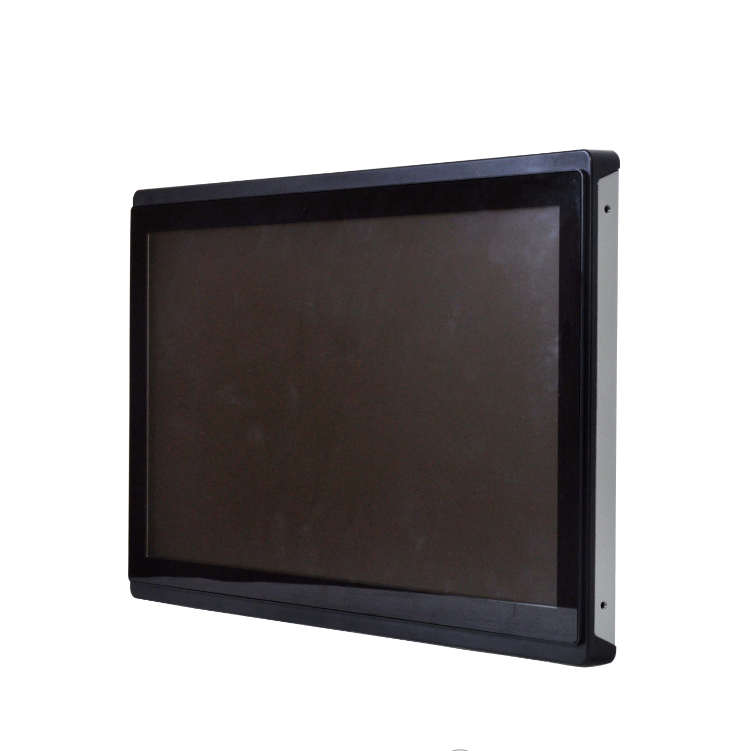

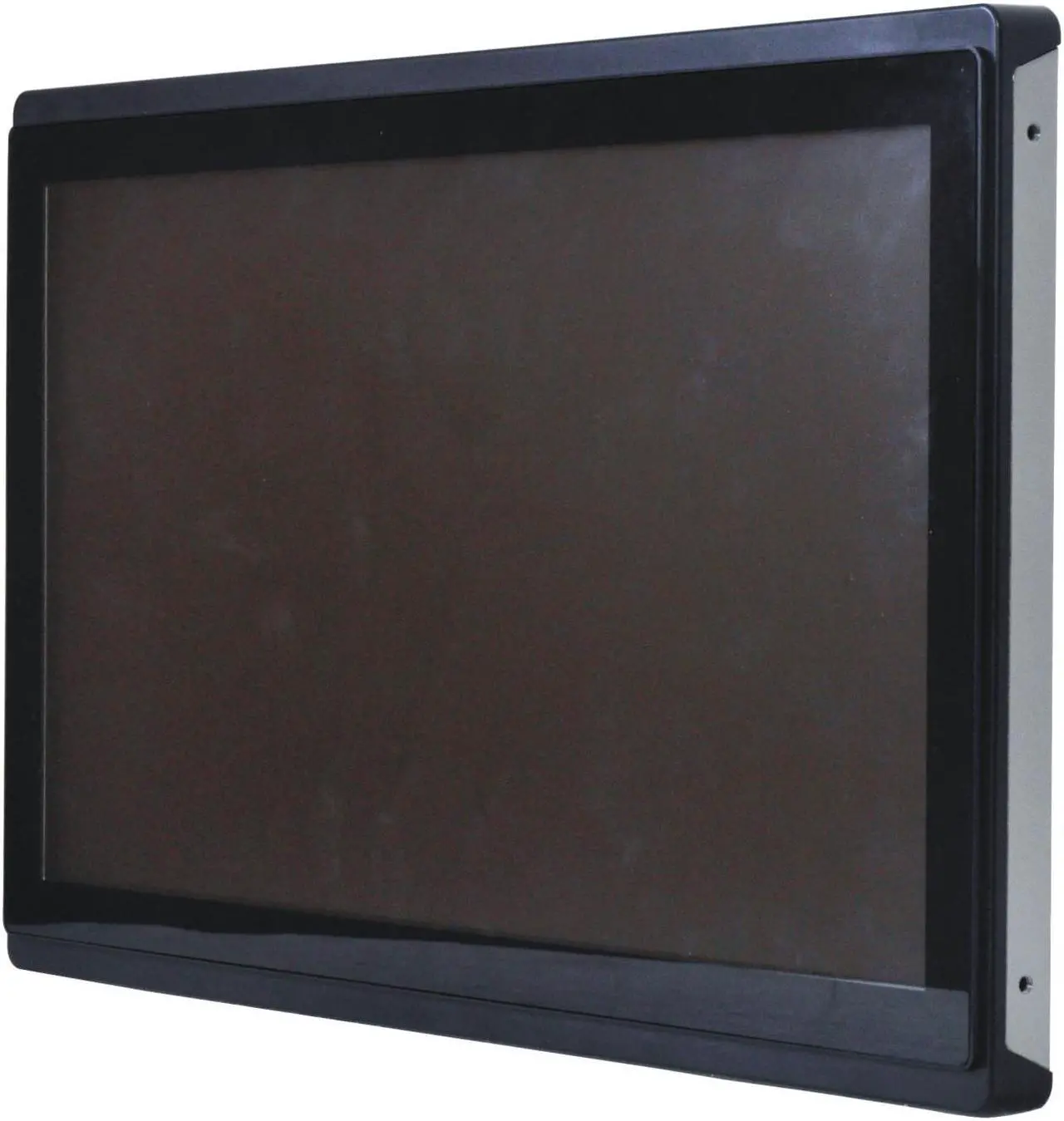

    Front view
    Front view

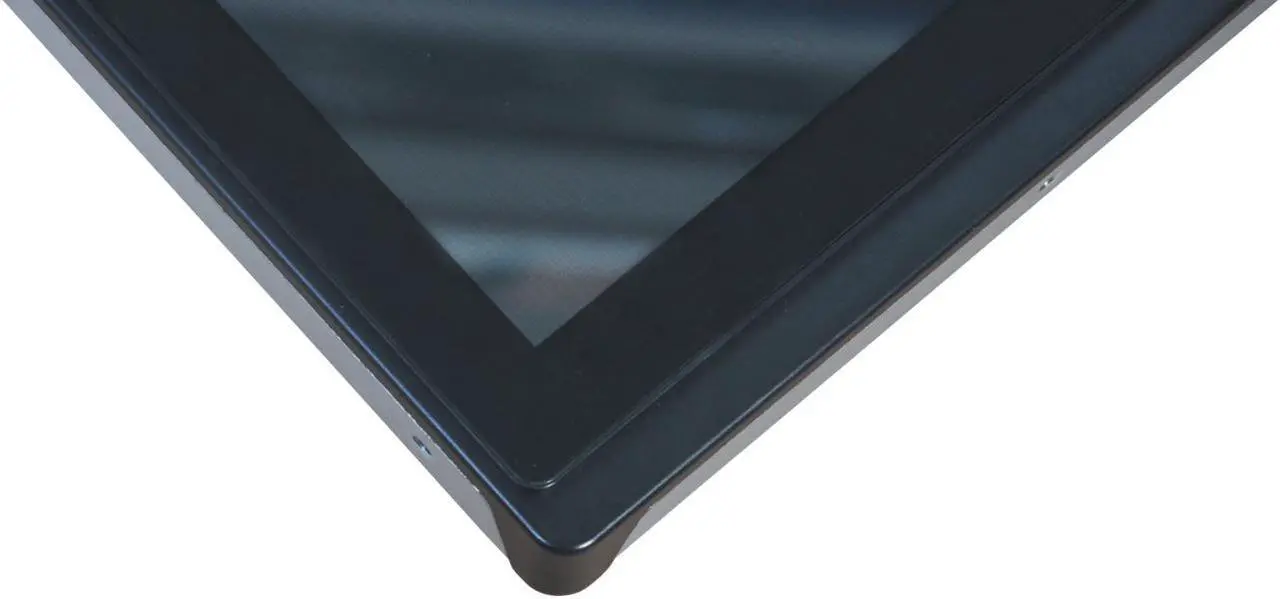

    1- 10 ponits touch with 3mm thickness tempered glass;

    2- Reserved screw holes on left and right sides, you can select embedded installation.

    OS support
    OS support

    1- Free driver on windows OS;

    2- Free drvier on Android OS (not including Android TV box);

    3- Support major edition of Linux OS. If you use this item on Linux, please inquiry us before order it.

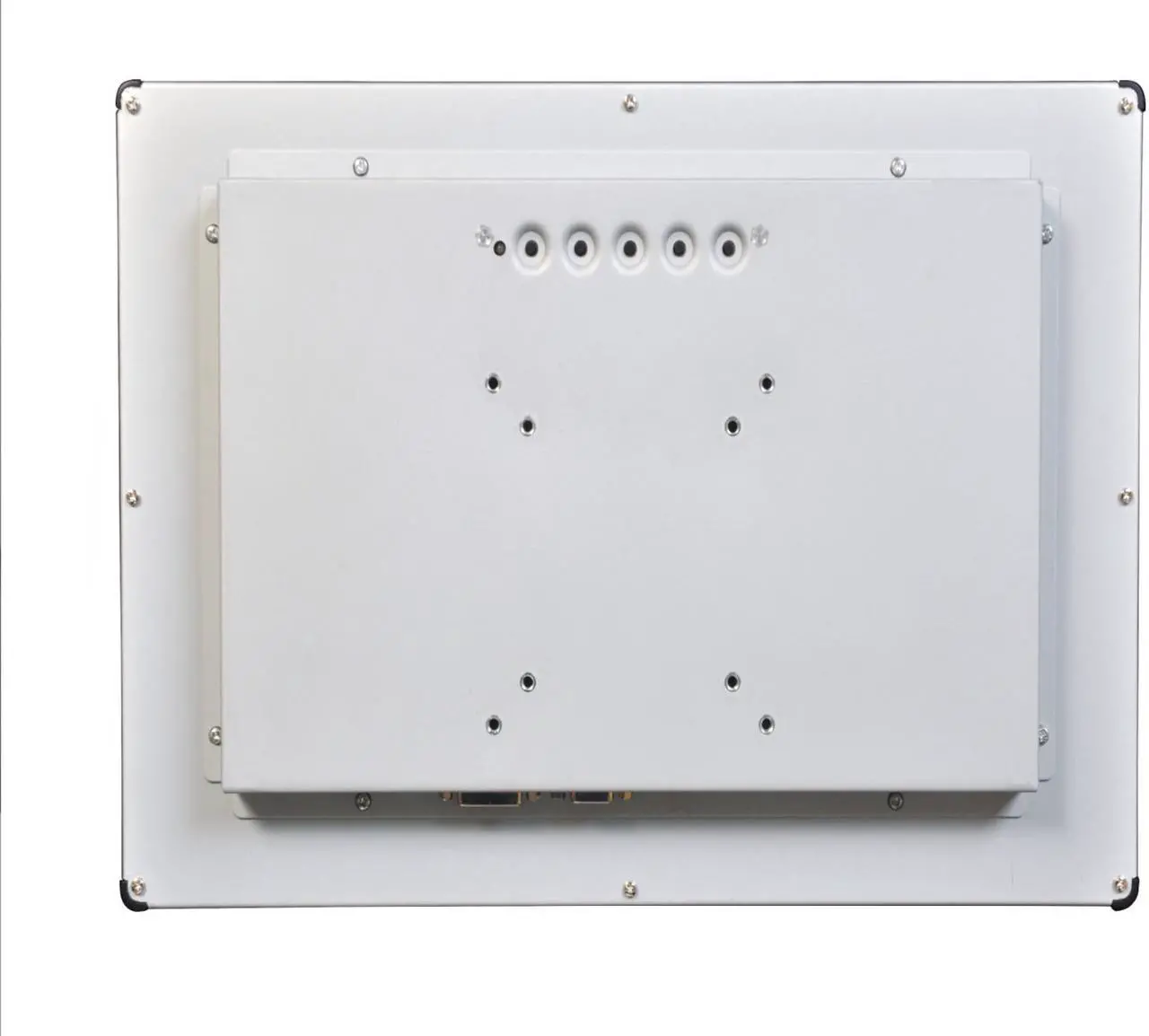

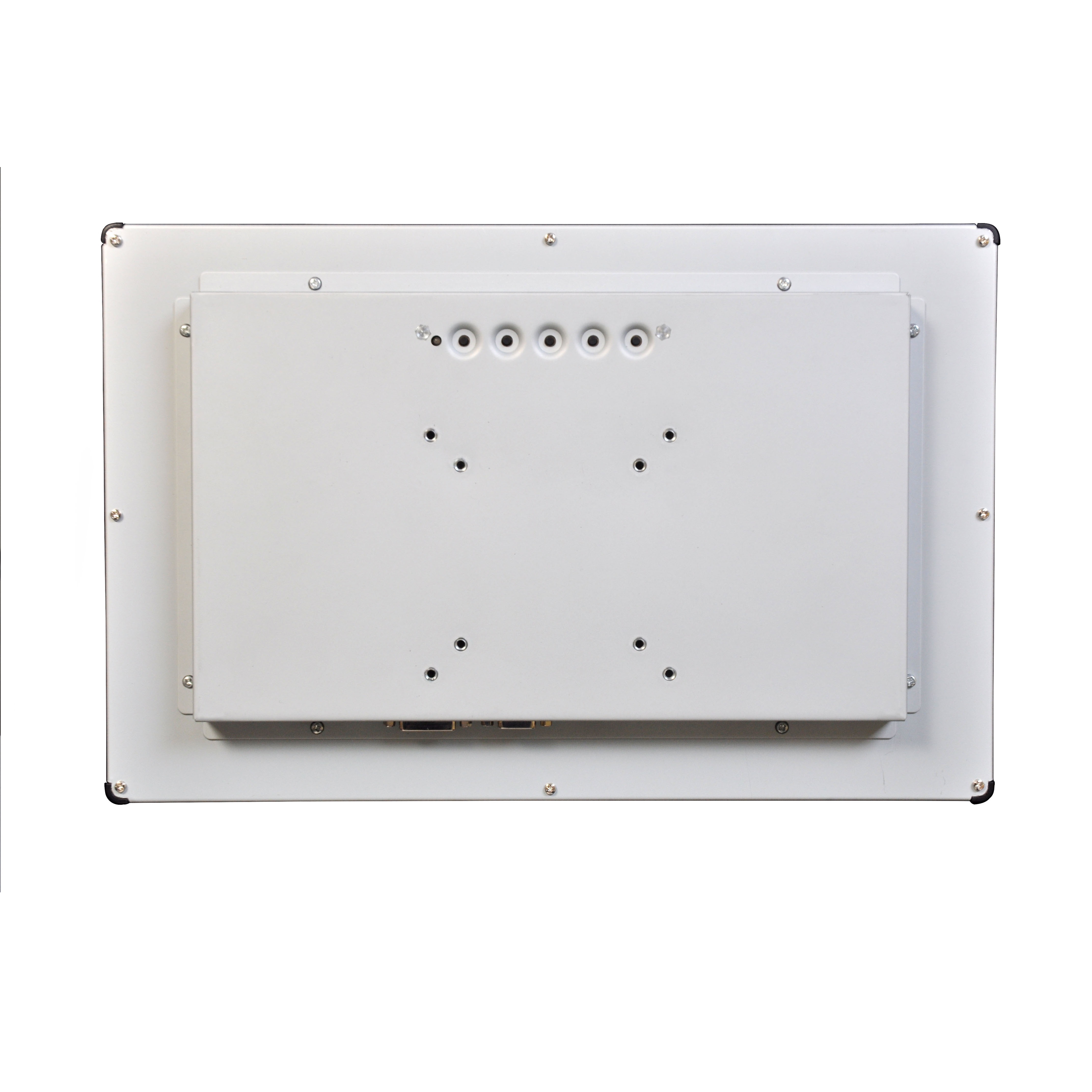

    Back view
    Back view

    Be with 100*100mm and 75*75mm VESA hole;

    Detail specification
    Touch points 10 points
    Display resolution 1920*1080
    Pixel Pitch 0.297*0.297mm
    LCD color 16.7 million
    Brightness 250cd/m²
    Pixel Response Time 8ms
    Backing Lamp Life 50000 hours
    Contrast ratio 1000:1
    Horizontal Viewing Angle 178º (89º/89º)
    Vertical Viewing Angle 178º (89º/89º)
    Touch response time 10.4ms
    Interface port 1-USB\1-VGA\1-12V DC
    Power input 12V DC
    Operation humidity 0%-90%, no condensation
