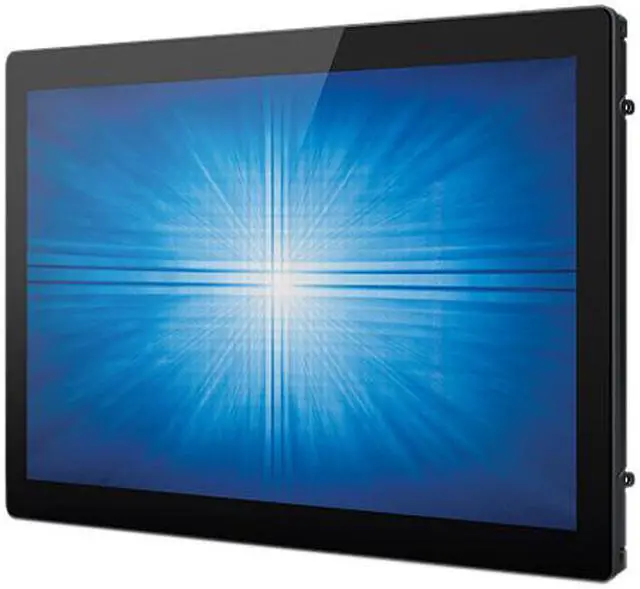

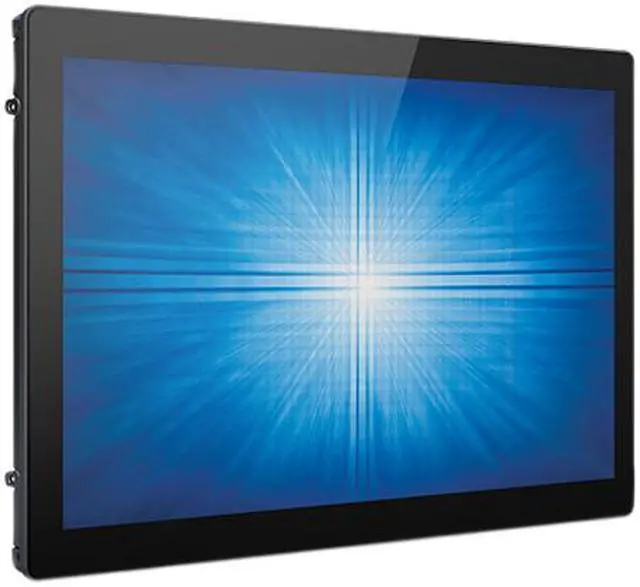

    Elo E146083 2295L 21.5" Full HD Industrial-grade Open Frame Touchscreen Monitor, TouchPro PCAP 10 Touch (Worldwide) - Black

    Be the first to review this product...
    • 21.5'' diagonal, Active matrix TFT LCD (LED), 1920 x 1080, 360nit
    • Brilliant, interactive, TouchPro PCAP display offers edge-to-edge glass for ease of integration & up to 10 simultaneous touches for an enhanced, tablet-like experience; supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings
    • Offers the versatility needed for commercial kiosk applications from industrial automation & gaming to self-service & retail
    • Can be mounted in landscape, portrait & face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design
    • Built-in thermal protection via internal thermal sensor & firmware
    • Compliant w/ UL-60950, IK-07 impact testing & GLI ESD 27kV air / 8kV contact
    • Well-suited for 24/7 use in any high-traffic or harsh environment
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Elo Touch Solutions E146083

    Best Seller Ranking #21 in Point of Sale Monitors
    Model
    Brand Elo Touch Solutions
    Model E146083
    Cabinet Color Black
    Display
    Touchscreen Type PCAP (TouchPro Projected Capacitive) - 10 Touch
    Screen Size 21.5"
    Display Type Diagonal, Active matrix TFT LCD (LED)
    Aspect Ratio 16:9
    Maximum Resolution Other Supported Resolutions
    640 x 480 60Hz
    720 x 400 70Hz
    800 x 500, 60Hz
    800 x 600 56, 60Hz
    1024 x 768 60Hz
    1280 x 800 60Hz
    1280 x 1024 60Hz
    1366 x 768 60Hz, 60Hz RB
    1440 x 900 60Hz, 60Hz RB
    1680 x 1050 60Hz, 60Hz RB
    1920 x 1080 50, 60Hz
    Resolution 1920 x 1080
    Viewing Angle Horizontal: +/- 89 degree or 178 degree total
    Vertical: +/- 89 degree or 178 degree total
    Display Colors 16.7 Million
    On-Screen Display(OSD) Accessible through switches on the unit’s tethered OSD Control box
    Brightness LCD panel: 400 nits
    TouchPro PCAP: 360 nits
    Contrast Ratio 1000:1
    Response Time 14ms
    Connectivity
    Touchscreen Interface USB 2.0 Type B, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
    Input Video Compatibility HDMI V1.3 Type A receptacle for HDMI input
    Analog VGA on Female DB-15 connector
    DisplayPort V1.1a - Supports later versions of DisplayPort video input
    Connectors HDMI, VGA & Display Port
    Power
    Power Supply Monitor input voltage range: 12VDC +/- 5%
    Adapter input voltage range: 100-240 VAC
    Input frequency: 50-60 Hz
    Power Consumption Monitor + Adapter
    ON: 25 Watts
    SLEEP: 0.5 Watt
    OFF: 0.2 Watt
    Convenience
    Regulatory Approvals Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
    VESA Compatibility - Mountable Mounting Options:

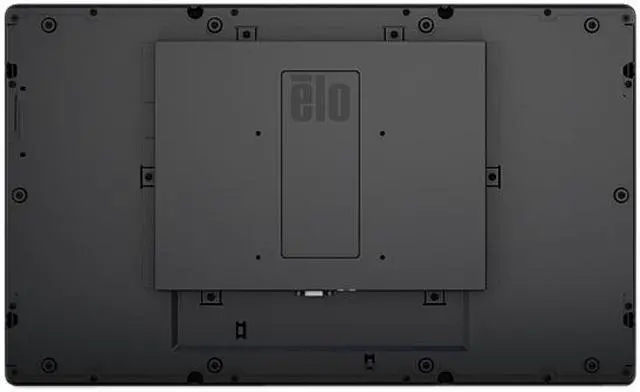

    VESA 4-hole 100mm mounting interface on rear of unit
    Flush mount with included brackets
    MTBF 50,000 hours demonstrated
    Dimensions
    Dimensions (H x W x D) 20.31" x 12.24" x 1.85"
    Weight 11.90 lbs.
    Humidity Range Operating: 20% to 80%
    Storage: 10% to 95%
    Temperature Range Operating: 0 to 40 degreeS C / 32 to 104 degrees F
    Storage: 120 to 60 degrees C / -4 to 140 degrees F
    Packaging
    Package Contents HDMI cable
    Touch USB Cable
    VGA Cable
    Remote OSD
    Flush Mount Brackets w/Screws
    Quick Install Guide
    EEI Label
    Japan Class-B TM info sheet
