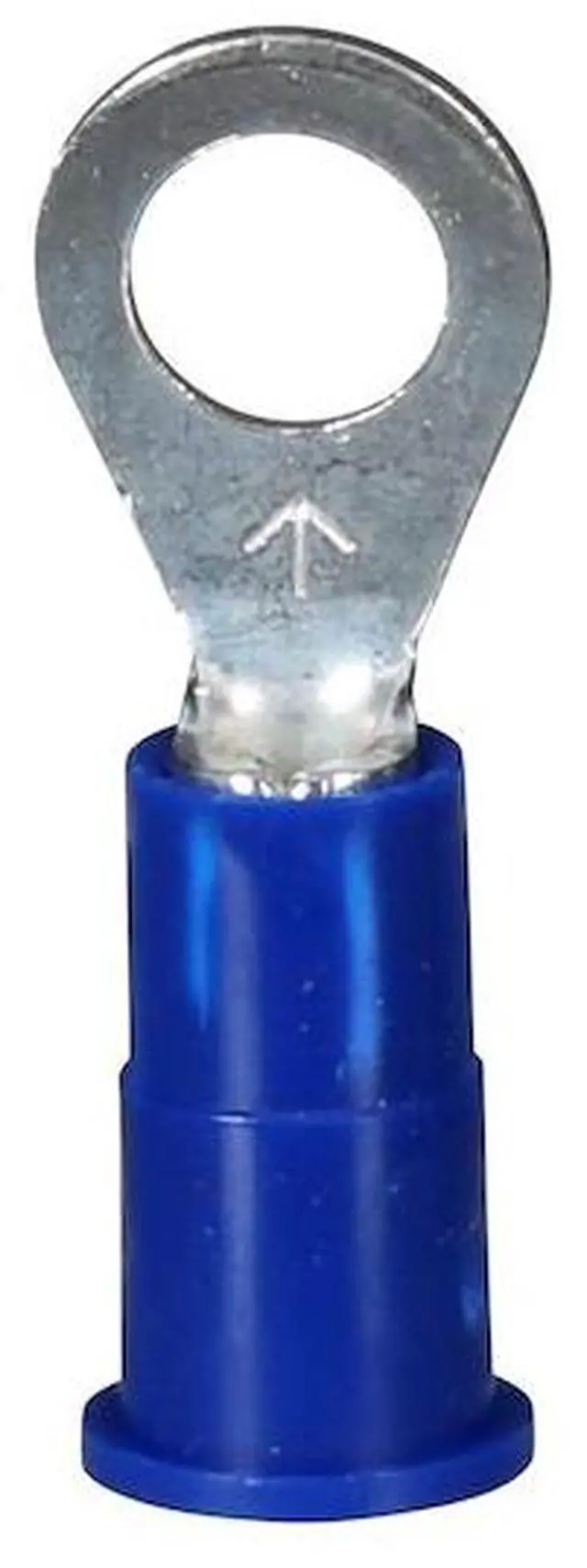

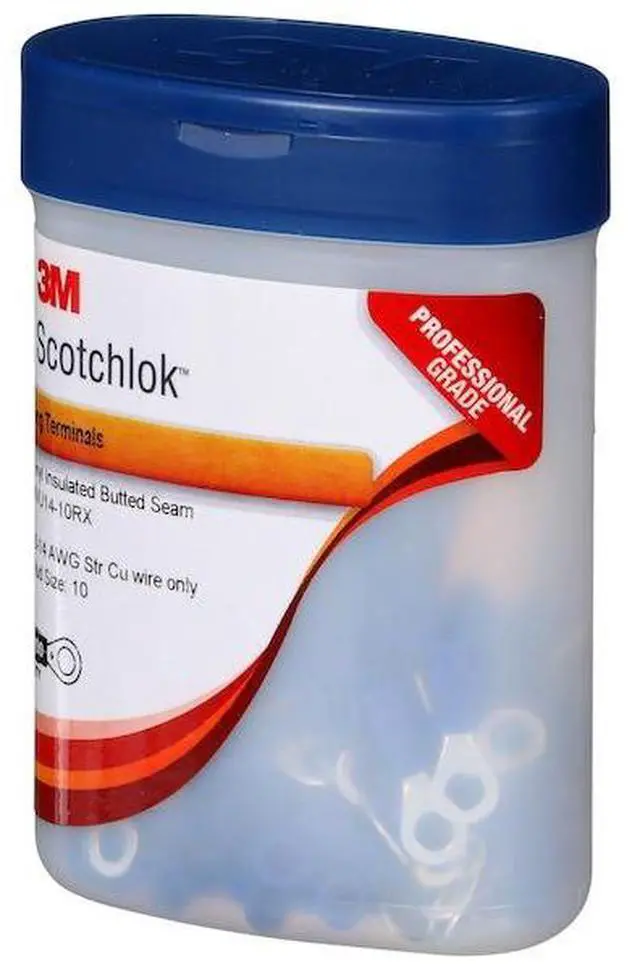

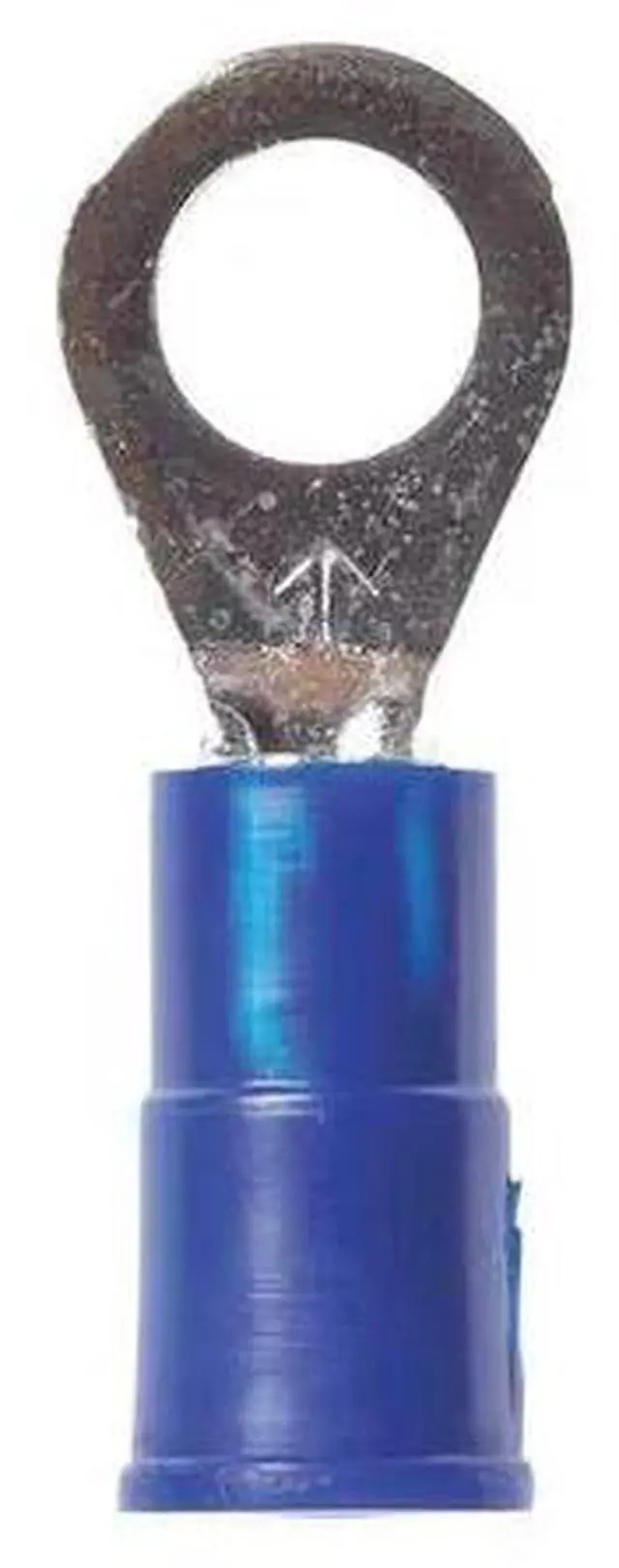

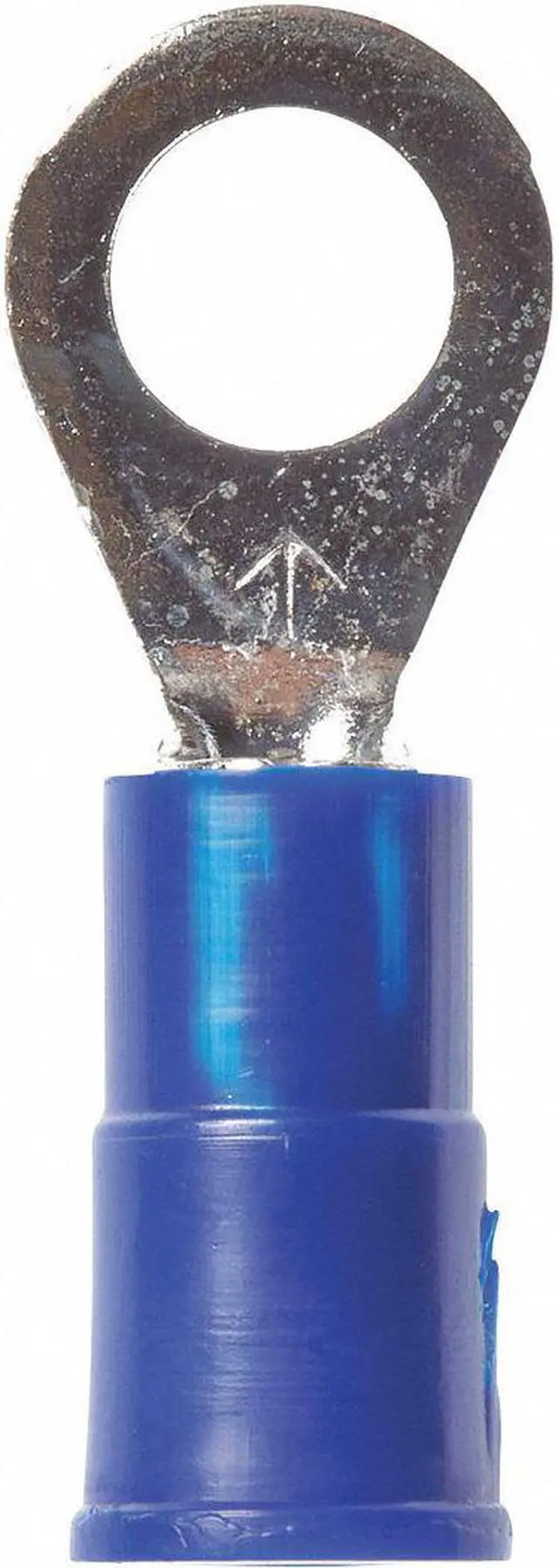

3M MVU14-10RX Scotchlok 16-14 AWG Vinyl Ring Terminal #10 Stud PK100
- Blue
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

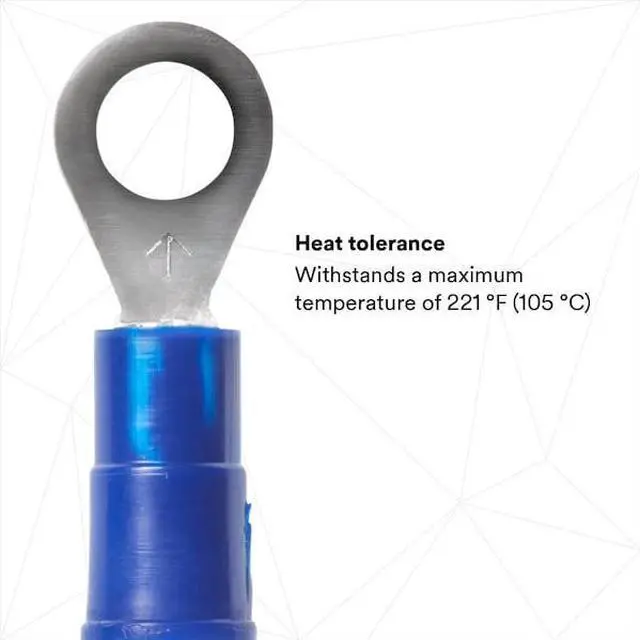

Ring Terminal, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1, 000 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.33 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating V-2, Standards CSA, UL, Barrel Style Funnel Entry, Insulation Type Self-Insulated, Minimum Operating Temperature -40 Degrees F, Overall Length 0.9 in. This item has been restricted from sale in the following state (s): []
