1-This item is Deyowo 48 inch 10 points interactive infrared touch screen frame overlay, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.
2-The out frame of Infrared Touch using alluminum material, product is strong and durabel, not including glass.
3-The infrared touch screen is anti-sunshine, there are no light interference, no drift even if it be uesed under the sunshine directly.

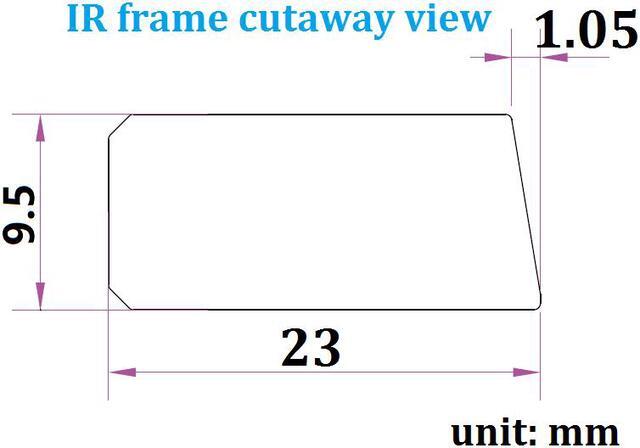

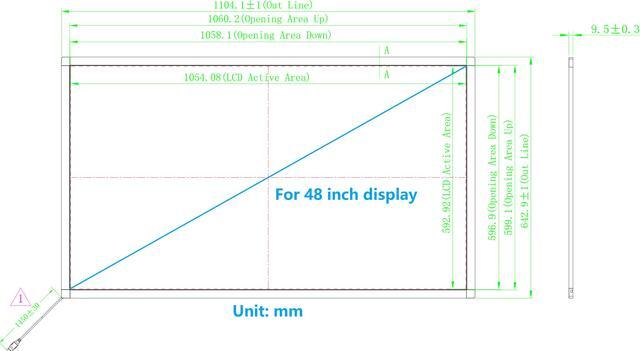

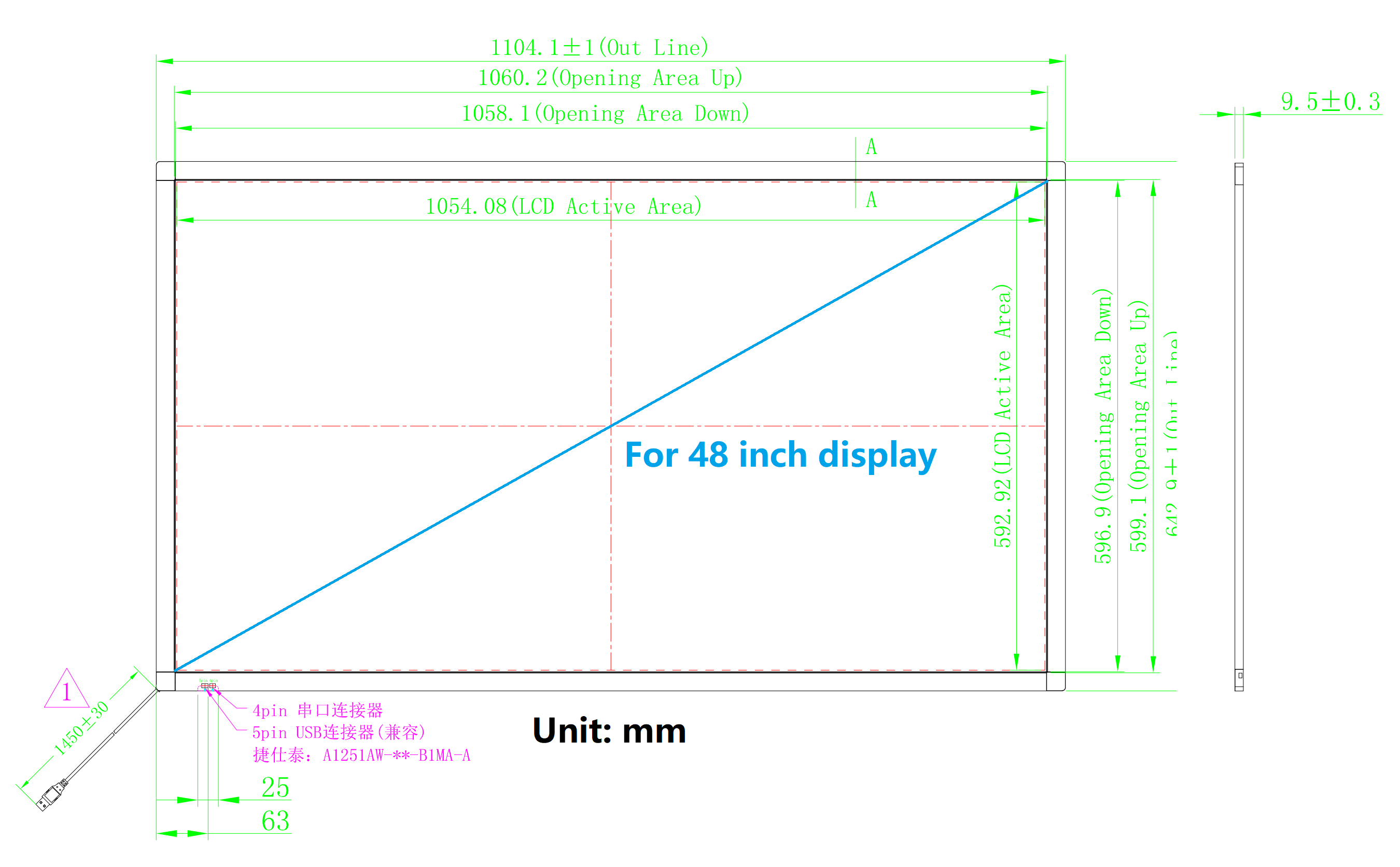

4-This item just only matching 48 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

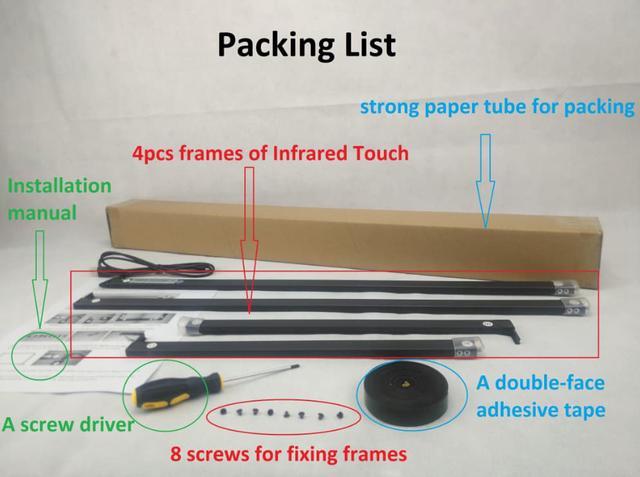

5-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.
6-The infrared touch screen is Free driver for Windows, Android and Linux. Support Mac iOS with HID driver, you can sent E-mail to us on Amazon and get Mac driver. Don't support Android TV box
1-This item just only matching 48 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.
2-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

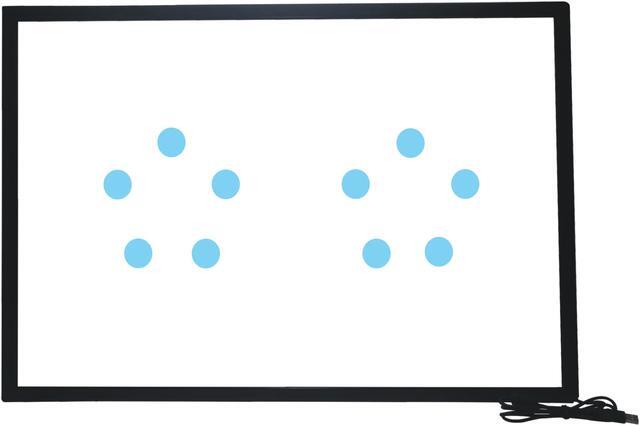

Support 10 points interactive touch, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.
Anti light interference function, it can run well even if it is under sunshine.
1-Driver free for Windows7, Windows8, Windows10, Native Linux and Android OS.
2-Need to install the HID driver on Mac OS
3-Does not support Smart TV Android system, Raspberry Pi

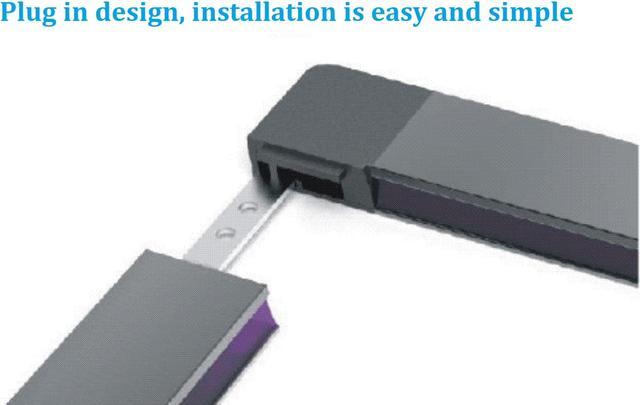

Slot design for four corner interface ports connecting, A to A, B to B, C to C and D to D. Easy and simple
| Product name | interactive IR infrared touch scree frame overlay |
|---|---|
| Detection Method | Infrared rays |
| Touch Activation Force | Non Minimum activation force |
| Object Touch Size | min Ø5mm |
| Touch Durability | Over 60 millions for single touch |
| Touch Resolution | 32768*32768 |
| Position Accuracy | 2mm |
| Fault Tolerance | Workable even 75% sensors are damaged |
| Frames per Second | Up to 450 fps |
| Touch Response Time | 8ms |
| Draw Response Time | 8ms |
| Altitude | 3000m |
| Light Transmission | 100% without glass |
