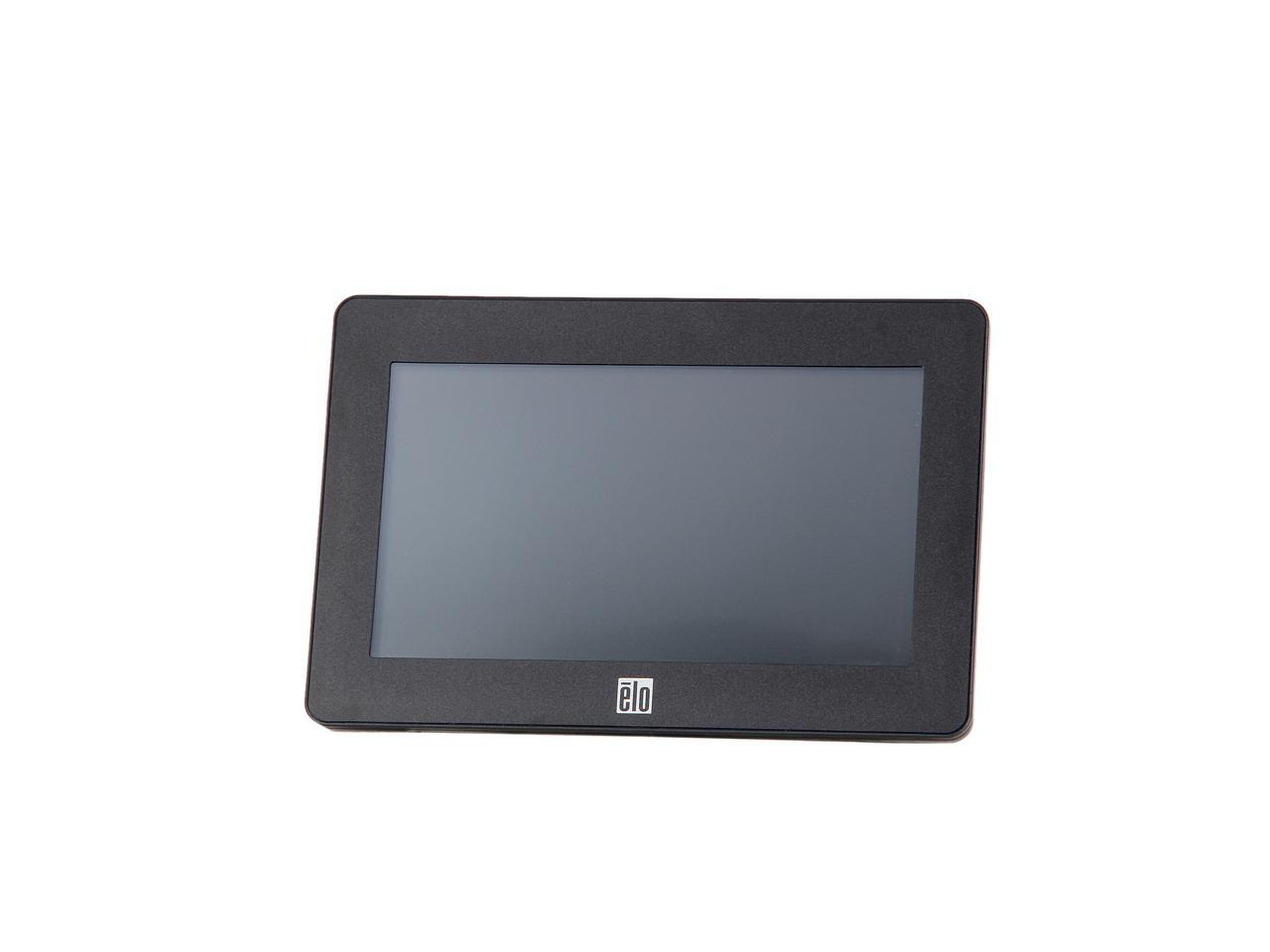

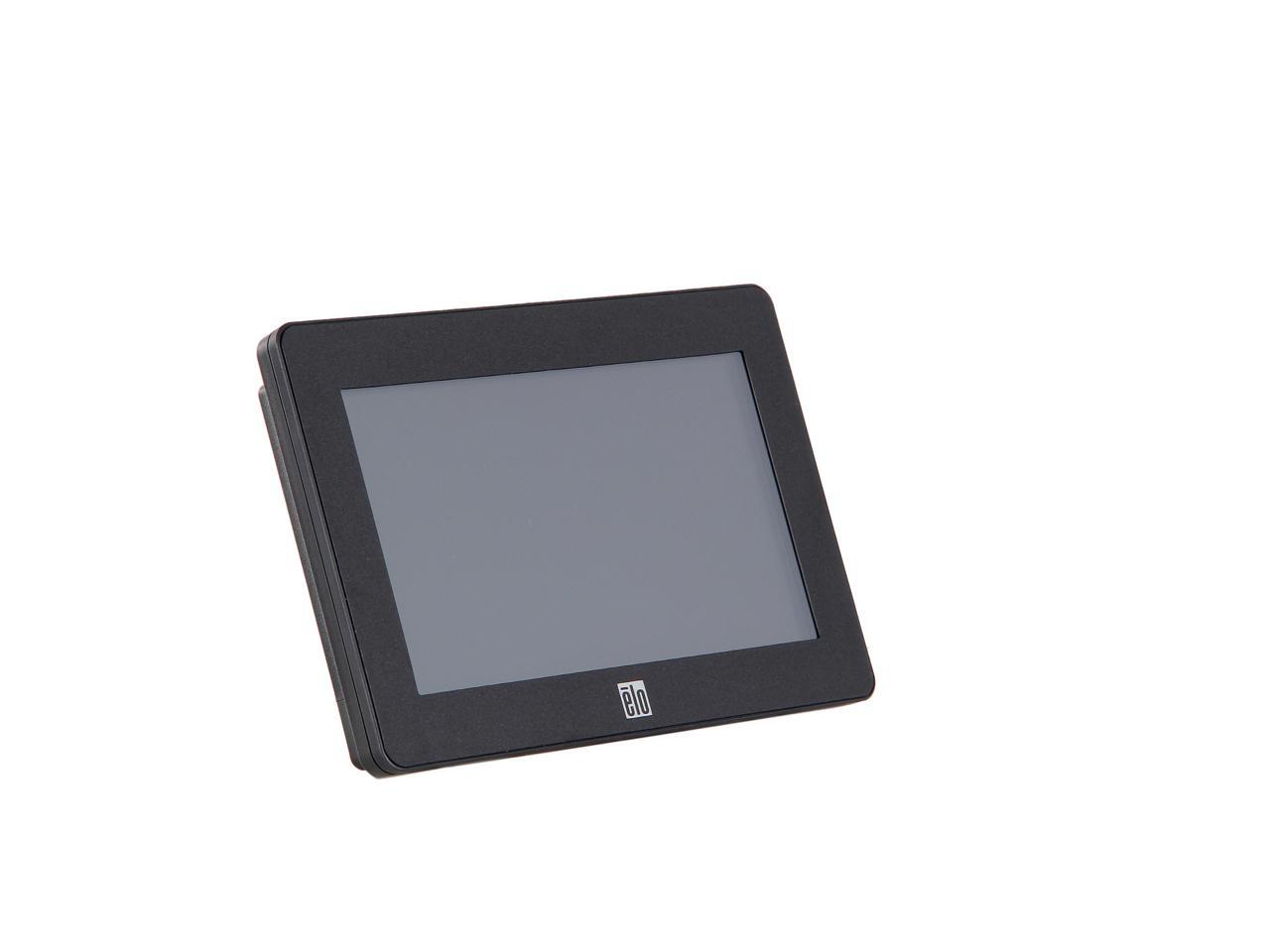

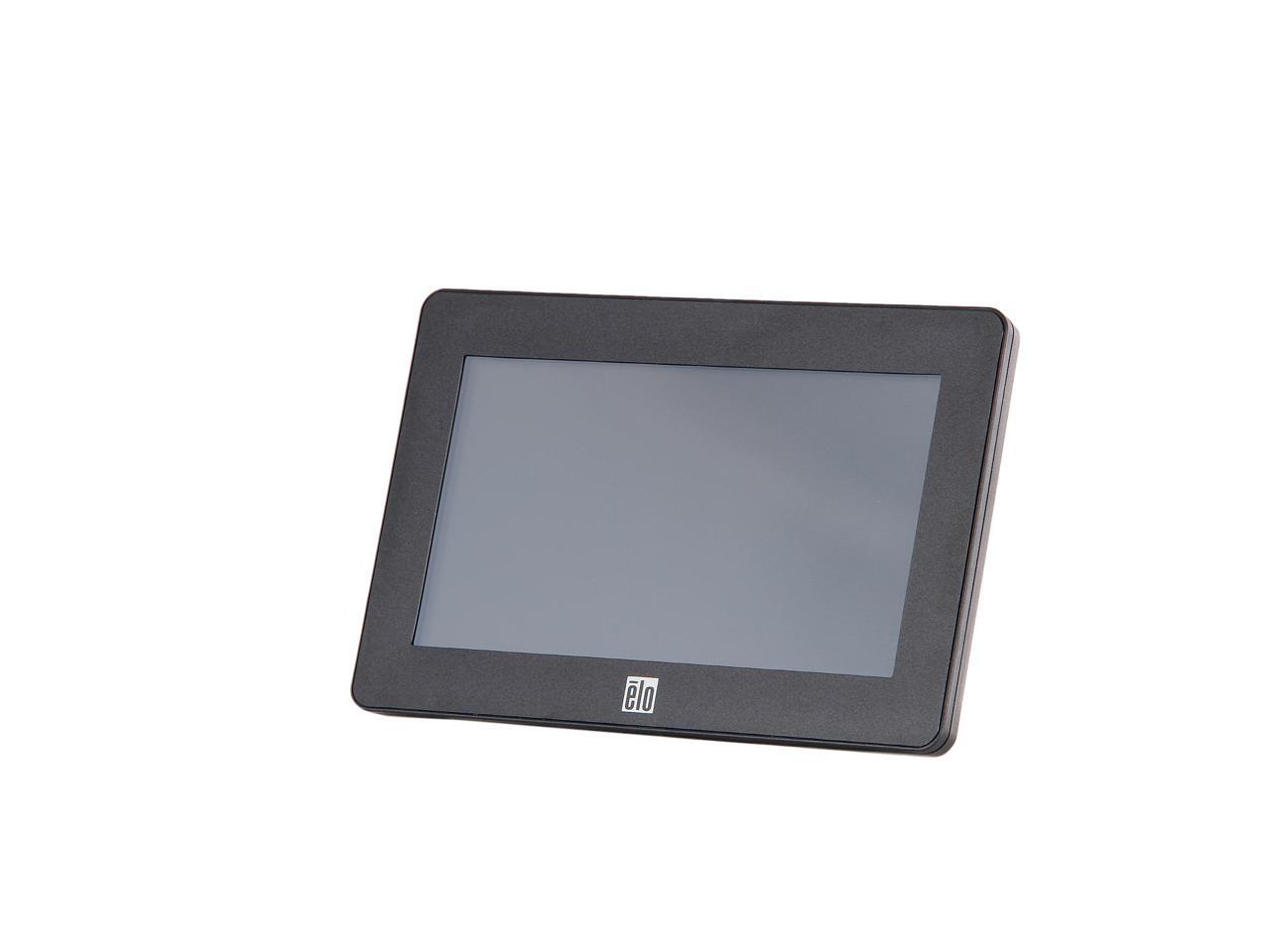

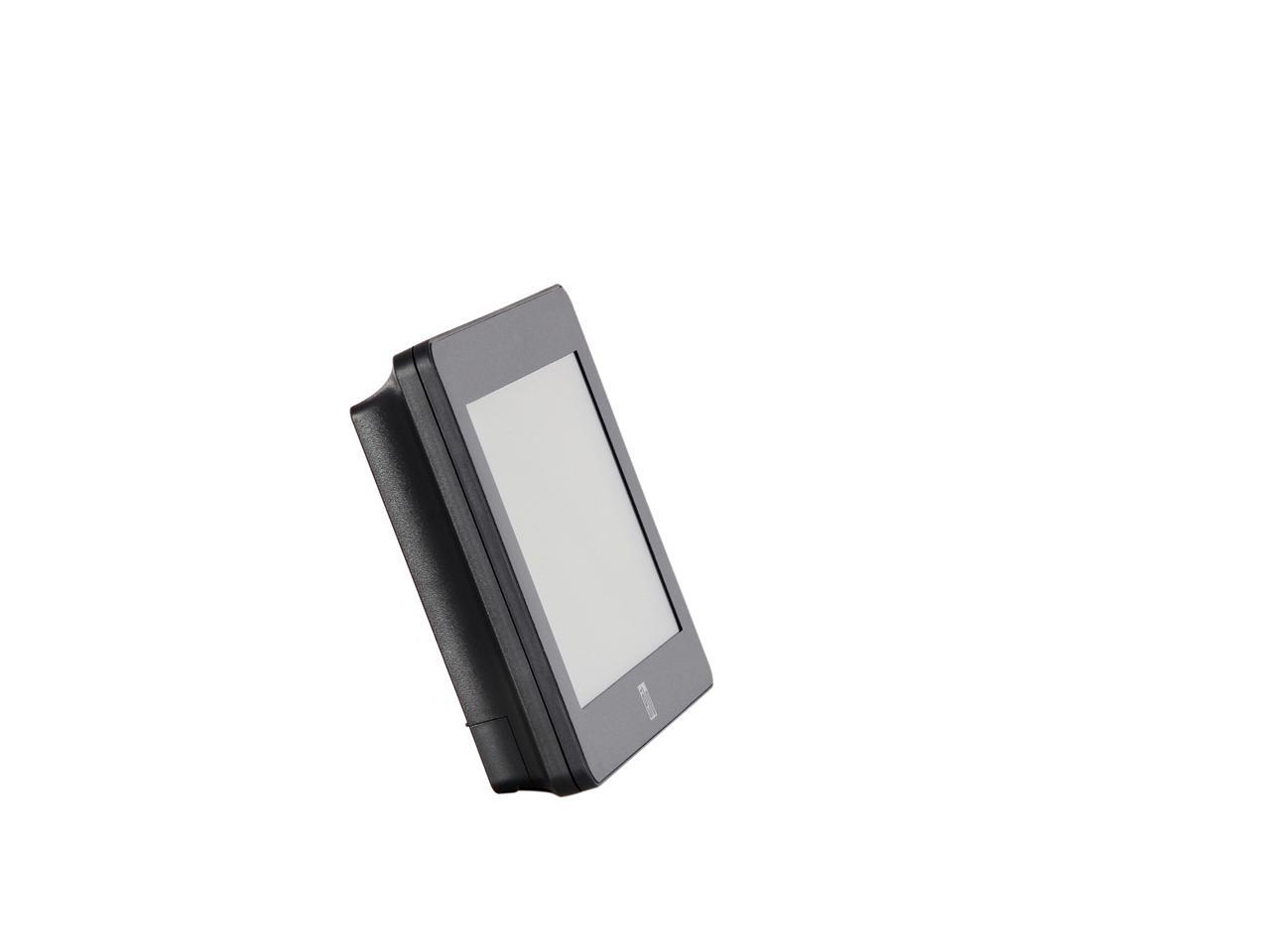

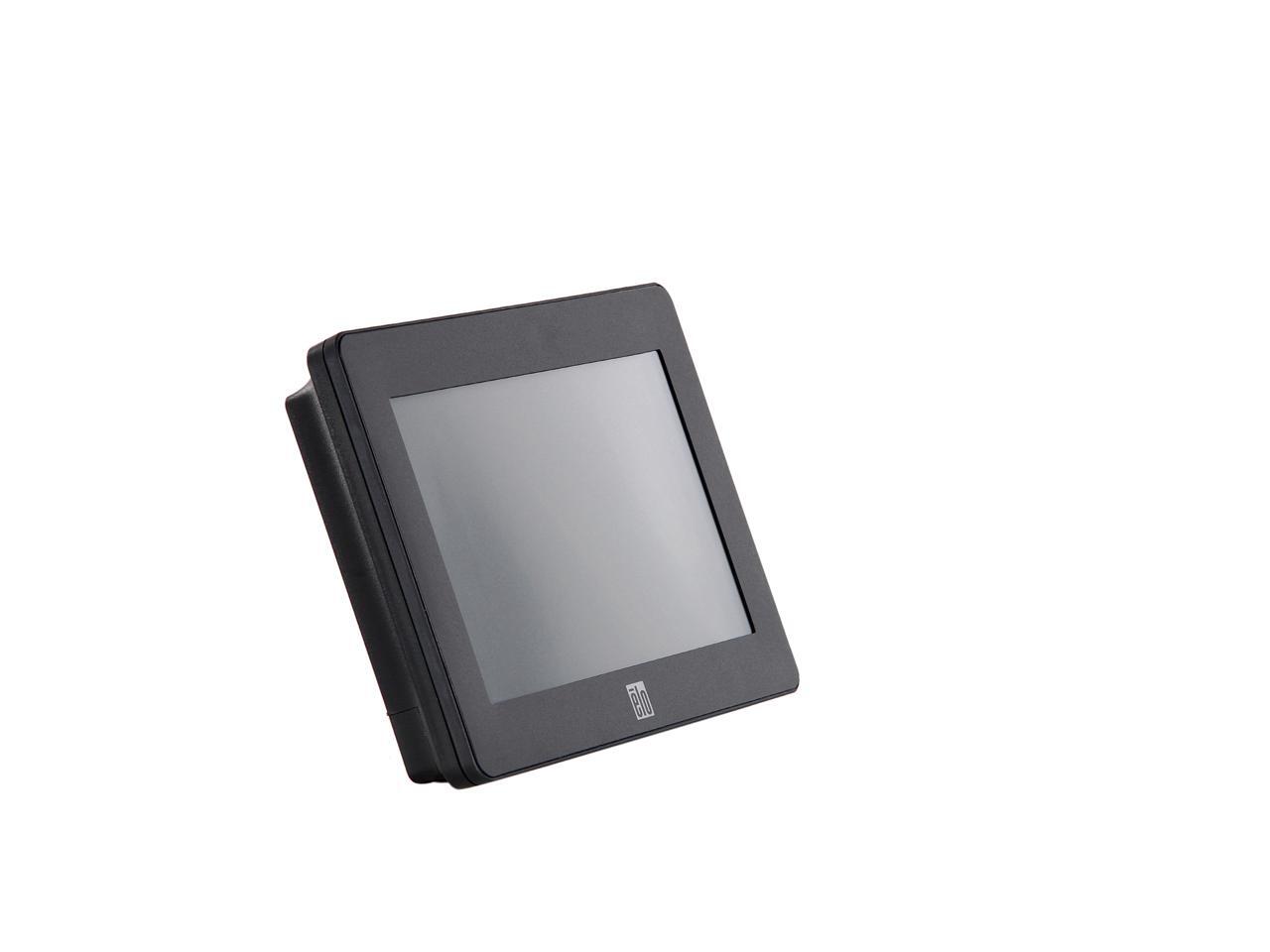

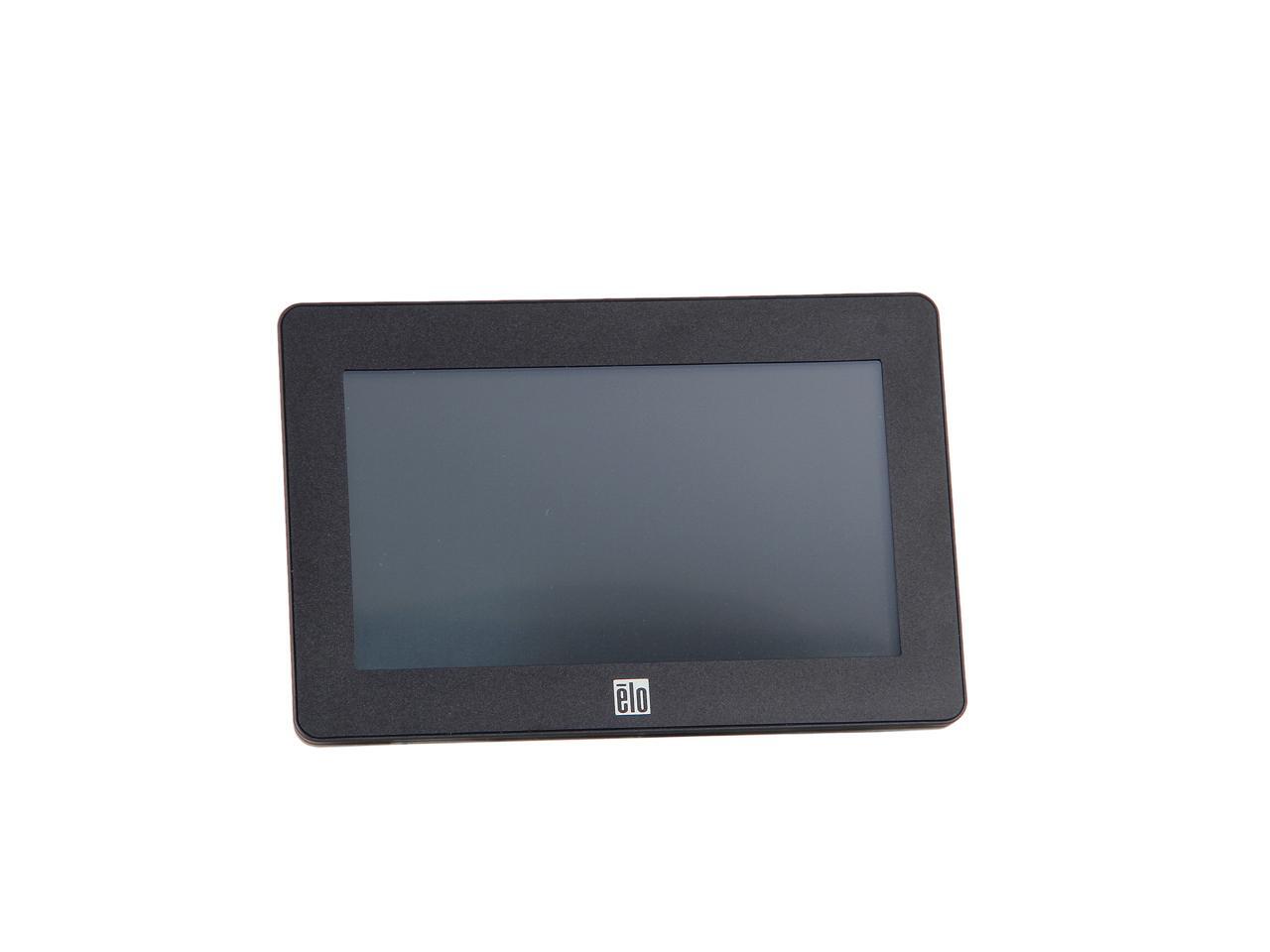

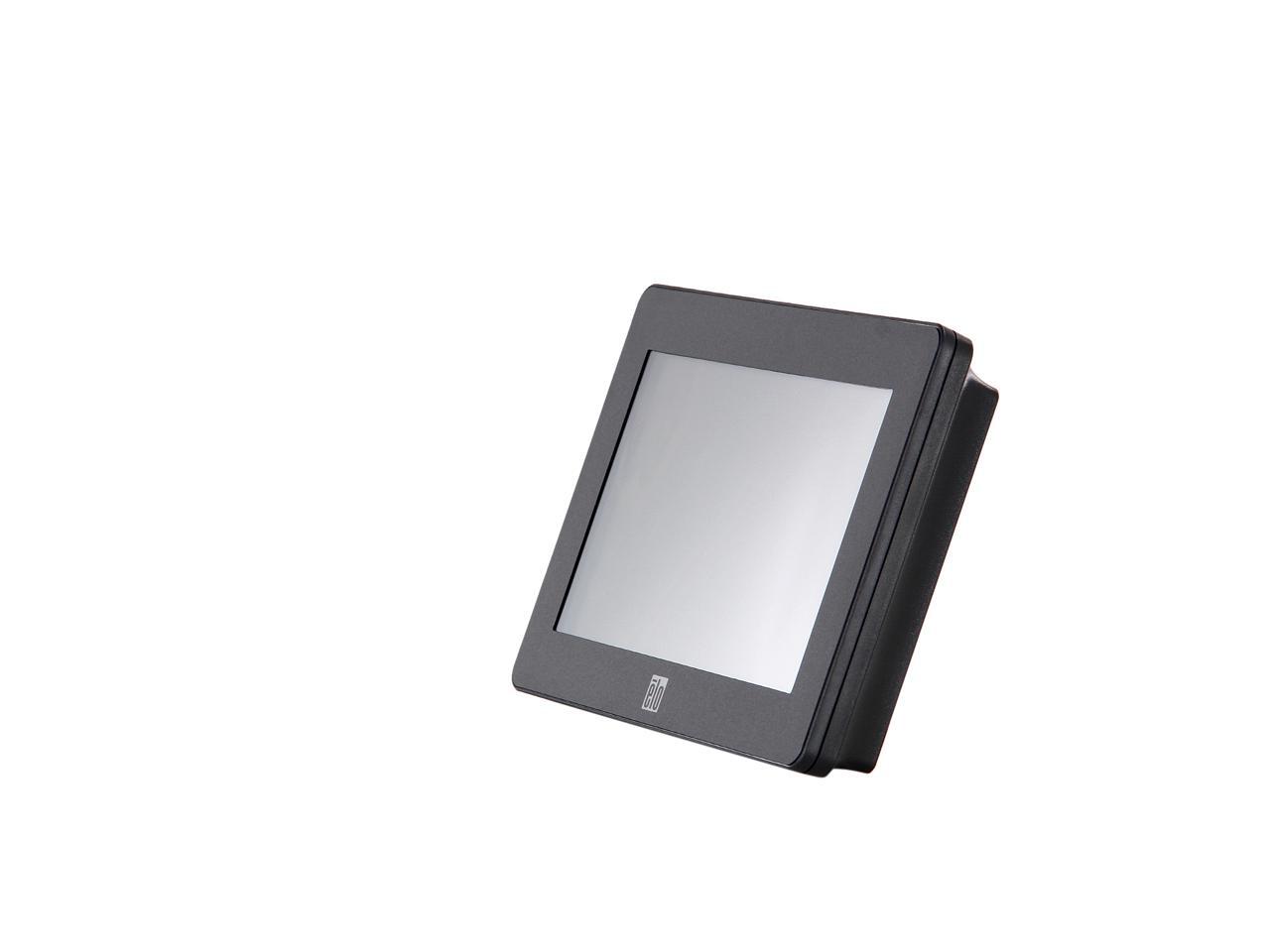

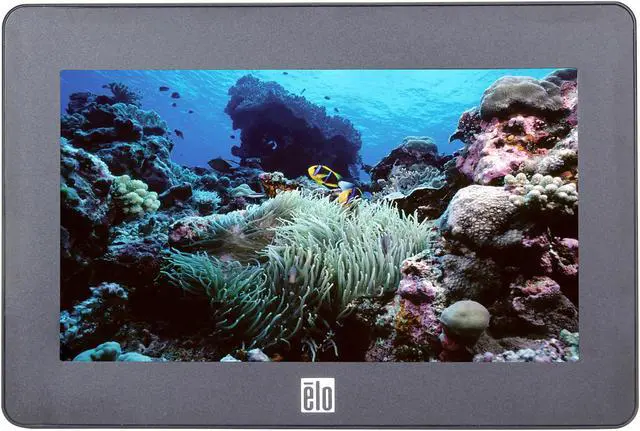

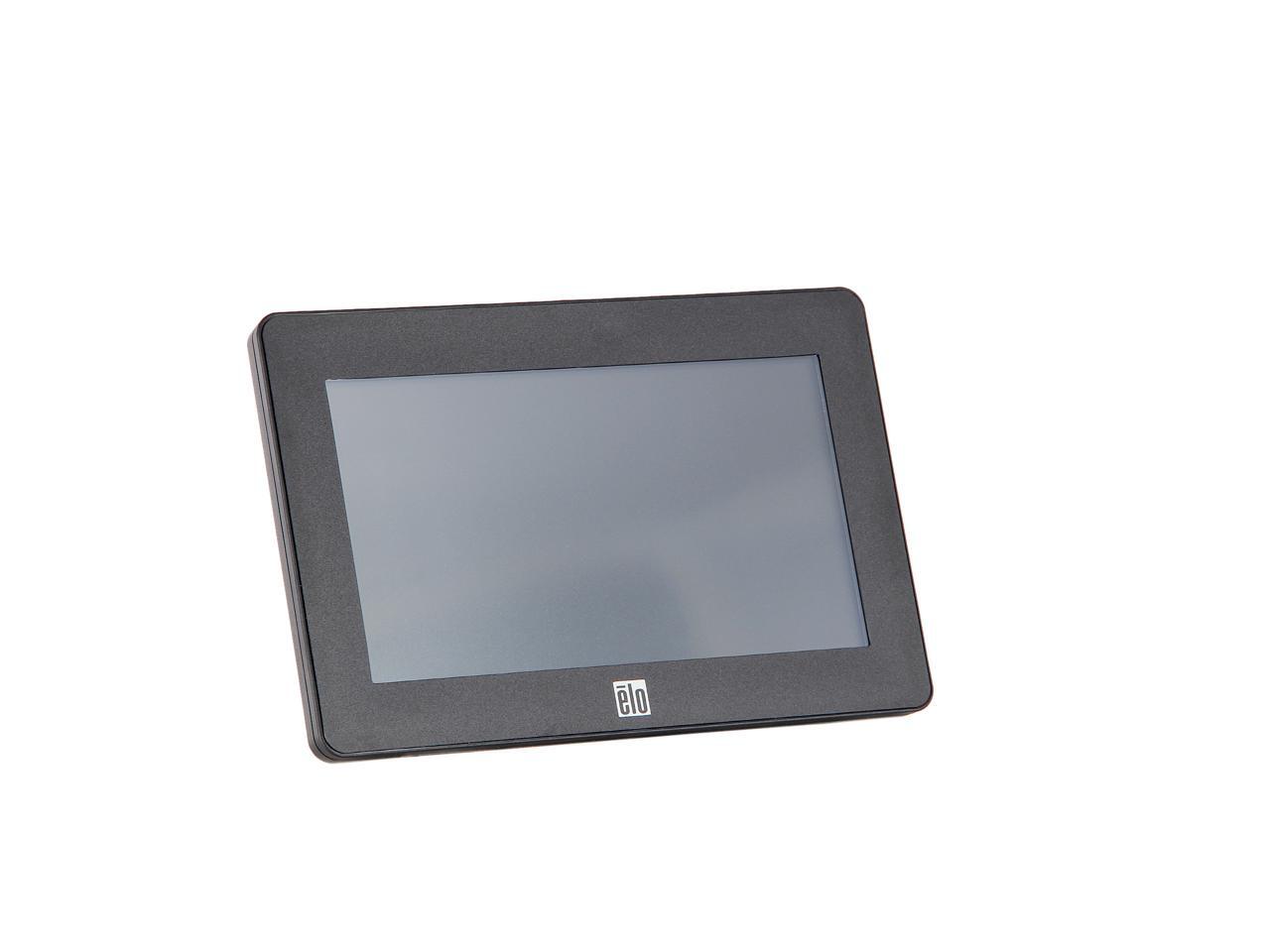

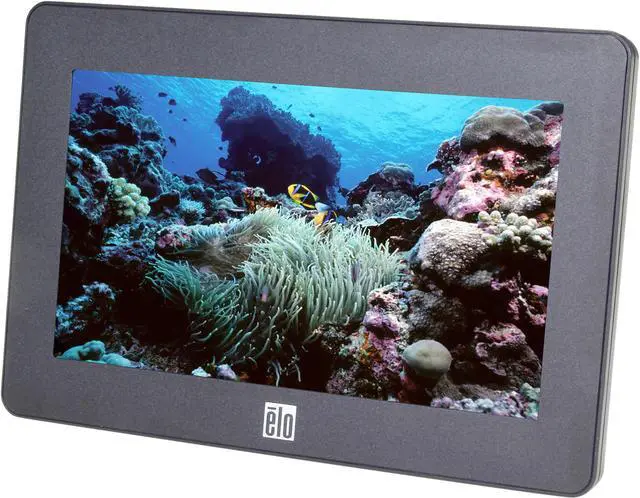

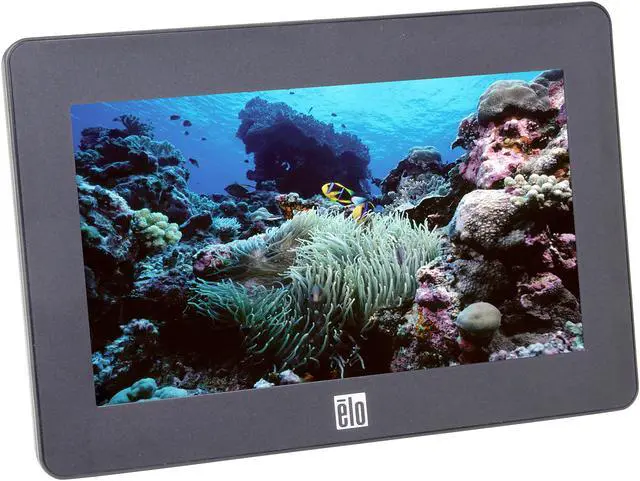

The Elo TouchSystems 0700L is a 7" LCD display that
is attractive for many retail POS applications.
The 0700L touchmonitor can be applied as a second,
customer-facing display in retail environments and can
also be installed as the main display for applications
requiring a small screen. End-cap shelf displays in retail
settings or as personal gaming screens as part of a larger
interactive gaming table benefit from the features and
design of the 0700L. The 7" display utilizes DisplayLink
™
technology that allows for power, video and touch signal
through only one USB cable. The 0700L is factory sealed
with an enclosure design that is resistant to dripping
water with an IPX1 rating, protecting the unit from liquid
drops and spills, as well as an IP54 rating protecting the
unit from liquids, dirt and dust. The unit is available with a
choice of the time-tested AccuTouch five-wire resistive
touchscreen or a no-touch version.

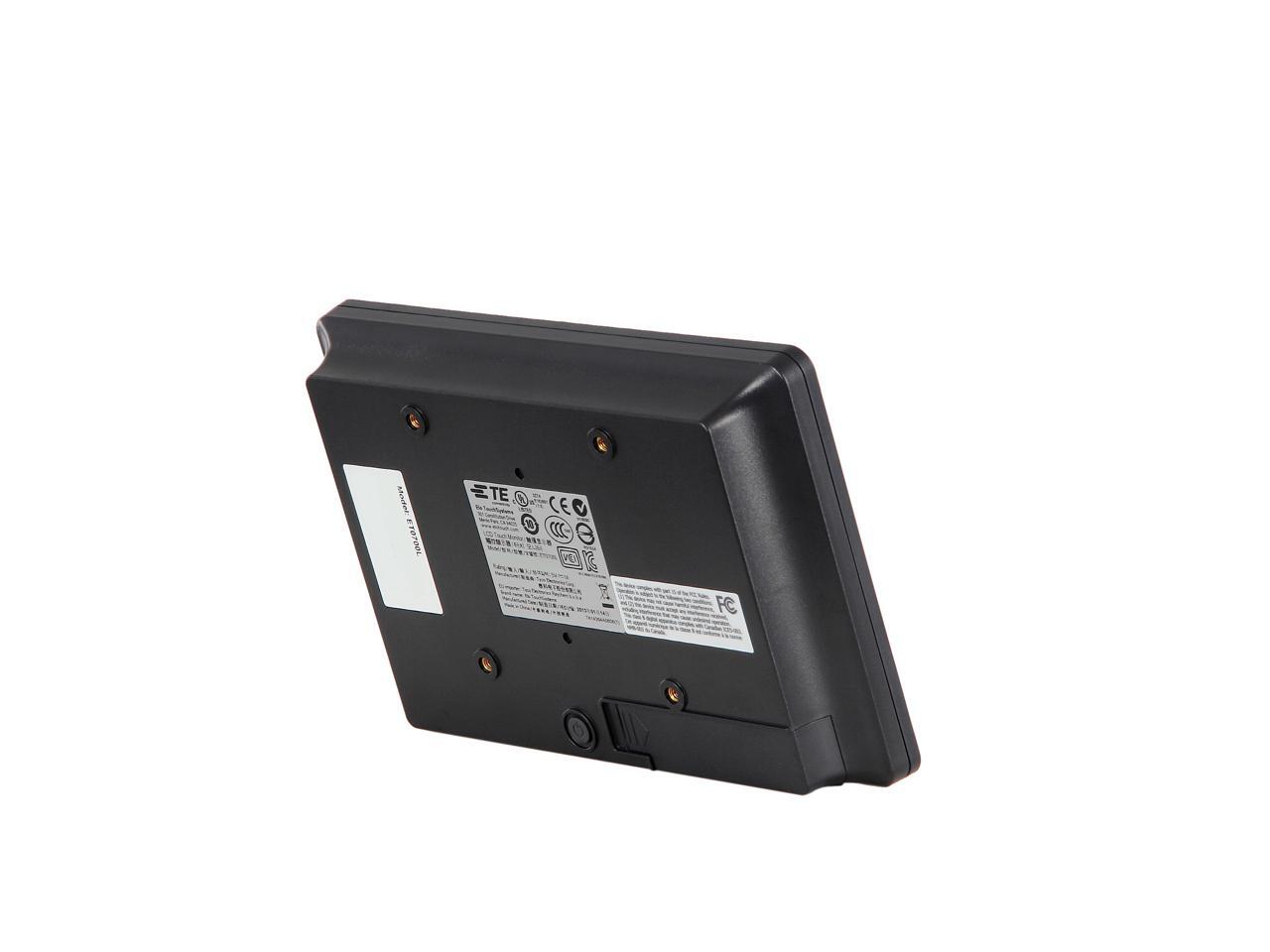

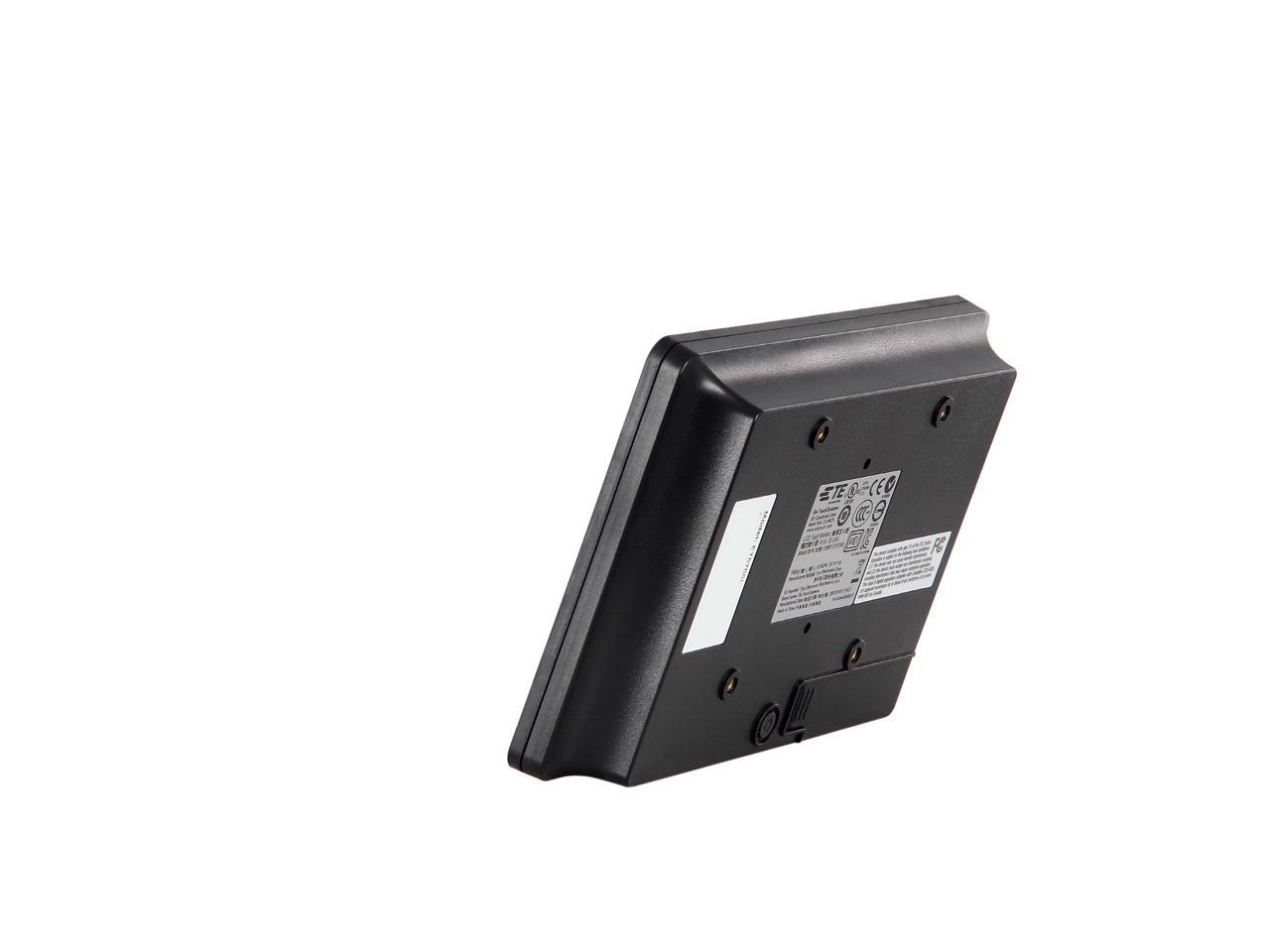

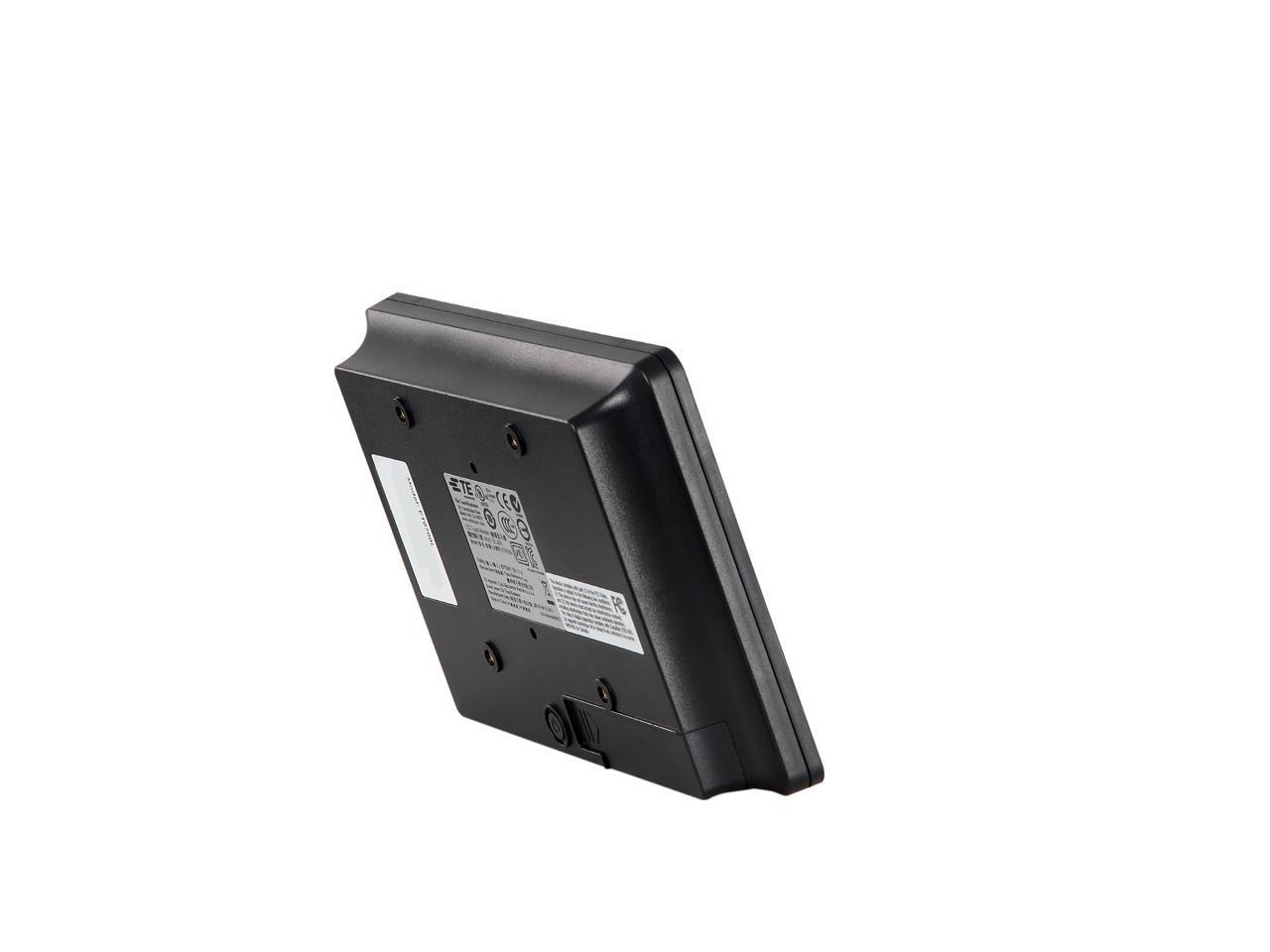

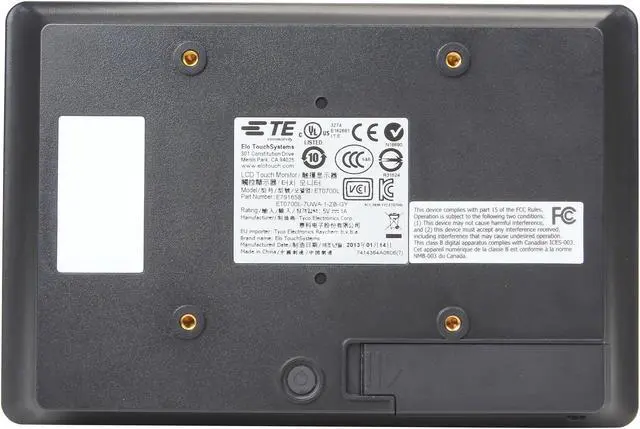

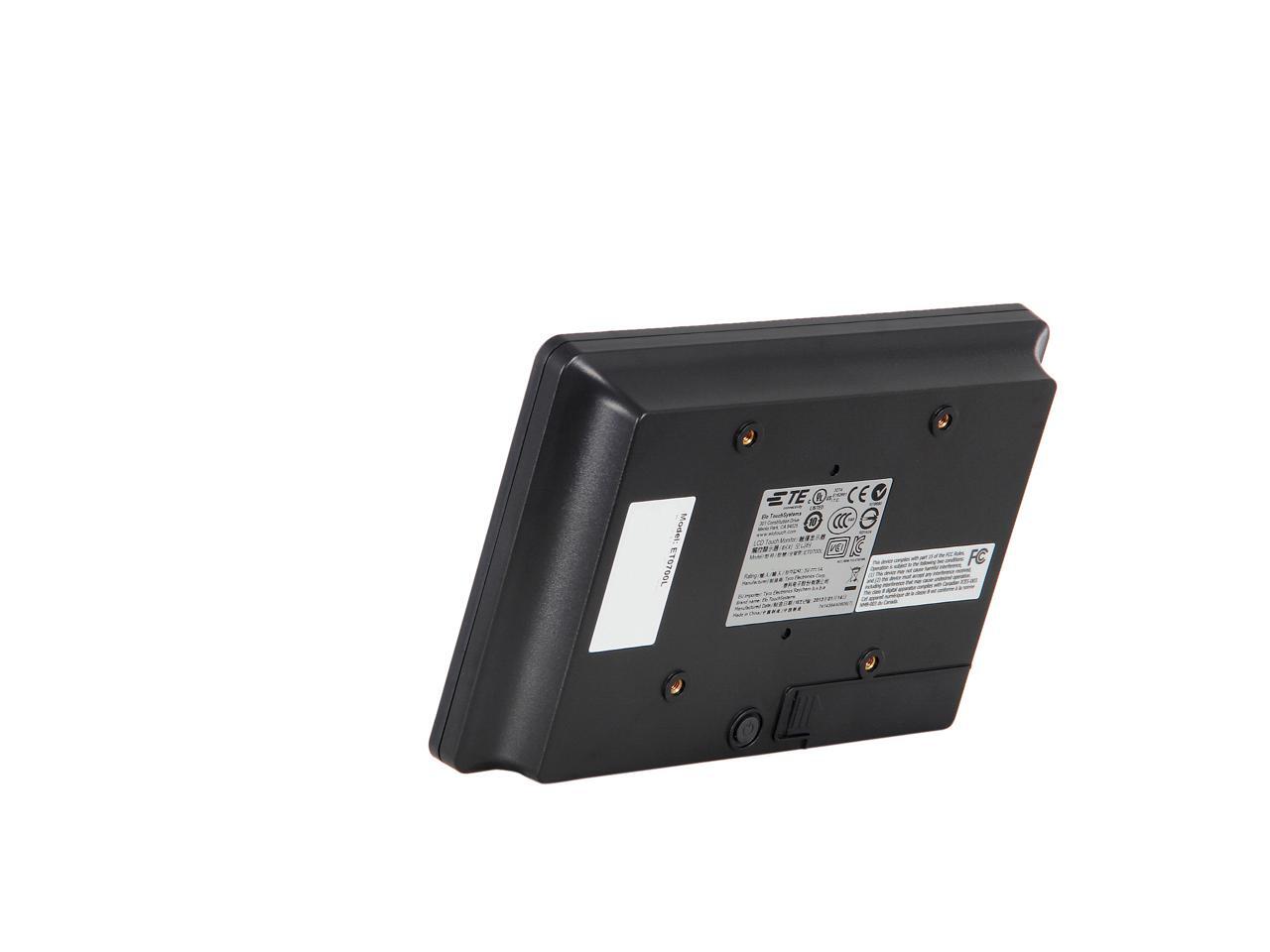

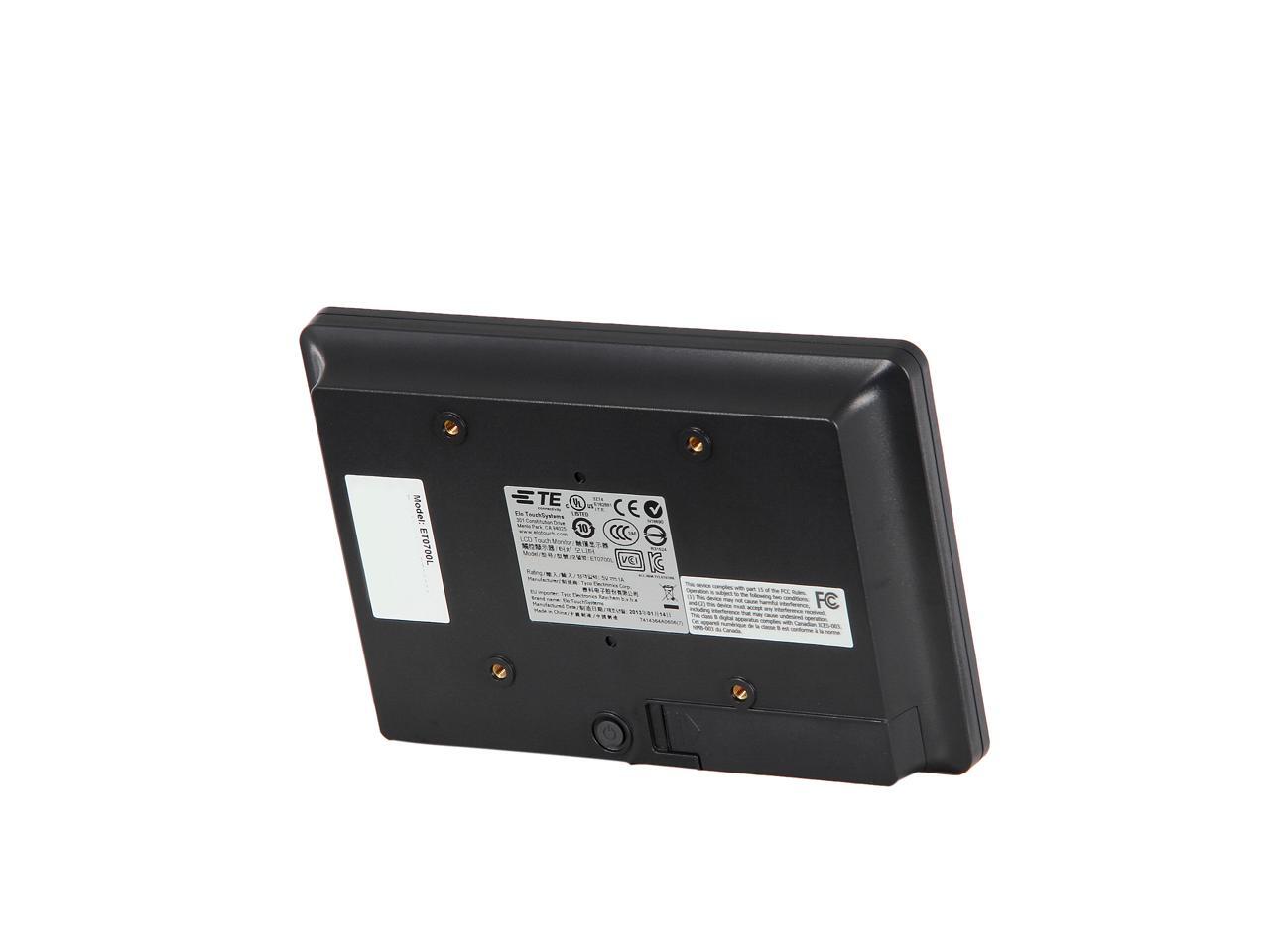

This cost and space-saving display is “designed for touch”—the technology is built into the 0700L from the ground up and not added as an afterthought by altering the original display. The 0700L can function as a stand-alone or secondary unit attached to a primary POS display and can be attached to any standard VESA bracket for installation flexibility, such as on a pole or wall. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only) or web camera is easily installed by the user, using an additional VESA connecter bracket, providing an elegant, integrated solution.
| Model | 0700L |
|---|---|
| Display | 7" diagonal, Active matrix TFT LCD |
| Aspect Ratio | 16:9 Widescreen |
| Useful Screen Area | Horizontal: 6.0" (154mm) Vertical: 3.4" (87mm) |
| Native (optimal) resolution | 800 x 480 60Hz |
| Colors | 16.7 million |
| Brightness (typical) |
LCD panel: 200 nits No touch: 180 nits with AccuTouch: 160 nits |
| Response time - total (typical) | 25ms |
| Viewing angle (typical) |
Horizontal: ±70 or 140 degrees total Vertical: -60/+50 or 100 degrees total |
| Contrast ratio (typical) | 500:1 |
| Input Video | USB on Mini-B receptacle Horizontal Sync Frequency Range: 30KHz Vertical Sync Frequency Range: 60Hz |
| Power supply | DC (through USB) |
| Input connector | AC/DC Adapter: IEC 60320 C6 Monitor: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length) |
| Monitor Dimensions |
Height: 4.9" (126mm) Width: 7.4" (189mm) Depth: 1.2" (31mm) |
| Shipping Box Dimensions | Width: 8.5" (225mm) Height: 6.4" (165mm) Depth: 3.1" (80mm) |
| Weight | Actual: 1.3lbs (0.59kg) Shipping: 1.9lbs (0.87kg) |
