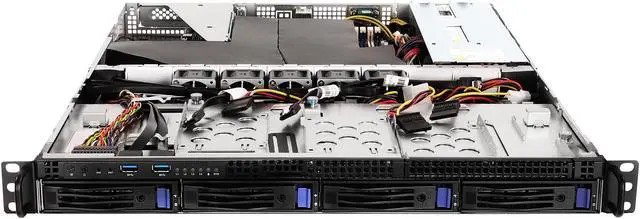

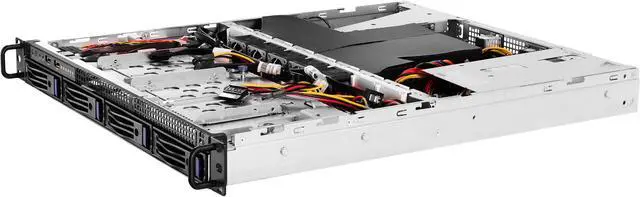

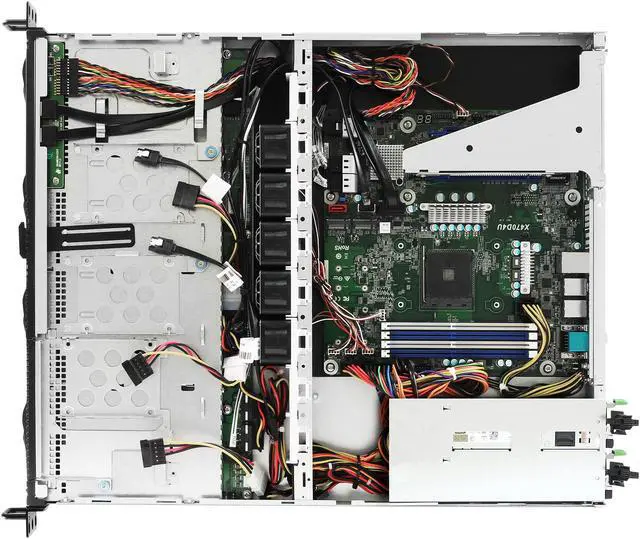

ASRock Rack 1U4LW-X470 RPSU 1U Rackmount Server Barebone AM4 AMD X470 DDR4 3200/2933/2666/2400/2133 MHz ECC/UDIMM
- 1U Rackmount with 300W RPSU
- Supports AMD AM4 Socket Ryzen Series CPUs and Ryzen 7nm CPUs
- Supports 4x DDR4 ECC and non-ECC UDIMM, max. 128 GB
- Supports external 4 x 3.5" HDD or 2.5" HDD, internal 2x 2.5" HDD, external: Slim ODD x1 or 2.5" HDD x1 (optional)
- Supports 1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4
- Supports Intel i210 x2
- ASPEED 2500 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
+
+
Learn more about the ASRock Rack 1U4LW-X470 RPSU
| Brand | ASRock Rack |
|---|---|
| Model | 1U4LW-X470 RPSU |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Supports AMD Ryzen PRO 3000 / 2000 Series Processors Supports AMD Ryzen 3rd / 2nd Gen Processors Supports AMD Ryzen 2nd / 1st Gen Processors with Radeon Vega Graphics |
|---|---|
| CPU Socket | AM4 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| North Bridge | AMD X470 |
|---|
| Memory Slots | 4 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 128GB |
| Memory Type Supported | DDR4 3200/2933/2666/2400/2133 MHz ECC/UDIMM |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Serial ATA | 6 x SATA 600 |
|---|---|
| SATA RAID | RAID 0/1/10 |
| M.2 | 2 (2242/2260/2280/22110, supports SATA3 and PCIe 3.0 x2 or supports PCIe 2.0 x4 only) |
| GPU/VPU | Aspeed AST2500 |
|---|---|
| Video Memory | 16 MB DDR4 |
| PCI Express | SLOT6: PCIe3.0 x16 (splittable in x4/4/4/4); auto switch to x8 when SLOT4 is occupied SLOT5: PCIe3.0 x4 SLOT4: PCIe x16 (PCIe3.0 x8) |
|---|
| First LAN | Intel I210-AT |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| Front USB | 2 x USB 3.0 |
|---|---|
| COM | 1 |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen1 |
| RJ45 | 2 x RJ45 GLAN by Intel i210AT 1 x RJ45 Dedicated IPMI LAN port |
| Max. Power | 300W |
|---|
| Dimensions | 1.75" x 21.00" x 19.00" |
|---|
| First Listed on Newegg | November 24, 2021 |
|---|
