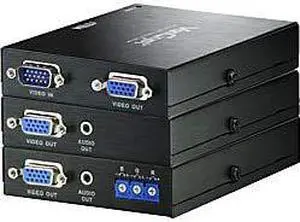

Specifications: Connectors
Video In: 1 x HDB-15 Male (Blue)
Video Out: 1 x HDB-15 Female (Blue)
Audio In: 1 x Audio Jack Female (Green)
Audio Out: 1 x Audio Jack Female (Green)
Unit to Unit: 1 x RJ-45 Female
Power: 1 x DC Jack
LEDs
Power: 1 (Green)VE170R, VE170RQ
Switch
Manual Gain Control: 2 x Knob (VE170R, VE170RQ)
RGB Tuner: 3 x Knob (VE170RQ)
Cable Distance: 1000 feet (300 m)
Power Consumption
VE170T: DC 5.3V, 0.9W
VE170R: DC 5.3V, 1.11W
VE170RQ: DC5.3V, 4.82W
Video
VE170T, VE170R:
1920 x 1200 at 60Hz, 100 feet(30 m)
1600 x 1200 at 60Hz, 500 feet(150 m)
1024 x 768 at 60Hz, 1000 feet(300 m)
VE170RQ:
1920 x 1200 at 60Hz, 500 feet(150 m)
1280 x 1024 at 60Hz, 1000 feet(300 m)

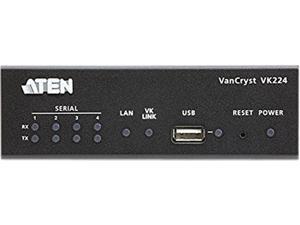

Specifications: Interfaces
Serial
4 x Programmable Bi-directional RS-232/422/485 Port
(4 x DB9 Male Connector, configurable via pin assignments);
Baud Rate: 300 to 115200 (default: 9600);
Data Bit: 8 (default) or 7;
Stop Bit: 1 (default) or 2;
Parity: None (default), Even or Odd;
Flow Control: None (default) RTS/CTS
Ethernet
1 x RJ-45 Female, 10/100Base-T
Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH
DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Switches
Controller ID: 1 x 16-segment Switch
Expander ID: 1 x 8-segment Switch
Reset Button: 1 x Semi-recessed Pushbutton
USB: 1 x USB Type A
Power: Consumption 5 VDC, 7.5 W(adapter) ; 48VDC, 9.5 W(PoE, PoE 802.3 AF/AT compatibility)

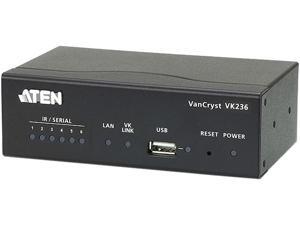

Specifications: Interfaces
IR/Serial 6 x Programmable IR / Uni-directional RS-232 Port
6 x 2-Pole Terminal Block Connector
IR: TTL level (0 to 5 V)
Carrier Frequency: 10 - 455 KHz;
Serial: Uni-directional RS-232 ( + - 5 V)
Baud Rate: 300 to 115200 (default: 9600);
Data Bit: 8 (default) or 7;
Stop Bit: 1 (default) or 2;
Parity: None (default), Even or Odd
Ethernet
1 x RJ-45 Female, 10/100Base-T
Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH
DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Switches
Controller ID: 1 x 16-segment Switch
Expander ID: 1 x 8-segment Switch
Reset Button: 1 x Semi-recessed Pushbutton
USB: 1 x USB Type A (Firmware upgrade only)
Power: Consumption 5VDC, 8W(adapter); 48V, 10.5W (PoE, PoE 802.3 AF/AT compatibility)...

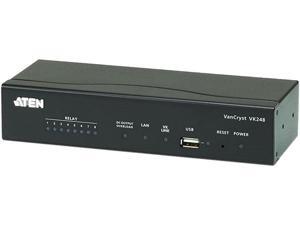

Specifications: Interfaces
Relay
8 normally open relays (8 x 2-pole terminal block)
Contact Rating: Max 24 VDC, 2A
Ethernet
1 x RJ-45 Female, 10/100Base-T
Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS, SSH
DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Switches
Controller ID: 1 x 16-segment Switch
Expander ID: 1 x 8-segment Switch
Reset Button: 1 x Semi-recessed Pushbutton
USB: 1 x USB Type A (Firmware upgrade only)
Power
Consumption 5 VDC, 10 W (Adapter); 48 VDC, 13 W (PoE, PoE 802.3 AF/AT compatibility)
Output 12 VDC, 300 mA

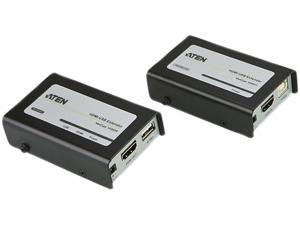

Specifications: VE803T
Connectors
HDMI In: 1 x HDMI Type A Female (Black)
USB: 1 x USB Type B Female (White)
HDMI/USB Port: 2 x RJ-45 Female (Silver)
Power: 1 x DC Jack
Switches:
EDID Selection: 1 x slide switch
LEDs
Power: 1 (Green)
Video:
1080p @ 60Hz, at 40m
1080i @ 60Hz, at 60m
Power Consumption: DC5V, 1W
PhysicalProperties
Housing: Metal
VE803R
Connectors
HDMI Out: 1 x HDMI Type A Female (Black)
USB: 1 x USB Type A Female(White)
HDMI/USB Port: 2 x RJ-45 Female (Silver)
Power: 1 x DC Jack
Switches
EQ Compensation: 1 x 8 position switch
LEDs
Power: 1 (Green)
HDMI: 1 (Green)
USB: 1 (Green)
Video:
1080p @ 60Hz, at 40m
1080i @ 60Hz, at 60m
Power Consumption: DC5V, 3.9W
PhysicalProperties
Housing: Metal
