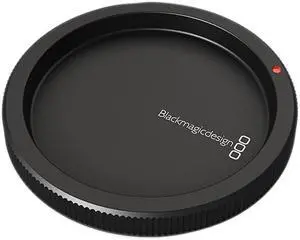

Specification: For Use with Blackmagic Production Camera 4K or Blackmagic URSA with PL mount
Dimensions Diameter: 2.75" (69.85 mm)
Weight 0.8 oz (22.7 g)
Specification: Compatible Devices:
HyperDeck Studio Recorder, UltraStudio Pro & 3D Capture and Playback devices, ATEM Studio Converter, Blackmagic Cinema Camera 2.5K (EF/MFT models), SmartView Duo and HD Monitors, ATEM Television Studio Production Switcher, SmartScope Duo 4K, and Blackmagic Production Camera 4K.
Input:
100 to 240 VAC, 50/60 Hz, 67 to 92 VA, 0.8 A
Output:
12 V, 2.5 A
Power:
30W
Specification: For Use with Blackmagic Cinema Camera, Blackmagic Pocket Cinema Camera, and Blackmagic Studio Camera 4K or Blackmagic Studio Camera HD with MFT mount
Dimensions Diameter: 2.25" (57.15 mm)
Weight 0.6 oz (18.1 g)
Specification: For Use with Blackmagic Design Cinema, Production Camera 4K, and URSA Cameras with EF mount
Dimensions Diameter: 2.5" (63.5 mm)
Weight 0.8 oz (22.7 g)
Video Input: SDI Video Input
4 x 10 bit SD/HD switchable camera inputs
1 x 10 bit SD/HD switchable program input from switcher, including Tally information embedded in
the SDI signal
Optical Fiber Video Input
4 x single mode SD/HD switchable camera inputs with LC connector
Audio Output: Analog Audio Output
4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input)
2 x RCA jacks provide a L/R stereo pair
System Requirements: OS Compatibility
Mac:
OS X 10.7 Lion and later
OS X 10.8 Mountain Lion and later
Windows:
Windows 7
Windows 8
Power Supply: 110 - 220V AC, 50/60 Hz
12 - 31 V DC redundant input
Note: IEC powercord is required/not included, redundant power supply not included
