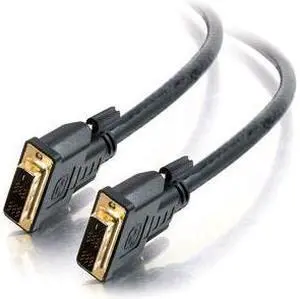

C2G 26942 DVI-D M/M Dual Link Digital Video Cable, Black (9.8 Feet, 3 Meters)- Type: DVI-D to DVI-D
- Cable Length: 9.84 ft. (3.0m)
- Connector Number: 2
- Specifications: Connectors: DVI-D Dual-Link 24-pin Male to DVI-D Dual Link 24-pin Male
Dual link digital signaling allows for high speed transmission up to 9.9Gbps
Shielded undermold protects against unwanted EMI/RFI interference
28AWG copper conductors are individually insulated in foam-polypropylene to minimize crosstalk, ensuring high-speed, error-free transmission
Tri-shielded with dual Mylar foil and braid shield reduces interference
Gold-plated contacts provide full conductivity with no data loss
Supports hot plugging of DVI display devices
PC and Mac compatible
Resolutions up to 2048 x 1536
Supports digital signal only
Compatible with Flat Panel Displays, Digital CRT Displays, Projectors, and HDTV
Meets DVI DDWG Standard
PC99 co...
- Model #: 26942 R

Quick View
C2G 42514 Black Connector 1 : (1) HDMI Male
Connector 2 : (1) DVI-D Single Link Male Male to Male HDMI TO DVI-D DIGITAL VIDEO CABLE- Type: Video Cable
- Cable Length: 3.3 ft.
- Connector Number: 2
- Specifications: •Voltage Rating - 30V
•Minimum Bend Radius - 60°
•Temperature Rating - 80°C
•Operating Temperature Range - -20° - 80°C
•Storage Temperature Range - -25° - 85°C
•Approvals - RoHS Compliant
•Package Type - Polybag
Conductor 1 (4 pair)
•Conductor Type - 30AWG (7/0.10), Tinned Copper
•Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.78mm
•Drain Wire - 30AWG (7/0.10), Tinned Copper
•Shield - Aluminum Foil, 100% Coverage
Conductor 2 (1 pair)
•Conductor Type - 30AWG (7/0.10), Tinned Copper
•Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.55
Conductor 3 (3 conductors)
•Conductor Type - 30AWG (7/0.10), Tinned Copper
•Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.55
Overall Cable
•Drain Wire - 30AWG (07/0.10...
- Model #: 42514
- $12.39
-
- $11.07 –
- Save: 10%
- Special Shipping
