Specifications: Application: For Digital-RGB equipped Cases, Controllers and Motherboards. (+5V, Data, NA, GND)
Color: Full RGB color spectrum
Connections:
Input: Phanteks 3-pin (female) connector
Output: Phanteks 3-pin (male) connector
M/B Adapter: Digital RGB adapter 3pin (+5V,Data,NA,GND)
Input Voltage: +5V
Current (Single strip): Max. 0.84A
Current (Dual Strip): Max. 1.68A
Wattage (Single strip): Max. 4.2W
Wattage (Dual Strip): Max. 8.4W
Cable compatibility: For Phanteks Digital-RGB LED system, For M/B Only with Digital-RGB Pin Header (+5V,DATA,NA,GND)
LED Color/ Controller: KS6812, Full Color Digital-RGB LED Chip
LED Number: 28 LEDs (400mm NEON Digital-RGB LED Strip)
MTBF: 20,000 hrs
Product Dimensions: 400 x 13 x 5.5mm (15.7 x 0.5 x 0.2in)
Scope of Delivery:
2 x 400mm (15.7in)...
Specifications: Application:
RGB LED for Phanteks Enthoo Luxe, Mini XL, Evolv ATX Tempered Glass and Eclipse P400 / P400S
M / B with RGB LED 4-pin (+12V, G,R,B) LED connector
Color:
10 colors with Phanteks Case RGB controller
Full color with M / B RGB Control S / W
Input Connector:
Strip 4-pin (+12V, G, R, B) connector
Male to Phanteks' Case Female LED connector
Female to Phanteks extension LED Strip Male connector
RGB LED adapter 4pin (+12V, G, R, B)
Female to M/B RGB Male header (+12V, G, R, B)
Output Voltage: +12V
Current (Single strip): MAX: 0.42A
Current (Dual Strip): MAX: 0.84A
Wattage (Single strip): MAX: 5.04W
Wattage (Dual Strip): MAX: 10.08W
Cable compatibility:
PHANTEKS 4-pin connector
4-pin RGB LED Header (+12V, G, R, B)
LED Color: 5050, Full Color R.G.B Chip
LED Number: 21 LEDs / 400 mm LE...

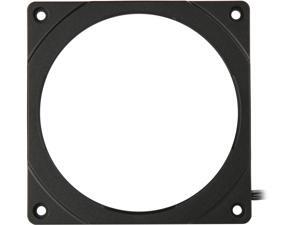

Specifications: Type: RGB Fan Frame
Compatibility: 140mm fan mounting
Color: Black
RGB LED type: RGB LED strip hard board , +12V, G, R, B
LED Number: 21 pcs
Frame Thickness: 6mm
Materials: Plastic
Frame Dimensions: 140.00 x 140.00 x 6.00mm
Frame Weight: 60g
Scope of Delivery:
1 x PH-FF140RGBP Halos RGB Fan Frame
4 x Long Screws
4 x short Screws
1 x Halos RGB Fan Frame Manual
Types: Universal PWM and DC Fan Controller and Hub
Colors: Black
Specifications: Motherboard input cable: 4-pin PWM / DC input cable
Manual input Remote: 3-Button Remote
Power input connector: 12V SATA
Output connector:
White Universal 4-pin / 3-pin Fan x1
Black 4-Pin PWM Fan x4
Black 3-pin DC Fan x3
Supported input signal: PWM signal / DC signal / Manual Remote / No signal
Manual Remote Speeds:
1: 40% speed (Silent)
2: 70% speed (Balanced)
3: 100% speed (Performance)
Connector current limit (A): 1A
Total current limit (A): 4A
Output max. wattage: 48W
Protection:
Over Power Protection (OPP) - 60W (PWM Hub itself)
Over Current Protection (OCP) - 5A (M/B side & PSU side)
Short Protection
MTBF: 50,000 hrs
Scope of Delivery:
1x Universal Fan Controller
1x 3-Button Remote
1x 4-pin 400mm PWM / DC input cable
1x 2-pin 400mm SATA power cable
1x Us...
Specifications: Application: RGB LED for Phanteks Enthoo Luxe, Mini XL, Evolv ATX Tempered Glass and Eclipse P400/P400S
Color: 10 colors with Phanteks Case RGB controller
Input Connector:
Strip 4-pin (+12V, G, R, B) connector
Male to Phanteks’ Case Female LED connector
Female to Phanteks extension LED Strip Male connector
Output Voltage: +12V
Current (Single strip): MAX :0.42A
Current (Dual Strip): MAX: 0.84A
Wattage (Single strip): MAX: 5.04W
Wattage (Dual Strip): MAX: 10.08W
Cable compatibility: PHANTEKS 4-pin connector
LED Color: 5050, Full Color R.G.B Chip
LED Number: 21 LEDs / 400mm LED strip
Magnet number: 6 pcs per strip
MTBF: 20,000 hrs
Product Dimensions: 0.40" x 17.70" x 0.17"
Scope of Delivery:
1 x 400mm (15.70 in) PHANTEKS RGB LED strip
2 x 150mm (5.90 in) 3M St...
Specifications: Add a Mini ITX system to your Evolv X with this ITX Upgrade kit. Streaming variant includes riser cable.
Material: Metal
Compatibility: Evolv X
Riser Cable Included: Yes

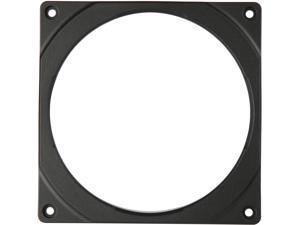

Specifications: Type: RGB Fan Frame
Compatibility: 120mm fan mounting
Color: Black
RGB LED type: RGB LED strip hard board , +12V, G, R, B
LED Number: 18 pcs
Frame Thickness: 6mm
Materials: Plastic
Frame Dimensions: 120.00 x 120.00 x 6.00mm
Frame Weight: 40g
Scope of Delivery:
1 x PH-FF120RGBP Halos RGB Fan Frame
4 x Long Screws
4 x short Screws
1 x Halos RGB Fan Frame Manual
Specifications: Chassis support: Phanteks Enthoo 719, other future chassis
Application: Dual ODD/Reservoir Bay
Dimension: 7.5 x 5.75 x 3.75 in
Product Weight: 1.9 lbs
Phanteks dual 5.25" bay bracket features a metal housing with an aluminum faceplate and is specifically designed for the Enthoo 719. The dual 5.25" bay provides placement for an optional ODD bay to your Enthoo 719 case. Easy to install and allows for 2x ODD or devices to be mounted inside the Enthoo 719.

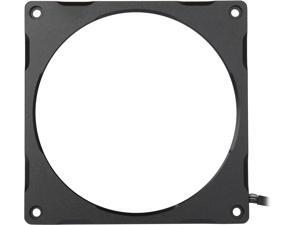

Specifications: Type: RGB Fan Frame
Compatibility: 140mm fan mounting
Color: Black
RGB LED type: RGB LED strip hard board , +12V, G,R,B
LED Number: 21pcs
Frame Thickness: 6mm
Materials: Aluminum
Frame Dimensions: 140.00 x 140.00 x 6.00mm
Frame Weight: 90g
Scope of Delivery:
1 x PH-FF140RGBA Halos RGB Fan Frame
1 x PH-CB-RGB4P, the RGB adaptor to MB
4 x Long Screws
4 x short Screws
1 x Halos RGB Fan Frame Manual
Specifications: Type: RGB Fan Frame
Compatibility: 120mm fan mounting
Color: Black
RGB LED type: RGB LED strip hard board , +12V, G,R,B
LED Number: 18 pcs
Frame Thickness: 6mm
Materials: Aluminum
Frame Dimensions: 120.00 x 120.00 x 6.00mm
Frame Weight: 70g
Scope of Delivery:
1 x PH-FF120RGBA Halos RGB Fan Frame
1 x PH-CB-RGB4P, the RGB adaptor to MB
4 x Long Screws
4 x short Screws
1 x Halos RGB Fan Frame Manual
