Phanteks DIY Cooling

off w/ promo code PHF44, limited offer

• Type: Hi-Res Display
• Color: Black
• Specification: Connection Type: HDMI, USB Power Display Size: 5.5" IPS Display Resolution: 2160x1440 Color Spectrum: sRGB99% Housing Color: Black Refresh Rate: 60hz
• Package Contents: Phanteks 5.5" Hi-Res Display 4x Fan Screws 4x M4 Screws 1x SATA to Micro USB Type B Cable 1x HDMI Cable 2x Feet
• Model #: PH-HRLCD_BK01

• Brand: Phanteks
• Type: Radiator
• Radiator Size: 470x140x30 mm
• Radiator Material: Fins: T2 Copper Water Chamber: H62 Brass Thread Insert: H59 Brass Side Pane: 430 Stainless Fittings: Brass Fitting Insert: ABS
• Model #: PH-GEF-RAD423_WT

off w/ promo code PHF56, limited offer

• Type: Soft tube
• Tube Dim.: 3 meter
• Tube Material: PVC
• Package Contents: PH-GEF_ST16_CL 1x
• Model #: PH-GEF_ST16_CL

• Type: CPU block
• Block Compatibility: Intel: LGA 1700 AMD: AM4 / AM5
• Specification: LED Type: Digital-RGB LED strip hard board (+5V, data, empty, Ground) LED strip length: 65.9 mm Number of LEDs: 2x 5pcs Input Voltage: +5V Current (Single strip) Max: 0.15A Current (Dual Strip) Max: 0.3A Wattage (Single strip) Max: 0.75W Wattage (Dual Strip) Max: 1.5W Copper Base Dimension (WxDxH): 60.2 x 51 x 3.7mm (2.37 x 2 x 0.15in) Copper Thickness: 3.7 mm Fin Construction: 0.08 mm fin gap / 0.08mm thickness Materials: Acrylic / POM / Copper Aluminum Cover Fitting: Nickel Plated Brass Fitting Insert: ABS Supported Tube Size Hard Tube: OD 16mm Soft Tube: OD 16mm; ID 10mm Tube Compatibility Hard Tube: PETG, Acrylic Tube Soft Tube: PVC Tube
• Package Contents: Glacier 450CPU Block 1x Push-in Fitting (Pre-installed) 2x Fitting ...
• Model #: PH-GEF_CPU450_DWT

• Type: Hi-Res Display
• Color: White
• Specification: Connection Type: HDMI, USB Power Display Size: 5.5" IPS Display Resolution: 2160x1440 Color Spectrum: sRGB99% Housing Color: White Refresh Rate: 60hz
• Package Contents: Phanteks 5.5" Hi-Res Display 4x Fan Screws 4x M4 Screws 1x SATA to Micro USB Type B Cable 1x HDMI Cable 2x Feet
• Model #: PH-HRLCD_WT01

• Brand: Phanteks
• Series: Glacier R220C
• Type: Combo Reservoir
• Specification: Pump Compatibility: DDC Installation Compatibility: 120/140 mm fan/radiator Seal O-Ring: DuPont VITON Reservoir - ID: 126.72 /W: 1.78 (AS049) Color: Transparent RGB LED type: Digital-RGB (addressable) LED Number: 5050, 18pcs LED Electricity Spec: 5V/ 0.7A/ 3.5W Capacity: 200ml Materials: Acrylic body, Acrylic backplate, Steel bracket Max Water Loop Temperature: 60 degree C Fill Port: 1 x G 1/4 No. of Inlet: 3 x G 1/4 No. of Outlet: 1 x G 1/4
• Model #: PH-R220C_02

off w/ promo code PHF58, limited offer

• Type: Tool Set
• Specification: Materials Tube Cutter: Plastic + Steel Bending Insert: Rubber Bending Guides: PP Squeeze Bottle: PE 24-Pin Jumper: PP Sandpaper: Paper Tube Cutter Compatibility 16 mm Hard Tube Bending Insert Compatibility For ID:12mm / OD:16mm Hard Tube Bending Guides Compatibility 16 mm Hard Tube Squeeze Bottle Capacity: 250 ml Sandpaper Grit: 240
• Package Contents: Tube Cutter 1x Silicone Bending Insert 1x Bending Guides (set) 1x Squeeze Bottle 1x 24-Pin Jumper 1x Sandpaper 1x Manual 1x
• Model #: PH-GEF_TLS_BK

off w/ promo code PHF75, limited offer

• Brand: Phanteks
• Type: Reservoir
• Color: Black
• Reservoir Dim.: 45 x 120 x 124 mm
• Model #: PH-GEF_RES120-B_DBK01

off w/ promo code PHF52, limited offer

• Type: Complete DIY Water-Cooling Kit
• Block Compatibility: Intel: LGA 1700 AMD: AM4 /AM5
• Block Dim.: 72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
• Radiator Size: 360mm
• Model #: PH-GEF_CPU450_DBK

off w/ promo code PHF54, limited offer

• Radiator Size: 410 x 123 x 30mm (16.14 x 4.84 x 1.18in)
• Specification: Tubes: H90 Brass Fins: T2 Copper Water Tank: H62 Brass Thread Insert: H59 Brass Side Panel: 430 Stainless Steel Fitting: ED Black Brass Fitting Insert: ABS Supported tube size Hard Tube: OD 16mm Soft Tube: OD 16mm; ID 10mm Tube Compatibility Hard Tube: PETG, Acrylic tube Soft Tube: PVC tube
• Package Contents: 360RAD-30 Black 1x Push-in Fitting (Pre-installed) 2x Fitting Inserts (for soft tube) 3x M4x5 screws 12x M4x30 screws 12x M4x36 screws 12x Manual 1x
• Model #: PH-GEF_RAD363_BK

off w/ promo code PHF69, limited offer

• Brand: Phanteks
• Type: Radiator
• Radiator Size: 470x140x30 mm
• Radiator Material: Fins: T2 Copper Water Chamber: H62 Brass Thread Insert: H59 Brass Side Pane: 430 Stainless Fittings: Brass Fitting Insert: ABS
• Model #: PH-GEF-RAD423_BK

• Brand: Phanteks
• Type: GPU Water Block
• Block Compatibility: ASUS ROG Strix GeForce RTX® 4090 24GB ASUS ROG Strix GeForce RTX® 4090 OC Edition 24GB ASUS TUF-RTX4090-O24G-GAMING ASUS TUF-RTX4090-24G-GAMING
• Block Dim.: 11.34 x 5.17 x 1 in (288.15 x 131.244 x 26 mm)
• Model #: PH-GEF_GPU4090AS_DMW01

• Type: Fittings
• Color: Gray
• Model #: PH-RA90_CR12

• Block Compatibility: Compliment and work seamlessly with all Phanteks' water cooling products
• Type: Fittings
• Color: Mirror Chrome
• Model #: PH-A45_CR_16

• Part Number: PH-GB4090GB_BK01_BP
• Block Dim.: 11.51 x 4.94 x 1 in (292.31 x 125.47 x 26 mm)
• Block Material: Aluminum
• Model #: PH-GB4090GB_BK01_BP

• Brand: Phanteks
• Type: Complete DIY Water-Cooling Kit
• Block Compatibility: CPU Block Socket Compatibility Intel: LGA 1700 AMD: AM4 /AM5
• Block Dim.: 72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
• Model #: PH-GEF_KIT360-ST_DWT

• Type: Fittings
• Color: Black
• Model #: PH-A45_BK_12

• Type: Fittings
• Color: Gray
• Model #: PH-A45_CR_12

off w/ promo code PHF74, limited offer

• Brand: Phanteks
• Type: GPU Water Block
• Block Compatibility: ASUS ROG Strix GeForce RTX® 4090 24GB ASUS ROG Strix GeForce RTX® 4090 OC Edition 24GB ASUS TUF-RTX4090-O24G-GAMING ASUS TUF-RTX4090-24G-GAMING
• Block Dim.: 11.34 x 5.17 x 1 in (288.15 x 131.244 x 26 mm)
• Model #: PH-GEF_GPU4090AS_DBK01

• Type: Complete DIY Water-Cooling Kit
• Block Compatibility: Intel: LGA 1700 AMD: AM4 /AM5
• Block Dim.: 72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
• Radiator Size: 360mm
• Model #: PH-GEF_KIT360-D30_DWT

• Block Compatibility: Compliment and work seamlessly with all Phanteks' water cooling products
• Type: Fittings
• Color: Satin Black
• Model #: PH-A45_BK_16

• Block Compatibility: Work seamlessly with all Phanteks' water cooling products
• Type: Fittings
• Color: Mirror Chrome
• Model #: PH-RA45_CR16

• Block Compatibility: Compliment and work seamlessly with all Phanteks' water cooling products
• Type: Fittings
• Color: Mirror Chrome
• Model #: PH-TS_CR_G1/4

• Part Number: PH-GB4090GB_CR01_BP
• Type: VGA Block & Cooler
• Block Dim.: 11.51 x 4.94 x 1 in (292.31 x 125.47 x 26 mm)
• Block Material: Aluminum
• Model #: PH-GB4090GB_CR01_BP

off w/ promo code PHF77, limited offer

• Brand: Phanteks

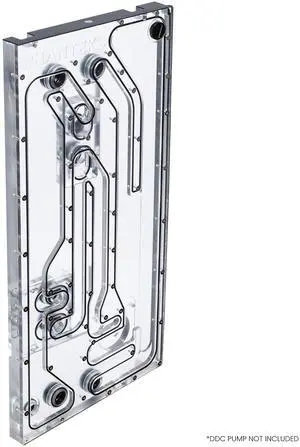

• Type: Distribution Plate
• Color: White
• Model #: PH-GEF_DIS-NV5

off w/ promo code PHF48, limited offer

• Type: Complete DIY Water-Cooling Kit
• Block Compatibility: Intel: LGA 1700 AMD: AM4 /AM5
• Block Dim.: 72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
• Radiator Size: 360mm
• Model #: PH-GEF_KIT360-D30_DBK

• Part Number: PH-GB4090MS_CR01_BP
• Type: VGA Block & Cooler
• Block Compatibility: MSI GeForce RTX® 4090 SUPRIM X 24G MSI GeForce RTX® 4090 SUPRIM 24G MSI GeForce RTX® 4090 GAMING X TRIO 24G MSI GeForce RTX® 4090 GAMING TRIO 24G
• Block Dim.: 10.49 x 5.95 x 0.74 in (266.56 x 151.24 x 18.9 mm)
• Model #: PH-GB4090MS_CR01_BP

• Type: Fittings
• Color: Black
• Model #: PH-RA45_BK12

• Block Compatibility: Work seamlessly with all Phanteks' water cooling products
• Type: Fittings
• Color: Satin Black
• Model #: PH-RA45_BK16

• Part Number: PH-GB4090GB_MW01_BP
• Type: Water Blocks
• Block Dim.: 11.51 x 4.94 x 1 in (292.31 x 125.47 x 26 mm)
• Block Material: Aluminum
• Model #: PH-GB4090GB_MW01_BP

• Brand: Phanteks
• Type: Reservoir
• Color: White
• Reservoir Dim.: 45 x 120 x 124 mm
• Model #: PH-GEF_RES120-B_DWT01

• Part Number: PH-GB4090MS_MW01_BP
• Type: VGA Block & Cooler
• Block Compatibility: MSI GeForce RTX® 4090 SUPRIM X 24G MSI GeForce RTX® 4090 SUPRIM 24G MSI GeForce RTX® 4090 GAMING X TRIO 24G MSI GeForce RTX® 4090 GAMING TRIO 24G
• Block Dim.: 10.49 x 5.95 x 0.74 in (266.56 x 151.24 x 18.9 mm)
• Model #: PH-GB4090MS_MW01_BP

• Part Number: PH-GB4090AS_BK01_BP
• Type: VGA Block & Cooler
• Block Dim.: Water Block Dimensions (LxWxH) 11.02 x 5.17 x 1 in (280 x 131.244 x 26 mm)
• Block Material: Aluminum
• Model #: PH-GB4090AS_BK01_BP

• Part Number: PH-GB4090MS_BK01_BP
• Type: VGA Block & Cooler
• Block Compatibility: MSI GeForce RTX® 4090 SUPRIM X 24G MSI GeForce RTX® 4090 SUPRIM 24G MSI GeForce RTX® 4090 GAMING X TRIO 24G MSI GeForce RTX® 4090 GAMING TRIO 24G
• Block Dim.: 10.49 x 5.95 x 0.74 in (266.56 x 151.24 x 18.9 mm)
• Model #: PH-GB4090MS_BK01_BP

• Block Compatibility: Compliment and work seamlessly with all Phanteks' water cooling products
• Type: Fittings
• Color: Satin Black
• Model #: PH-MMA_BK_G1/4

• Type: DIY Cooling Kit
• Block Compatibility: Intel: LGA 1700 AMD: AM4 /AM5
• Block Dim.: 72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
• Radiator Size: 360mm
• Model #: PH-GEF_KIT360-ST_DBK
