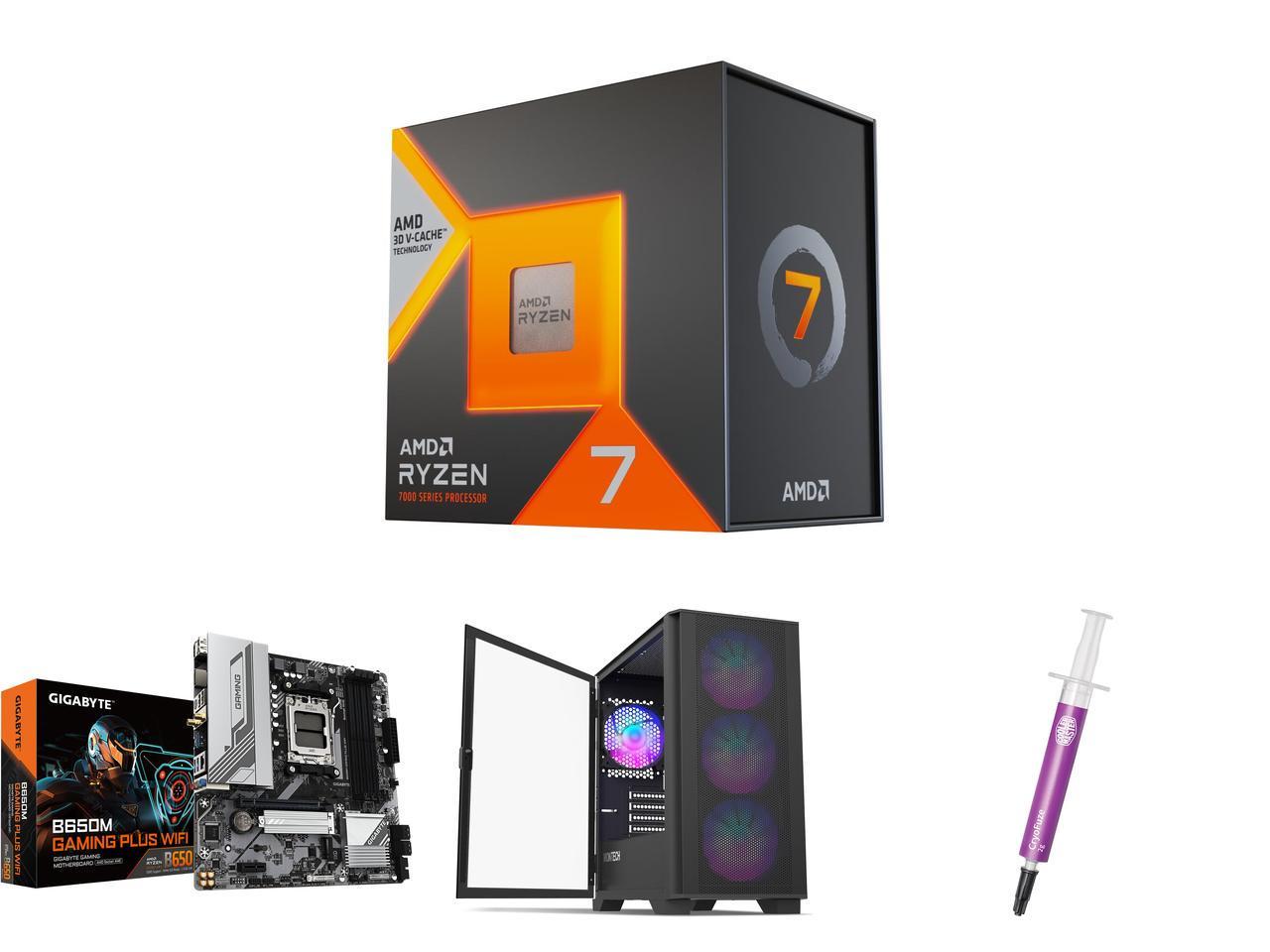

This Combo Includes 4 Items
AMD RYZEN™ 7 7800X3D PROCESSOR
AMAZING GAMING PROCESSORS WITH AMD 3D V-CACHE™ TECHNOLOGY
AMD Ryzen™ 7 7800X3D processor featuring AMD 3D V-Cache™ technology delivers absolute gaming performance that exceeds the highest expectations.
TECHNOLOGY THAT SAVES YOU TIME
With time-saving connectivity features and technologies, like PCIe 5.0® storage support, ultra-fast WiFi® 6E wireless, 8 cores/16 processing threads, and dedicated video accelerators, elevate your creator experience with an AMD Ryzen™ 7 7800X3D processor.
UPGRADEABLE FOR YEARS TO COME
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0, supported through 2025.
Technical Specifications — AMD Ryzen™ 7 7800X3D
| Cores / Threads |
Total Cache |
Architecture |
TDP |
PCIe® Version |
Socket |
Unlocked for Overclocking |
Cooler |
| 8/16 |
104MB |
"Zen 4" |
120W |
5.0 |
AM5 |
Yes |
Cooling device not included - Processor Only |
B650M GAMING PLUS WIFI
- AMD Socket AM5: Supports AMD Ryzen™ 7000 Series/ Ryzen™ 8000 Series Processors
- Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Fast Networks: Wi-Fi 802.11ax & 2.5GbE LAN
- Extended Connectivity: 2*DP, HDMI
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond*
EXPO & XMP Support
Unlock DDR5 Voltage
EXPO & XMP Support
GIGABYTE Exclusive DDR5 Circuit Design
EXPO & XMP Support
Shielded Memory Routing
Note: The picture is for reference and may vary by mode.
EXPO & XMP Support
EXPO and XMP Dual Support
EXPO & XMP Support
DDR5 Auto Booster
EXPO & XMP Support
AMD EXPO™ and Intel® XMP 3.0 User Profile
- SPD Re-defined or retrieve from database
- Performance Simulation
- Save/Load Profile
- Overclocked Performance
- Profile Clearance
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The Wireless solution 802.11ax Wi-Fi enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
* Photo for reference only.
Hi-Fi Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when removing the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
- STEP 1: Plug 24pin & 8pin power supply cable on motherboard
- STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
- STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
- Precision Control: Multiple temperature/fan speed control points for precise fan curve.
- Dual Curve Mode: Slope/Stair dual mode for different user scenario.
- Fan Stop: Fan can stop completely below users' specified temperature point.
Smart Fan 6 BIOS UI
Safer and more convenient when transitioning between shots of varying distance and composition.
- Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
- Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
- Manual Input: For advanced users, we provide fan speed manual input for more precise control.
- EZ Tuning: Users can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
- Fan Curve Profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
Note: The picture is for reference and may vary by model.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Air 100 ARGB
Ultimate Cooling Performance With Ultra Minimalist Design
Super Fine Mesh Face Plate
Enhanced Thermal Performance
Meets Simplistic Minimalist Design
Four ARGB Fans and Controller Pre-Installed
Side Swivel Tempered Glass Side Panel
Expansion Capable
Finally, a Micro-ATX with Great Cooling
The AIR 100 series is the first Micro-ATX case from Montech's acclaimed AIR Series PC cases. Its smaller footprint makes easy to carry and takes much less space.
Despite its smaller form factor the AIR 100 cuts no corners to achieve the best cooling capacity capable. Expandability and anti-dust features also adhere to Montech's AIR Series standard. Combining this all with a clean minimalist design, the AIR 100 provides PC users a smooth and classy but also high performance build experience.
Dust Resistant & Airflow Optimized Front Panel
The Super Fine Mesh Face Plate not only provides unobstructed cool airflow into the case, it also acts as an anti-dust cover. With its smart quick release design, removing the Super Fine Mesh for cleaning is simple and tool free.
Ultra-Minimalist Design
The cleverly designed top cover design and the Super Fine Mesh Face Plate molds into one unified clean minimalist style language.
ARGB Lighting Show Right Out of The Box
Four pre-installed 120mm ARGB fans are connected by the included lighting controller, that can be easily controlled by the LED button on the case or managed through motherboard ARGB software.
More Convenient & More Safe
The unique Side Swivel Tempered Glass Side Panel design is not only easier for users to unmount, its zero drill-hole design drastically improves the panel's strength integrity and safety.
Enjoy Building Your PC
Although a class smaller in volume, nothing is sacrificed in terms of expandability. The AIR 100 ARGB supports GPU cards up to 330mm, 160mm PSUs and tower heatsinks up to 161mm. 280mm radiators can be mounted at the front, while at the top there's space for 240mm radiators. The AIR 100 Lite is expansion capable for years to come.
Smart Cable Management
With cable management in-mind, the AIR 100 ARGB has strategically pre-installed cable loops and Velcro straps. This makes building your system with good clean cable management a breeze.
Easy Accessible I/O Ports
Two high-speed USB 3.0, a USB 2.0 and the HD Audio ports are all located on the top of the case for easy accessibility.
Drive Bays
3.5" HDD or 2.5" SSD*2
2.5" SSD*5
Clearance
PSU Length~160mm
CPU Cooler Height∼161mm
GPU Card Length∼330mm
Versatile Cooling Options
Fan Support
Top 120mm*2/140mm*2
Front 120mm*3/140mm*2
Rear 120mm*1
Radiator Support
Top 120/140/240mm
Front 120/140/240/280mm
Rear 120mm
Motherboard Support
Motherboard Size
Micro - ATX
Mini-ITX
| Specifications |
| Product Name |
Air 100 ARGB |
| Available Color |
BLACK |
| Dimensions (LxWxH)/N.W./G.W. |
405*210*425mm(Case), 485*275*480(Carton)/6kg/7kg |
| Motherboard Support |
Micro ATX/Mini ITX |
| Expansion Slots |
4 |
| Drive Bays |
| 5.25" |
0 |
| 2.5" |
2 |
| 3.5" or 2.5" |
2 |
| I/O Port |
USB3.0*2, USB2.0*1, Audio*1, mic*1, LED control button |
| Pre-installed Fan(s) |
| Front |
120mm*3 (ARGB Fan) |
| Rear |
120mm*1 (ARGB Fan) |
| Fan Support |
| Front |
120mm*3/140mm*2 |
| Rear |
120mm*1 |
| Inside |
120mm*2 |
| Top |
120 / 140mm*2 |
| Radiator Support |
| Front |
120 / 140 / 240 / 280mm |
| Rear |
120mm |
| Top |
120 / 140 / 240mm |
| Clearance |
| VGA |
330mm |
| CPU Cooler |
161mm |
| Dust Filters |
Top, Bottom |
| Power Supply Support |
Bottom mount, ATX |
| Lighting support |
ARGB Lighting Controller *1 |
Learn more about the Ryzen 7 7800X3D
Model| Brand | AMD |
|---|
| Processors Type | Desktop |
|---|
| Series | Ryzen 7 7000 Series |
|---|
| Name | Ryzen 7 7800X3D |
|---|
| Model | 100-100000910WOF |
|---|
Details| CPU Socket Type | Socket AM5 |
|---|
| # of Cores | 8-Core |
|---|
| # of Threads | 16-Threads |
|---|
| Operating Frequency | 4.2 GHz |
|---|
| Max Turbo Frequency | Up to 5.0 GHz |
|---|
| L1 Cache | 512KB |
|---|
| L2 Cache | 8MB |
|---|
| L3 Cache | 96MB |
|---|
| Manufacturing Tech | Zen 4 - TSMC 5nm FinFET |
|---|
| Instruction Set | 64-Bit |
|---|
| Memory Types | DDR5 5200 |
|---|
| Memory Channel | 2 |
|---|
| ECC Memory | Supported |
|---|
| Integrated Graphics | AMD Radeon Graphics |
|---|
| Graphics Base Frequency | 400 MHz |
|---|
| Graphics Max Dynamic Frequency | 2200 MHz |
|---|
| PCI Express Revision | 5.0 / 4.0 / 3.0 |
|---|
| Thermal Design Power | 120W |
|---|
| Cooling Device | Cooling device not included - Processor Only |
|---|
| Compatible Desktop Chipsets | AMD A620 / AMD B650 / AMD B650E / AMD B850 / AMD X670 / AMD X670E / AMD X870 / AMD X870E |
|---|
| Operating System Supported | Windows 11 |
|---|
Additional Information| Date First Available | April 06, 2023 |
|---|
Customer Reviews of Ryzen 7 7800X3D
Customer Reviews of the GIGABYTE B650M GAMING PLUS WIFI
Customer Reviews of the Montech AIR 100

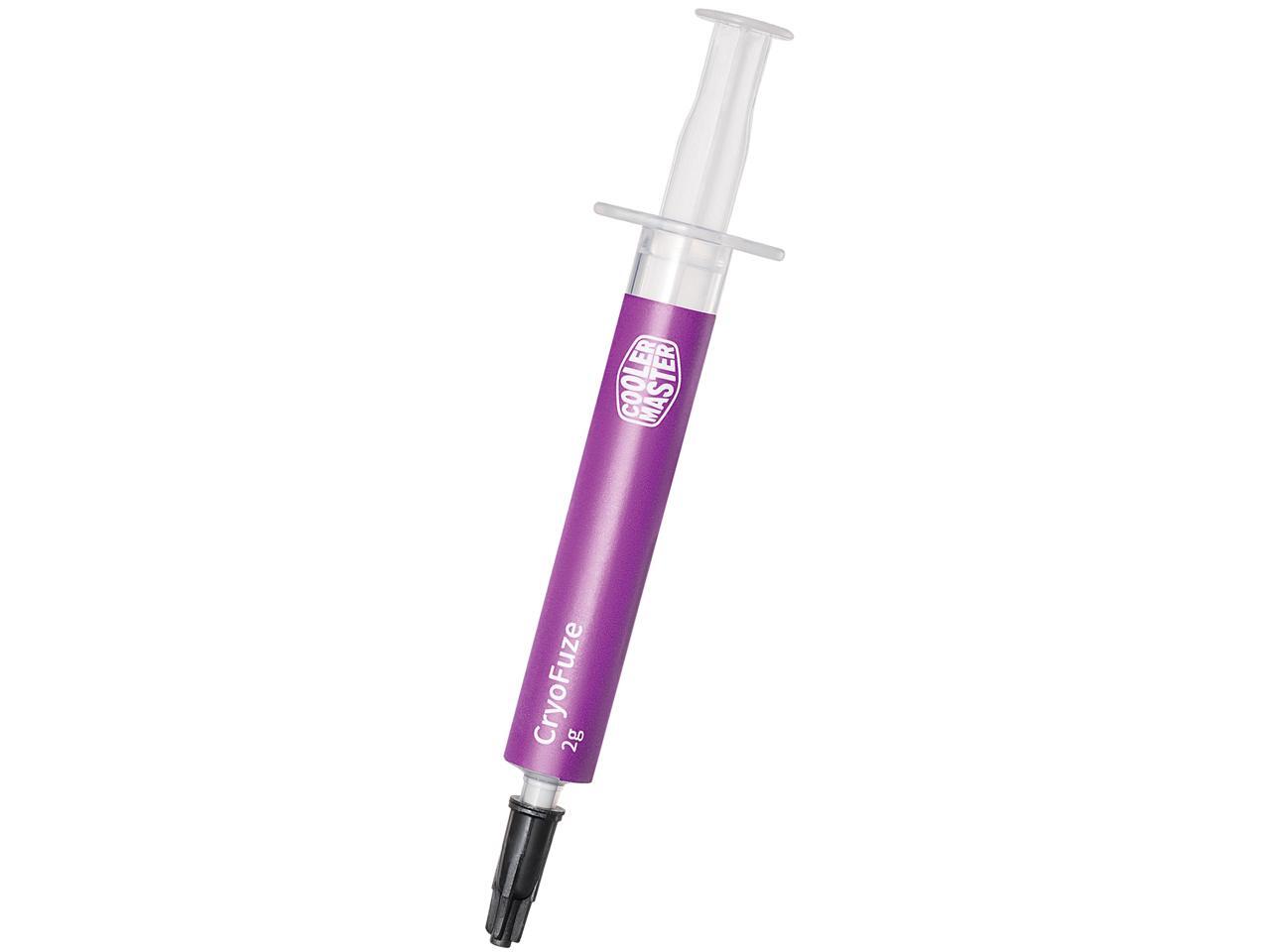

Customer Reviews of the Cooler Master MGZ-NDSG-N07M-R2
