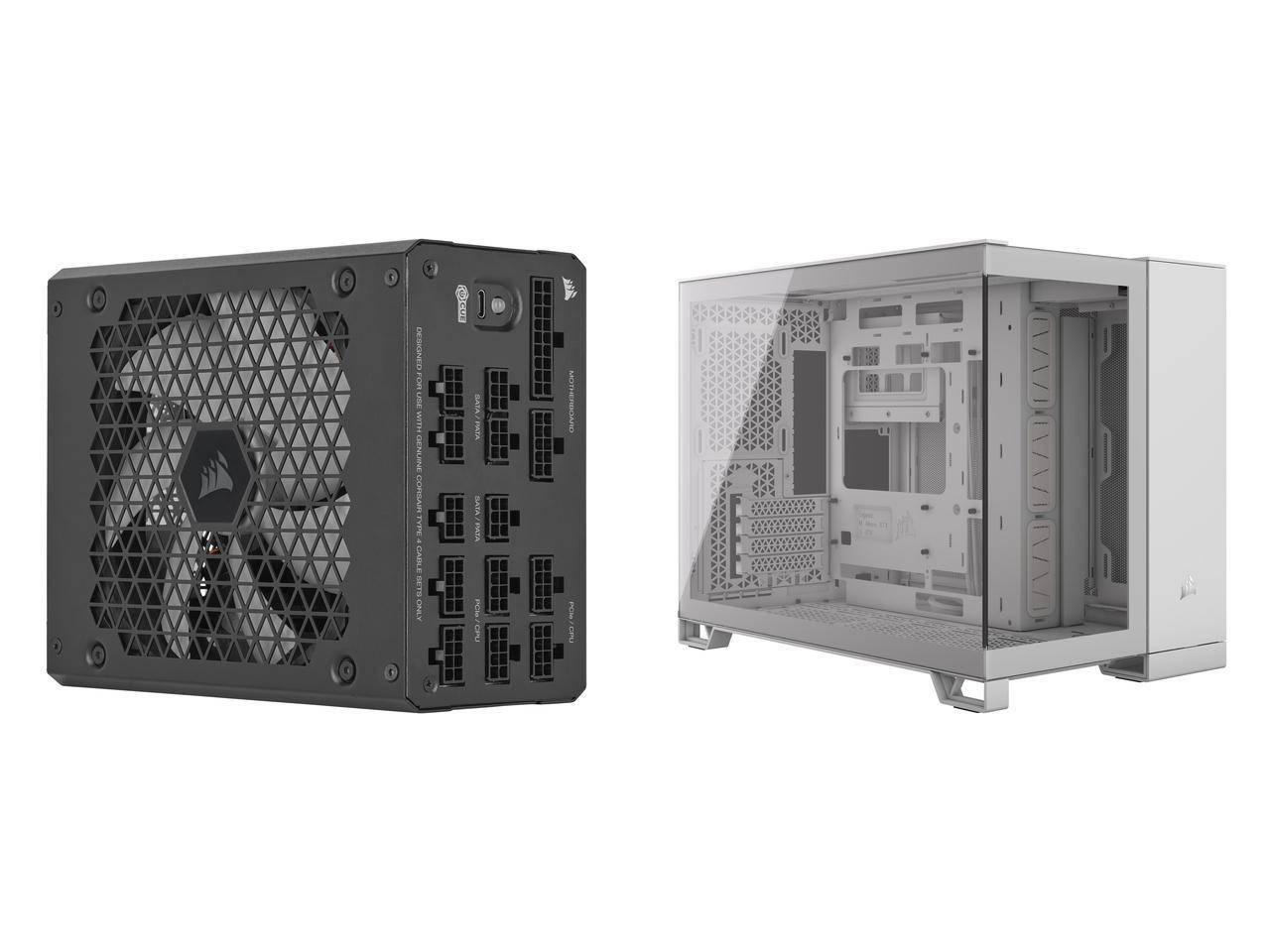

This Combo Includes 2 Items
Learn more about the Corsair HX1000i 2023
GeneralBrand | CORSAIR |
---|
Series | HXi Series |
---|
Model | HX1000i 2023 |
---|
Part Number | CP-9020259-NA |
---|
DetailsType | ATX 3.0 Compatible |
---|
Maximum Power | 1000 W |
---|
Fans | 1 x 140 mm Fluid Dynamic Bearing Fan |
---|
PCI-Express Connector | 4 x 6+2-Pin |
---|
SATA Power Connector | 8 |
---|
Max PSU Length | 180 mm |
---|
Modular | Full Modular |
---|
Energy-Efficient | 80 PLUS PLATINUM Certified |
---|
Input Voltage | 100 - 240 V |
---|
Input Frequency Range | 47 - 63 Hz |
---|
Input Current | 13A-6.5A (100Va.c.-240Va.c.) 10A (200Va.c.-240Va.c.) |
---|
Output | +3.3V@25A, +5V@25A, [email protected], [email protected], +5VSB@3A |
---|
Connectors | 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin ATX / 2 x 8 pin (4+4) EPS (CPU) / 4 x 8 pin (6+2) PCIe / 8 x SATA |
---|
Cable Spec | 1 x ATX CABLE 24-PIN (24): 610mm 2 x EPS/ATX12V CABLE 8-PIN (4+4): 650mm 2 x PCIe CABLE 8-PIN (6+2): 675mm, 100mm 1 x PCIe CABLE 16PIN (12+4): 650 mm 2 x SATA CABLE (4 SATA - Straight)): 455mm, 115mm, 115mm, 115mm 2 x PATA CABLE (4-PIN): 450mm, 100mm, 100mm 1 x USB(TYPE C) to 10-1PIN: 525 mm |
---|
FeaturesFeatures | Fully modular cabling, so you connect only the cables your system needs. Compliant with the ATX 3.0 power standard from Intel®, supporting the PCIe Gen 5 platform and resisting transient power spikes. A 140mm fluid dynamic bearing (FDB) fan delivers extremely quiet and long-lasting fan performance. Powerful CORSAIR iCUE software enables you to create custom fan curves, monitor power settings, and toggle between single to multi-rail overcurrent protection (OCP) on-the-fly. Zero RPM fan mode for near-silent operation at low to medium loads. 100% Industrial-grade, 105°C rated Japanese electrolytic capacitors ensure unwavering power and reliability. 80 PLUS Platinum certified for up to 92% efficiency, for exceptionally low power consumption, less noise, and cooler temperatures. Supports Modern Standby sleep mode for extremely fast wake-from-sleep times and better low-load efficiency. Fully digital platform with resonant LLC topology and DC-to-DC conversion provides clean, consistent power and minimizes coil whine and noise for quiet operation. |
---|
Dimension & WeightDimensions | 7.09" x 5.91" x 3.39" |
---|
Weight | 4.4 lbs |
---|
PackagePackage Content | HXi Series ATX Power Supply | Power cord | DC Cables | Mounting screws | Cable ties |
---|
Additional InformationDate First Available | June 13, 2023 |
---|
