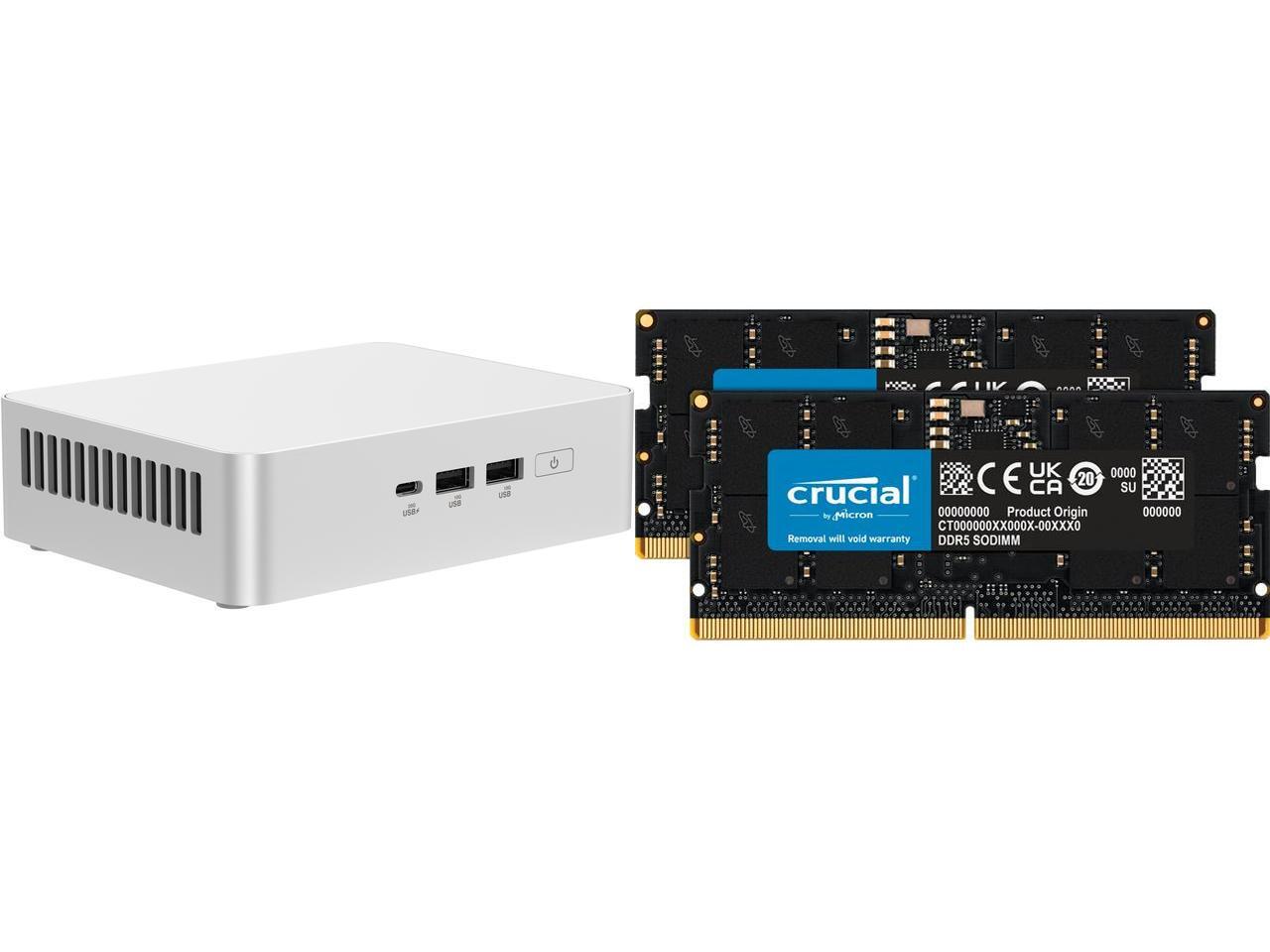

This Combo Includes 2 Items

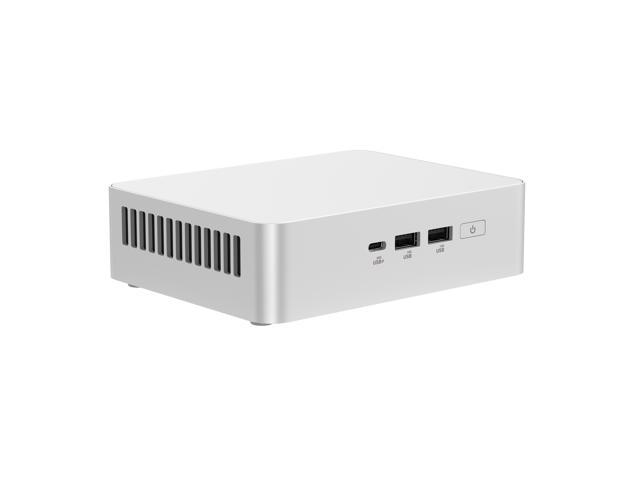

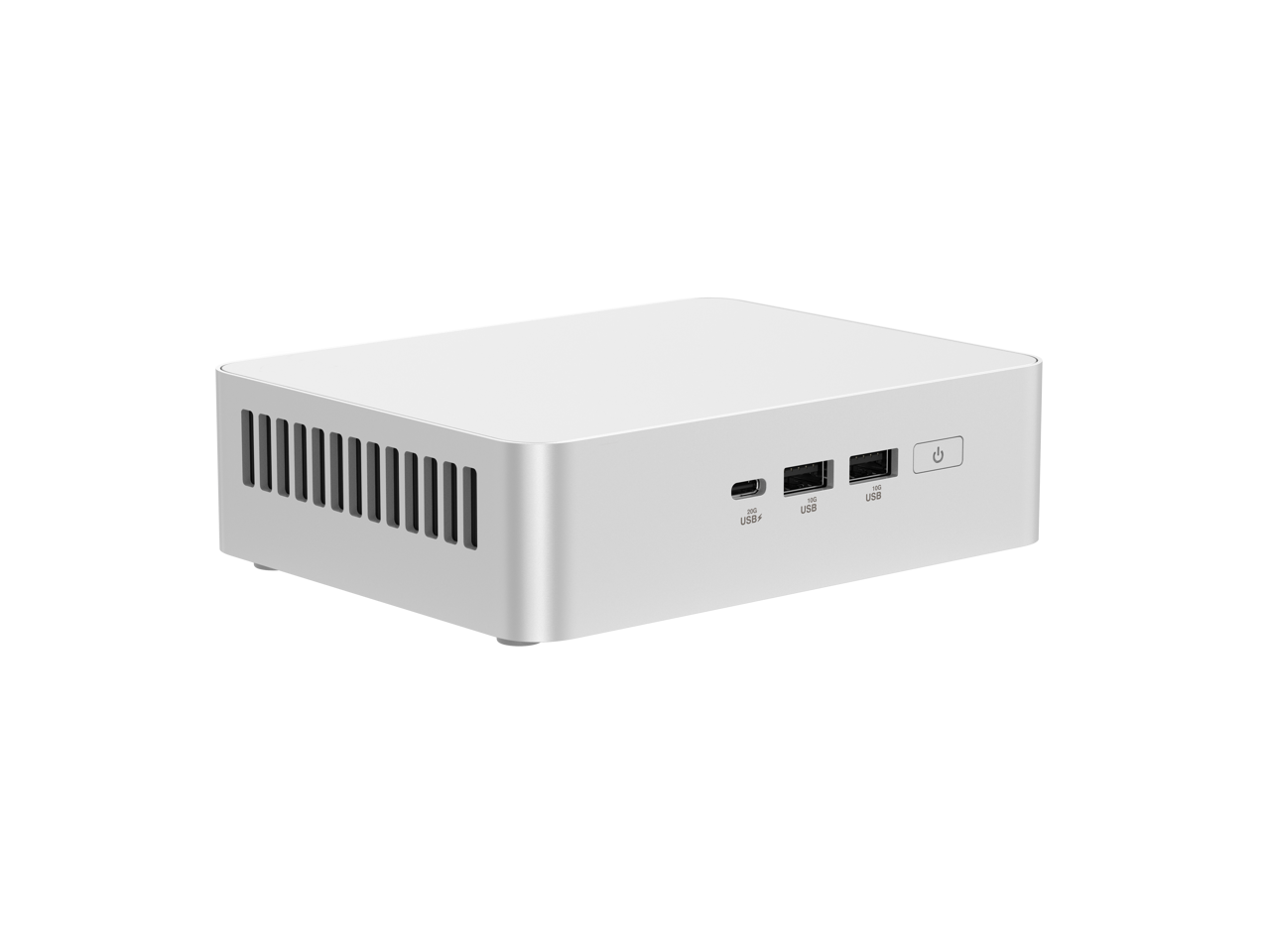

Learn more about the ASUS RNUC15CRSU90000U
GeneralBrand | ASUS |
---|
Series | NUC 15 PRO+ |
---|
Model | RNUC15CRSU90000U |
---|
Part Number | 90AR00P3-M001D0 |
---|
Color | Silver |
---|
AI Features | has Dedicated AI cores. AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN |
---|
CPU SupportedCPU Type | cTDP 65W ,16-Core: 2.9 to 5.4 GHz Performance (6 Cores) 2.7 to 4.5 GHz Efficiency (8 Cores) 1 to 2.5 GHz Low Power Efficiency (2 Cores) L3 Cache 24MB Processor Base Power 45 W Maximum Turbo Power 115 W Minimum Assured Power35 W |
---|
CPU Socket | BGA 2049 |
---|
Memory SupportedMemory installed | No Memory |
---|
Memory slot | 2 x 262Pin SO-DIMM |
---|
Memory Type Supported | SO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz |
---|
Max Memory Supported | Max Capacity: via 48GB DDR5-5600 SO-DIMM x 2 (total 96GB) or via 48GB DDR5-6400 CSO-DIMM x 2 (total 96GB) |
---|
StorageHard Drive Installed | No Hard Drive |
---|
M.2 | 1 x M.2 2280 PCIe NVMe SSD (empty) support (128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD (Core Ultra Series CPU))
1 x M.2 2242 PCIe Gen4x4 NVMe SSD (empty) support 128GB~8TB |
---|
GraphicsIntergrated Graphics | Intel® Arc™ GPU (Core Ultra) *Intel® Arc™ GPU requires using 2 x SO-DIMM |
---|
CommunicationsLAN | Intel® Ethernet Controller I226-V, 2.5G |
---|
Max LAN Speed | 10/100/1000/2500Mbps |
---|
Wireless LAN | 802.11be |
---|
WiFi Generation | Wi-Fi 7 |
---|
Bluetooth | *Bluetooth® version may change with different OS version. |
---|
Front Panel PortsFront USB | 1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A |
---|
Back Panel PortsHDMI | 2 x HDMI 2.1 (up to 4K@60Hz) |
---|
Thunderbolt | 2 x Thunderbolt 4 (include DisplayPort 2.1 and USB4) |
---|
Rear USB | 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps) |
---|
RJ45 | 1 |
---|
Power SupplyInput | 19.5VDC, 7.69A, |
---|
Power Supply | 150W Power Adapter (Core Ultra 9) |
---|
Physical SPECDimensions | 5.67" x 4.41" x 1.65" (Net product) |
---|
Weight | 1.52 lbs. |
---|
Material | Toolless Silver Aluminum Chassis |
---|
FeaturesFeatures | No preinstalled OS Support: Windows 11 RedHat Enterprise Linux Ubuntu 24.04 LTS |
---|
PackagingPackaging | VESA Mount & Screws / AC Power Adapter/ Power CordAC Adapter+Power Cord/ Safety/Caution/Regulatory Insert Warranty Card |
---|
Additional InformationDate First Available | May 28, 2025 |
---|
