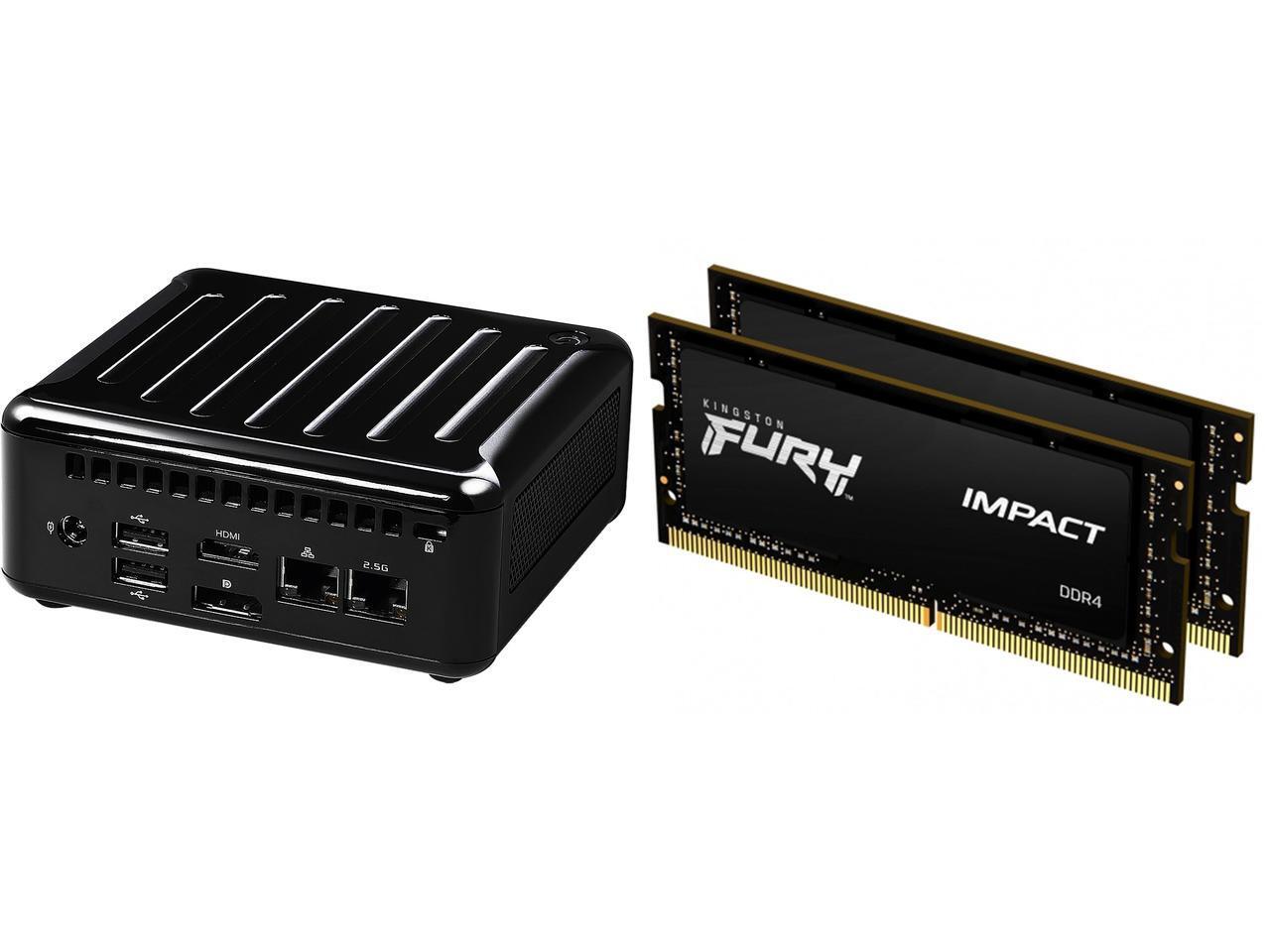

This Combo Includes 2 Items
Learn more about the ASRock Industrial 4x4 BOX-5800U
GeneralBrand | ASRock Industrial |
---|
Model | 4x4 BOX-5800U |
---|
CPU SupportedCPU Type | AMD Ryzen 7 5800U, 8Cores, Max Speed up to 4.4GHz |
---|
Memory SupportedMemory installed | No Memory |
---|
Memory slot | 2 x 260Pin SO-DIMM |
---|
Memory Type Supported | DDR4 3200 |
---|
Max Memory Supported | 64GB |
---|
Dual Channel Memory Supported | Yes |
---|
StorageHard Drive Installed | No Hard Drive |
---|
Serial ATA | 1 x SATA 6.0Gb/s |
---|
M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
* M.2 Key M 2280(Supported by bracket). |
---|
GraphicsIntergrated Graphics | AMD Radeon Graphics |
---|
AudioOnboard Audio | Realtek ALC233 |
---|
CommunicationsLAN | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111FPV with 10/100/1000 Mbps, support DASH function |
---|
Max LAN Speed | 10/100/1000/2500Mbps + 10/100/1000Mbps |
---|
Wireless LAN | Wi-Fi 6E 802.11ax |
---|
Bluetooth | Bluetooth 5.2 |
---|
Front Panel PortsFront USB | 1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, Supports DP 1.2a display output) |
---|
Front Audio Ports | 1 (headphone & microphone jack) |
---|
Back Panel PortsHDMI | 1 x HDMI 2.0a |
---|
DisplayPort | 1 x DP 1.2a |
---|
Rear USB | 2 x USB 2.0 |
---|
RJ45 | 2 |
---|
Other Rear Ports | 1 x DC Jack |
---|
Power SupplyPower Supply | 1 x 19V/90W Power Adapter |
---|
Physical SPECDimensions | 1.88" x 4.63" x 4.33" |
---|
Weight | 2.20 lbs. |
---|
FeaturesFeatures | AMD Ryzen 5000U-Series
2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E(WiFi-6E), 1 x SATA3
1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
TPM 2.0 onboard IC
19V/90W Power Adapter
110.0 x 117.5 x 47.85mm, Fanned Barebone |
---|
PackagingPackaging | Accessories: 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket 1 x Bracket for M.2 2280 support |
---|
Additional InformationDate First Available | May 31, 2022 |
---|
