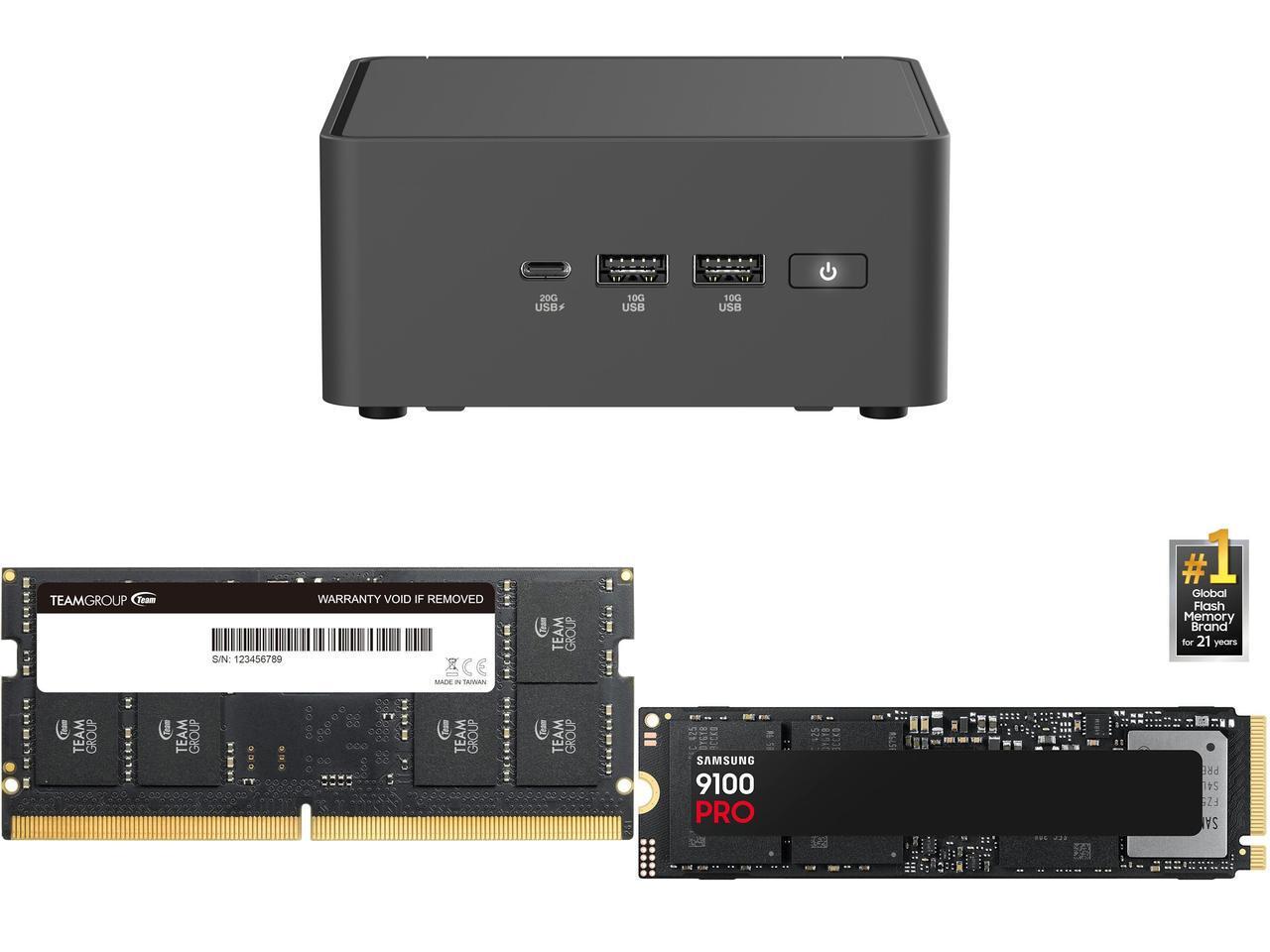

This Combo Includes 3 Items

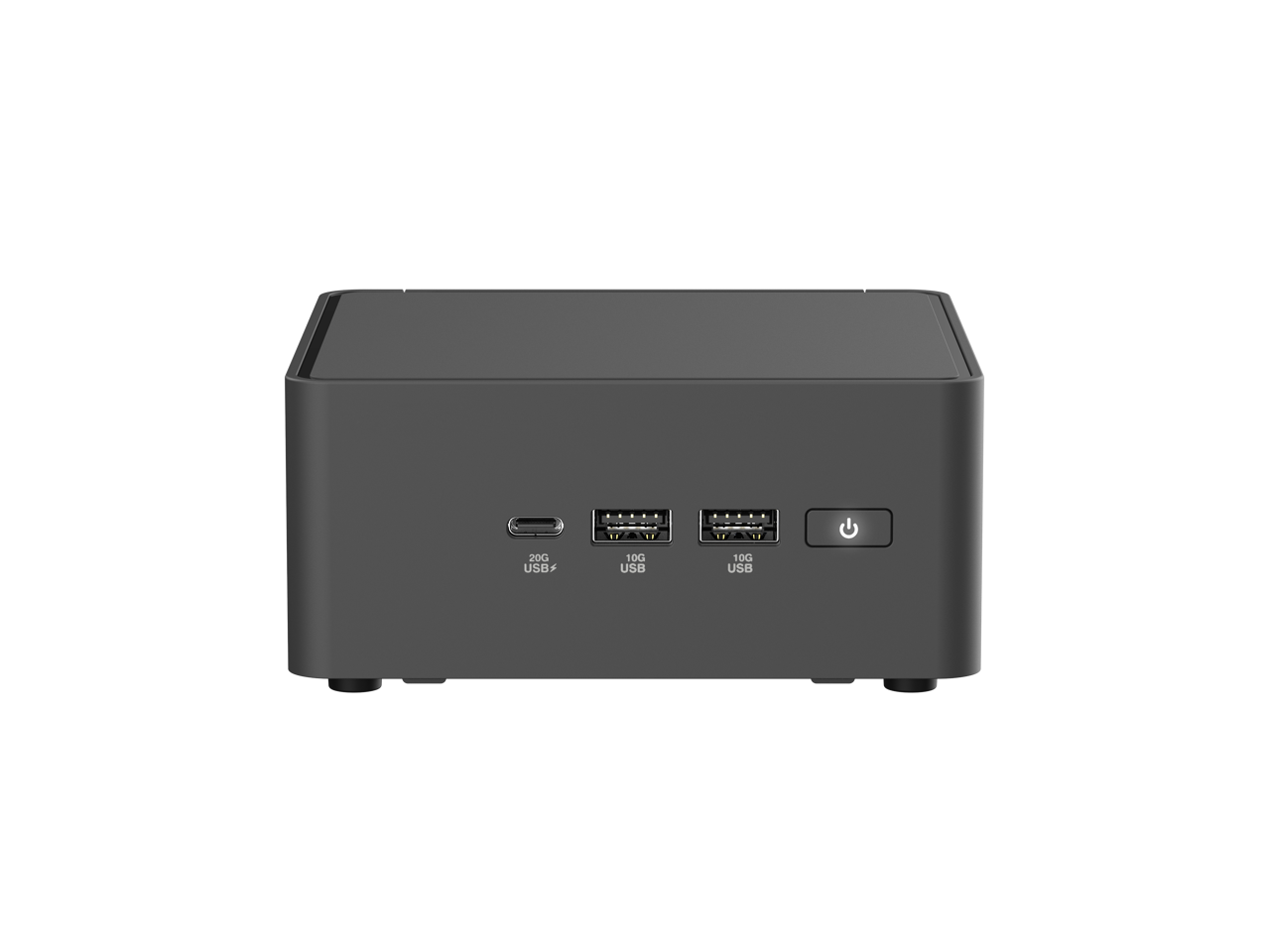

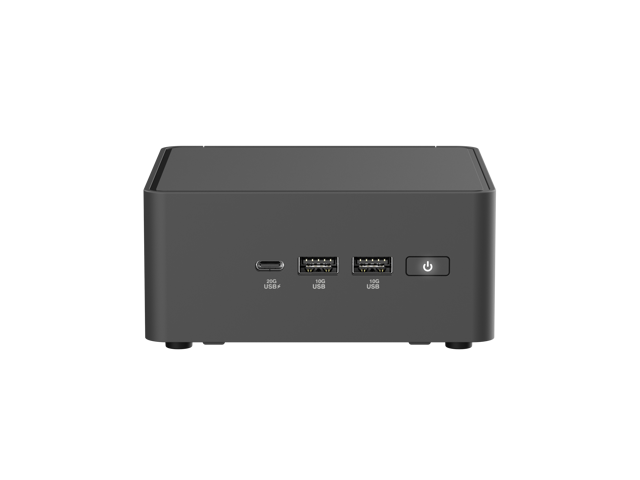

Learn more about the ASUS RNUC15CRHU70000U
GeneralBrand | ASUS |
---|
Series | NUC 15 Pro |
---|
Model | RNUC15CRHU70000U |
---|
Part Number | 90AR00Q2-M001U0 |
---|
Color | Black |
---|
Form Factor | Tall |
---|
AI Features | Processor Essentials *Processor Number 255H *Overall Peak TOPS (Int8) 96
CPU Specifications Total Cores 16 # of Performance-cores 6 # of Efficient-cores 8 # of Low Power Efficient-cores 2 Total Threads 16 Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes *AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
GPU Sepcifications: *Name : Intel® Arc™ 140T GPU *Graphics Max Dynamic Frequency : 2.25GHz *GPU Peak TOPS (Int8) 74 *Ray Tracing Yes *AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
NPU Specifications: *NPU Name: Intel® AI Boost *NPU Peak TOPS (Int8) 13 *Sparsity Support Yes *AI Software Frameworks Supported by NPU :OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN |
---|
CPU SupportedCPU Type | Intel Core Ultra 7 255H |
---|
CPU Socket | FCBGA2049 |
---|
CPU Cores | Total Cores 16 # of Performance-cores 6 # of Efficient-cores 8 # of Low Power Efficient-cores 2 Total Threads 16 Max Turbo Frequency 5.1 GHz Performance-core Max Turbo Frequency 5.1 GHz Efficient-core Max Turbo Frequency 4.4 GHz Low Power Efficient-core Max Turbo Frequency 2.5 GHz Performance-core Base Frequency 2 GHz Efficient-core Base Frequency 1.5 GHz Low Power Efficient-core Base Frequency 700 MHz Cache 24 MB Processor Base Power 28 W Maximum Turbo Power 115 W Minimum Assured Power20 W CPU Lithography TSMC N3B |
---|
Memory SupportedMemory installed | No Memory |
---|
Memory slot | 2 x 262Pin SO-DIMM |
---|
Memory Type Supported | SO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz |
---|
Max Memory Supported | 96GB |
---|
StorageHard Drive Installed | No Hard Drive |
---|
M.2 | 1 x M.2 2280 PCIe Gen4x4 NVMe SSD* (empty) 1 x M.2 2242 PCIe Gen4x4 NVMe SSD (empty) *PCIe Gen 5 ready |
---|
GraphicsIntergrated Graphics | GPU Name Intel® Arc™ 140T GPU Graphics Max Dynamic Frequency 2.25 GHz Xe-cores 8 Ray Tracing Yes DirectX* Support 12.2 OpenGL* Support 4.6 OpenCL* Support 3.0 Multi-Format Codec Engines 2 H.264 Hardware Encode/Decode Yes H.265 (HEVC) Hardware Encode/Decode Yes AV1 Encode/Decode Yes VP9 Bitstream & Decoding Yes Intel® Quick Sync Video Yes # of Displays Supported 4 |
---|
CommunicationsLAN | Intel i226V |
---|
Max LAN Speed | 10/100/1000/2500Mbps |
---|
Wireless LAN | 802.11be |
---|
WiFi Generation | Wi-Fi 7 |
---|
Bluetooth | Bluetooth 5.4 |
---|
Front Panel PortsFront USB | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 2 Type-A |
---|
Back Panel PortsHDMI | 2 x HDMI 2.1 (up to 4K@60Hz) |
---|
Thunderbolt | 2 x Thunderbolt 4 (with DisplayPort 2.1) |
---|
Rear USB | 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps) |
---|
RJ45 | 1x RJ45 (2.5Gb Ethernet) |
---|
Power SupplyPower Supply | 120W |
---|
Physical SPECDimensions | 4.61" x 4.41" x 2.13" |
---|
Weight | 0.8 lb. |
---|
FeaturesFeatures | Onboard Processor Features Intel® Core™ Ultra 7 Processor 255H (24M Cache, up to 5.10 GHz) Overall Peak TOPS (Int8): 96
CPU Specifications Total Cores 16 # of Performance-cores 6 # of Efficient-cores 8 # of Low Power Efficient-cores 2 Total Threads 16 Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes *AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN *CPU Lithography TSMC N3B
GPU Sepcifications: *Name : Intel® Arc™ 140T GPU *Graphics Max Dynamic Frequency : 2.25GHz *GPU Peak TOPS (Int8) 74 *Ray Tracing Yes *AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU DirectX* Support 12.2 OpenGL* Support 4.6 OpenCL* Support 3.0 Multi-Format Codec Engines 2 H.264 Hardware Encode/Decode Yes H.265 (HEVC) Hardware Encode/Decode Yes AV1 Encode/Decode Yes VP9 Bitstream & Decoding Yes Intel® Quick Sync Video Yes # of Displays Supported 4
NPU Specifications: *NPU Name: Intel® AI Boost *NPU Peak TOPS (Int8) 13 *Sparsity Support Yes *AI Software Frameworks Supported by NPU :OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
Security & Reliability Intel® Virtualization Technology (VT-x) Yes Intel® Virtualization Technology for Directed I/O (VT-d) Yes Intel® VT-x with Extended Page Tables (EPT) Yes |
---|
PackagingPackaging | VESA Mount & Screws / AC Power Adapter/ Power Cord |
---|
Additional InformationDate First Available | July 08, 2025 |
---|
Customer Reviews of the ASUS RNUC15CRHU70000U
Customer Reviews of the Team Group TED532G5600C46A-S01

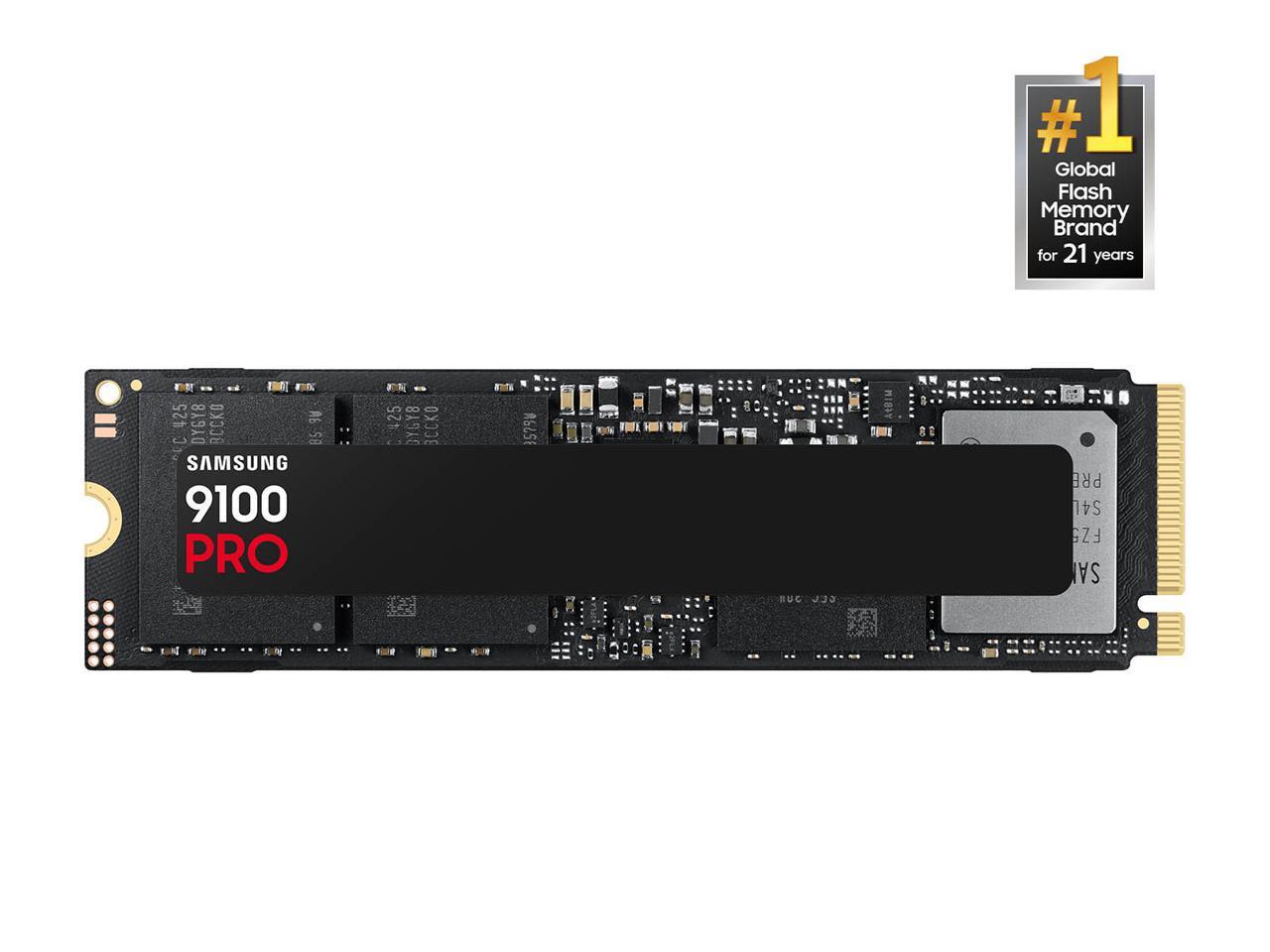

Customer Reviews of the SAMSUNG MZ-VAP2T0B/AM
