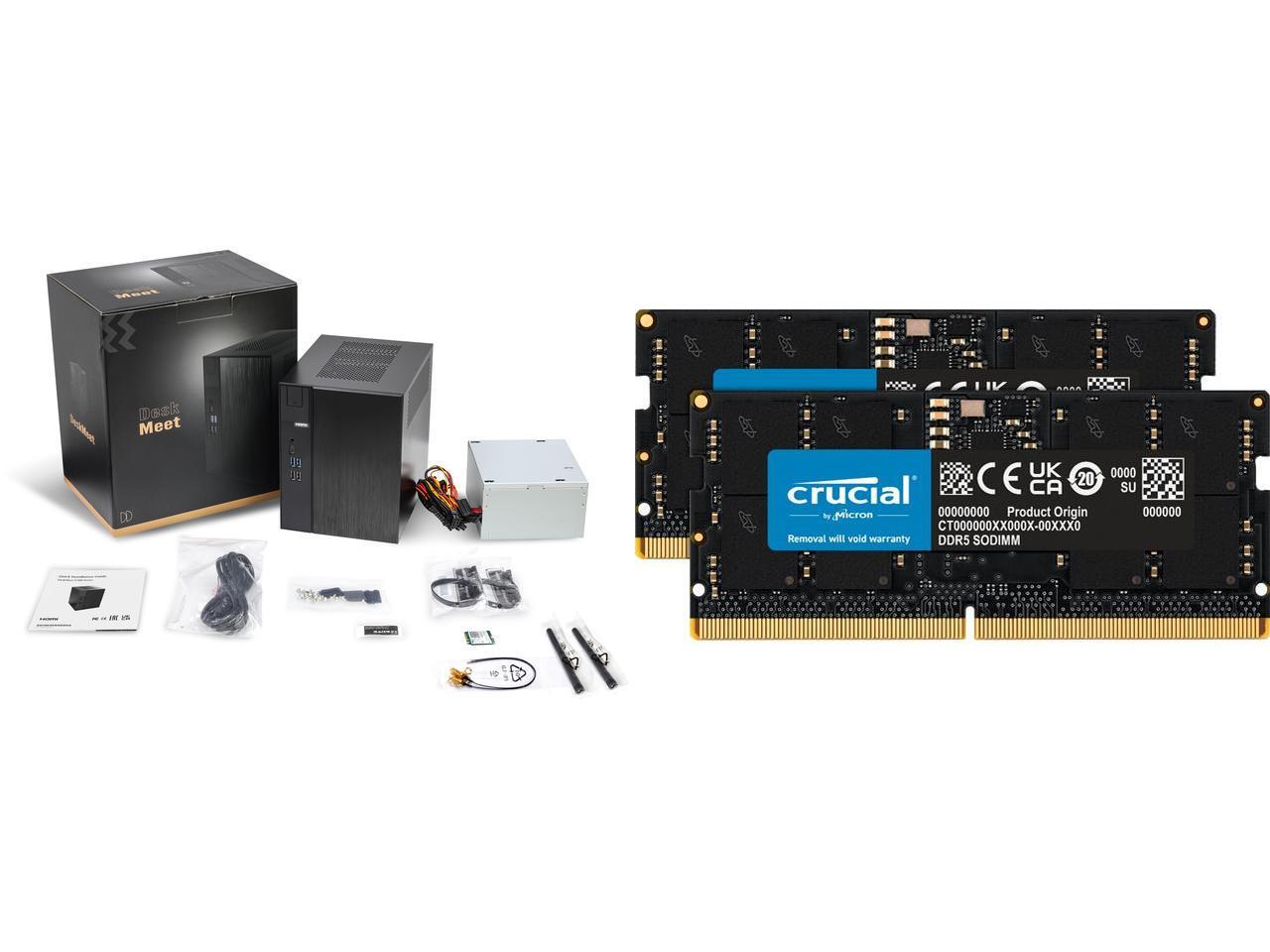

This Combo Includes 2 Items
Learn more about the ASRock DESKMEET X600W
GeneralBrand | ASRock |
---|
Series | DeskMeet X600 Series |
---|
Model | DESKMEET X600W |
---|
Form Factor | 8 Liter compact size |
---|
CPU SupportedCPU Socket | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors, up to 65W Supports AMD AM4/AM5 CPU Cooler (Max. Height <= 54mm) |
---|
ChipsetNorth Bridge | AMD X600 |
---|
Memory SupportedMemory installed | No Memory |
---|
Memory slot | 4 x 288Pin DIMM |
---|
Memory Type Supported | 4 x DDR5 DIMM slots (Max. 256GB) Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
*Please refer to Memory Support List on ASRock's website for more information. |
---|
Max Memory Supported | 256GB |
---|
Dual Channel Memory Supported | Yes |
---|
Expansion SlotsPCI Express 4.0 x16 | 1 x PCIe 4.0 x 16 |
---|
Other | 1 x M.2 (key E 2230) slot for Wi-Fi + BT Module |
---|
StorageHard Drive Installed | No Hard Drive |
---|
Serial ATA | 2 x SATA3 6.0Gb/s ports |
---|
M.2 | 1 x Blazing M.2 Socket (M2_1), supports type 2280 PCIe Gen5x4 (128 Gb/s) modes* 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports NVMe SSD as boot disks |
---|
GraphicsDiscrete Graphic Card | Supports a discrete Graphics card up to 20CM |
---|
AudioOnboard Audio | Realtek ALC897 Audio Codec |
---|
CommunicationsLAN | 2.5 Gigabit LAN (Dragon RTL8125BG) |
---|
Max LAN Speed | 10/100/1000/2500Mbps |
---|
Front Panel PortsFront USB | 1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A |
---|
Front Audio Ports | 1 x Headphone/Headset Jack |
---|
Back Panel PortsHDMI | 1 x HDMI |
---|
DisplayPort | 2 x DisplayPort 1.4 |
---|
Rear USB | 2 x USB 2.0 Type-A 2 x USB 3.2 Gen1 Type-A |
---|
RJ45 | 1 x RJ-45 LAN Port |
---|
Rear Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
---|
Other Rear Ports | BIOS Flashback Switch |
---|
Internal Connectors | 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) 1 x Chassis/Water Pump Fan Connector (4-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Header 1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection) |
---|
Power SupplyPower Supply | 500W power supply (80+ Bronze, peak 550W) |
---|
Physical SPECDimensions | 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions) 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions) |
---|
PackagingPackaging | Quick Installation Guide 2 x SATA Data Cables 1 x Screws Package |
---|
Additional InformationFirst Listed on Newegg | May 06, 2024 |
---|
