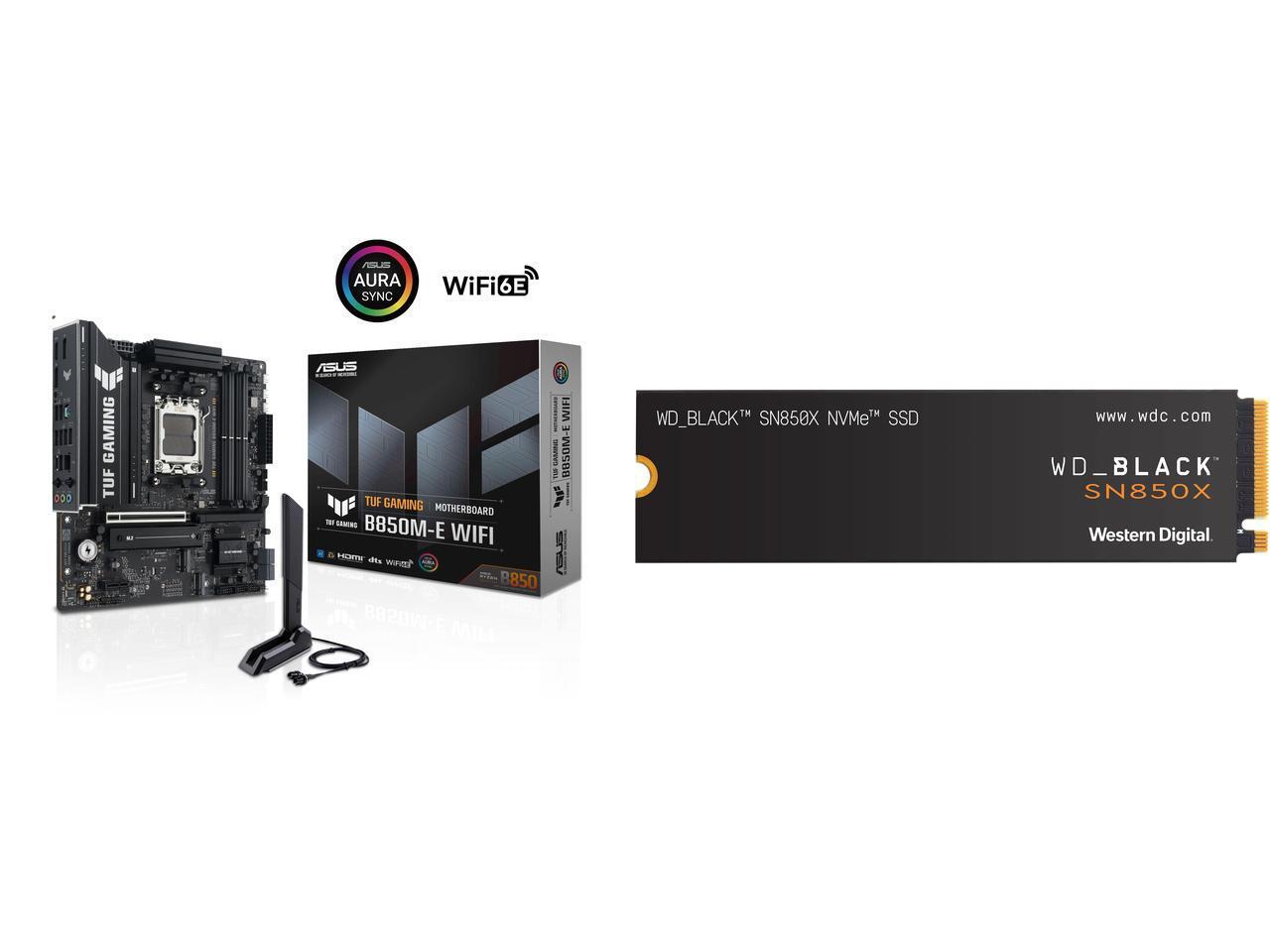

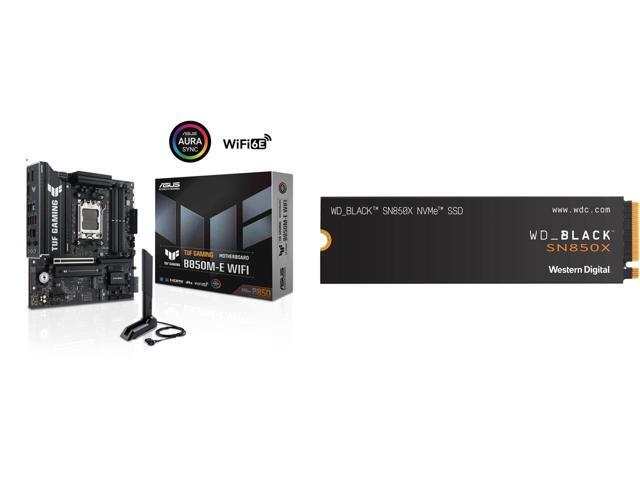

This Combo Includes 2 Items
Learn more about the ASUS TUF GAMING B850M-E WIFI
ModelBrand | ASUS |
---|
Model | TUF GAMING B850M-E WIFI |
---|
Part Number | 90MB1LS0-MVAAY0 |
---|
Supported CPUCPU Socket Type | AM5 |
---|
CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
---|
MemoryNumber of Memory Slots | 4x288pin (DDR5) |
---|
Memory Standard | Up to 8000+MT/s(OC) |
---|
Maximum Memory Supported | 256GB |
---|
Channel Supported | Dual Channel |
---|
ECC Supported | Yes |
---|
Buffer Supported | Un-buffered |
---|
Memory Feature | ASUS Enhanced Memory Profile (AEMP) |
---|
Expansion SlotsPCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
---|
PCI Express x1 | AMD B650 Chipset 1 x PCIe 4.0 x1 slot |
---|
Storage DevicesSerial ATA (SATA) | 4 x SATA 6Gb/s |
---|
M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
---|
SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
---|
Onboard AudioAudio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
---|
Onboard LANMax LAN Speed | 2.5Gbps |
---|
Wireless LAN | Wi-Fi 802.11 ax |
---|
Bluetooth | Bluetooth 5.3 |
---|
Rear Panel PortsBack I/O Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 keyboard/mouse combo port |
---|
Internal I/O ConnectorsOnboard USB | 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
---|
Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers
Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header 1 x Chassis Intrusion header |
---|
Physical SpecForm Factor | Micro ATX |
---|
Dimensions (W x L) | 9.6" x 9.6" |
---|
Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector |
---|
Software FeatureBIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
---|
Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - DIGI+ VRM ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
---|
FeaturesFeatures | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen 2 headers |
---|
PackagingPackage Contents | Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD
Documentation 1 x Quick start guide |
---|
Additional InformationDate First Available | August 18, 2025 |
---|
