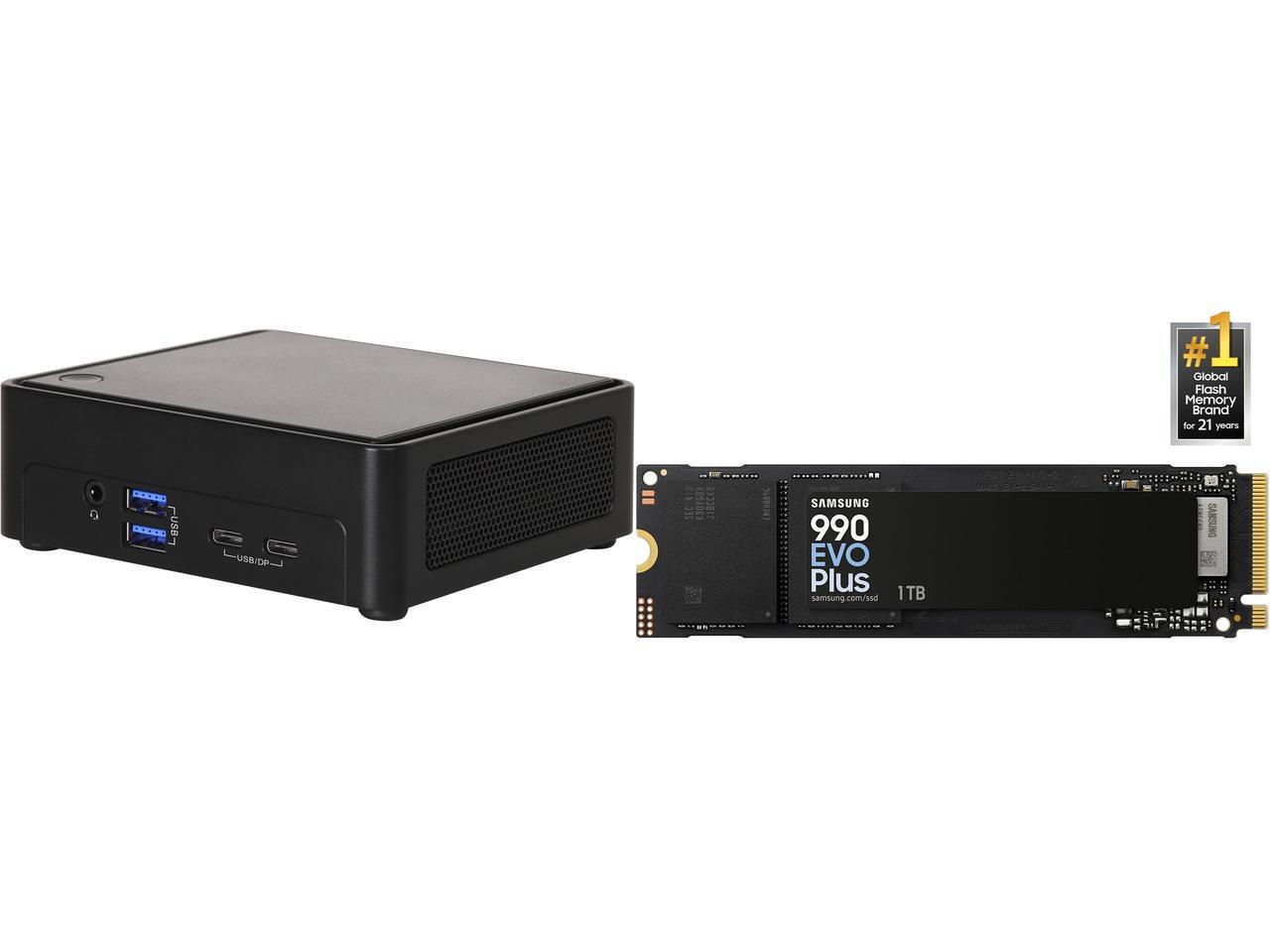

This Combo Includes 2 Items
Learn more about the ASRock Industrial NUCS BOX-1340P/D4
GeneralBrand | ASRock Industrial |
---|
Model | NUCS BOX-1340P/D4 |
---|
Part Number | NUCS BOX-1340P/D4 |
---|
Color | Black |
---|
CPU SupportedCPU Type | Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P( i5-1340P, 4P+8E) |
---|
CPU Socket | Intel Socket LGA1700 |
---|
Memory SupportedMemory installed | No Memory |
---|
Memory slot | 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB (32 GB per DIMM) |
---|
Memory Type Supported | DDR4 3200 |
---|
Max Memory Supported | 64GB |
---|
Dual Channel Memory Supported | Dual Channel DDR4 3200 MHz |
---|
StorageM.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD |
---|
GraphicsIntergrated Graphics | Intel® Iris® Xe Graphics |
---|
AudioOnboard Audio | Realtek ALC233, High Definition Audio. |
---|
CommunicationsLAN | 1 x 2.5 Gigabit LAN |
---|
Wireless LAN | 1 x Wi-Fi 6E 802.11ax (2.4Gbps) |
---|
Bluetooth | BT 5.2 |
---|
Front Panel PortsFront USB | 2 x USB 3.2 Gen2 (Type A) 1 x USB 4 (Supports DP 1.4a display output) 1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output) |
---|
Front Audio Ports | 1 (headphone & microphone jack) |
---|
Back Panel PortsHDMI | 2 x HDMI 2.0b Max resolution up to 4096x2160@60Hz |
---|
Rear USB | 2 x USB 3.2 Gen2 (Type-A) |
---|
RJ45 | 1 x RJ-45 |
---|
Power SupplyInput | 12V~19V DC-In Jack |
---|
Physical SPECDimensions | 110.0 x 117.5 x 38mm |
---|
Weight | Net Weight:0.9Kg |
---|
Material | Plastic with sheet metal |
---|
FeaturesFeatures | OS Support: Windows 10/11 TPM TPM 2.0 onboard IC Watchdog Timer Output From Super I/O to drag RESETCON# Interval 256 Segments, 0, 1, 2, ...255sec |
---|
PackagingPackaging | 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket |
---|
Additional InformationFirst Listed on Newegg | January 31, 2023 |
---|
