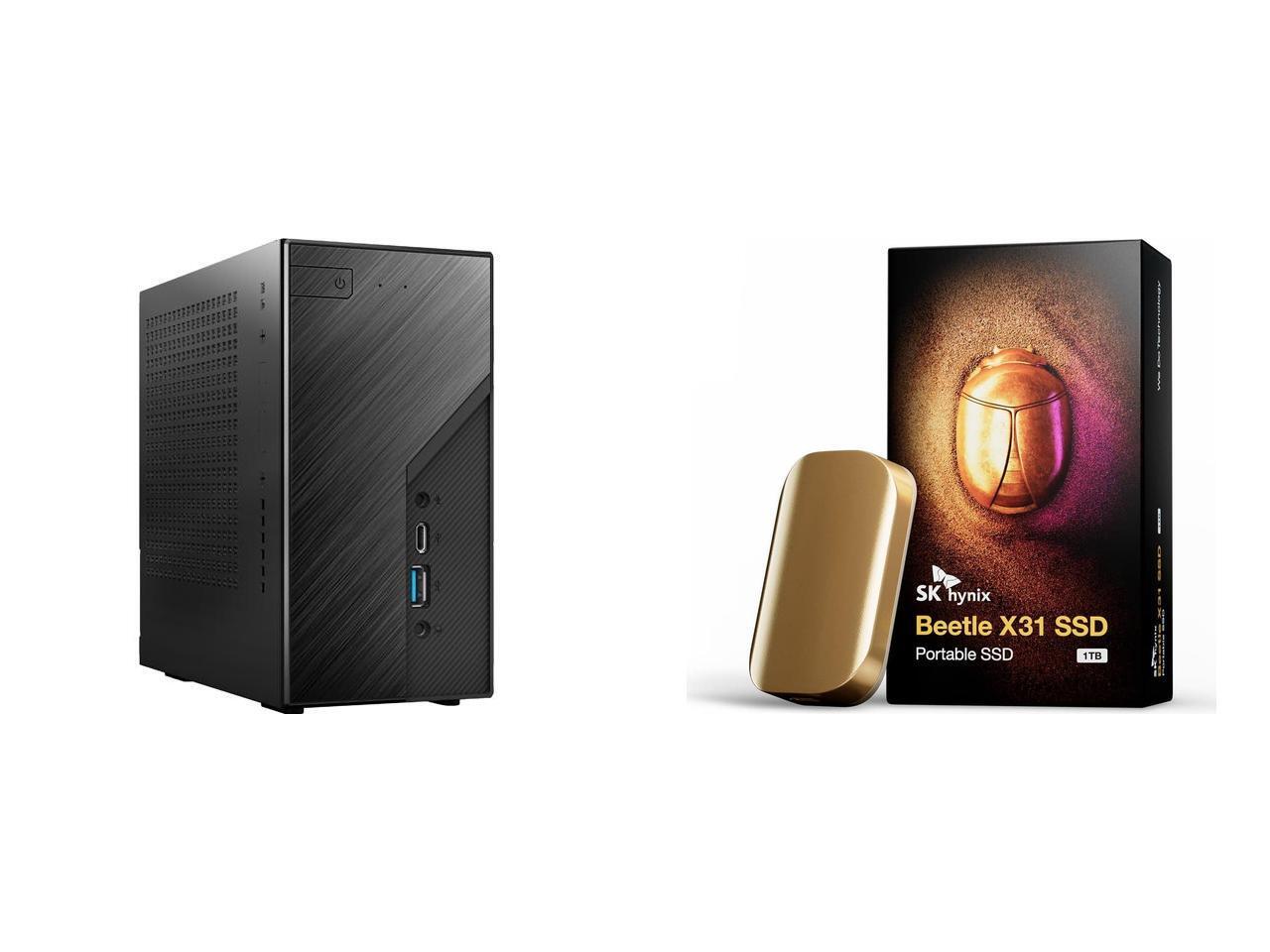

ASRock DESKMINI X300W AMD X300 mini PC Barebone AMD AM4 Socket W/O CPU HDMI,DisplayPort, D-Sub Gigabit LAN SK hynix Beetle X31 1TB Portable SSD with DRAM, up to 1050MB/s, USB 3.2 Gen2, External Hard Drive Compatible with PC, Mac, Laptop, P
Barebone PCs
External SSDs
AMD AM4 Socket CPU Cezanne, Renoir, Picasso, Raven Ridge (Ryzen 5000,4000,3000,2000 series CPU), up to 65W
Supports MAX Height <46mm CPU Cooler
Supports Overclocking Option with X300
Dimensions: 155 x 155 x 80 mm (6.10 x 6.10 x 3.15 inches 1.92L)
High-Speed DDR4-3200MHz Memory
Dual Ultra M.2 (NVMe)
M2_1 M.2 (2280) – PCIe Gen3 x4
M2_2 M.2 (2280) – PCIe Gen3 x2/x4
2 x 2.5" SATA 6Gb Hard Drive
Support RAID 0/1 function
HDMI, DisplayPort, D-Sub
M.2 For Wi-Fi Module
USB 3.2 Gen1 Type-C
Unmatched reliability: Equipped with buffer DRAM for superior stability
Outstanding performance: Sequential read/write speeds of up to 1,050MB/s and 1,000MB/s due to efficient heat management
Stylish and ergonomic design: Compact size (74x46mm) and lightweight (53g). Durable aluminum casing in metallic champagne gold
Versatility: Multi-purpose storage solution optimized for gamers, remote workers, content creators, students, and creative professionals
Accessories: Two USB connection cables (C-to-C and C-to-A). Clear silicone case to prevent damage
This AMD-based barebone offers a budget-friendly, customizable platform to build a rig for your home or office, in a small footprint that fits effortlessly in various environments. VGA, HDMI and DisplayPort video outputs support multi-monitor setup, and a USB-C port is located on the front for more convenience.
* Barebone system only. Requires processor, RAM, system storage and OS to complete the system.
AMD AM4 Socket CPU
Renoir, Picasso, Raven Ridge, up to 65W
Support MAX Height ? 46mm CPU Cooler
Supports Overclocking Option with X300
High-Speed DDR4-3200MHz Memory
Dual Ultra M.2 (NVMe)
M2_1 M.2 (2280) – PCIe Gen3 x4
M2_2 M.2 (2280) – PCIe Gen3 x2/x4
2 x 2.5" SATA 6Gb Hard Drive
Support RAID 0/1 function
HDMI, DisplayPort, D-Sub
M.2 For Wi-Fi Module
USB 3.2 Gen1 Type-C
Features
Small APU Form Factor
AMD AM4 Socket CPU
Support Renoir, Picasso, Raven Ridge, up to 65W
Support MAX Height ?46mm CPU Cooler
Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.
* Benchmark results are for reference only, ASRock does not guarantee to overclock margin.
Insane Memory Performance
ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon Graphics, DeskMini provides awesome 3D performance.
4X Storages
ASRock DeskMini supports up to 4 Storages:
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Heatsink on MOSFET
ASRock DeskMini features aluminum MOSFET heatsink which provides great heat dissipation to ensure system stability under loading.
Triple Display
DeskMini supports 3 display output simultaneously, expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
DeskMini Addressable LED (Optional)
Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. To create cool personalized lighting for you.
* The availability of ARGB LED Strip may vary from model or region.
DeskMini USB Hub (Optional)
DeskMini USB Hub grants you easy connection to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.
* The availability of DeskMini USB Hub may vary from model or region to another.
Rear Audio Cable (Optional)
Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on…
AMD APU Cooler (Optional)
New AMD AM4 cooler with enlarged 25% heatsink provide superior thermal performance.
Dimension: 77 x 68 x 45 mm
Fan Speed: 1950 ~ 3500 R.P.M
* The availability of APU Cooler may vary for different models & regions.
VESA Mount Kit (Optional)
ASRock VESA Mount Kit of DeskMini lets you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.
M.2 Wi-Fi Kit (Optional)
ASRock M.2 Wi-Fi Kit includes Intel AC-3168 or AX200 M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMini series.
* The availability of M.2 Wi-Fi Kit may vary for different models & regions.
USB 2.0 Cable (Optional)
Purchasing USB cable for extra 2 x USB 2.0 ports on DeskMini.
Beetle X31
Portable SSD
Protective Case
Simple Data Migration
3 Year Protection
Speed Powered by DRAM
High Speed
Unparalleled Speed
Effortlessly manage photos, video files, documents, games, or any other data with exceptional sequential read speeds of up to 1,050 MB/s.
Portability
Designed for Style and Function
Portable, sturdy, and stylish, the Beetle X31 can carry all your important files and data in the palm of your hand, at home or on the go.
Compatibility
Extensive Compatibility
Instantly connect the Beetle X31 to your laptop, tablet, PS5, desktop, phone, or almost any other USB-C device you need.
Durability
Accident-Proof
The Beetle X31's solid aluminum shell and silicone case protects your data from drops up to 2 meters, as well as from dirt and dust.
Data Migration
Transfer Your Data with Macrium Software
With just a few clicks, seamlessly transfer your operating system and data to your new SK hynix SSD with the exclusively provided System Migration Utility (https://www.macrium.com/sk-hynix) developed by Macrium, one of the best data migration programs available.
Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W)
Chipset
North Bridge
AMD X300
Memory Supported
Memory installed
No Memory
Memory slot
2 x 260Pin SO-DIMM
Memory Type Supported
AMD Ryzen 5000/4000 series - 3200MHz AMD Ryzen 3000/2000 series - 2933MHz
Max Memory Supported
64GB
Expansion Slots
Other
1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Storage
Hard Drive Installed
No Hard Drive
Serial ATA
2 x SATA 6.0Gb/s
M.2
1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot 1 x Ultra M.2 (2280) Slot - PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU) - PCIe Gen3 x2 (Athlon 2xxGE series APU)
SATA RAID
RAID 0/1
Audio
Onboard Audio
Realtek ALC233
Communications
First LAN
Realtek RTL8111H
Wireless LAN
Intel AC-3168
Max LAN Speed
10/100/1000Mbps
Extension Bays
2.5" Internal bays
2
Front Panel Ports
Front USB
1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A
Front Audio Ports
1 x Head Phone with MIC Jack, 1 x MIC-In
Other Front Ports
Connectors - 1 x USB 2.0 Header - 1 x Front Panel Header - 2 x 4-Pin fan connectors (CPU, SYS) - 1 x DC-In Jack (Supports 19V Power Adapters) - 1 x Internal Speaker Header (4-Pin) - 1 x Chassis Intrusion Header (2-Pin) - 1 x Audio Header (4-Pin)
Back Panel Ports
VGA
1 x D-Sub
HDMI
1 x HDMI
DisplayPort
1 x DisplayPort
Rear USB
1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A
RJ45
1
Physical SPEC
Dimensions
6.10" x 3.15" x 6.10" (155 x 155 x 80 mm (1.92L))
Support OS
Microsoft® Windows® 10 64-bit / 11 64-bit
Features
Features
AMD AM4 Socket CPU - Renoir, Picasso, Raven Ridge, up to 65W - Support MAX Height <= 46mm CPU Cooler
