Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
1 x USB 4, 4 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
2 x Intel 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type C)
TPM 2.0 onboard IC
19V/90W Power Adapter
110.0 x 117.5 x 47.85mm, Fanned Barebone
HIGH-OCTANE GAMING. Experience speeds up to 7,250MB/s read and 6,900MB/s write (1-2TB models), with up to 35% faster performance than previous generation.
PURPOSE-BUILT. Designed for serious on-the-go gamers, with a PCIe Gen4 interface and Western Digital's next generation TLC 3D NAND.
MORE SPACE FOR FAVORITES AND NEW TITLES. Available in multiple capacities up to 2TB, upgrade to an SSD that gives you tons of storage.
MORE TIME TO CLEAR THAT CHECKPOINT. Built with laptops and handheld gaming devices in mind, with up to 100% more power efficiency over the previous generation.
DO MORE WITH DASHBOARD. Ensure your drive is optimized for prime performance with the downloadable WD_BLACK Dashboard (Windows only).
AMPLIFY YOUR CONTENT. Up to 600TBW endurance for gameplay streaming, speedrun captures, or creating with the latest game engines.

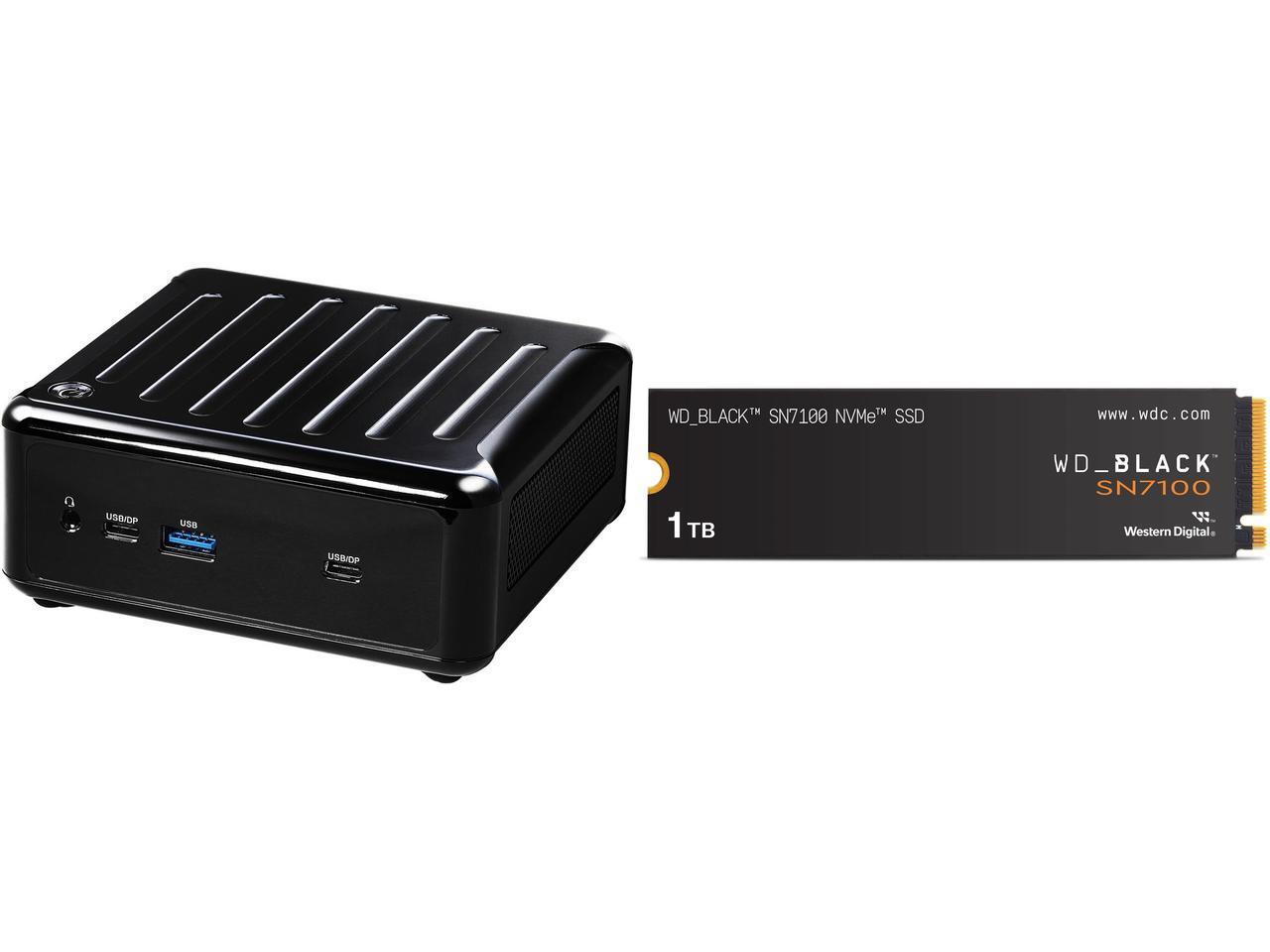

Learn more about the ASRock Industrial NUC BOX-1340P/D4
General
Brand
ASRock Industrial
Series
NUC
Model
NUC BOX-1340P/D4
Part Number
NUC BOX-1340P/D4
Color
Black
CPU Supported
CPU Type
Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
CPU Socket
Intel Socket LGA1700
Memory Supported
Memory installed
No Memory
Memory slot
2 x 260Pin SO-DIMM
Memory Type Supported
DDR4 3200
Max Memory Supported
64GB
Dual Channel Memory Supported
Yes
Storage
Serial ATA
1 x SATA3.0 (6.0 Gb/s)
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket)
Graphics
Intergrated Graphics
Intel® Iris® Xe Graphics
Communications
LAN
2 x 2.5 Gigabit LAN
Max LAN Speed
Intel® I226LM with 10/100/1000/2500 Mbps
Wireless LAN
1 x Wi-Fi 6E 802.11ax (2.4Gbps)
Bluetooth
BT 5.2
Front Panel Ports
Front USB
1 x USB 3.2 Gen2 (Type A) 1 x USB 4 (Supports DP 1.4a display output) 1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
Front Audio Ports
1 (headphone & microphone jack)
Back Panel Ports
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.4a
Rear USB
2 x USB 3.2 Gen2 (Type-A)
RJ45
2 x 2.5 Gigabit LAN
Power Supply
Input
19V/90W Power Adapter
Physical SPEC
Dimensions
110.0 x 117.5 x 47.85mm
Weight
Net Weight:1.0Kg
Material
Plastic with sheet metal
Features
Features
TPM 2.0 onboard IC OS support Windows 10/11 HDMI 2.0b Max resolution up to 4096x2160@60Hz DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz Quad-Display (Included 2 outputs from Type-C) Watchdog Timer (Output :From Super I/O to drag RESETCON# ; interval 256 Segments, 0, 1, 2, ...255sec )
Packaging
Packaging
1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket
Additional Information
First Listed on Newegg
April 13, 2023
