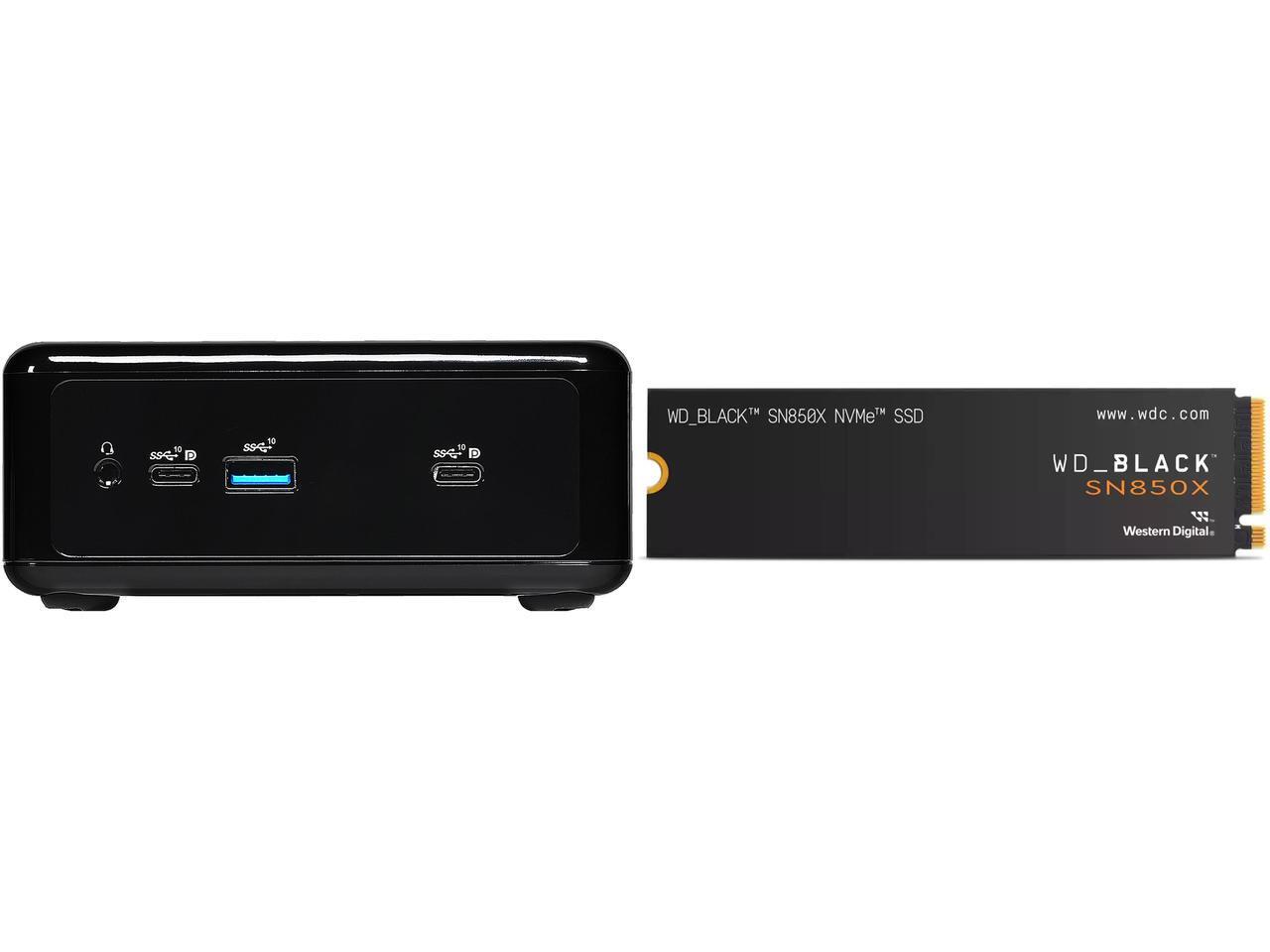

ASRock Industrial NUC BOX-1165G7 Fanned BOX Barebone (Include Intel 11th CPU i7 ) WD_BLACK 8TB SN850X NVMe Internal Gaming SSD Solid State Drive - Gen4 PCIe, M.2 2280, Up to 7,300 MB/s - WDS800T2X0E
Mini-PC Barebone
Internal SSDs
Intel Core i7-1165G7, QC, Max Speed up to 4.7 GHz
2 x 260Pin SO-DIMM DDR4 3200
TRANSFORM YOUR PC. Get top-tier performance and ridiculously short load times for your gaming PC or workstation with insane speeds up to 7,300 MB/s (1TB – 8TB models).
MORE ROOM, MORE GAMES. Capacities up to 8TB built with Western Digital® TLC 3D NAND, means you get to download more games — and stop deleting your favorites.
HEATSINK FOR THE WIN. All capacities have an optional heatsink version to help maintain peak performance through your most intense gaming sessions.
DO MORE WITH DASHBOARD. The downloadable WD_BLACK™ Dashboard (Windows® only) monitors your drive’s health, lets you customize your RGB lighting (heatsink versions only), and can automatically detect games to turn on Game Mode 2.0.
FUTURE-FORWARD FEATURES. The WD_BLACK™ SN850X boasts a powerful suite of features, including Predictive Loading, Overhead Balancing, and Adaptive Thermal Management (ATM).
Learn more about the ASRock Industrial NUC BOX-1165G7
General
Brand
ASRock Industrial
Model
NUC BOX-1165G7
Color
Black
CPU Supported
CPU Type
Intel Core i7-1165G7, QC, Max Speed up to 4.7 GHz
Memory Supported
Memory installed
No Memory
Memory slot
2 x 260Pin SO-DIMM
Memory Type Supported
DDR4 3200
Max Memory Supported
64GB
Dual Channel Memory Supported
Yes
Expansion Slots
Other
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
Storage
Hard Drive Installed
No Hard Drive
Serial ATA
1 x SATA 6.0Gb/s
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD * M.2 Key M 2280 (Supported by bracket)
Graphics
Intergrated Graphics
Intel Iris Xe Graphics
Audio
Onboard Audio
Realtek ALC233
Communications
LAN
LAN1: Intel I219V with 10/100/1000 Mbps LAN2: Intel I225LM with 10/100/1000/2500 Mbps
Max LAN Speed
10/100/1000/2500Mbps + 10/100/1000Mbps
Wireless LAN
1 x Intel Wi-Fi 6 AX200 module
Bluetooth
Bluetooth 5.2
Front Panel Ports
Front USB
1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output) * USB4 Compliance Test is pending for certification
Front Audio Ports
1 (headphone & microphone jack)
Back Panel Ports
HDMI
1 x HDMI 2.0a Max resolution up to 4096x2160@60Hz
DisplayPort
1 x DisplayPort 1.4, DP++ Max resolution up to 4096x2160@60Hz
Rear USB
2 x USB 3.2 Gen2 (Type-A)
RJ45
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
Other Rear Ports
1 x DC Jack
Power Supply
Power Supply
19V/90W Power Adapter
Physical SPEC
Dimensions
1.88" x 4.63" x 4.33"
Weight
2.20 lbs.
Features
Features
Intel 11th Gen (Tiger Lake-UP3) Core Processors 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6 AX200), 1 x SATA3 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type C) TPM onboard 19V/90W Power Adapter 110.0 x 117.5 x 47.85mm, Fanned Barebone
Packaging
Packaging
Accessories: 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket
Additional Information
First Listed on Newegg
January 18, 2021
