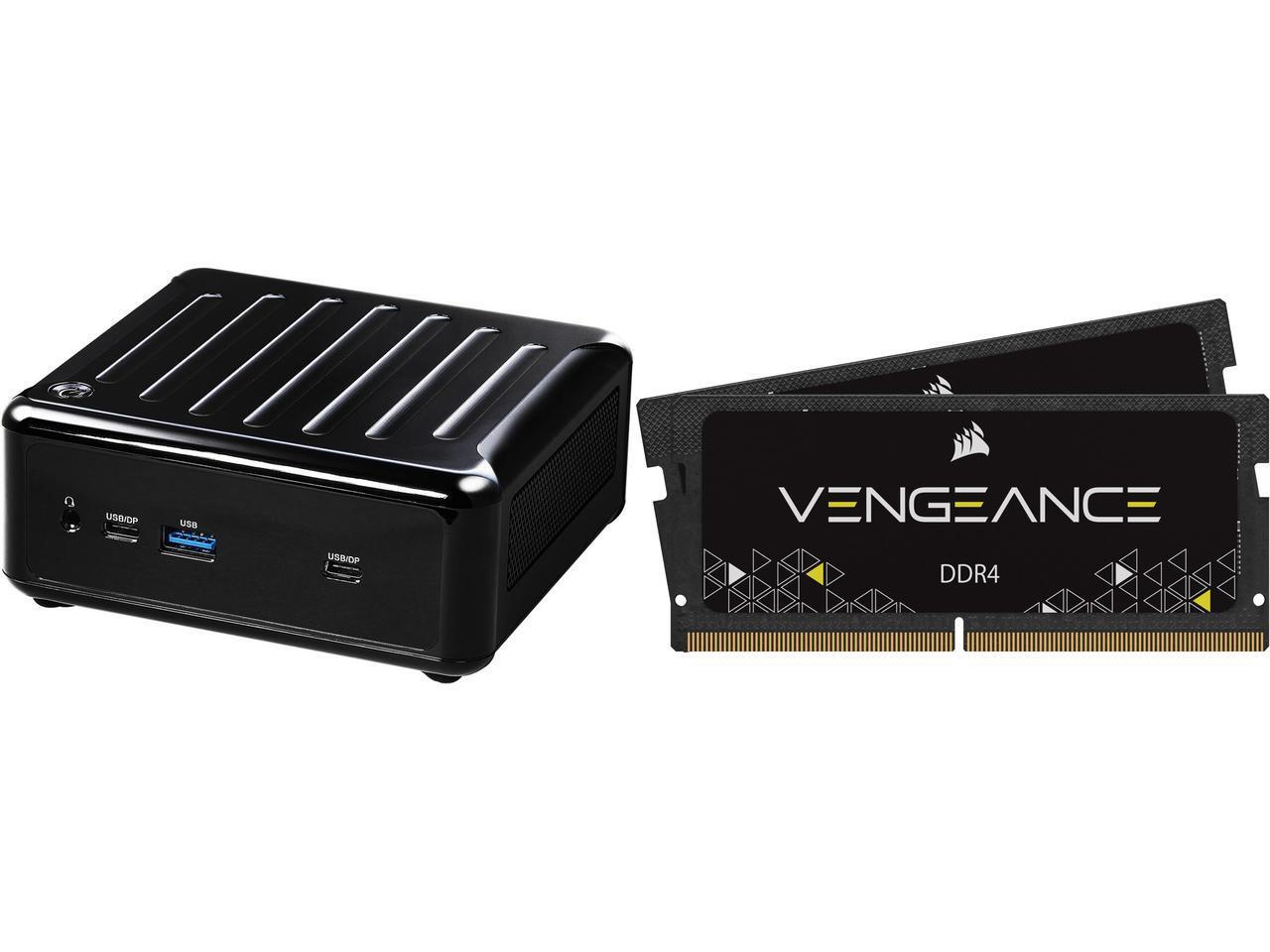

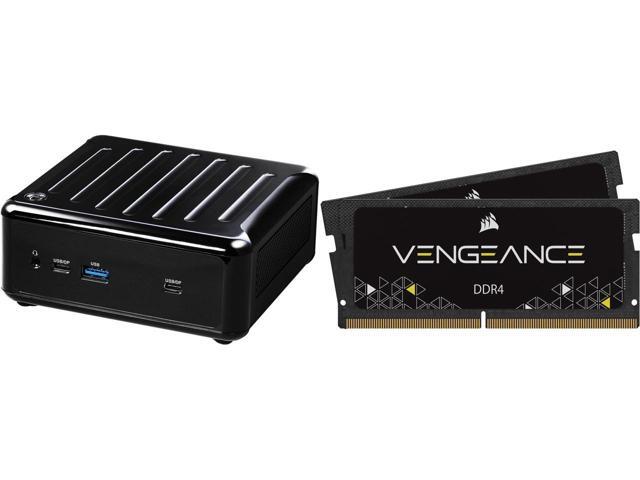

This Combo Includes 2 Items
Learn more about the ASRock Industrial NUC BOX-1340P/D4
GeneralBrand | ASRock Industrial |
---|
Series | NUC |
---|
Model | NUC BOX-1340P/D4 |
---|
Part Number | NUC BOX-1340P/D4 |
---|
Color | Black |
---|
CPU SupportedCPU Type | Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P |
---|
CPU Socket | Intel Socket LGA1700 |
---|
Memory SupportedMemory installed | No Memory |
---|
Memory slot | 2 x 260Pin SO-DIMM |
---|
Memory Type Supported | DDR4 3200 |
---|
Max Memory Supported | 64GB |
---|
Dual Channel Memory Supported | Yes |
---|
StorageSerial ATA | 1 x SATA3.0 (6.0 Gb/s) |
---|
M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket) |
---|
GraphicsIntergrated Graphics | Intel® Iris® Xe Graphics |
---|
CommunicationsLAN | 2 x 2.5 Gigabit LAN |
---|
Max LAN Speed | Intel® I226LM with 10/100/1000/2500 Mbps |
---|
Wireless LAN | 1 x Wi-Fi 6E 802.11ax (2.4Gbps) |
---|
Bluetooth | BT 5.2 |
---|
Front Panel PortsFront USB | 1 x USB 3.2 Gen2 (Type A) 1 x USB 4 (Supports DP 1.4a display output) 1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output) |
---|
Front Audio Ports | 1 (headphone & microphone jack) |
---|
Back Panel PortsHDMI | 1 x HDMI 2.0b |
---|
DisplayPort | 1 x DP 1.4a |
---|
Rear USB | 2 x USB 3.2 Gen2 (Type-A) |
---|
RJ45 | 2 x 2.5 Gigabit LAN |
---|
Power SupplyInput | 19V/90W Power Adapter |
---|
Physical SPECDimensions | 110.0 x 117.5 x 47.85mm |
---|
Weight | Net Weight:1.0Kg |
---|
Material | Plastic with sheet metal |
---|
FeaturesFeatures | TPM 2.0 onboard IC OS support Windows 10/11 HDMI 2.0b Max resolution up to 4096x2160@60Hz DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz Quad-Display (Included 2 outputs from Type-C) Watchdog Timer (Output :From Super I/O to drag RESETCON# ; interval 256 Segments, 0, 1, 2, ...255sec ) |
---|
PackagingPackaging | 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket |
---|
Additional InformationFirst Listed on Newegg | April 13, 2023 |
---|
