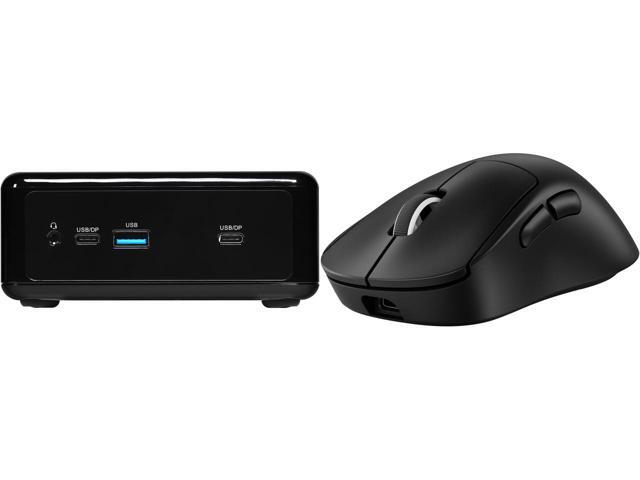

This Combo Includes 2 Items
Learn more about the ASRock Industrial NUC BOX-1220P
General| Brand | ASRock Industrial |
|---|
| Series | NUC 1200 BOX Series |
|---|
| Model | NUC BOX-1220P |
|---|
| Color | Black |
|---|
CPU Supported| CPU Type | Intel 12th Gen (Alder Lake-P) Core Processors NUC BOX-1220P (i3-1220P, 2P+8E) |
|---|
Memory Supported| Memory installed | No Memory |
|---|
| Memory slot | 2 x 260Pin SO-DIMM |
|---|
| Memory Type Supported | DDR4 3200 |
|---|
| Max Memory Supported | 64GB |
|---|
| Dual Channel Memory Supported | Yes |
|---|
Expansion Slots| Other | M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless |
|---|
Storage| Hard Drive Installed | No Hard Drive |
|---|
| Serial ATA | 1 x SATA 6.0Gb/s |
|---|
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
* M.2 Key M 2280 (Supported by bracket). |
|---|
Graphics| Integrated Graphics | Intel UHD Graphics |
|---|
Audio| Onboard Audio | Realtek ALC233 |
|---|
Communications| LAN | Intel I225-LM |
|---|
| Max LAN Speed | Dual 10/100/1000/2500Mbps |
|---|
| Wireless LAN | Wi-Fi 6E 802.11ax |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Front Panel Ports| Front USB | 1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
* USB4 Compliance Test is pending for certification. * For Thunderbolt support, please refer to ASROCK support list. |
|---|
| Front Audio Ports | 1 (headphone & microphone jack) |
|---|
Back Panel Ports| HDMI | 1 x HDMI 2.0b |
|---|
| DisplayPort | 1 x DP 1.4a |
|---|
| Rear USB | 2 x USB 3.2 Gen2 (Type-A) |
|---|
| RJ45 | 2 |
|---|
| Other Rear Ports | 1 x DC Jack |
|---|
Power Supply| Power Supply | 12V~19V DC-In Jack |
|---|
Physical SPEC| Dimensions | 1.88" x 4.63" x 4.33" |
|---|
| Weight | 2.20 lbs. |
|---|
Features| Features | Intel 12th Gen (Alder Lake-P) Core Processors
2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E), 1 x SATA3
2 x Intel 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type C)
TPM 2.0 onboard IC
19V/90W Power Adapter
110.0 x 117.5 x 47.85mm, Fanned Barebone |
|---|
Packaging| Packaging | Accessories: 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket |
|---|
Additional Information| First Listed on Newegg | August 23, 2022 |
|---|
