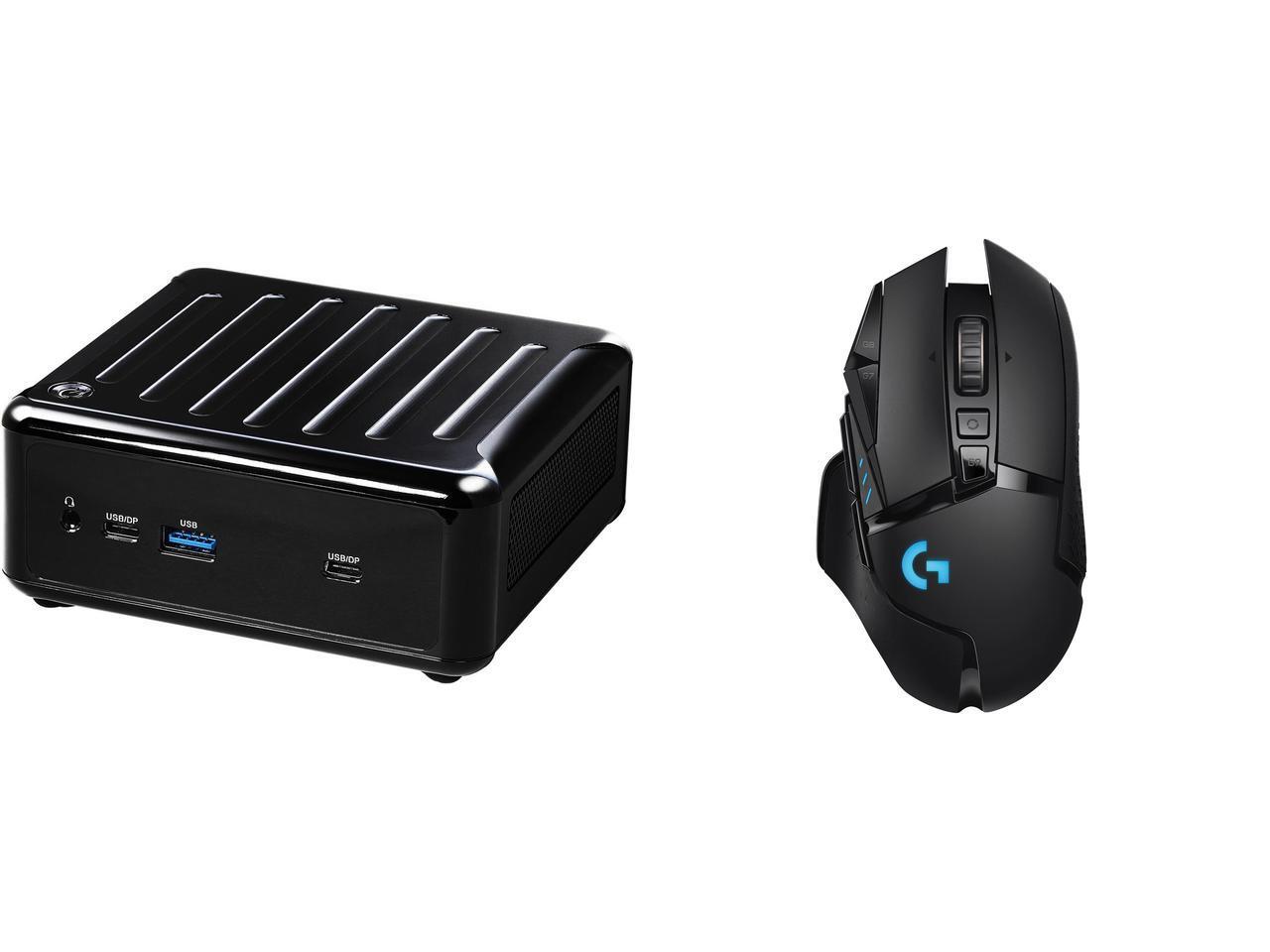

This Combo Includes 2 Items
Learn more about the ASRock Industrial NUC BOX-1340P/D4
General| Brand | ASRock Industrial |
|---|
| Series | NUC |
|---|
| Model | NUC BOX-1340P/D4 |
|---|
| Part Number | NUC BOX-1340P/D4 |
|---|
| Color | Black |
|---|
CPU Supported| CPU Type | Intel® 13th Gen (Raptor Lake-P) Core⢠Processors i5-1340P |
|---|
| CPU Socket | Intel Socket LGA1700 |
|---|
Memory Supported| Memory installed | No Memory |
|---|
| Memory slot | 2 x 260Pin SO-DIMM |
|---|
| Memory Type Supported | DDR4 3200 |
|---|
| Max Memory Supported | 64GB |
|---|
| Dual Channel Memory Supported | Yes |
|---|
Storage| Serial ATA | 1 x SATA3.0 (6.0 Gb/s) |
|---|
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|
Graphics| Integrated Graphics | IntelĀ® IrisĀ® Xe Graphics |
|---|
Communications| LAN | 2 x 2.5 Gigabit LAN |
|---|
| Max LAN Speed | IntelĀ® I226LM with 10/100/1000/2500 Mbps |
|---|
| Wireless LAN | 1 x Wi-Fi 6E 802.11ax (2.4Gbps) |
|---|
| Bluetooth | BT 5.2 |
|---|
Front Panel Ports| Front USB | 1 x USB 3.2 Gen2 (Type A) 1 x USB 4 (Supports DP 1.4a display output) 1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output) |
|---|
| Front Audio Ports | 1 (headphone & microphone jack) |
|---|
Back Panel Ports| HDMI | 1 x HDMI 2.0b |
|---|
| DisplayPort | 1 x DP 1.4a |
|---|
| Rear USB | 2 x USB 3.2 Gen2 (Type-A) |
|---|
| RJ45 | 2 x 2.5 Gigabit LAN |
|---|
Power Supply| Input | 19V/90W Power Adapter |
|---|
Physical SPEC| Dimensions | 110.0 x 117.5 x 47.85mm |
|---|
| Weight | Net Weight:1.0Kg |
|---|
| Material | Plastic with sheet metal |
|---|
Features| Features | TPM 2.0 onboard IC OS support Windows 10/11 HDMI 2.0b Max resolution up to 4096x2160@60Hz DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz Quad-Display (Included 2 outputs from Type-C) Watchdog Timer (Output :From Super I/O to drag RESETCON# ; interval 256 Segments, 0, 1, 2, ...255sec ) |
|---|
Packaging| Packaging | 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket |
|---|
Additional Information| First Listed on Newegg | April 13, 2023 |
|---|
