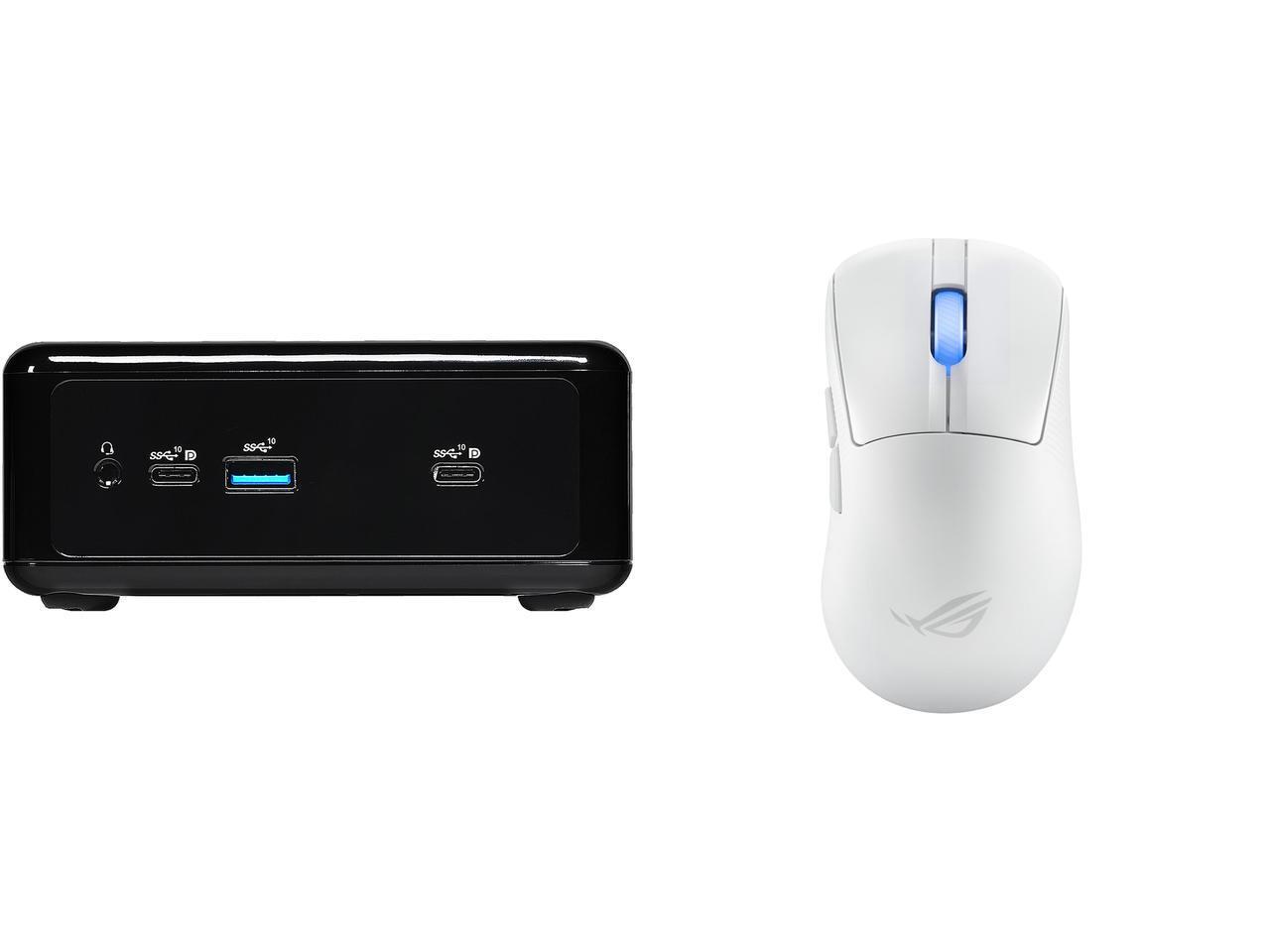

This Combo Includes 2 Items
Learn more about the ASRock Industrial NUC BOX-1165G7
General| Brand | ASRock Industrial |
|---|
| Model | NUC BOX-1165G7 |
|---|
| Color | Black |
|---|
CPU Supported| CPU Type | Intel Core i7-1165G7, QC, Max Speed up to 4.7 GHz |
|---|
Memory Supported| Memory installed | No Memory |
|---|
| Memory slot | 2 x 260Pin SO-DIMM |
|---|
| Memory Type Supported | DDR4 3200 |
|---|
| Max Memory Supported | 64GB |
|---|
| Dual Channel Memory Supported | Yes |
|---|
Expansion Slots| Other | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless |
|---|
Storage| Hard Drive Installed | No Hard Drive |
|---|
| Serial ATA | 1 x SATA 6.0Gb/s |
|---|
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD * M.2 Key M 2280 (Supported by bracket) |
|---|
Graphics| Integrated Graphics | Intel Iris Xe Graphics |
|---|
Audio| Onboard Audio | Realtek ALC233 |
|---|
Communications| LAN | LAN1: Intel I219V with 10/100/1000 Mbps LAN2: Intel I225LM with 10/100/1000/2500 Mbps |
|---|
| Max LAN Speed | 10/100/1000/2500Mbps + 10/100/1000Mbps |
|---|
| Wireless LAN | 1 x Intel Wi-Fi 6 AX200 module |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Front Panel Ports| Front USB | 1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output) * USB4 Compliance Test is pending for certification |
|---|
| Front Audio Ports | 1 (headphone & microphone jack) |
|---|
Back Panel Ports| HDMI | 1 x HDMI 2.0a Max resolution up to 4096x2160@60Hz |
|---|
| DisplayPort | 1 x DisplayPort 1.4, DP++ Max resolution up to 4096x2160@60Hz |
|---|
| Rear USB | 2 x USB 3.2 Gen2 (Type-A) |
|---|
| RJ45 | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
|---|
| Other Rear Ports | 1 x DC Jack |
|---|
Power Supply| Power Supply | 19V/90W Power Adapter |
|---|
Physical SPEC| Dimensions | 1.88" x 4.63" x 4.33" |
|---|
| Weight | 2.20 lbs. |
|---|
Features| Features | Intel 11th Gen (Tiger Lake-UP3) Core Processors 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6 AX200), 1 x SATA3 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type C) TPM onboard 19V/90W Power Adapter 110.0 x 117.5 x 47.85mm, Fanned Barebone |
|---|
Packaging| Packaging | Accessories: 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket |
|---|
Additional Information| First Listed on Newegg | January 18, 2021 |
|---|
Customer Reviews of the ASRock Industrial NUC BOX-1165G7

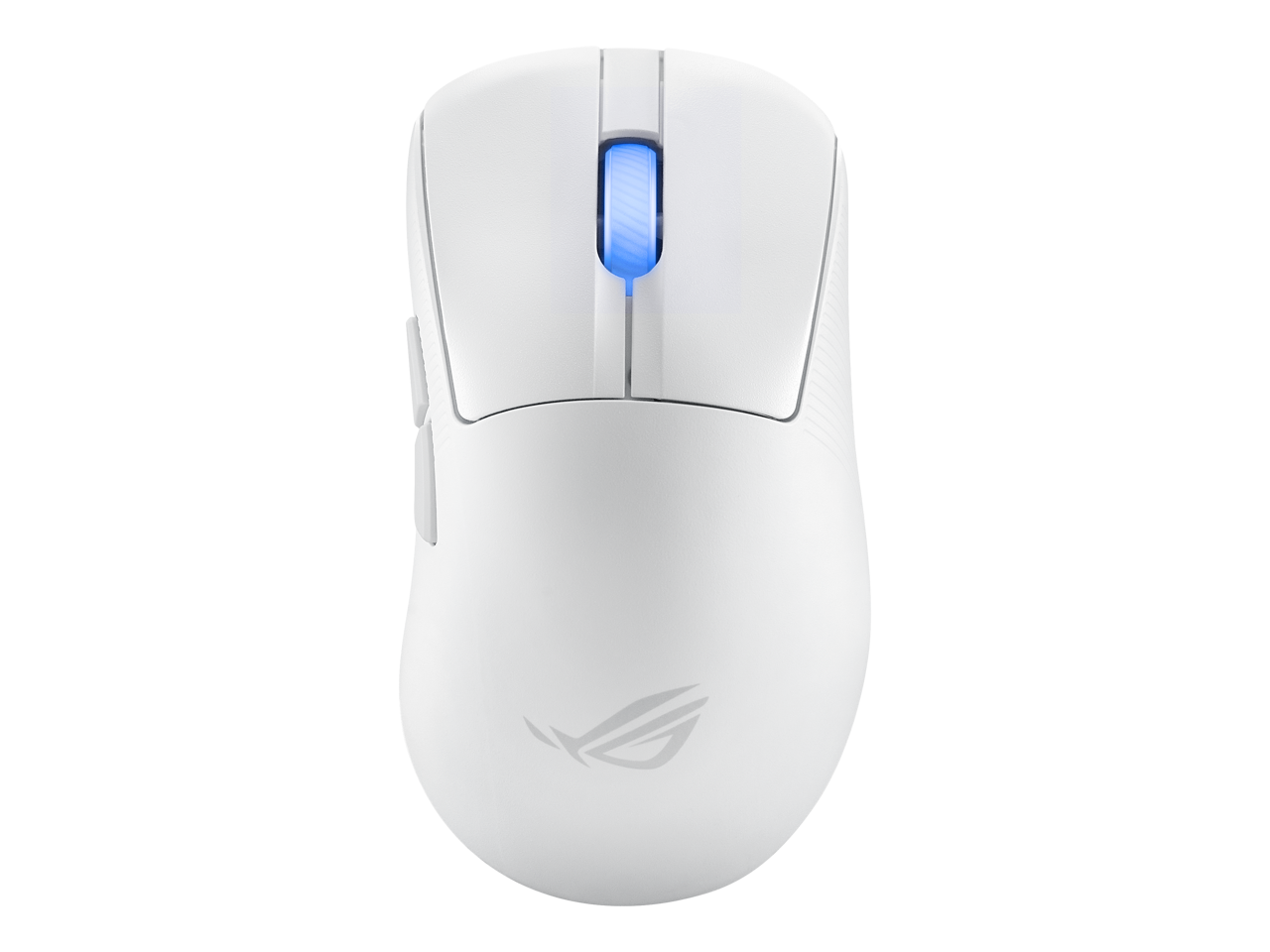

Customer Reviews of the ASUS P714 ROG KERIS II WL ACE/WHT
