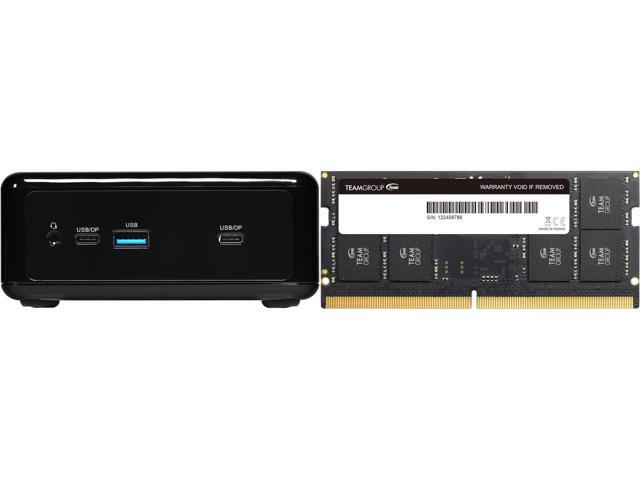

This Combo Includes 2 Items
Learn more about the ASRock Industrial NUC BOX-1340P/D5
General| Brand | ASRock Industrial |
|---|
| Model | NUC BOX-1340P/D5 |
|---|
| Part Number | NUC BOX-1340P/D5 |
|---|
| Color | Black |
|---|
CPU Supported| CPU Type | Intel® 13th Gen (Raptor Lake-P) Core™ Processors (i5-1340P, 4P+8E)) |
|---|
Memory Supported| Memory installed | No Memory |
|---|
| Memory slot | 2 x 262Pin SO-DIMM |
|---|
| Memory Type Supported | Dual Channel DDR5 4800 MHz |
|---|
| Max Memory Supported | 32GB |
|---|
| Dual Channel Memory Supported | Yes |
|---|
Storage| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket |
|---|
Graphics| Integrated Graphics | Intel Iris Xe Graphics |
|---|
Audio| Onboard Audio | Realtek ALC256, High Definition Audio |
|---|
Communications| LAN | LAN1: Intel® I226LM with 10/100/1000/2500 Mbps LAN2: Intel® I226V with 10/100/1000/2500 Mbps |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | 1 x Wi-Fi 6E 802.11ax (2.4Gbps) |
|---|
| Bluetooth | BT 5.2 |
|---|
Extension Bays| 2.5" Internal Bays | 1 |
|---|
Front Panel Ports| Front USB | 1 x USB 3.2 Gen2 (Type A) 1 x USB4/ThunderboltTM 4 (Supports DP 2.1 display output) 1 x USB3.2 gen2 (Type-C, Supports DP1.4a display output) |
|---|
| Front Audio Ports | 1 (headphone & microphone jack) |
|---|
Back Panel Ports| HDMI | 1 x HDMI 2.0b |
|---|
| DisplayPort | 1 x DP1.4a |
|---|
| Rear USB | 2 x USB 3.2 Gen2 (Type-A) |
|---|
| RJ45 | 2 x RJ-45 |
|---|
Power Supply| Input | 12V~19V DC-In Jack |
|---|
| Power Supply | 19V/90W Power Adapter |
|---|
Physical SPEC| Dimensions | 110.0 x 117.5 x 47.85mm |
|---|
| Material | Plastic with sheet metal |
|---|
Features| Features | OS Support Windows 10/11 TPM 2.0 onboard IC |
|---|
Packaging| Packaging | 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket |
|---|
Additional Information| First Listed on Newegg | May 18, 2023 |
|---|
