Combo: 4849540

double click image to zoom in

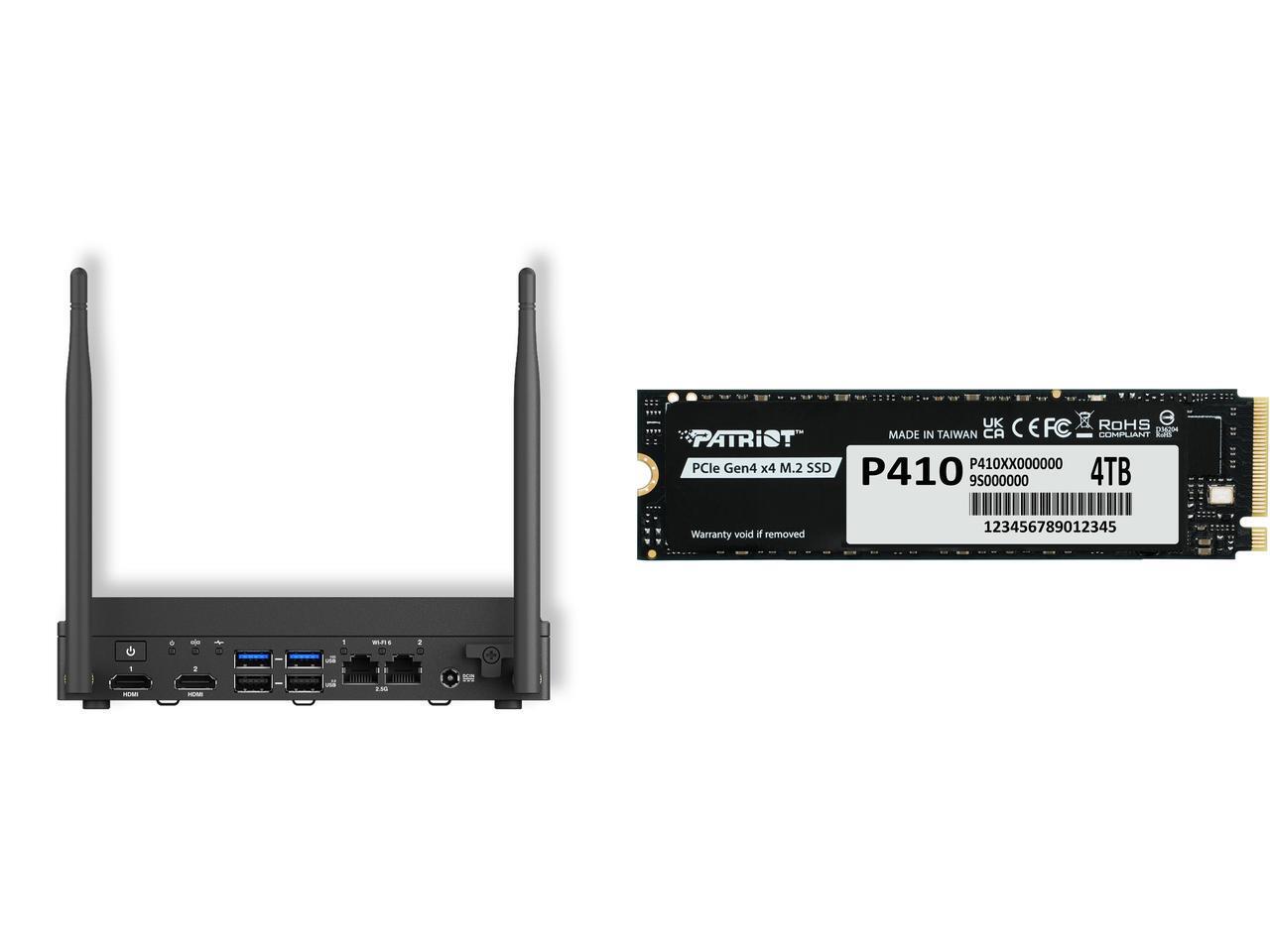

ASUS NUC 13 Rugged Bravo Canyon Intel Atom x7425E mini PC Barebone (90AS0021-M000T0)w/DDR5 SO-DIMM slot , 1x M.2 2280 slot, 1xM.2 3042 slot Patriot P410 SSD M.2 2280 4TB Gen 4 PCI-Express 4.0 x4 P410P4TBM28H 5,000MB/s

Mini-PC Barebone

Internal SSDs

Intel Atom Processor x7425E (Up to 3.4GHz Turbo), 4 Core, 6MB L3 Cache, (12W TDP)
1 x SO-DIMM DDR5 4800 MT/s memory 8GB~16GB optional “in-band” ECC support
64GB eMMC soldered-down
1x M.2 2280 PCIe x2 Gen4x4, supports 128GB~4TB NVMeSSD
1x M.2 3042 PCIe SATA, supports 128GB-2TB SSD, w/ 1 x USB3.2 Gen2
Intel® Wi-Fi 6E AX210 (Gig+) w/External Antenna, Bluetooth® v5.3
2 x Intel® Ethernet Controller I226-LM, 2.5G
Dimension: 174 x 108 x 35.8H mm (external heatsink)[H: +3.4mm rubber feet]
Weight: 1.0369kg
Extended temperature on tall chassis: 0-50°C external ambient operating temperature tolerance
3042 WWAN modem and SIM card slot (select x7425E SKUs only; validated with LTE Cat6 modem; customer owns certifications)
Kits and boards offer the perfect combination of performance, connectivity, and reliability in a fanless, dust-resistant ruggedized chassis.
Can withstand 0° to 50°C external ambient operating temperatures on select kits.
Built to survive environments most PCs can't.
Versatile mounting options to put compute where it's needed.
Qualified for 24/7 sustained operation1.

This Combo Includes 2 Items

Overview

Specs

Reviews

Memory installed	No Memory
Memory Type Supported	DDR5 4800
Max Memory Supported	16GB
Dual Channel Memory Supported	Yes

LAN	2 x Intel i226-LM
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	802.11ax
WiFi Generation	Intel Wi-Fi 6E AX210 (Internal Antenna)

HDMI	2 x HDMI 2.1 TMDS Compatible
Rear USB	2 x rear USB 3.2 Gen 2 (rear panel) 2 x USB 2.0 (rear panel)
RJ45	2
Internal Connectors	2 x MIPI CSI camera headers 2 x Internal USB 2.0 headers (USB power control per USB port pair)

Hard Drive Installed	64GB eMMC soldered-down
M.2	1 x M.2 2280 slot PCIe x2 NVMe SSD 1 x M.2 3042 Slot (SATA SSD/PCI x1/USB3.2 Gen2)
