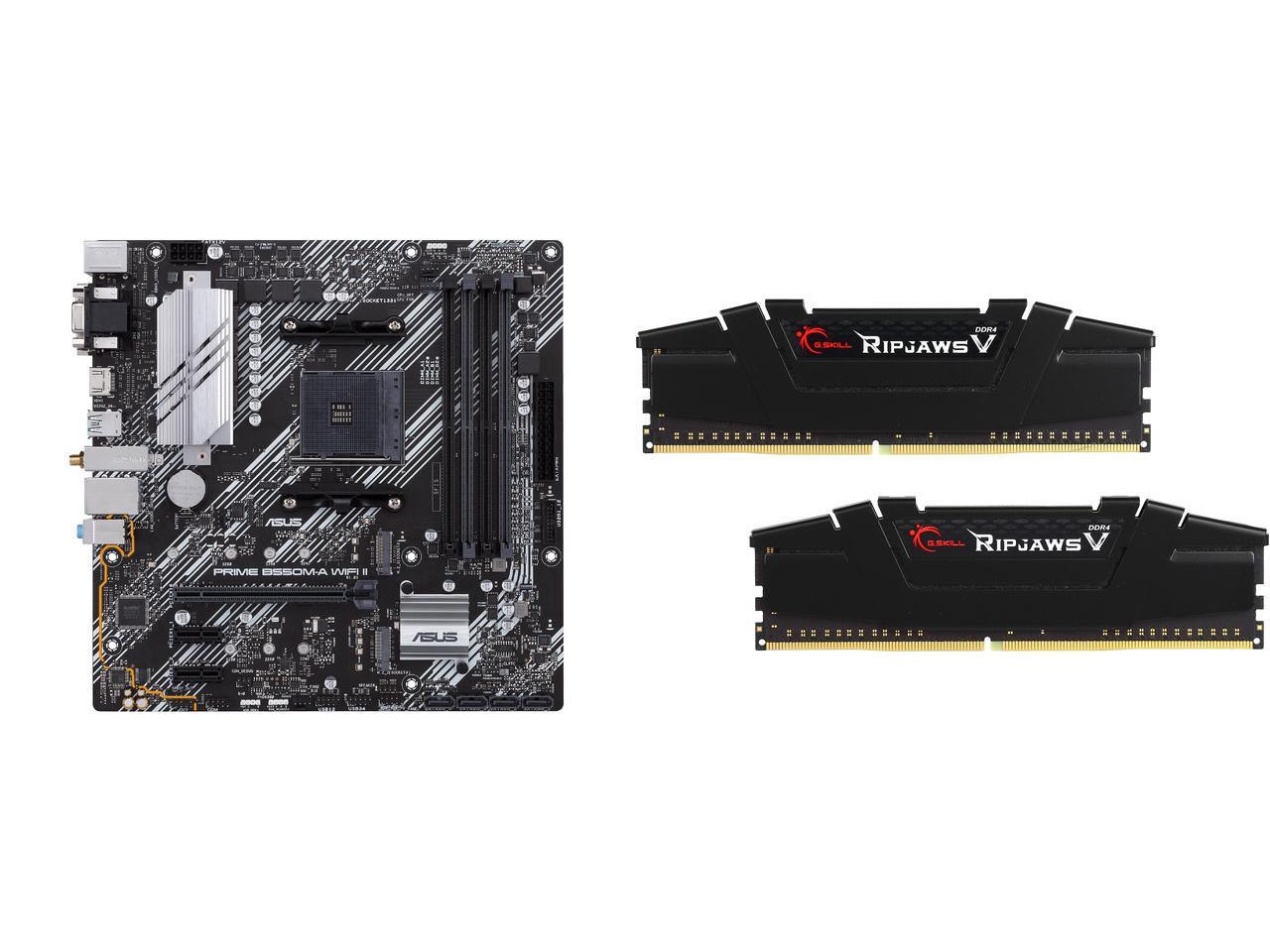

This Combo Includes 2 Items
Feel the Rush of Ripjaws V
As the latest addition to the classic RipJaws family, RipJaws V series DDR4 memory is designed for sleek aesthetics and performance. Ripjaws V is the ideal choice for building a new performance system or for DRAM memory upgrade.
Blazing Fast Transfer Speed
Available in a wide range of frequency options, Ripjaws V lets you enjoy a faster computing experience for gaming, video & image editing, rendering, and data processing.
Rigorously Tested for Compatibility and Reliability
Each and every Ripjaws V DDR4 memory kit is tested with G.SKILL’s rigorous validation process on all major performance motherboard brands to ensure the best-in-class reliability and compatibility across the widest selection of motherboards.
42mm Module Height
Continuing the tradition of aftermarket CPU cooler compatibility, Ripjaws V is designed with a 42mm module height suitable for most oversized CPU heatsinks.
Ultra High Kit Capacity Options
Ripjaws V offers variety DRAM capacity configurations, ranging from 4GB module capacity up to ultra-high 32GB module capacity, for up to total of 256GB (32GBx8). The possibilities are endless!
XMP 2.0 Support
Just set and go. Program med with the latest Intel XM P 2.0 profiles, the only thing between you and overclocked performance is simple BIOS setting.
* The memory kit will boot at the SPD speed when BIOS settings are at default.
* For XMP enabled memory kits, enable XMP/DOCP/A-XMP in the BIOS to reach up to the rated XMP overclock speed, and system stability with overclocked memory kits may depend on the capability of the motherboard & CPU.
Limited Lifetime Warranty
All G.SKILL memo products come with limited lifetime warranty and the G.SKILL technical team is always ready to provide consumers with complete technical support via online forum, telephone, and email.
Learn more about the ASUS PRIME B550M-A WIFI II
Model| Brand | ASUS |
|---|
| Model | PRIME B550M-A WIFI II |
|---|
| Part Number | 90MB19X0-M0AAY0 |
|---|
Supported CPU| CPU Socket Type | AM4 |
|---|
| CPU Type | Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors
* Refer to www.asus.com for CPU support list. |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR4) |
|---|
| Memory Standard | DDR4 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
|---|
| Maximum Memory Supported | 128GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | ECC memory (ECC mode) support varies by CPU |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16*
* Actual support may vary by CPU. |
|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
|---|
| SATA RAID | 0/1/10 |
|---|
Onboard Video| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
Onboard Audio| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
|---|
| Audio Channels | 7.1 Channels*
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
Onboard LAN| LAN Chipset | Realtek 1Gb Ethernet |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Wireless LAN | Wi-Fi 6 802.11 a/b/g/n/ac/ax |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|---|
Physical Spec| Form Factor | Micro ATX |
|---|
| LED Lighting | RGB |
|---|
| Dimensions (W x L) | 9.6" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
|---|
Software Feature| Windows 11 | Ready |
|---|
Features| Features | Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 header
Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - Lighting Control ASUS CPU-Z AI Charger DAEMON Tools MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows 11 64-bit, Windows 10 64-bit |
|---|
Packaging| Package Contents | Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
|---|
Additional Information| First Listed on Newegg | August 11, 2022 |
|---|
