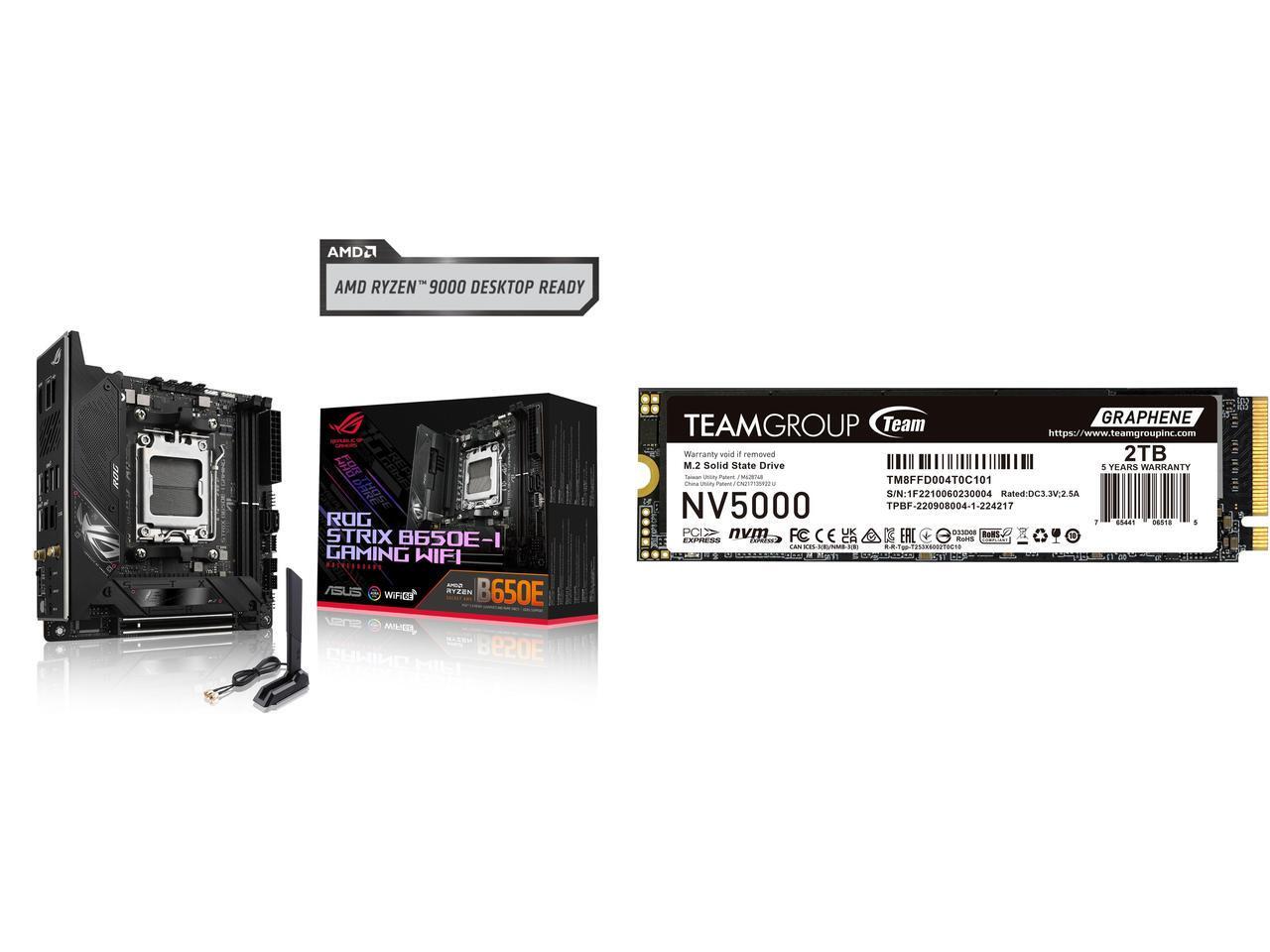

This Combo Includes 2 Items
Learn more about the ASUS ROG STRIX B650E-I GAMING WIFI
Model| Brand | ASUS |
|---|
| Series | ROG |
|---|
| Model | ROG STRIX B650E-I GAMING WIFI |
|---|
| Part Number | 90MB1BI0-M0AAY0 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
|---|
Chipsets| Chipset | AMD B650E |
|---|
Memory| Number of Memory Slots | 2x288pin (DDR5) |
|---|
| Memory Standard | DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800MHz ECC and Non-ECC, Un-buffered Memory* |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
|---|
Expansion Slots| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 slot* * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|
Storage Devices| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1. |
|---|
| SATA RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1. |
|---|
Onboard Audio| Audio Chipset | Realtek ALC4080 |
|---|
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors |
|---|
Onboard LAN| Max LAN Speed | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|---|
| Wireless LAN | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries. |
|---|
| Bluetooth | Bluetooth v5.2** ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|---|
Rear Panel Ports| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C with DP Alt mode) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 3 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x FlexKey button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers supports additional 2 USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan header
Storage related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports
Miscellaneous 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
|---|
Physical Spec| Form Factor | Mini ITX |
|---|
| Dimensions (W x L) | 6.7" x 6.7" (17 cm x 17 cm) |
|---|
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
|---|
Software Feature| Windows 11 | Supported |
|---|
Features| Features | Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 header |
|---|
Packaging| Package Contents | Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable
Additional Cooling Kit 1 x Thermal pad for M.2
Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Bracket 1 x M.2 SSD screw package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card 1 x Rubber Package for M.2 backplate
Documentation 1 x User guide |
|---|
Additional Information| First Listed on Newegg | November 02, 2022 |
|---|
