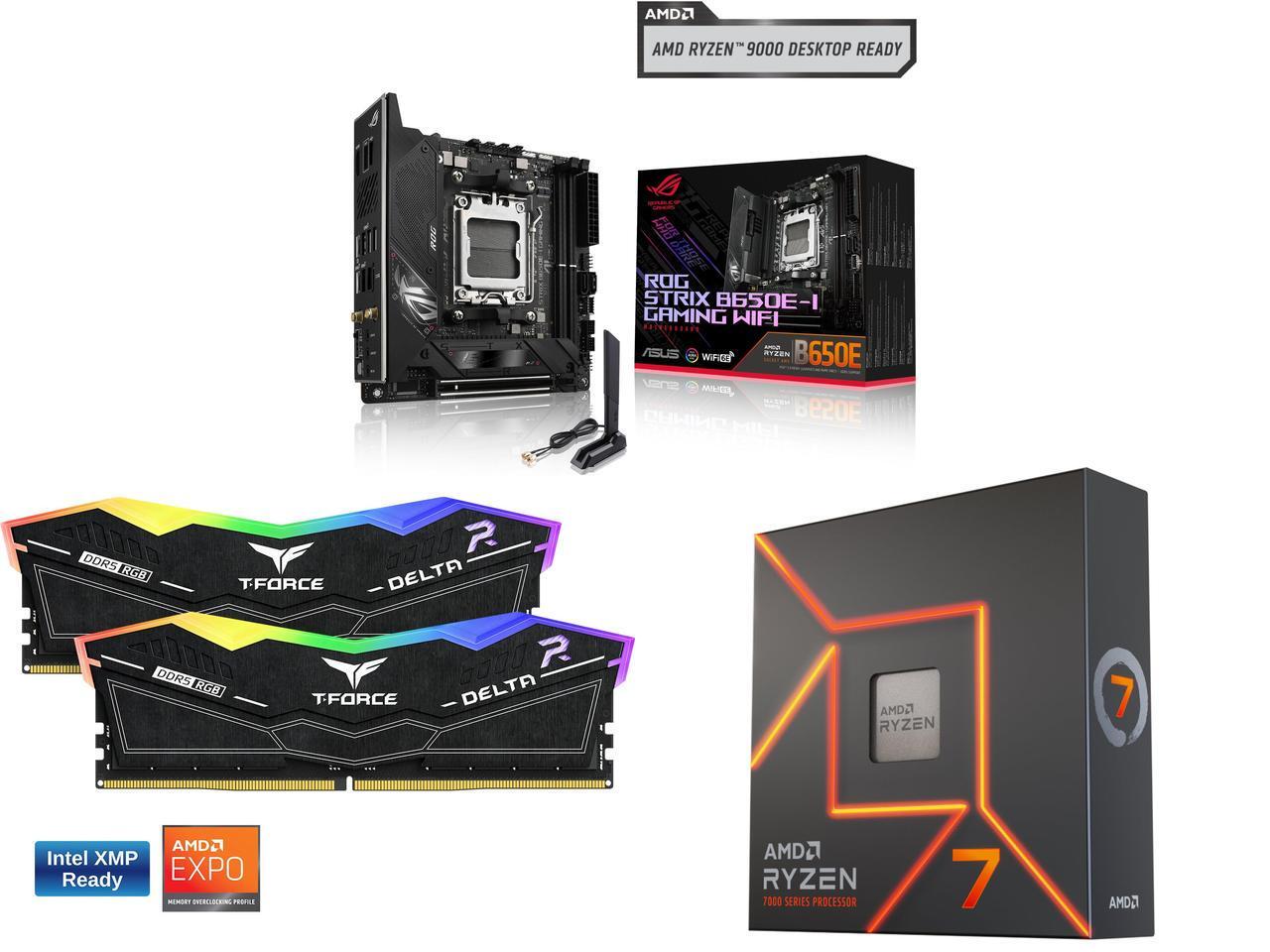

This Combo Includes 3 Items
The ultimate gaming and streaming experience
Whatever the setting, whatever the resolution, lead your team to victory with AMD Ryzen™ 7 7700X, a superb 8-core gaming processor.
The world's most advanced PC processor
Experience the speed of AMD Ryzen™ 7 7700X desktop processor. Build a rig with the winning performance you need to dominate the games you love.
The latest technologies from AMD
AMD Ryzen™ 7 7700X processor is built to help you beat the clock with time-saving connectivity like PCle® 5.0, 16 processing threads, and dedicated video accelerators.
The future of Ryzen processors
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCle® 5.0.
Learn more about the ASUS ROG STRIX B650E-I GAMING WIFI
Model| Brand | ASUS |
|---|
| Series | ROG |
|---|
| Model | ROG STRIX B650E-I GAMING WIFI |
|---|
| Part Number | 90MB1BI0-M0AAY0 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list. |
|---|
Chipsets| Chipset | AMD B650E |
|---|
Memory| Number of Memory Slots | 2x288pin (DDR5) |
|---|
| Memory Standard | DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800MHz ECC and Non-ECC, Un-buffered Memory* |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
* Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
|---|
Expansion Slots| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 slot*
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|
Storage Devices| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1. |
|---|
| SATA RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1. |
|---|
Onboard Audio| Audio Chipset | Realtek ALC4080 |
|---|
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors |
|---|
Onboard LAN| Max LAN Speed | 1 x Intel 2.5Gb Ethernet
ASUS LANGuard |
|---|
| Wireless LAN | Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries. |
|---|
| Bluetooth | Bluetooth v5.2**
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|---|
Rear Panel Ports| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C with DP Alt mode)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
3 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x FlexKey button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers supports additional 2 USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
Storage related
2 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
Miscellaneous
1 x Addressable Gen 2 header
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x 12-1 pin Front Panel Audio header (AAFP)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header |
|---|
Physical Spec| Form Factor | Mini ITX |
|---|
| Dimensions (W x L) | 6.7" x 6.7" (17 cm x 17 cm) |
|---|
| Power Pin | 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector |
|---|
Software Feature| Windows 11 | Supported |
|---|
Features| Features | Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 header |
|---|
Packaging| Package Contents | Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Bracket
1 x M.2 SSD screw package
1 x M.2 Q-Latch package for M.2 backplate
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
1 x Rubber Package for M.2 backplate
Documentation
1 x User guide |
|---|
Additional Information| First Listed on Newegg | November 02, 2022 |
|---|
