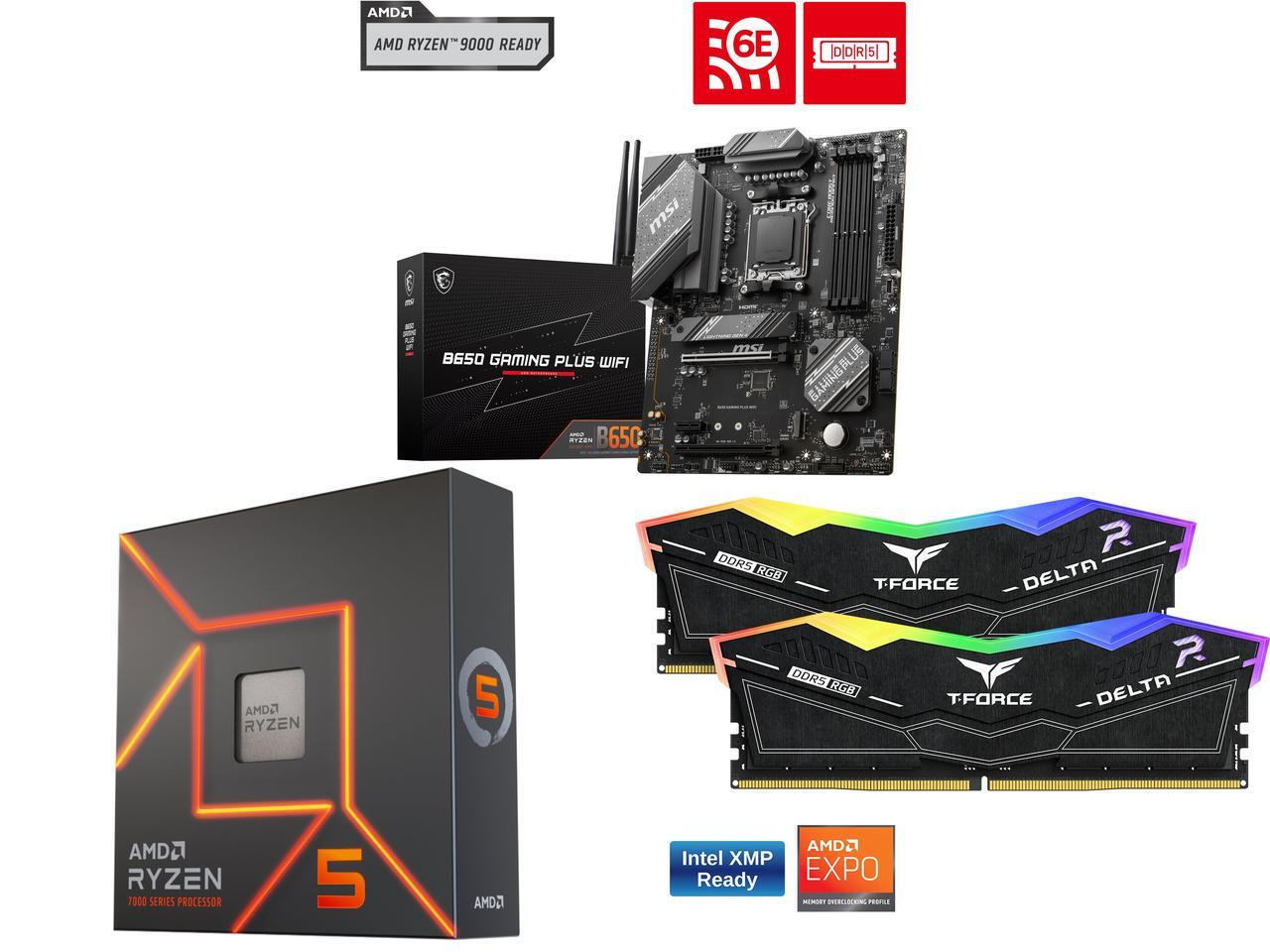

This Combo Includes 3 Items
Pure gaming performance
Get a competitive edge with AMD Ryzen™ 57600X desktop processors and AMD Socket AMS motherboards. Fast gameplay and ultimate performance for your game-winning moves.
The world's most advanced PC processor
Take on any game with the pure speed of AMD Ryzen™ 5 7600X desktop processor.
The latest technologies from AMD
AMD Ryzen™ 5 7600X processor is built to help you beat the clock with time-saving connectivity like PCIe 5.0, 12 processing threads, and dedicated video accelerators.
The future of Ryzen processors
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCIe® 5.0.
Learn more about the MSI B650 GAMING PLUS WIFI
Model| Brand | MSI |
|---|
| Model | B650 GAMING PLUS WIFI |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6000+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5400+ MHz |
|---|
| Maximum Memory Supported | 192GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Non-ECC |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Supports AMD EXPO |
|---|
Expansion Slots| PCI Express 4.0 x16 | 2x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|---|
| PCI Express x1 | 1x PCI-E x1 slot
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|---|
Onboard Audio| Audio Chipset | Realtek ALC897 Codec
7.1-Channel High Definition Audio |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| LAN Chipset | Realtek 8125BG 2.5G LAN |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
|---|
| Bluetooth | Supports Bluetooth 5.3**
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
|---|
Rear Panel Ports| Back I/O Ports | 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A / 6 x Audio Jacks |
|---|
Internal I/O Connectors| Onboard USB | 4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports |
|---|
| Other Connectors | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0) |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
Software Feature| Windows 11 | Supported |
|---|
Additional Information| First Listed on Newegg | July 03, 2023 |
|---|
