This Combo Includes 2 Items

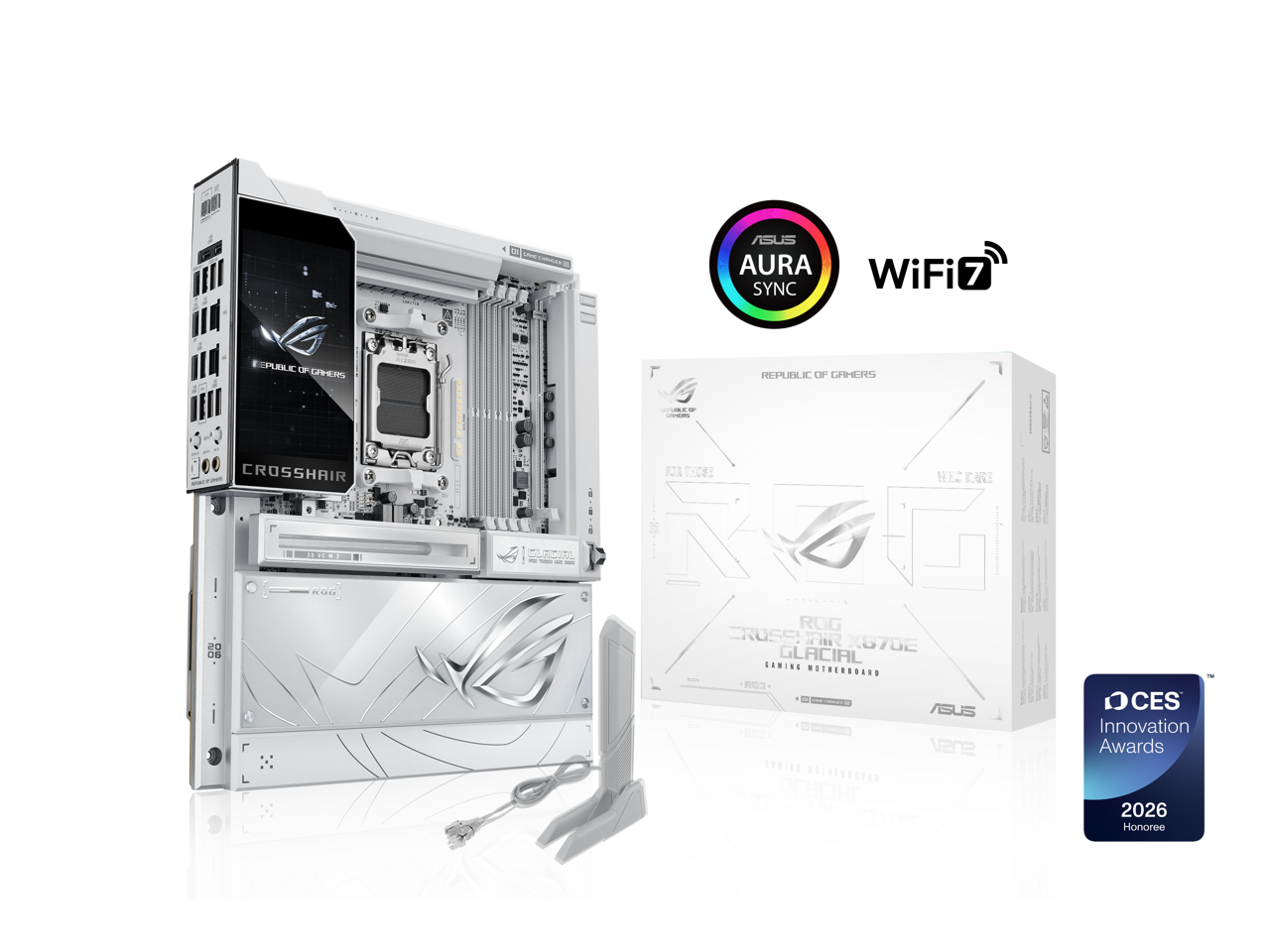

Learn more about the ASUS ROG Crosshair X870E Glacial
Model| Brand | ASUS |
|---|
| Model | ROG Crosshair X870E Glacial |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Chipsets| Chipset | AMD X870E |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | Supports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors 9600+MT/s(OC)/9200+MT/s(OC) with Ryzen 8000 Series Processors 8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 or x4/x4/x4/x4 modes)**
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
AMD Ryzen 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
* Specifications vary by CPU types. ** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS. |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode) Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
AMD Ryzen 8500 & 8300 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
* Specifications vary by CPU types. ** USB 40Gbps Type-C ports on the back panel and M.2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. |
|---|
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10* * SATA ports from ASM1162 cannot support RAID |
|---|
Onboard Audio| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS ES9219 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors Supports LHDC, high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate and 24-bit/192 kHz sampling rate.*** * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|---|
Onboard LAN| Max LAN Speed | 2 x 10Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 be |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C) 1 x Wi-Fi Module 2 x Realtek 10Gb Ethernet ports 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
|---|
Internal I/O Connectors| Onboard USB | 2 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x AIO Q-Connector 1 x Extra Flow Fan header
Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 2 x BCLK button 1 x BIOS Switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD header 1 x Safe Boot button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
|---|
Physical Spec| Form Factor | Extended ATX |
|---|
| Dimensions (W x L) | 12.0" x 10.9" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector |
|---|
Software Feature| BIOS Feature | 2 x 512 Mb Flash ROM, UEFI AMI BIOS |
|---|
| Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - LCD Display - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - WiFi Q-Antenna - MLO Wizard ASUS DriverHub - ASUS MB Manage - ASUS AI Advisor - AIDA64 Extreme (1 year full version) - HWiNFO - Turbo Vcore - ASUS GlideX - USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS Integrated WiFi Driver Support AI Overclocking Guide AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
|---|
Additional Information| First Listed on Newegg | January 23, 2026 |
|---|
