Combo: 4852994

double click image to zoom in

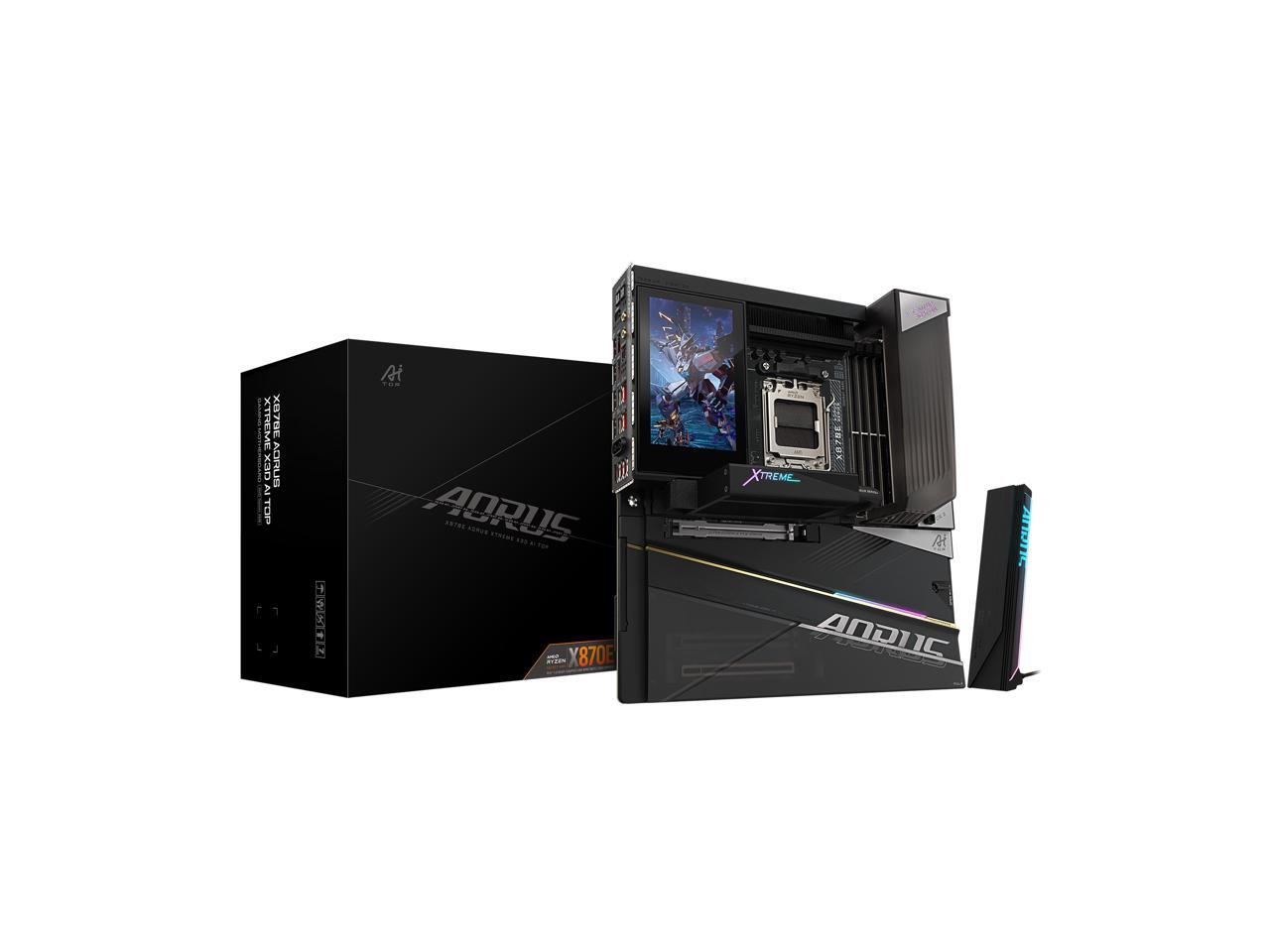

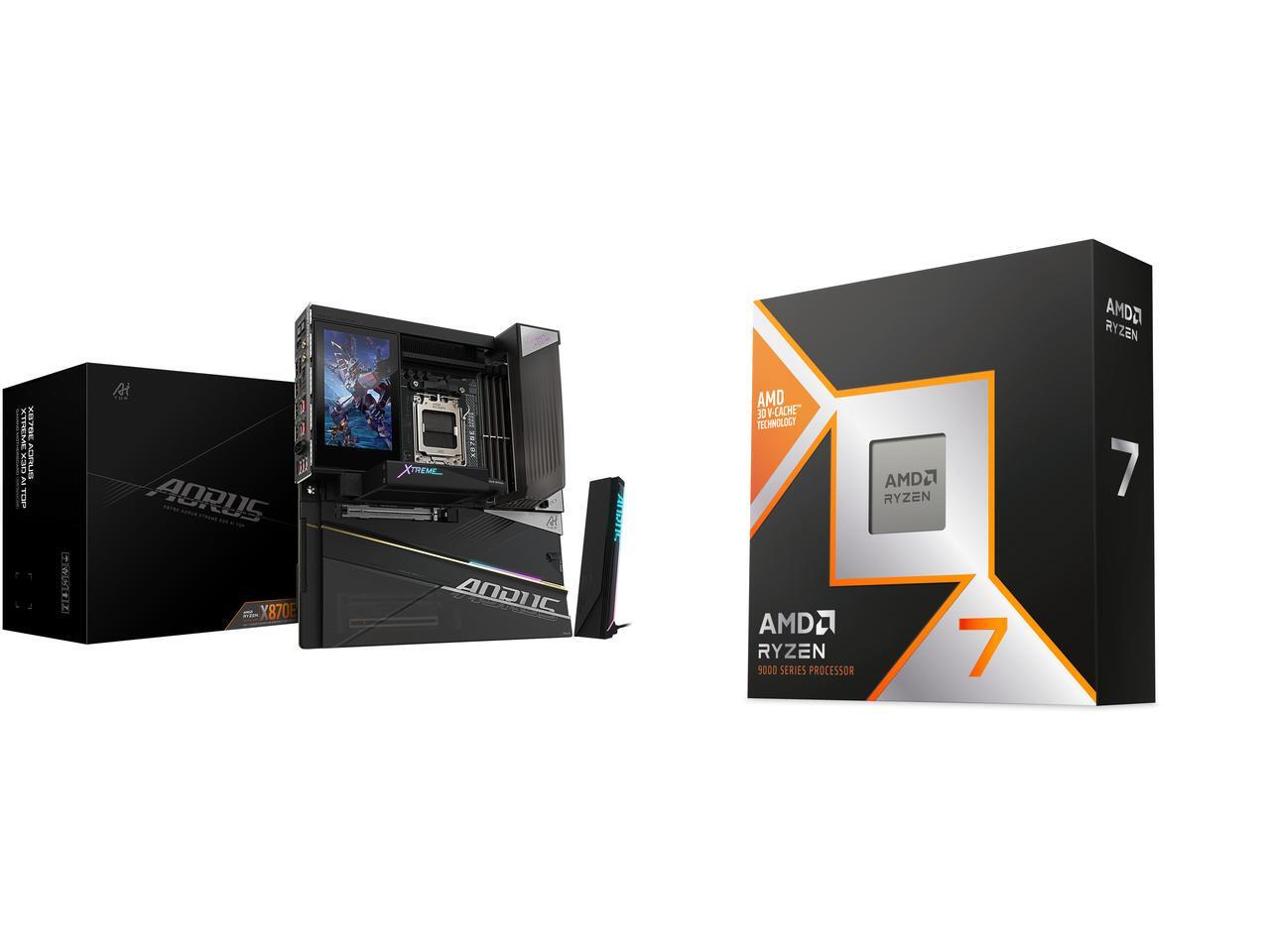

Motherboard CPU Combo - GIGABYTE X870E AORUS XTREME X3D AI TOP Bundle with AMD 100-100001973WOF

AMD Motherboards

Desktop CPU Processor

AMD Socket AM5: Ready to support Ryzen 9000/8000/7000 Series Processors.
Enhanced Power Solution: Digital Twin 24+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.
Advanced Thermal Armor: Advanced VRM heatsinks for better heat dissipation. Integrated I/O Shield for quicker PC DIY assembly.
Boost Your Memory: Compatible with DDR5 Memory and supports 4 DIMMs with AMD EXPO Memory Module Support.
Comprehensive Connectivity: 1x PCIe 5.0 x16 with reinforced PCIe UD armor, 2x PCIe 5.0 M.2 slots, 3x PCIe 4.0 M.2 slots, 8x USB 3.2 Gen 2 Type-A, 2x USB4 Type-C, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2x2 Type-C, Front USB-C, 65W Front QC-USB, Sensor Panel Link (USB-C DP) for onboard video port for hassle-free in-chassis panel setup.
Smooth Online Experience: WIFI7 for for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, Dual 10 GbE LAN, and Bluetooth 5.4.
DIY Friendly Design: Smooth building experience with suite of easy building features, such as PCIe EZ-Latch Plus Duo for single-click release design for GPU, M.2 EZ-Latch Click & Plus for screwless installation for M.2 heatsink and SSD, WIFI EZ-Plug for quick installation for the WIFI antenna, EZ-Debug Zone which are fast-action controls for organized troubleshooting.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

This Combo Includes 2 Items

Overview

Specs

Reviews

CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC

PCI Express 5.0 x16	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode * The PCIEX8 slot becomes unavailable when anAMD Ryzen 8000 Series-Phoenix 1/ Phoenix 2 processor is used.
PCI Express x4	Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

Serial ATA (SATA)	2 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in theM2B_CPU connector, both the M2B_CPU connector and the USB4 ports supported by the ASMedia USB4 controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4 controller operate at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices

Audio Chipset	1 ESS ES9280AC DAC chip+2 ESS ES9080 chips
Audio Channels	2 Channels

Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB Type-C port (DisplayPort (Note)), with USB 2.0 support 2 x USB 3.2 Gen 1 headers 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
Other Connectors	1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable) 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header through one cable) 2 x SATA 6Gb/s connectors 5 x M.2 Socket 3 connectors 1 x front panel header 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button

Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 11.2"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
