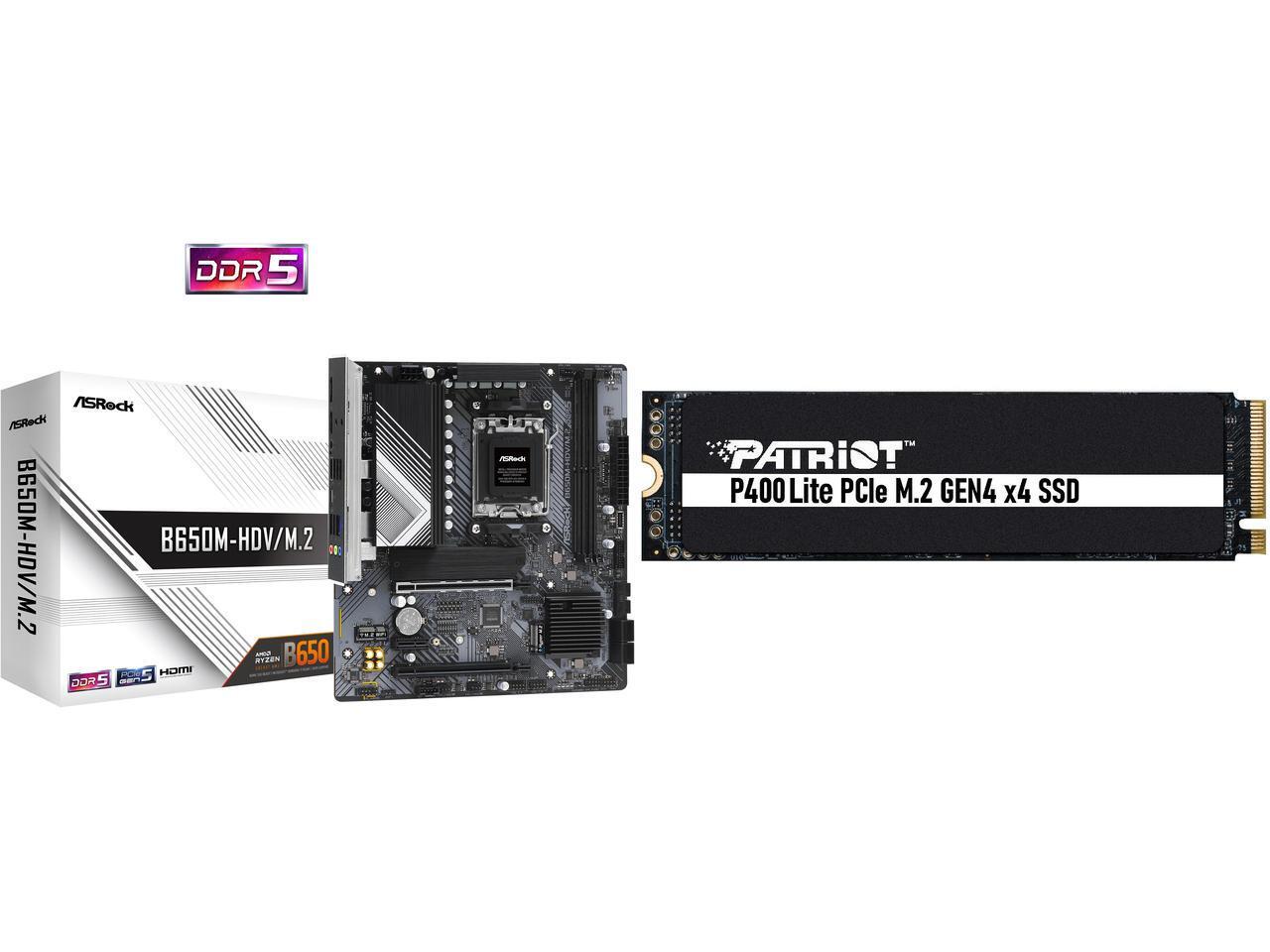

This Combo Includes 2 Items
P400 Lite
M.2 SOLID STATE DRIVE
P400 Lite PCIe Gen4 x4 M.2 2280 SSD
The P400 Lite PCIe Gen4 x4 M.2 2280 SSD is the latest in Patriot’s high-speed PCIe Gen 4 x4 M.2 storage solutions. Featuring low power consumption, multi-application uses and highly compatible M.2 2280 specification for easy installation, the P400 Lite PCIe Gen4 x4 M.2 2280 SSD offers excellent reliability for all users. With large storage capacities, faster data access, quick transfer speeds and an improved graphene heatshield for temperature dissipation, the P400 Lite PCIe Gen4 x4 M.2 2280 SSD offers sharp performance with zero compromise for quality.
- Built with the latest PCIe 4X4 controller
- PCIe Gen4 x4 NVMe 1.4 M.2 2280 SSD
- Sequential Read (Max1*): Up to 3,500MB/s
- Sequential Write (Max1*): Up to 2,700MB/s
- Capacity: 250GB~4000GB
- Thermal Throttling Technology
- End-to-End Datapath Protection
- Operating Temperature: 0 ~ 70°C
- High efficiency slim Graphene heatshield
- SmartECC technology
- O/S Supported: Windows® 7/8/8.1/10 (May require driver)
- 5-year warranty
Notes:
* All pictures are for demonstration only. The graphics on the SSD may differ.
1. Actual performance may vary due to available SSD capacity, system hardware and software components, and other factors.
Learn more about the ASRock B650M-HDV/M.2
Model| Brand | ASRock |
|---|
| Model | B650M-HDV/M.2 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Supports AMD Socket AM5 Ryzen 7000 Series Processors |
|---|
Memory| Number of Memory Slots | 2x288pin (DDR5) |
|---|
| Memory Standard | Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) |
|---|
| Maximum Memory Supported | 64GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Non-ECC |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|---|
Expansion Slots| PCI Express 4.0 x16 | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
Supports AMD CrossFire 15µ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks |
|---|
| PCI Express x1 | Chipset: 1 x PCIe 4.0 x1 Slot (PCIE2)* |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
*Supports NVMe SSD as boot disks |
|---|
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
*Requires additional M.2 NVMe expansion cards to support RAID 10 |
|---|
Onboard Audio| Audio Chipset | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| LAN Chipset | Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
Rear Panel Ports| Back I/O Ports | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
Internal I/O Connectors| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header |
|---|
| Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin)* 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
*CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1~3/WP support the fan power up to 2A (24W). **CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
|---|
Physical Spec| Form Factor | Micro ATX |
|---|
| Dimensions (W x L) | 9.6" x 8.9" |
|---|
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector |
|---|
Software Feature| Windows 11 | Supported |
|---|
Features| Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Gaming - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|---|
Packaging| Package Contents | Accessories 1 x User Manual 2 x SATA Data Cables 2 x Screws for M.2 Sockets |
|---|
Additional Information| First Listed on Newegg | March 06, 2023 |
|---|
