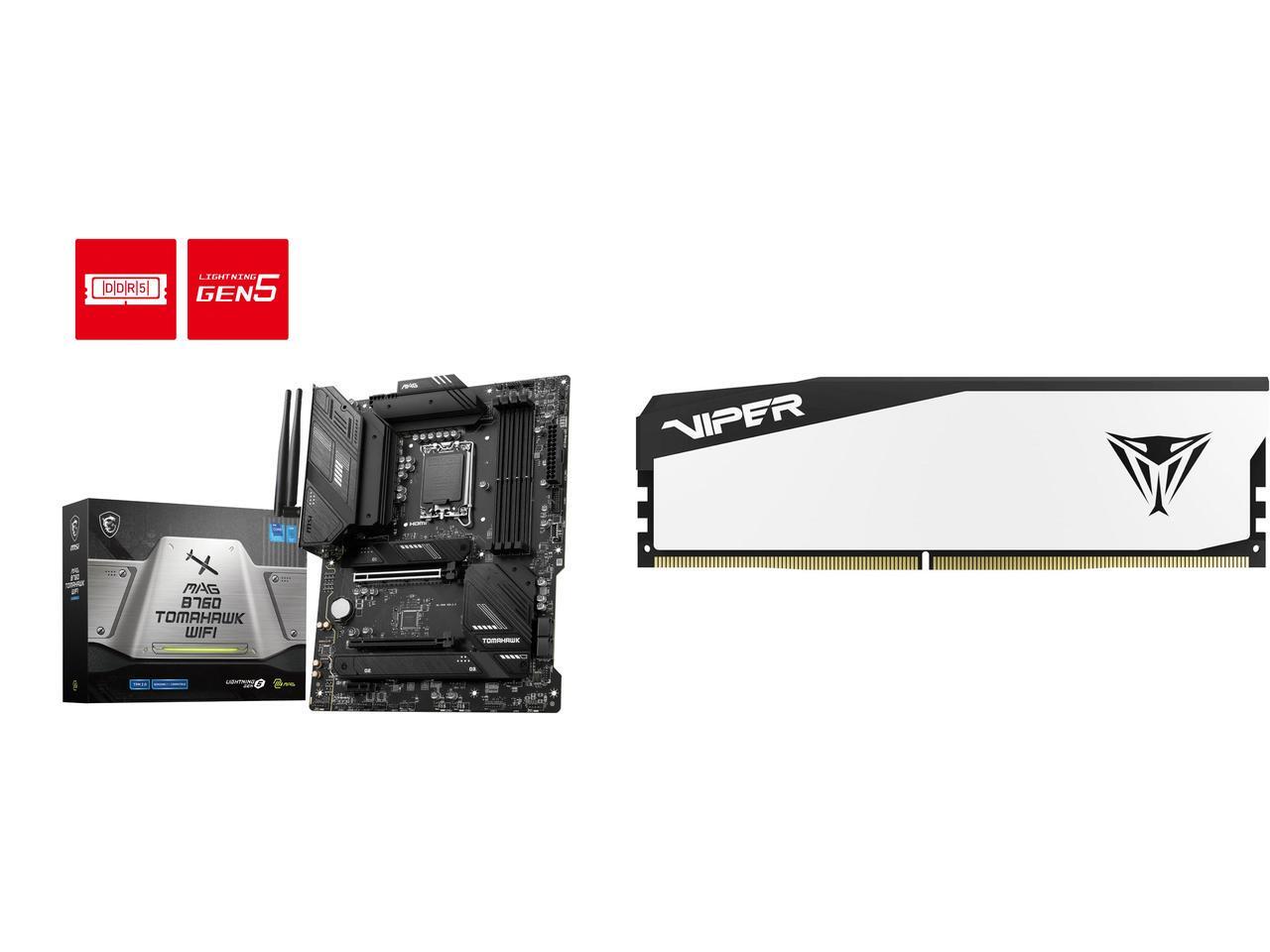

This Combo Includes 2 Items
Unite as One
The MAG B760 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest Intel B760 chipset that balances value with premium hardware.
Supports Intel Core 12th & 13th Gen Processors
The MAG B760 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: ATX
Socket Type: LGA 1700
Chipset: Intel B760
12+1 Duet Rail Power System with 75A DrMOS
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
1. Digital PWM IC
2. 12-Phase Duet Rail CPU Power (DrMOS / 75A)
3. 1-Phase GT Power
4. 1-Phase AUX Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.
PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
4 x DDR5 Dual Channel (7000 MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 7000+ MHz, supports Intel XMP.
Fortified PCI-e 5.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**)
1 x PCI-e 3.0 x16 slot*
* Supports x16/x4
** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen4 M.2 Connectors
The MAG B760 TOMAHAWK WIFI motherboard features MSI's Gen4 M.2 slots:
3 x Gen4 x4 64Gbps slots*
* 3 with M.2 Shield Frozr
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Wi-Fi 6E & Bluetooth 5.3
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
Unmatched Speed
The Viper Elite 5 delivers unrivaled speed and efficiency with state-of-the-art internal clock generation and memory timing circuits to offer strong performance of up to 7,000MT/s for select models.
Brilliant Craftsmanship
Created from high-quality aluminum parts and 100% hand-tested for quality assurance, the Viper Elite 5 is designed with components built for strong performance and consistency.
Express Your Style, Your Way
Whether you're drawn to vibrant RGB lighting or a sleek, minimalist design, the Elite 5 DDR5 is built for you. Choose between dynamic effects or understated elegance—tailored perfectly to match your style.
Express Your Style, Your Way
Whether you're drawn to vibrant RGB lighting or a sleek, minimalist design, the Elite 5 DDR5 is built for you. Choose between dynamic effects or understated elegance—tailored perfectly to match your style.
Enhanced System Stability
With its On-Die ECC, the Viper Elite 5 can correct single-bit errors and detect multi-bit errors, ensuring that data integrity, data accuracy and system reliability are maintained in the event of hardware errors or other issues in high-performance environments. The Viper Elite 5 also features integrated high-quality PMIC for higher speed operation with lower voltage and less heat generated.
Endless Customization Options
The Viper Elite 5's unique RGB lightbar allows for endless customization options paired with a white headshield to stand out among other performance memory. With our exclusive Viper RGB Sync App, you can easily pair lighting effects with other devices for one fully immersive system.
Intel XMP 3.0 and AMD EXPO Ready
The Viper Elite 5 supports for Intel XMP 3.0 and AMD EXPO overclock profiles.
Unleash Your Style with Immersive RGB Power!
Take your RGB experience to unparalleled heights! Our DRAM products are fully compatible with the industry-leading Signal RGB software and officially licensed. Dive into a fully immersive gaming experience with dynamic lighting that perfectly mirrors your unique style.
Learn more about the MSI MAG B760 TOMAHAWK WIFI
Model| Brand | MSI |
|---|
| Model | MAG B760 TOMAHAWK WIFI |
|---|
Supported CPU| CPU Socket Type | LGA 1700 |
|---|
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
|---|
Chipsets| Chipset | Intel B760 |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | DDR5 5600 |
|---|
| Maximum Memory Supported | 128GB |
|---|
| Channel Supported | Dual Channel |
|---|
| Memory Feature | Supports 1R 5600 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 7000+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory |
|---|
Expansion Slots| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|---|
| PCI Express x4 | 1 x PCI Express 3.0 x4 |
|---|
| PCI Express x1 | 1 x PCI Express 4.0 x1 |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | 3 x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From B760 chipset)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3* slot (From B760 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
* SATA7 will be unavailable when installing M2.SATA SSD in the M2_3 slot. |
|---|
| SATA RAID | 0/1/5/10 |
|---|
Onboard Audio| Audio Channels | 7.1-Channel High Definition Audio |
|---|
Onboard LAN| LAN Chipset | 1 x Realtek RTL8125BG-CG 2.5Gbps LAN controller |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Intel Wi-Fi 6E |
|---|
| Bluetooth | Bluetooth 5.3 |
|---|
Rear Panel Ports| Back I/O Ports | 4 x USB 2.0 Type-A ports (From Hub GL850G)
1 x DisplayPort port
1 x HDMI port
1 x 2.5Gbps LAN (RJ45) jack
4 x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub)
1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset)
2 x Wi-Fi Antenna connectors
5 x Audio jacks
1 x Optical S/PDIF Out connector |
|---|
Internal I/O Connectors| Other Connectors | 1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Tuning Controller connector
1 x TBT connector (Supports RTD3) |
|---|
Software Feature| Windows 11 | Supported |
|---|
Physical Spec| Form Factor | ATX |
|---|
| LED Lighting | 2 x 4-pin RGB LED connectors
2 x 3-pin ARGB Gen2 LED connectors
4 x EZ Debug LED |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
|---|
Features| Features | MSI Center
- Gaming Mode
- Smart Priority
- Game Highlights
- Mystic Light
- Ambient Devices
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System Diagnosis
Thermal Features
- Extended Heatsink Design
- M.2 Shield Frozr
- K7 MOSFET thermal pad / Extra choke pad
- Fan headers
Perforrmance
- Core Boost
- VRM Power Design
- Dual CPU Power
- Memory Boost
- Lightning Gen 4 PCI-E / M.2 Slot
- Front USB Type-C
- 2oz Copper thickened PCB
DIY Friendly
- PCI-E Steel Armor
- Pre-installed I/O Shield
- EZ M.2 Clips
- EZ DEBUG LED
- EZ LED Control
Audio
- Audio Boost
RGB Support
- Mystic Light Extension (RGB)
- Mystic Light Extension (A-RAINBOW V2)
- Ambient Devices Support
BIOS
- Click BIOS 5 |
|---|
Additional Information| First Listed on Newegg | January 03, 2023 |
|---|
