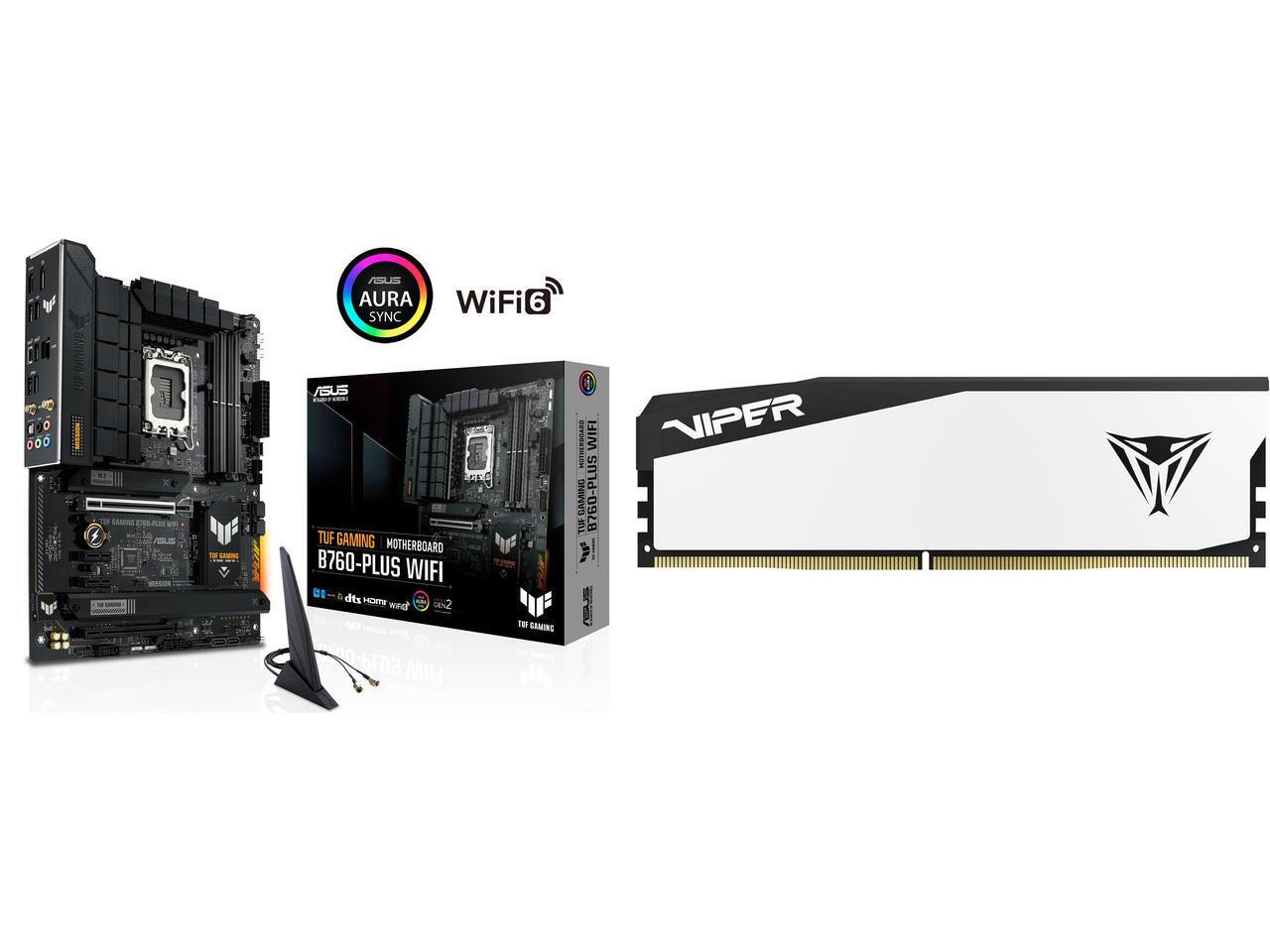

This Combo Includes 2 Items
Unmatched Speed
The Viper Elite 5 delivers unrivaled speed and efficiency with state-of-the-art internal clock generation and memory timing circuits to offer strong performance of up to 7,000MT/s for select models.
Brilliant Craftsmanship
Created from high-quality aluminum parts and 100% hand-tested for quality assurance, the Viper Elite 5 is designed with components built for strong performance and consistency.
Express Your Style, Your Way
Whether you're drawn to vibrant RGB lighting or a sleek, minimalist design, the Elite 5 DDR5 is built for you. Choose between dynamic effects or understated elegance—tailored perfectly to match your style.
Express Your Style, Your Way
Whether you're drawn to vibrant RGB lighting or a sleek, minimalist design, the Elite 5 DDR5 is built for you. Choose between dynamic effects or understated elegance—tailored perfectly to match your style.
Enhanced System Stability
With its On-Die ECC, the Viper Elite 5 can correct single-bit errors and detect multi-bit errors, ensuring that data integrity, data accuracy and system reliability are maintained in the event of hardware errors or other issues in high-performance environments. The Viper Elite 5 also features integrated high-quality PMIC for higher speed operation with lower voltage and less heat generated.
Endless Customization Options
The Viper Elite 5's unique RGB lightbar allows for endless customization options paired with a white headshield to stand out among other performance memory. With our exclusive Viper RGB Sync App, you can easily pair lighting effects with other devices for one fully immersive system.
Intel XMP 3.0 and AMD EXPO Ready
The Viper Elite 5 supports for Intel XMP 3.0 and AMD EXPO overclock profiles.
Unleash Your Style with Immersive RGB Power!
Take your RGB experience to unparalleled heights! Our DRAM products are fully compatible with the industry-leading Signal RGB software and officially licensed. Dive into a fully immersive gaming experience with dynamic lighting that perfectly mirrors your unique style.
Learn more about the ASUS TUF GAMING B760-PLUS WIFI
Model| Brand | ASUS |
|---|
| Model | TUF GAMING B760-PLUS WIFI |
|---|
| Part Number | 90MB1ER0-M0AAY0 |
|---|
Supported CPU| CPU Socket Type | LGA 1700 |
|---|
| CPU Type | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|
Chipsets| Chipset | Intel B760 |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|---|
| Maximum Memory Supported | 192GB |
|---|
| Channel Supported | Dual Channel |
|---|
| Memory Feature | Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|---|
Expansion Slots| PCI Express 5.0 x16 | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot |
|---|
| PCI Express 3.0 x16 | Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)*
* PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots* |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
|---|
| SATA RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
|---|
Onboard Audio| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| LAN Chipset | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
|---|
| Bluetooth | Bluetooth v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|---|
Rear Panel Ports| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
|---|
Software Feature| Windows 11 | Supported |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
|---|
Features| Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|---|
Packaging| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide |
|---|
Additional Information| First Listed on Newegg | March 03, 2023 |
|---|
