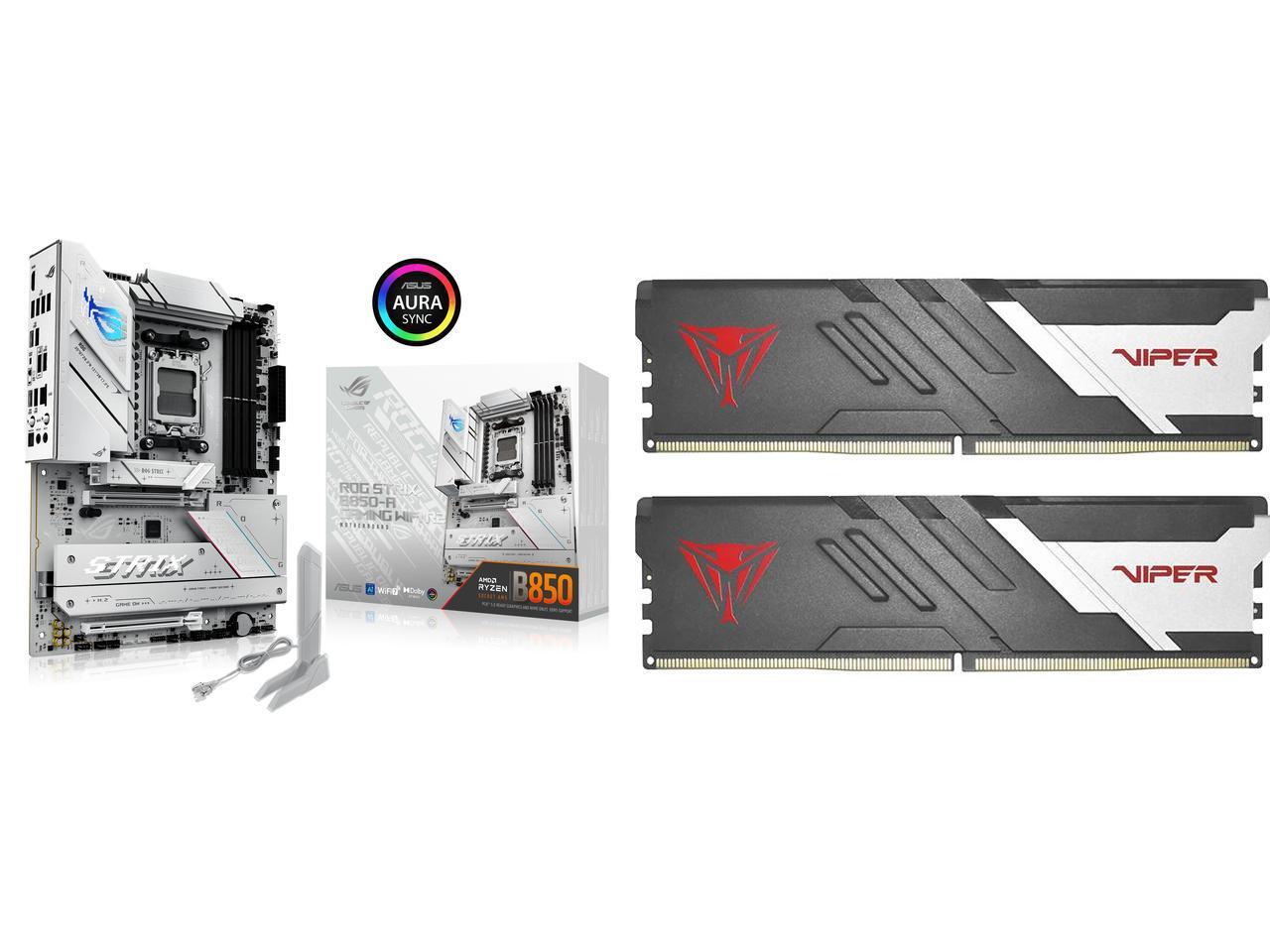

This Combo Includes 2 Items
Crafted to Perfection
The Viper Venom DDR5 is crafted from premium-grade aluminum components and 100% hand testing at every step to ensure top-class quality and reliability.
Extraordinary Speed
With performance of up to 7400MT/s in select models, the Viper Venom DDR5 offers a powerful combination of performance and efficiency featuring state-of-the-art internal clock generation and memory timing circuits.
Low Power Management and Thermal Management
With Viper's innovative onboard power and thermal management technology, this module features efficient operation and lower power consumption for longer module lifespans. Along with best-in-class components and rigorous tests during production, the Viper Venom DDR5 also comes with a limited lifetime warranty to provide total peace of mind for all users. With incredible levels of performance and speed with unbeatable price-per-performance, the Viper Venom DDR5 is a DRAM module truly optimized for the future of DDR5.
Low Power Management and Thermal Management
With Viper's innovative onboard power and thermal management technology, this module features efficient operation and lower power consumption for longer module lifespans. Along with best-in-class components and rigorous tests during production, the Viper Venom DDR5 also comes with a limited lifetime warranty to provide total peace of mind for all users. With incredible levels of performance and speed with unbeatable price-per-performance, the Viper Venom DDR5 is a DRAM module truly optimized for the future of DDR5.
Enhanced System Stability
With its On-die ECC, the Viper Venom DDR5 can correct single-bit errors and detect multi-bit errors, ensuring that data integrity, data accuracy and system reliability are maintained in the event of errors in high-performance environments. The Viper Venom DDR5 also features integrated high-quality PMIC for higher speed operation with lower voltage and less heat generated.
Intel XMP 3.0 and AMD EXPO Ready
The Viper Venom DDR5 supports for Intel XMP 3.0 and AMD EXPO overclock profiles.
Endless Customization Options
The Viper Venom DDR5 offers select RGB models with a unique lightbar that allows for seemingly endless customization. With our exclusive Viper Sync RGB App, gamers can easily pair lighting effects with other devices for one fully immersive system.
Unleash Your Style with Immersive RGB Power!
Take your RGB experience to unparalleled heights! Our DRAM products are fully compatible with the industry-leading Signal RGB software and officially licensed. Dive into a fully immersive gaming experience with dynamic lighting that perfectly mirrors your unique style.
Learn more about the ASUS ROG STRIX B850-A GAMING WIFI R2
Model| Brand | ASUS |
|---|
| Model | ROG STRIX B850-A GAMING WIFI R2 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | Supports up to 8000+MT/s(OC) |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|---|
Expansion Slots| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode)** |
|---|
| PCI Express 4.0 x16 | AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
* PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 |
|---|
Storage Devices| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. |
|---|
| SATA RAID | AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10 |
|---|
Onboard Audio| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|---|
Onboard LAN| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 be |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
Rear Panel Ports| Back I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector |
|---|
Software Feature| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|
| Software | ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- GameFirst
- HWiNFO
- Fan Xpert 4
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey |
|---|
Features| Features | Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers |
|---|
Packaging| Package Contents | Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
Documentation
1 x Quick start guide |
|---|
Additional Information| First Listed on Newegg | May 06, 2025 |
|---|
