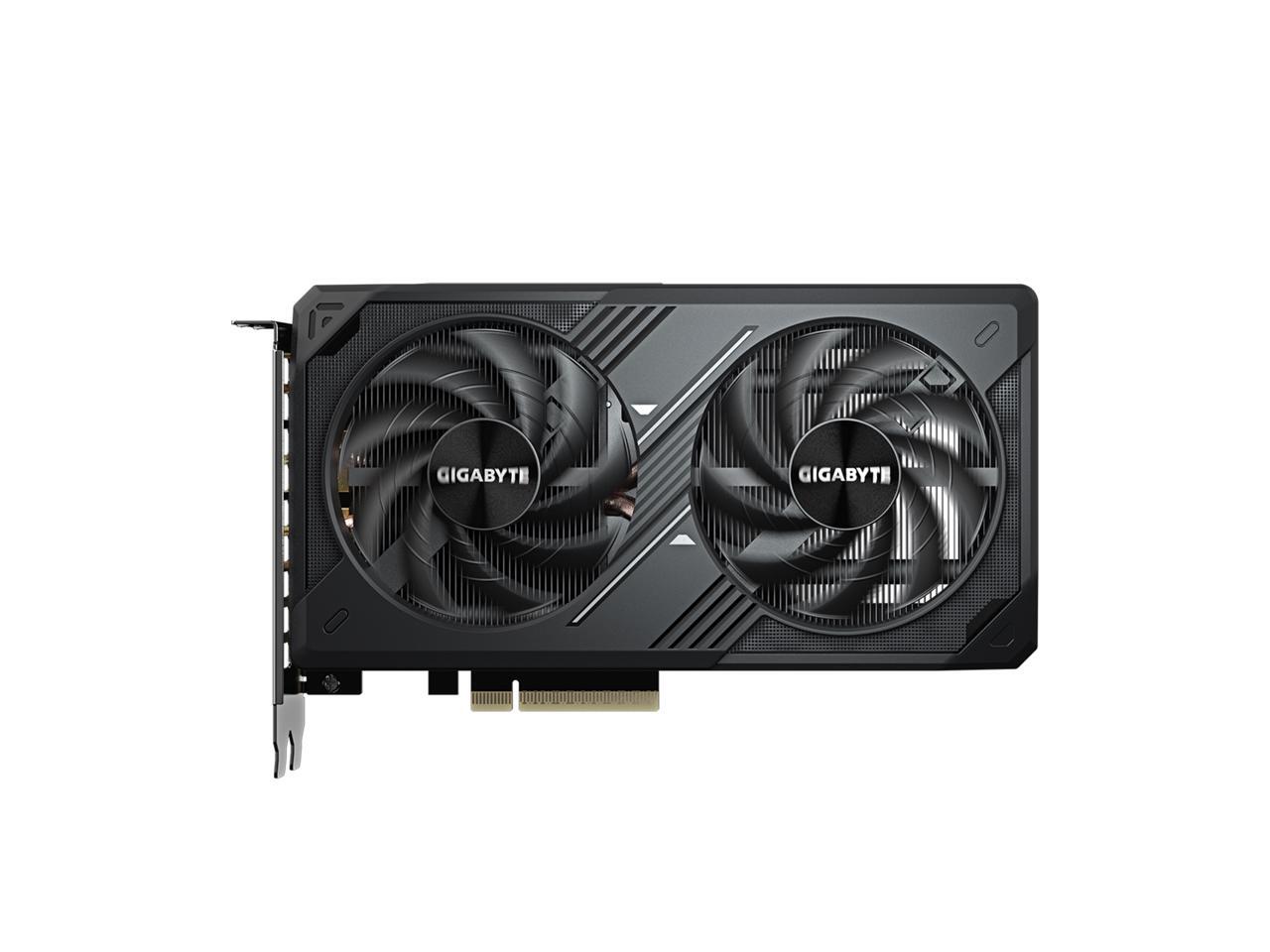

GeForce RTX™ 5060 WINDFORCE OC 8G
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5060
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade thermal conductive gel
- Reinforced structure
CORE CLOCK
2512 MHz (Reference card: 2497MHz)
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
ACTIVE COOLING DESIGN - HAWK FAN
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
REINFORCED STRUCTURE
The reinforced backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
ULTRA DURABLE
ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
POWER THROUGH THE GAME
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
