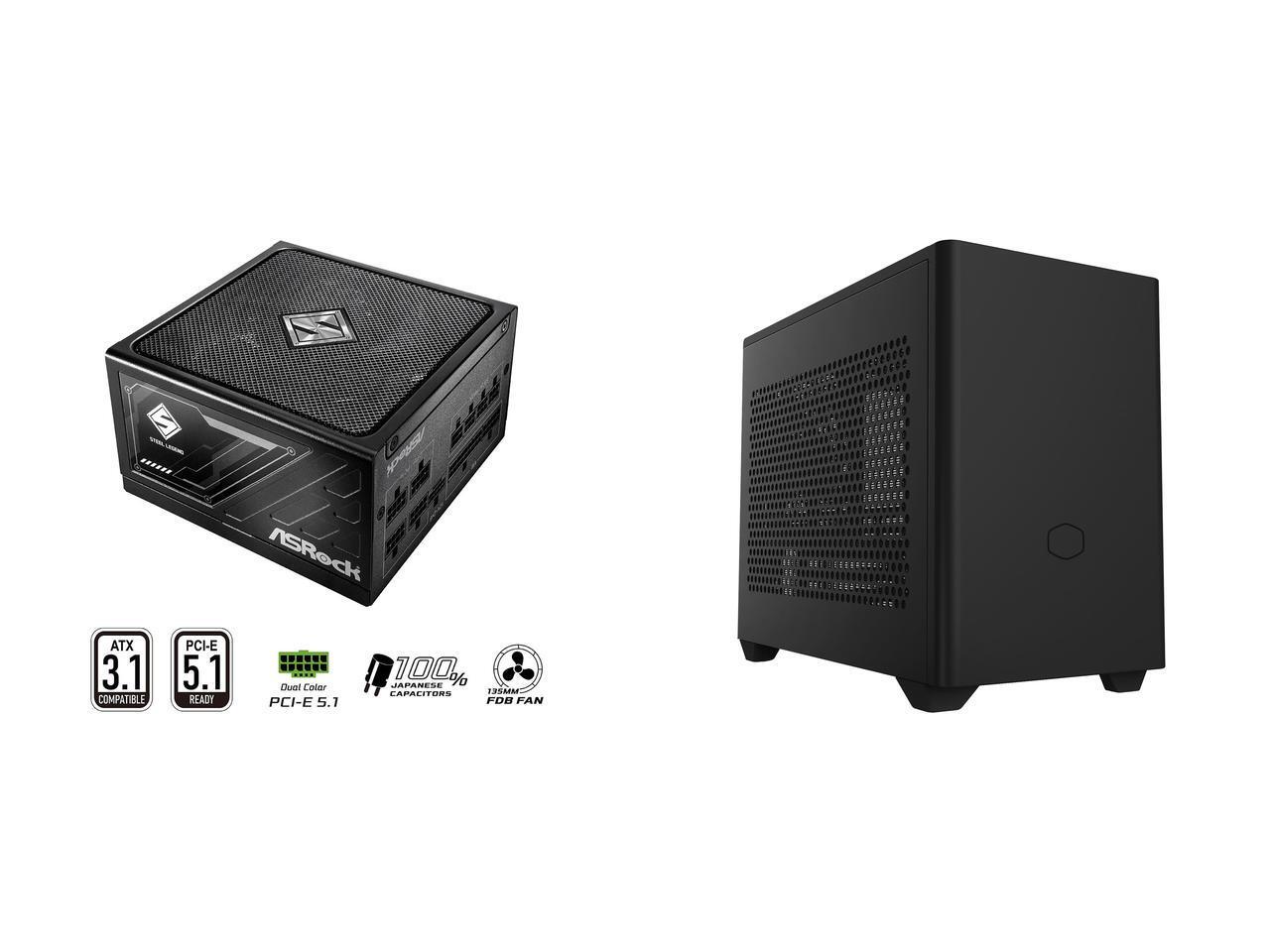

This Combo Includes 2 Items
SL-750G
GOLD 750W FULL MODULAR POWER SUPPLY
Native PCIe 12V-2x6 Cable
Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
iCOOL Intelligent Fan Control Mode
iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
80 PLUS & CYBENETICS CERTIFIED
The Steel Legend series power supply unit offers options of 1000W, 850W, 750W, and 650W, available in "Steel Black" and "Steel White" ideal for mainstream systems. Certified for 80 PLUS Gold efficiency and Cybenetics Platinum & Gold rating, along with LAMBDA A+/A acoustic certification, it ensures outstanding energy performance.
CYBENETICS LAMBDA A+
The Steel Legend series power operates at less than 20 dB of noise on average, earning the prestigious Cybenetics Lambda A+ certification.
This recognition underscores the Steel Legend series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.
135mm Fluid Dynamic Bearing Fan
The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.
Japanese Capacitors
105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels. ASRock offers an outstanding 10–Year warranty, guaranteeing long term reliable and peace of mind operation.
MasterBox NR200 mini case, from Cooler Master
Small Size, Big Features
This 18-liter case packs all of the features found in a core performance ATX chassis in a space less than half the volume. Take full advantage of your high-end processor and triple-slot graphics card thanks to open ventilation, multiple fan mounts, and generous clearance for water cooling. Easy-to-remove panels allow 360-degree access to the internals of your system for easy build and maintenance.
- Unrestricted Cooling Potential
- Triple-slot GPU support
- Easy, Tool-free access
- 360 Degree Accessibility
- Multiple motherboard support options
- Out-of-the-box Custom Cooling Support
- High quality materials
Unrestricted Cooling Potential
The NR200 can house up to 7 fans in total for every cooling configuration imaginable. Five panels are flanked with ventilation for unrestricted airflow. One 92mm and one 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can’t be held back.
Triple-slot GPU support
Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of high-end graphics cards. The rear ventilation contains PCI slots to allow for vertical GPU mounting to better showcase the graphics card (PCI riser cable sold separately)
Easy, Tool-free access
All external panels and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.
360 Degree Accessibility
Every panel and frame part of the NR200 frame can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.
High quality materials
Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditions.
Out-of-the-box Custom Cooling Support
Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful custom water-cooled builds inside a compact enclosure.
Multiple motherboard support options
Compatible with Mini-ITX and Mini DTX. The PSU can be front mounted for extra motherboard clearance with a maximum size of 244 x 226 mm.
Sickleflow PWM fans included
Newly optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
/11-119-407/801.png)
Learn more about the ASRock SL-750G
General| Brand | ASRock |
|---|
| Model | SL-750G |
|---|
Details| Color | Black |
|---|
| Type | ATX3.1 & PCIe5.1 |
|---|
| Maximum Power | 750 W |
|---|
| Fans | 135mm Striped Axial FDB Fan |
|---|
| Main Connector | 24Pin |
|---|
| PCI-Express Connector | 1 x 16-Pin, 3 x 6+2-Pin |
|---|
| SATA Power Connector | 9 |
|---|
| CrossFire | No |
|---|
| Max PSU Length | 150 mm |
|---|
| Modular | Full Modular |
|---|
| Efficiency | > 90% |
|---|
| Energy-Efficient | 80 PLUS GOLD Certified |
|---|
| PSU Noise Level | Cybenetics A+ |
|---|
| Over Voltage Protection | Yes |
|---|
| Overload Protection | Yes |
|---|
| Connectors | - 1 x 24 pin Motherboard Cable
- 2 x EPS 12V CPU connectors (4+4 pin)
- 1 x PCIe5.1 connectors (12+4 pin) Dual Color
- 2 x PCIe connectors (6+2 pin)
- 3 x 4-pin Peripheral
- 9 x SATA 5-pin |
|---|
Features| Features | 80 PLUS® GOLD Certified, Cybenetics PLATINUM and LAMBDA A+ Certified, ATX3.1 & PCIe5.1 Ready, Fully Modular Cable Design, Native 12V-2x6 Connector Dual Color Design, 100% Highly Reliable Japanese Capacitors, 135mm Striped Axial FDB Fan, iCool Intelligent Fan Control Mode, Built-in 5V BOOST function, 10-Year Warranty |
|---|
Output| +12V1 Max. Current | 62.5A |
|---|
| +12V3 Max. Current | 62.5A |
|---|
Connectors| 12V Power Connector | 2 x 4+4 pin EPS 12V, 1 x 12+4 pin PCIe 5.1, 2 x 6+2 pin PCIe |
|---|
| Peripheral Connector | 3 |
|---|
Fans| Fans Total Quantity | 1 |
|---|
| Top Fans Size | 135mm |
|---|
| Top Fans Bearing Type | Fluid Dynamic |
|---|
| Top Fans LED | none |
|---|
Protection| Short Circuit Protection | Yes |
|---|
| Under Voltage Protection | Yes |
|---|
| Over Current Protection | OCP |
|---|
Dimensions & Weight| Dimensions | 150mm x 150mm x 86mm |
|---|
Additional Information| First Listed on Newegg | November 26, 2024 |
|---|
