Combo: 4858179

double click image to zoom in

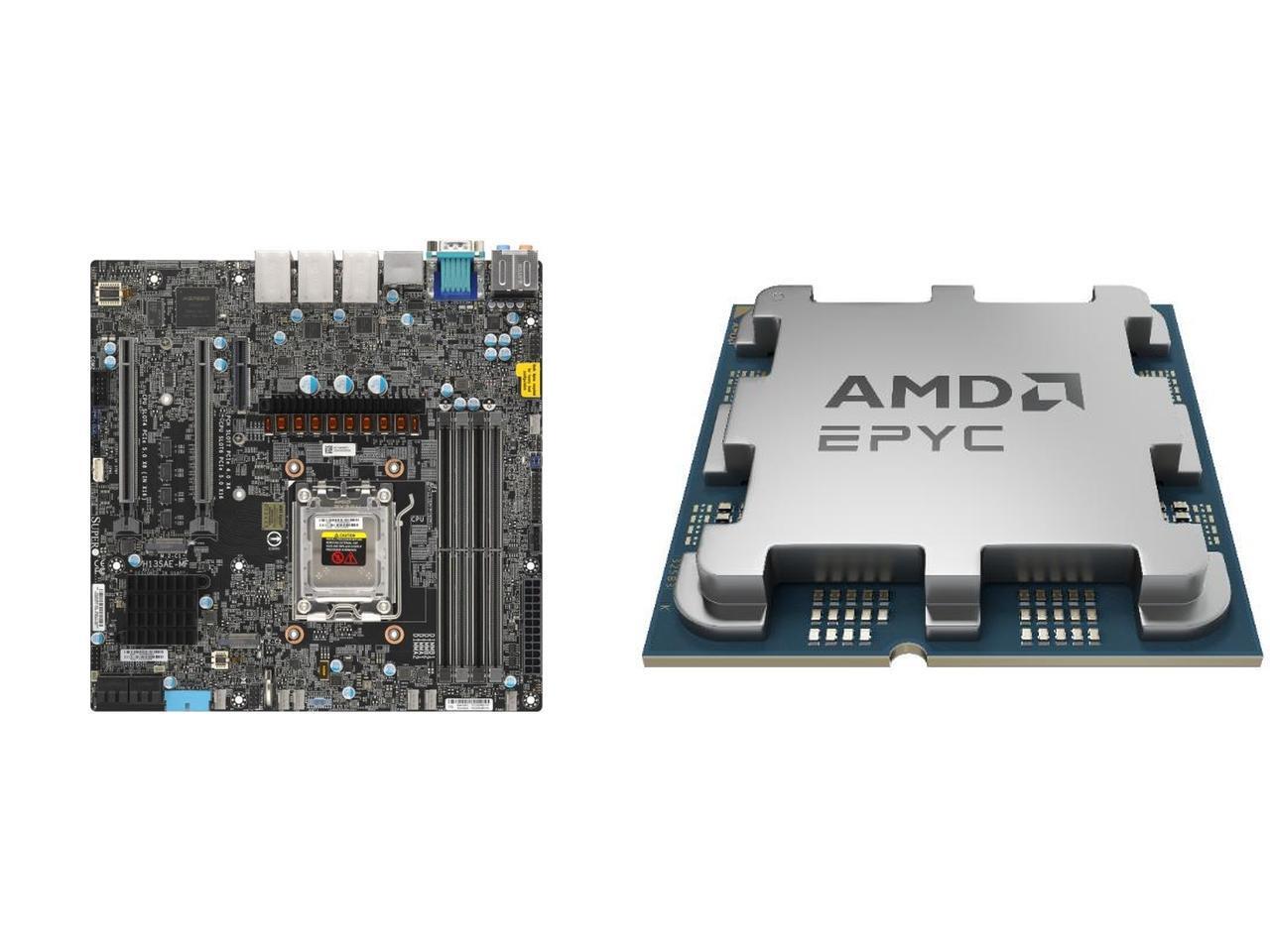

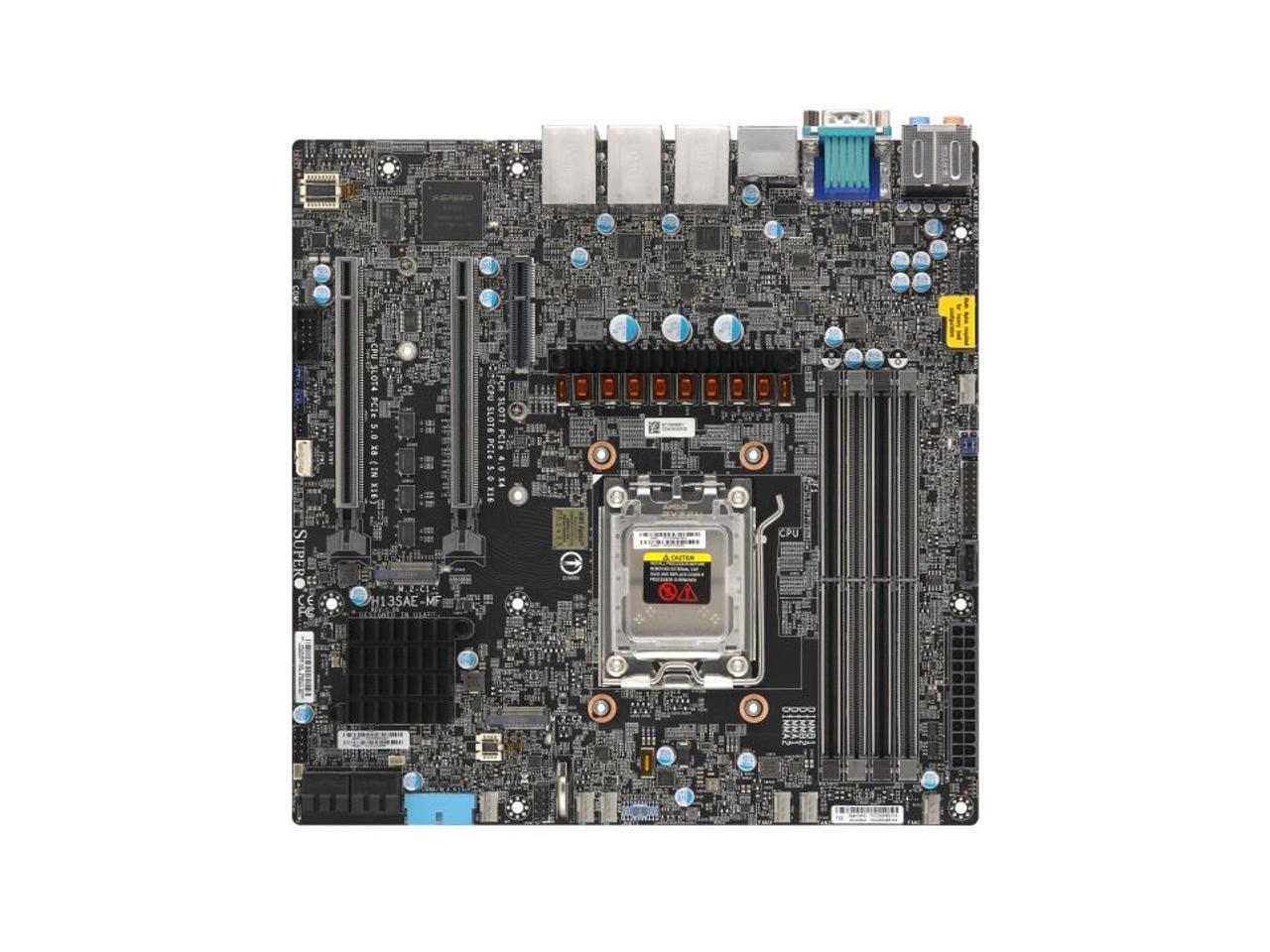

Motherboards - Server Processors - Server Combo - Supermicro MBD-H13SAE-MF-O Bundle with AMD PSE-GRA4245P-1555

Server Motherboards

Server CPU Processor

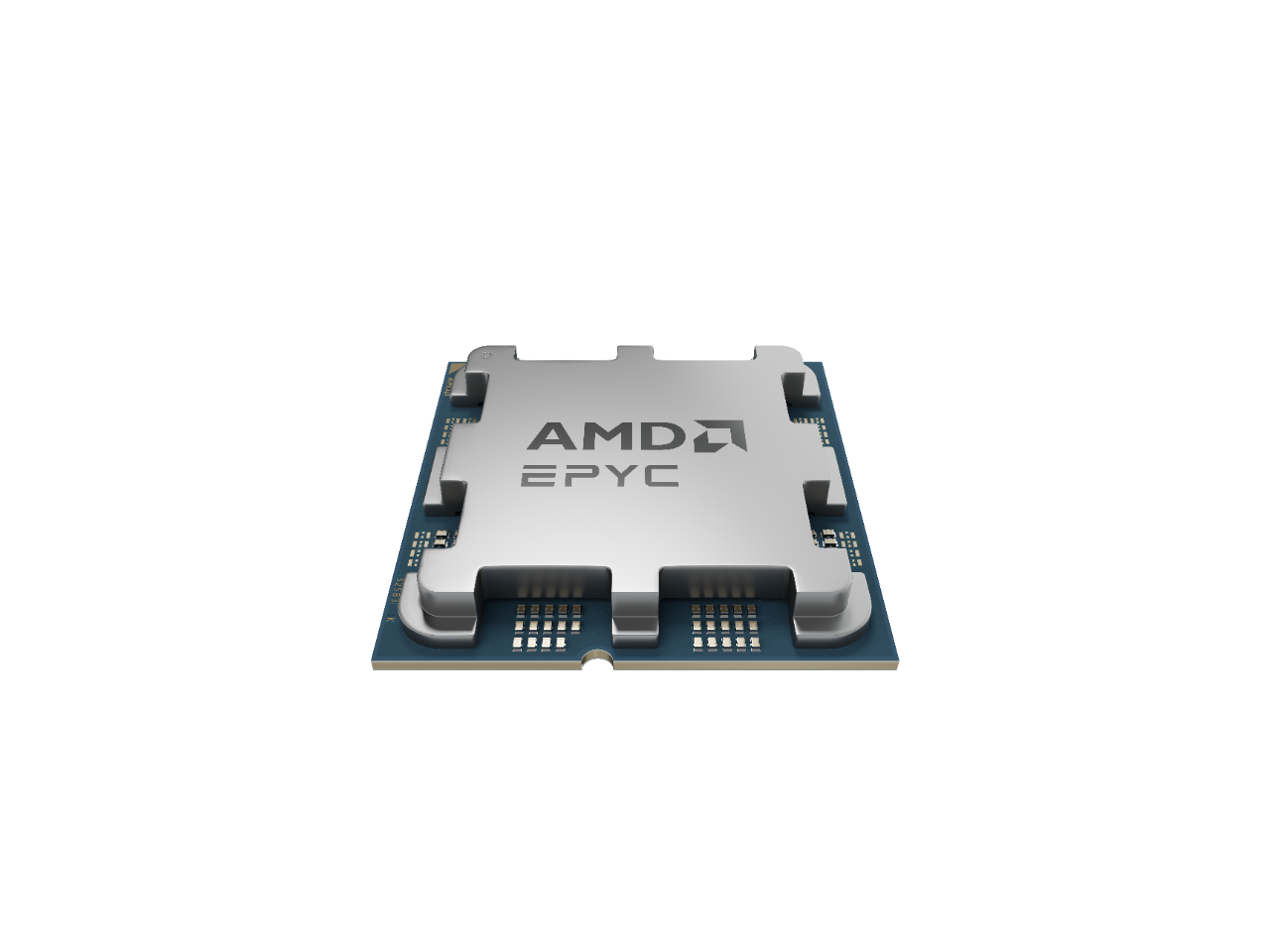

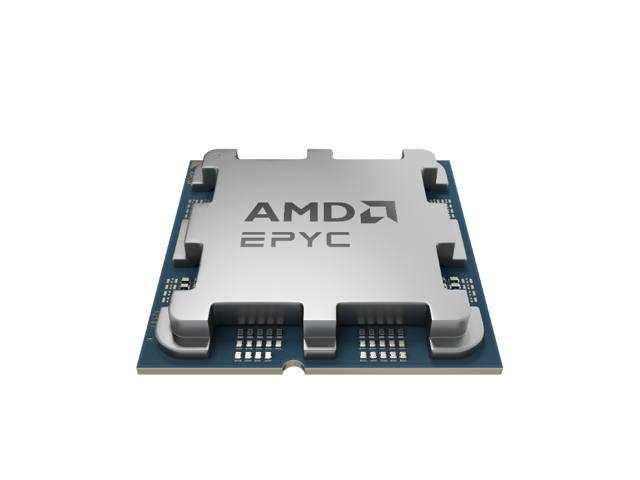

AMD EPYC™ 4005/4004 series, Ryzen™ 9000 & 8700G* & 7000 Series Desktop Processors
single socket LGA-1718 (socket AM5), up to 170W.
Up to 192GB ECC/non-ECC Unbuffered DIMM, DDR5-5200MHz, in 4 DIMM slots.
2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards(mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards)
1 PCIe 4.0 x4
2x 1Gbit LAN port(i210 AT); a dedicated Realtek 1Gbit LAN for IPMI.
Micro-ATX form factor
1 USB 3.2 Gen2x2 ports (type C, 20Gb, rear); 5 USB 3.2 Gen2 ports(2 Type C, rear, support DP 1.4 Alt mode)
1 HDMI 2.0 port, 1 DP 1.4a port

This Combo Includes 2 Items

Specs

Reviews


Best Seller Ranking	#24 in Server Motherboards

Model
Brand	SUPERMICRO
Model	MBD-H13SAE-MF-O

Supported CPU
CPU Socket Type	Single Socket LGA-1718 (Socket AM5) supported
CPU Type	AMD Ryzen 7000 Series
Number of Processor Support	1
CPU Features	CPU TDP supports Up to 170W TDP Up to 16 cores, 32 threads

Chipsets
North Bridge	AMD B650

Memory
Memory Slots	4 x DDR5 288-pin
Memory Standard	Memory Type: 5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC) DIMM Sizes: 8GB, 16GB, 24GB, 32GB, 48GB

Expansion Slots
PCI Express 5.0 x16	2 PCIe 5.0 x16 slots (16/NA or 8/8)
PCI Express x4	1 PCIe 4.0 x4

Storage Devices
SATA	4 x SATA 6.0Gb/s
SATA RAID	0/1/10
M.2	M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1 Form Factor: 2280/22110 Key: M-Key

Onboard Video
Onboard Video Chipset	Aspeed AST2600

Onboard Audio
Audio Chipset	ALC 888S HD Audio

Onboard LAN
LAN Chipset	Dual LAN with Intel i210 Gigabit Ethernet Controller Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI
LAN Speed	10/100/1000Mbps
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	USB 1 USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb) 5 USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode) Video Output 1 HDMI 2.0 port(s), 1 DP 1.4a port(s), 2 rear type C port(s) DP 1.4 Alt mode Serial Port 1 COM Port(s) (1 header) TPM 1 TPM Header

Onboard Ports
Onboard USB	2 USB 3.2 Gen1 port(s) (2 headers 5Gb) 1 USB 2 port(s) (1 via header 2 ports by a header)

Dimensions
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"

Additional Information
First Listed on Newegg	November 21, 2023
